Enco Mill Drill Machines ZX7045 Applications
- General precision milling and drilling operations.
- Machine shops and industrial manufacturing facilities.
- Tool rooms and maintenance departments.
- Prototype development and custom machining.
- Fixture and tooling production.
- Educational and vocational machine training laboratories.
- Metal fabrication and repair operations.
- Machining steel, cast iron, aluminum, brass, bronze, and engineered plastics.

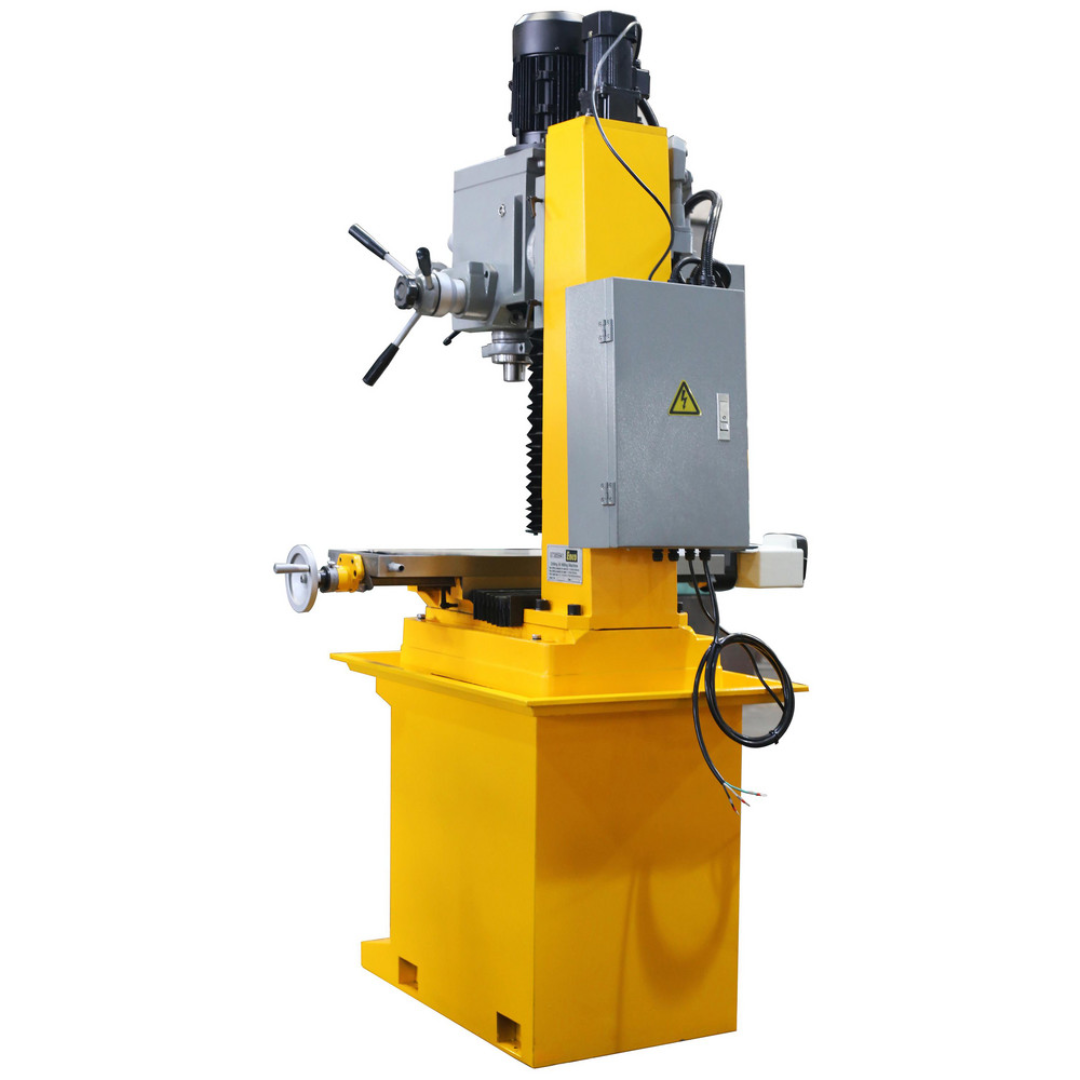

The Enco Mill Drill Machines ZX7045 is an excellent solution for shops requiring a versatile machine capable of precision drilling, milling, facing, boring, and light production machining from a single platform.
Enco Mill Drill Machines ZX7045 Specifications
| Model | ZX7045 |
|---|---|
| Machine Type | Mill Drill Combination |
| Motor Power | 2 HP |
| Voltage | 220V |
| Phase | Single Phase |
| Spindle Taper | R8 |
| Spindle Speed Range | 90 – 1,970 RPM |
| Number of Spindle Speeds | 6 |

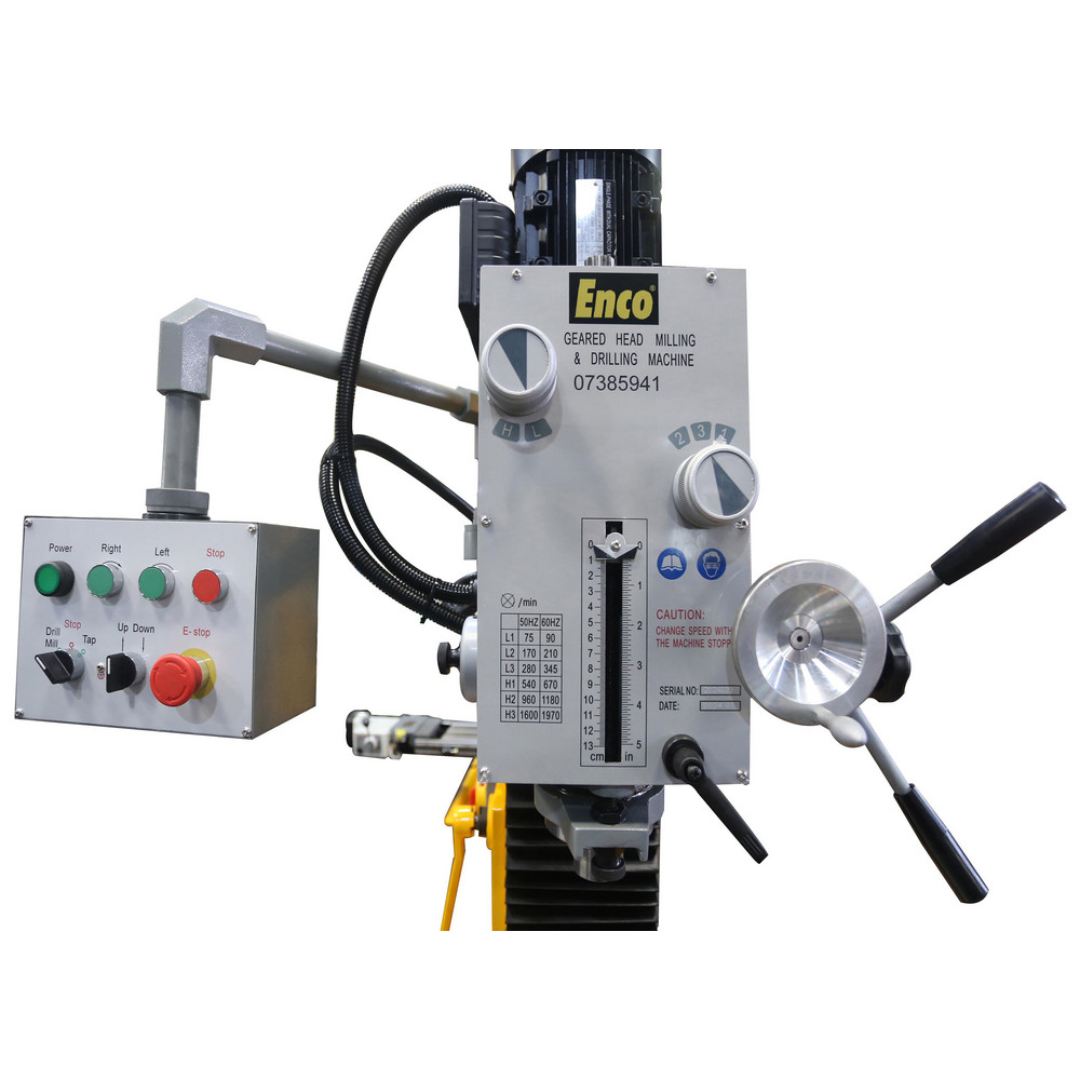

| Speed Control | Single Speed Gear Selection |
| Drilling Capacity (Steel) | 1-1/4" |
| Drilling Capacity (Cast Iron) | 1-3/4" |
| End Milling Capacity | 1.250" |
| Face Milling Capacity | 3.125" |
| Spindle Travel | 5" |
| Maximum Spindle to Table Distance | 18" |
| Maximum Spindle to Column Distance | 10" |
| Head Tilt | 45° Left / 45° Right |
| Head Swivel | 45° |
| Column Type | Square Column |
| Longitudinal Table Travel | 20" |
| Cross Table Travel | 7-7/8" |
| Table Size | 31-1/2" × 9-1/2" |
| Number of T-Slots | 3 |
| T-Slot Size | 1/2" |
| Quill Diameter | 3" |
| Overall Dimensions (L × D × H) | 50" × 34" × 76" |
| Country of Origin | China |
| UNSPSC Code | 23241500 |
Enco Mill Drill Machines ZX7045 Performance & Construction
- Powerful 2 HP motor delivers dependable performance for demanding drilling and milling operations.

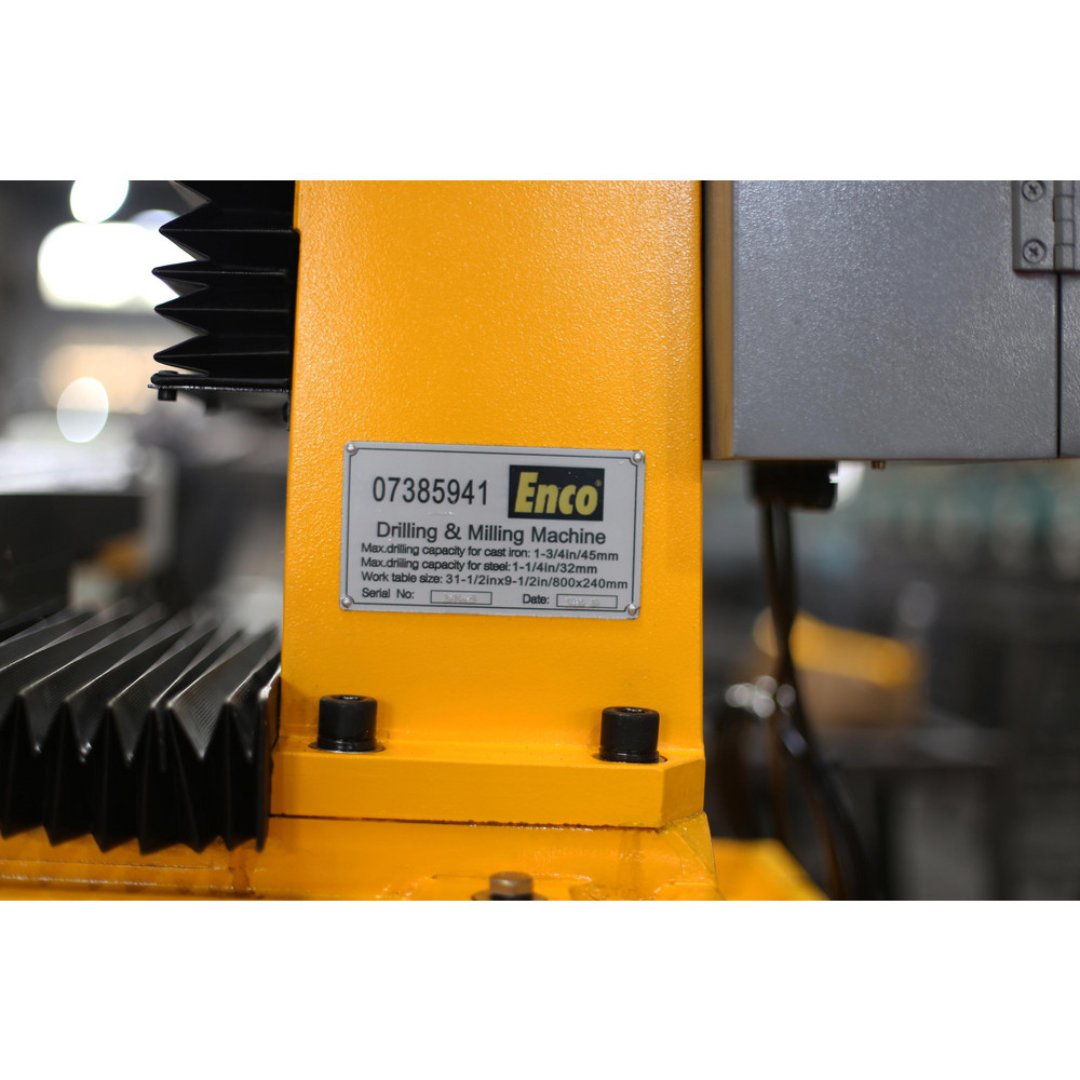

- Rigid square column design provides superior head stability and improved machining accuracy compared to round-column machines.
- Industry-standard R8 spindle taper accepts a wide range of milling cutters, drill chucks, collets, and tooling.
- Six spindle speeds from 90 to 1,970 RPM allow proper cutting speeds for various materials and machining applications.
- 45° left and right head tilt enables angular drilling, bevel machining, and complex milling operations.
- 45° swiveling head provides additional setup flexibility for specialized machining tasks.

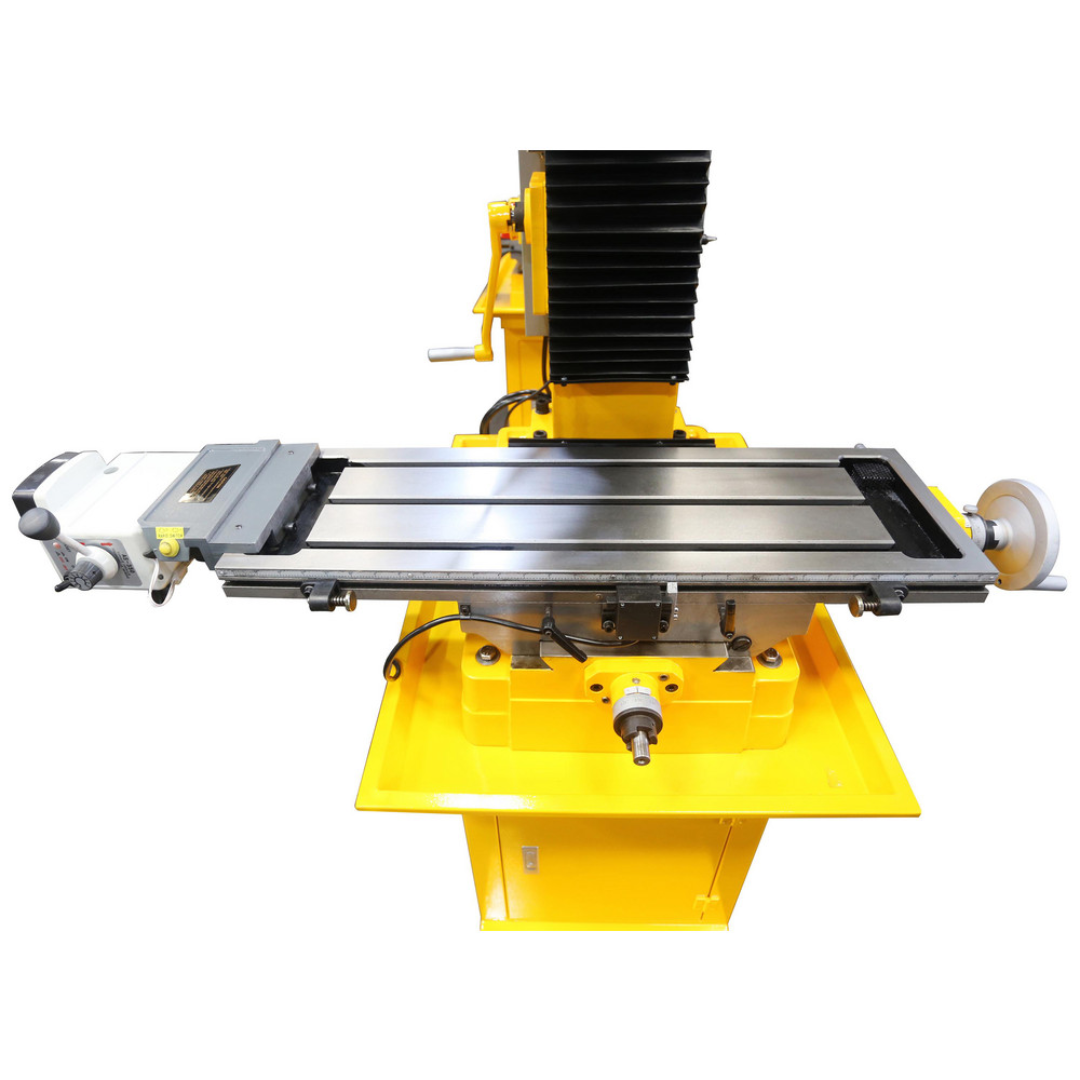

- Large 31-1/2" × 9-1/2" precision table accommodates larger workpieces while providing stable support during machining.

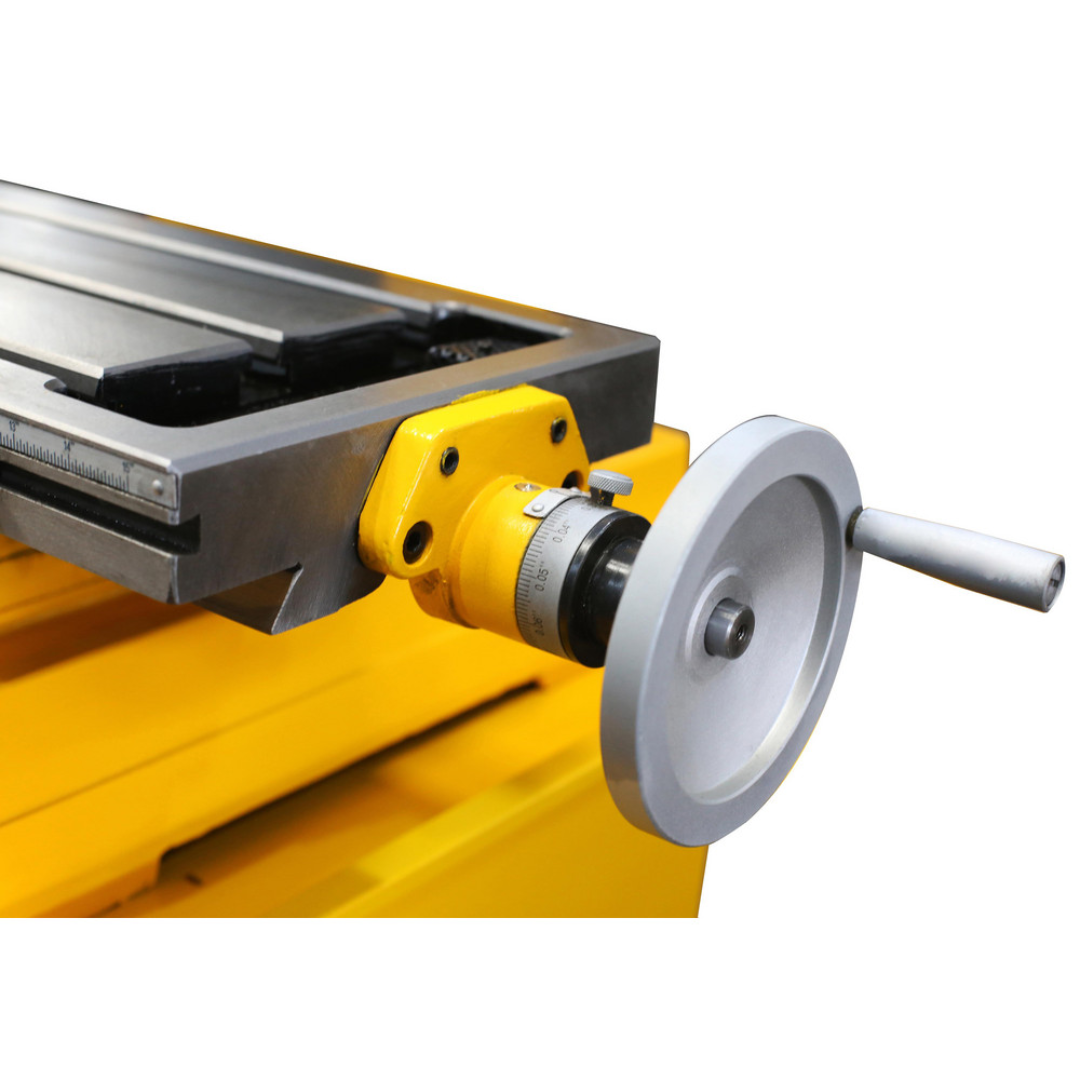

- 20" longitudinal travel and 7-7/8" cross travel offer generous work envelope for machining larger components.
- 5" quill travel supports deep drilling operations with smooth feed control.
- Capable of drilling up to 1-1/4" in steel and 1-3/4" in cast iron, making it suitable for a broad range of industrial applications.
- 3.125" face milling capacity and 1.250" end milling capacity provide excellent versatility for machining flat surfaces, slots, and profiles.
- Heavy-duty cast iron construction minimizes vibration while improving surface finish and machining precision.
Why Choose the Enco Mill Drill Machines ZX7045
- Combines drilling and milling capabilities in one versatile machine.
- Rigid square column design enhances machining accuracy.
- Powerful 2 HP motor handles demanding machining applications.
- Industry-standard R8 spindle accepts widely available tooling.
- Six-speed gearbox provides optimal spindle speeds for various materials.
- Tilting and swiveling head expands machining flexibility.
- Large precision table and generous travel accommodate a wide range of workpieces.
- Ideal for machine shops, fabrication facilities, maintenance departments, and educational environments.
The Enco Mill Drill Machines ZX7045 delivers professional-grade drilling and milling performance in a rugged combination machine. With its rigid square column, powerful 2 HP motor, R8 spindle, six-speed gearbox, generous table travel, and precision machining capabilities, it offers an outstanding solution for shops seeking reliable, versatile, and accurate metalworking equipment.
