JLT #717C-TDC Triple Door Clamp Applications
- High-volume cabinet door production facilities
- Simultaneous clamping of multiple stile and rail cabinet doors
- Woodworking shops producing MDF, HDF, and solid wood doors
- Production environments requiring maximum throughput and precision
- Manufacturers optimizing workflow with multi-door clamping systems
Engineered for shops looking to significantly increase output with triple-door clamping capability.
JLT #717C-TDC Triple Door Clamp Specifications
| Model | #717C-TDC |
|---|---|
| Overall Capacity | 38″ × 97″ |
| Clamp Configuration | (4) Vertical Clamps & (1) Horizontal Clamp (30 Sq. In Cylinder) |
| Squaring Sections | (3) Independent Squaring Sections |
| Working Angle | 60° Vertical Angle |
| Operation Type | Single Lever Valve Air Activation |
| Machine Footprint | 116″ L × 70″ H × 44″ W |
JLT #717C-TDC Triple Door Clamp Performance & Construction
- Triple-door clamping capability allows simultaneous processing of multiple cabinet doors for maximum efficiency.
- Production output up to 275+ doors per day supports high-demand manufacturing environments.

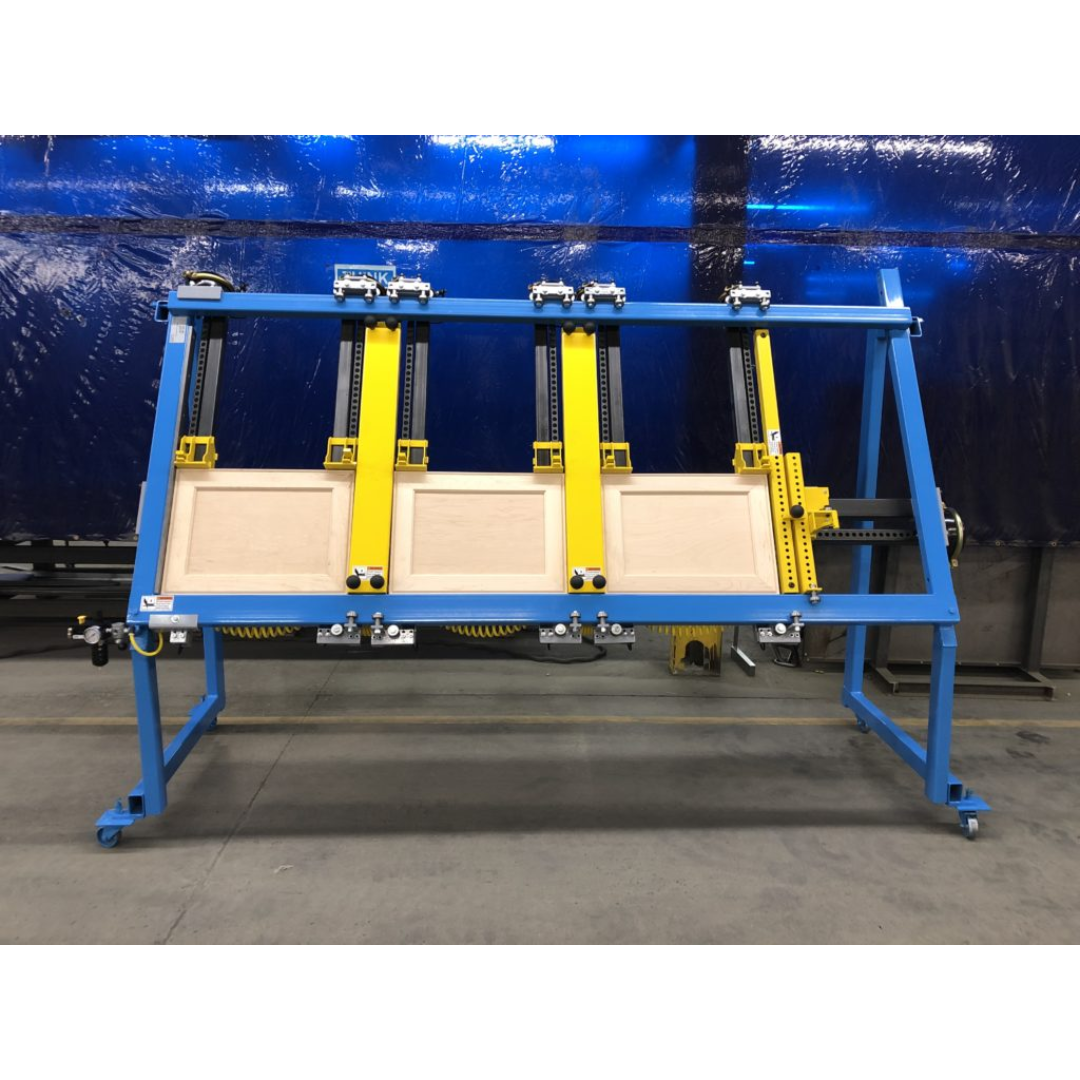

- (3) independent squaring sections enable precise clamping and squaring of multiple doors at once.
- Single-motion cross clamp adjustment speeds up changeovers and reduces setup time.
- Single lever air activation provides consistent clamping pressure with simple operation.
- Large capacity frame accommodates a wide variety of stile and rail door sizes.
- Clamp multiple doors with vertical center rail for efficient side-by-side door production.
- 100% heavy-duty steel construction ensures durability in rigorous industrial environments.
- 60-degree working angle improves ergonomics and enhances glue joint alignment.
- Rear-mounted cylinders increase operator workspace and accessibility.

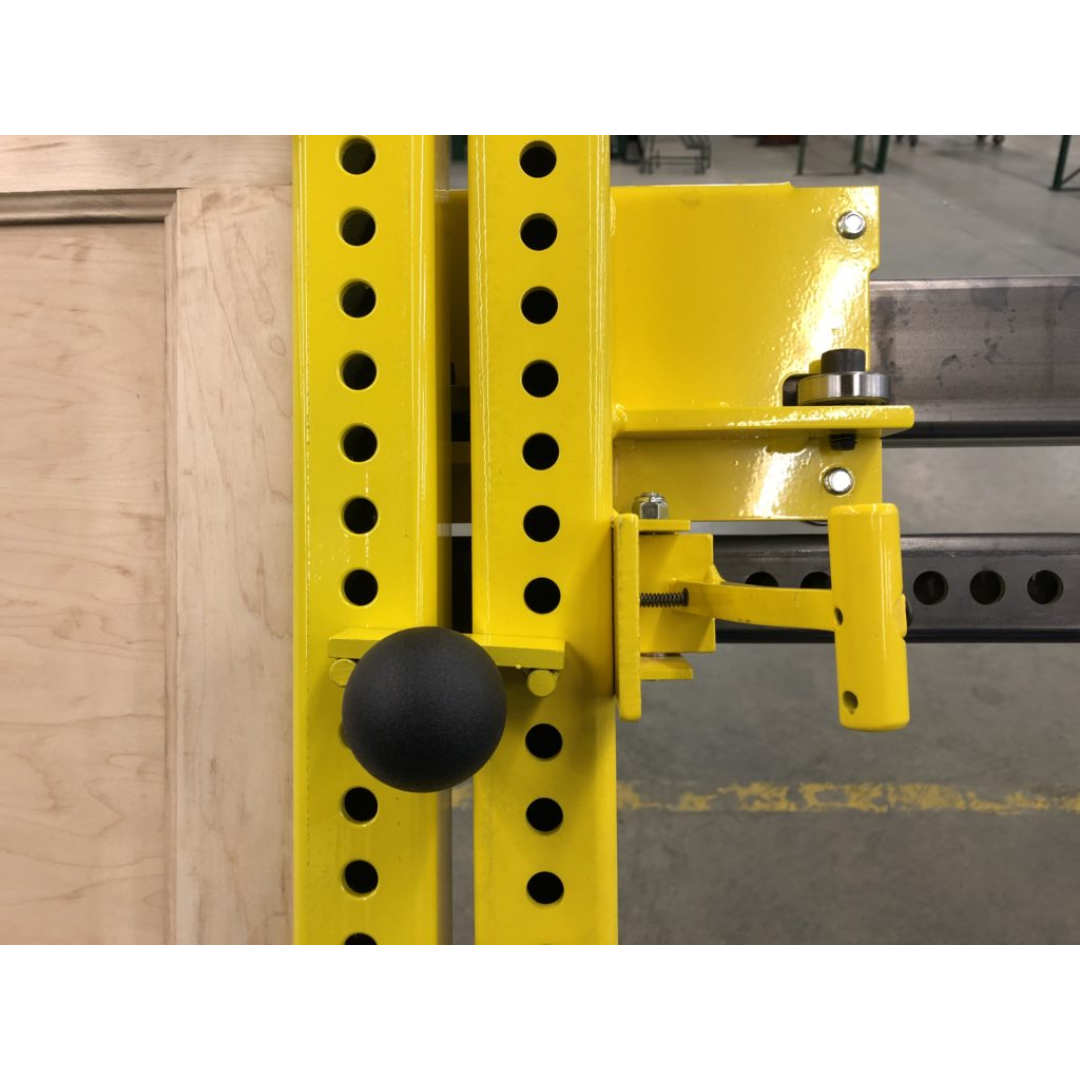

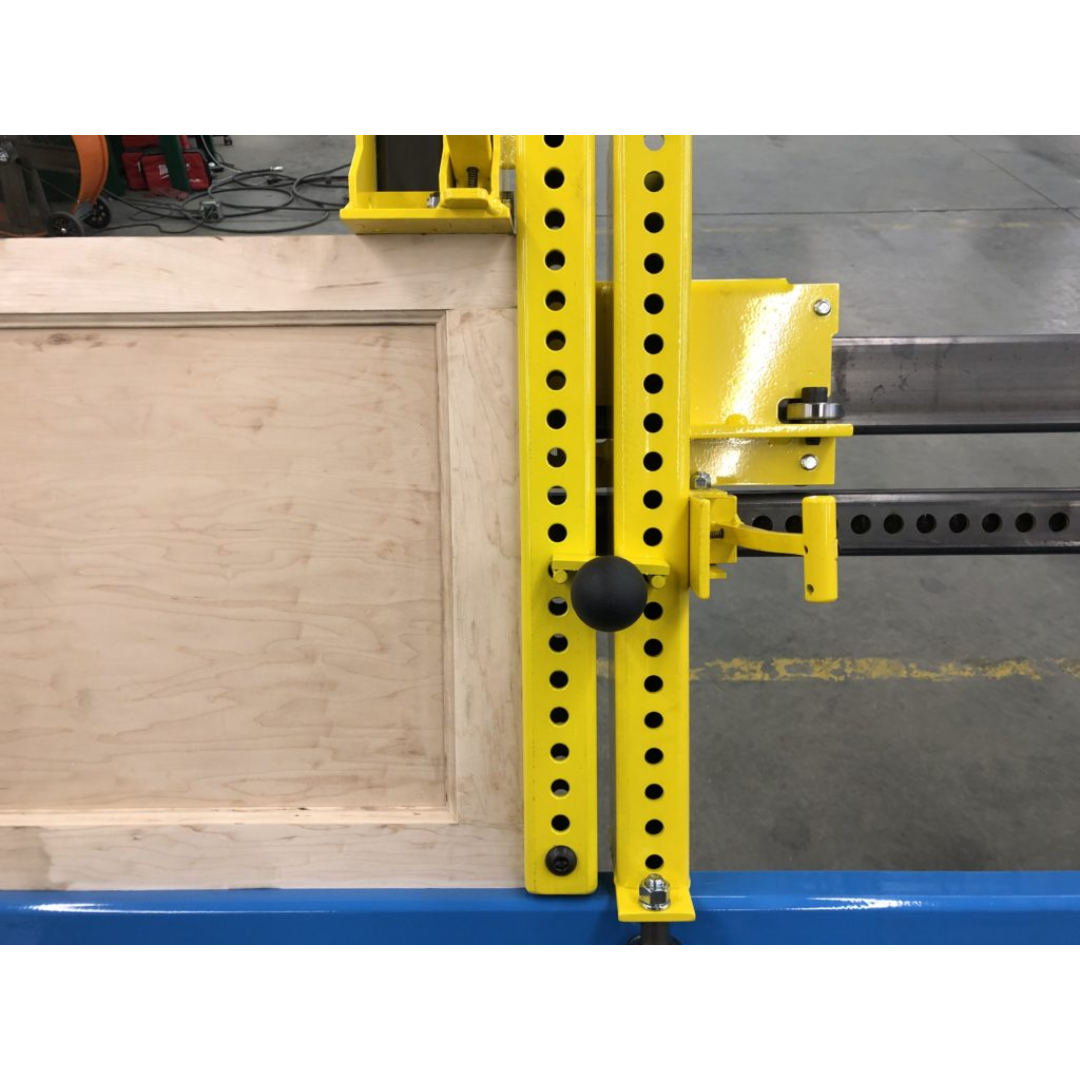

- Intuitive pin system allows quick, accurate setup and repeatable positioning.

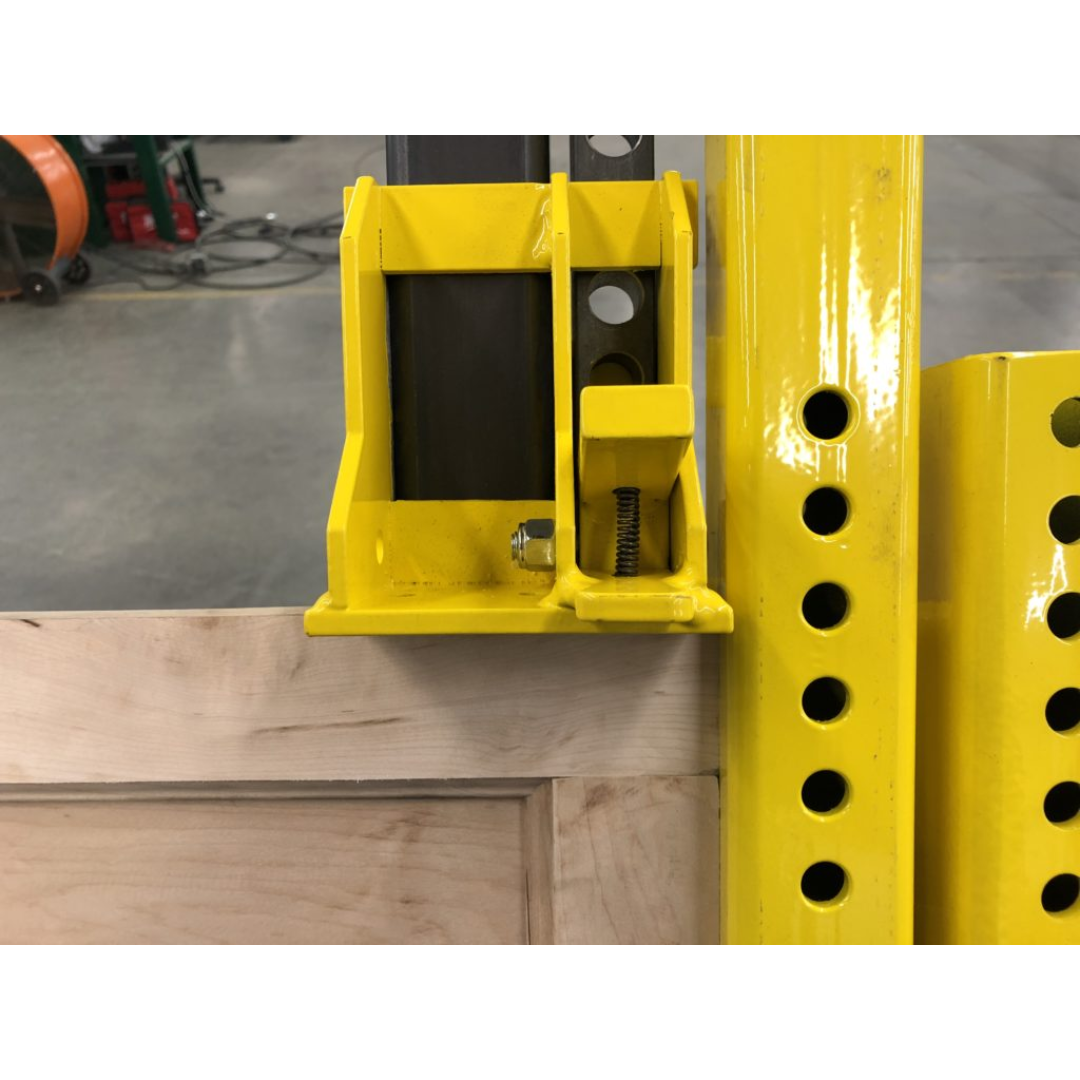

- Redesigned jaws with thumb plate improve efficiency and ease of use.
- Thicker push bars reduce wear and extend machine lifespan.
Why Choose the JLT #717C-TDC Triple Door Clamp
- Maximize production with triple-door clamping capability.
- Achieve output of 275+ cabinet doors per day.
- Reduce setup time with fast, intuitive adjustment systems.
- Ensure consistent, precise squaring across multiple doors.
- Built for long-term durability in high-volume production environments.
The JLT #717C-TDC Triple Door Clamp is the ultimate solution for manufacturers seeking maximum productivity, precision, and efficiency in cabinet door assembly.
