JLT #717C-DDC Double Door Clamp Applications
- High-volume cabinet door and drawer front production
- Simultaneous clamping of multiple stile and rail doors
- Woodworking facilities producing MDF, HDF, and solid wood doors
- Interior door assembly using full-capacity clamp configuration
- Production environments requiring fast throughput and repeatable accuracy
Optimized for manufacturers looking to double production efficiency with dual-door clamping capability.
JLT #717C-DDC Double Door Clamp Specifications
| Model | #717C-DDC |
|---|---|
| Overall Capacity | 38″ × 97″ |

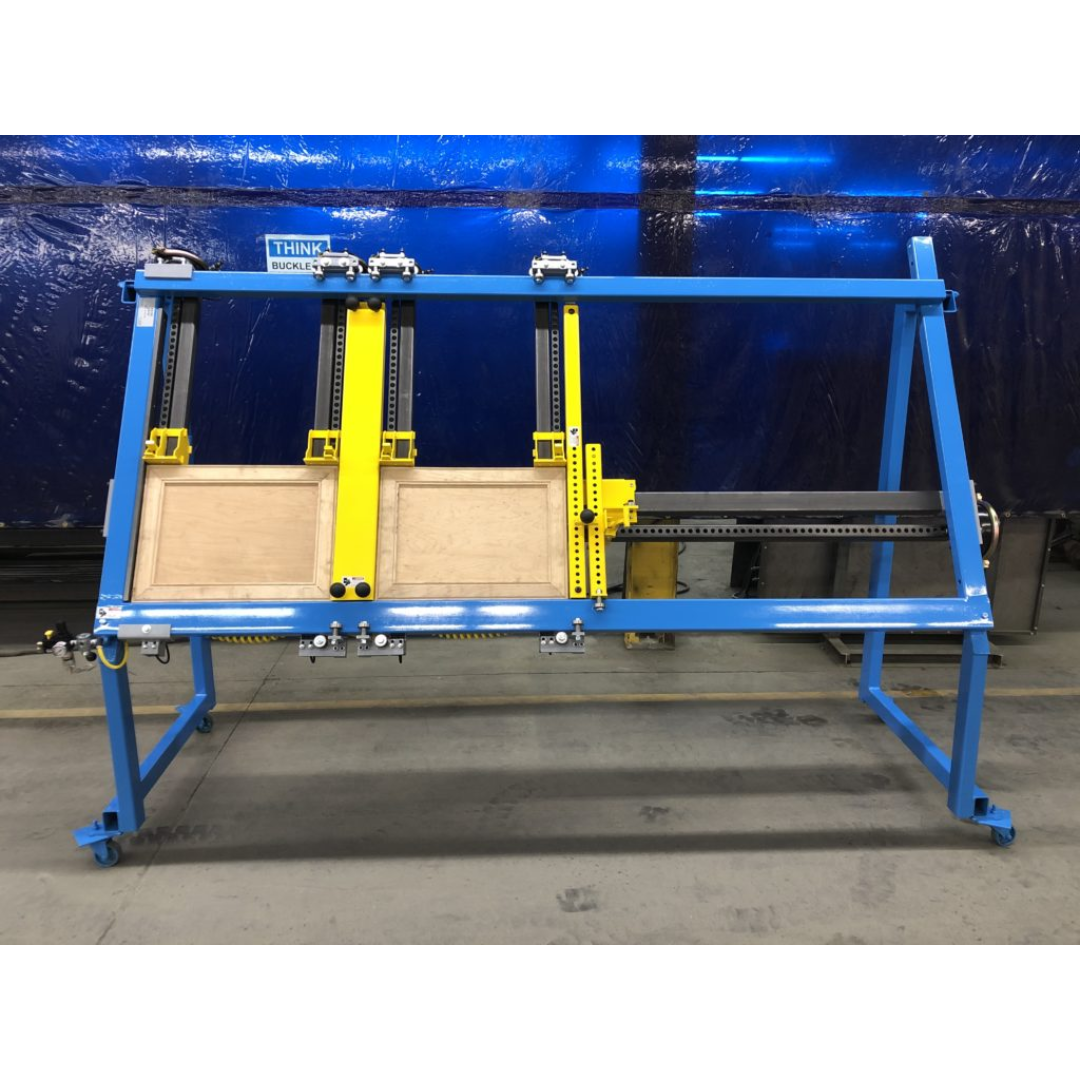

| Clamp Configuration | (4) Vertical Clamps & (1) Horizontal Clamp (30 Sq. In Cylinder) |
| Squaring Sections | (2) Independent Squaring Sections |
| Working Angle | 60° Vertical Angle |
| Operation Type | Single Lever Valve Air Activation |
| Machine Footprint | 116″ L × 70″ H × 44″ W |
JLT #717C-DDC Double Door Clamp Performance & Construction

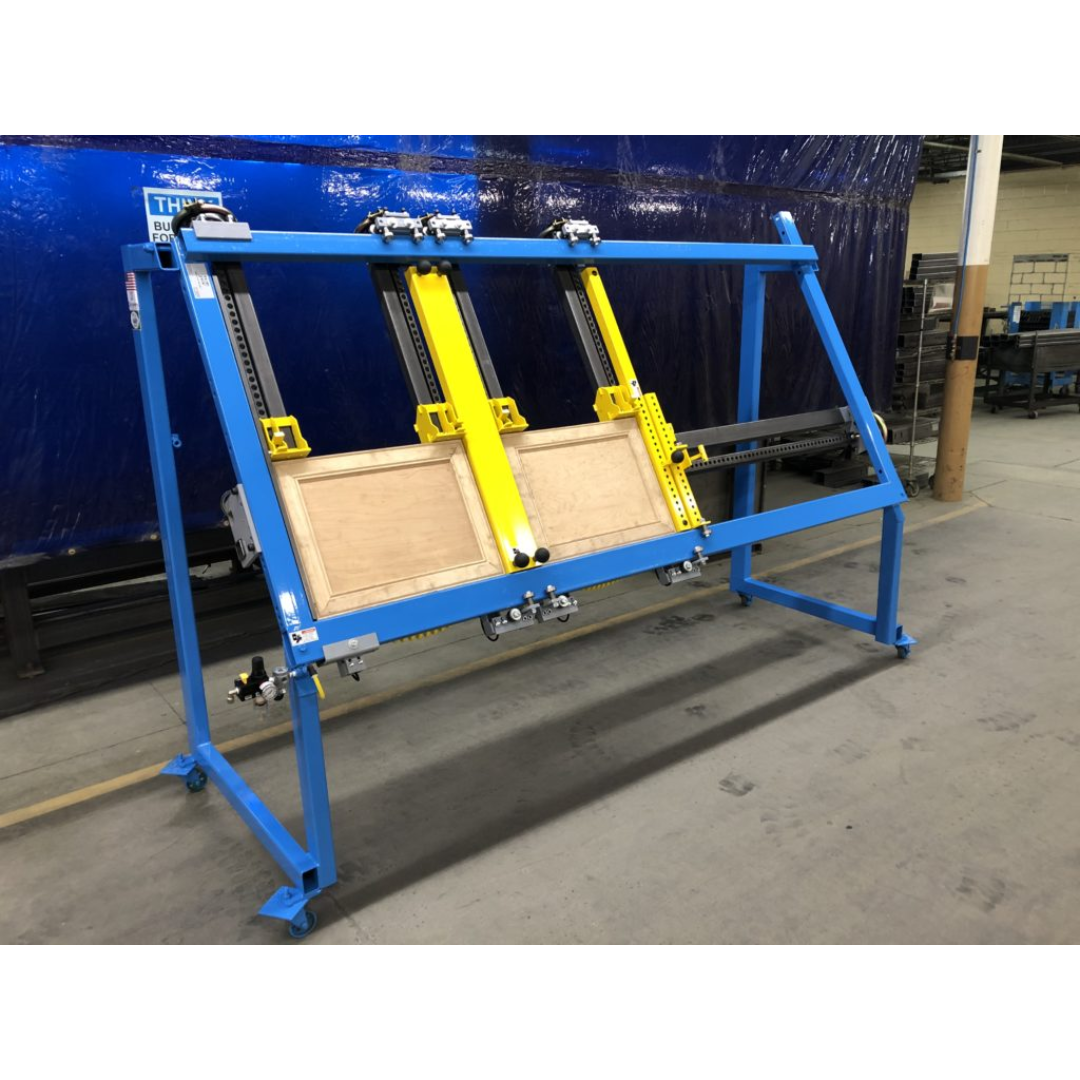

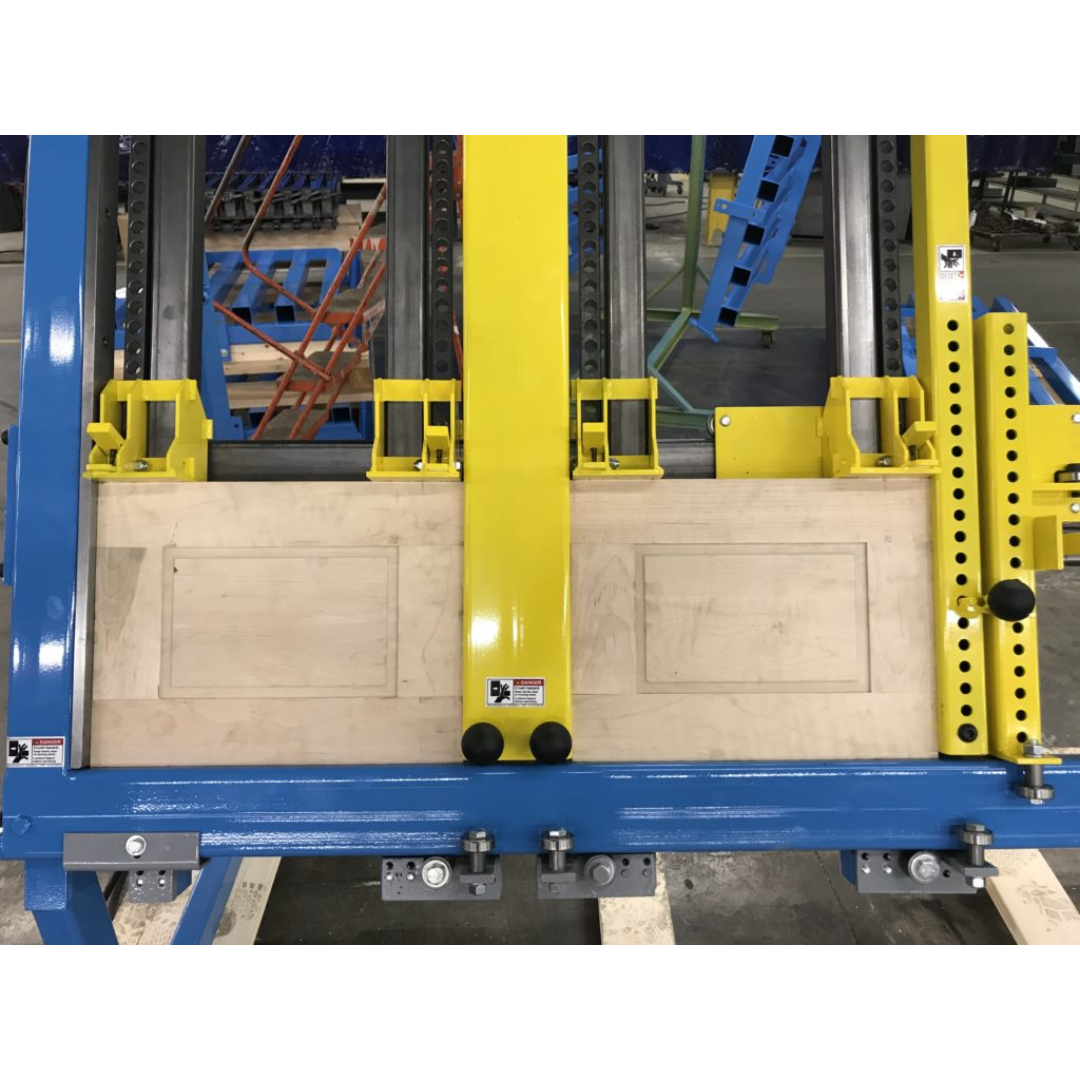

- Dual-door clamping capability allows two 38″ × 46″ cabinet doors to be processed side by side.
- Production output up to 225+ doors per day dramatically increases shop efficiency.
- (2) independent squaring sections enable simultaneous clamping and squaring of multiple doors.
- Single-motion cross clamp adjustment reduces setup time and improves workflow speed.
- Single lever air activation simplifies operation and ensures consistent clamping pressure.
- Removable center bar allows conversion to full-capacity clamping for larger interior doors.
- Large capacity frame supports a wide variety of stile and rail door sizes.
- 100% heavy-duty steel construction ensures long-term durability in demanding environments.
- 60-degree working angle improves ergonomics and enhances glue joint alignment.
- Rear-mounted cylinders provide additional operator space and improved accessibility.

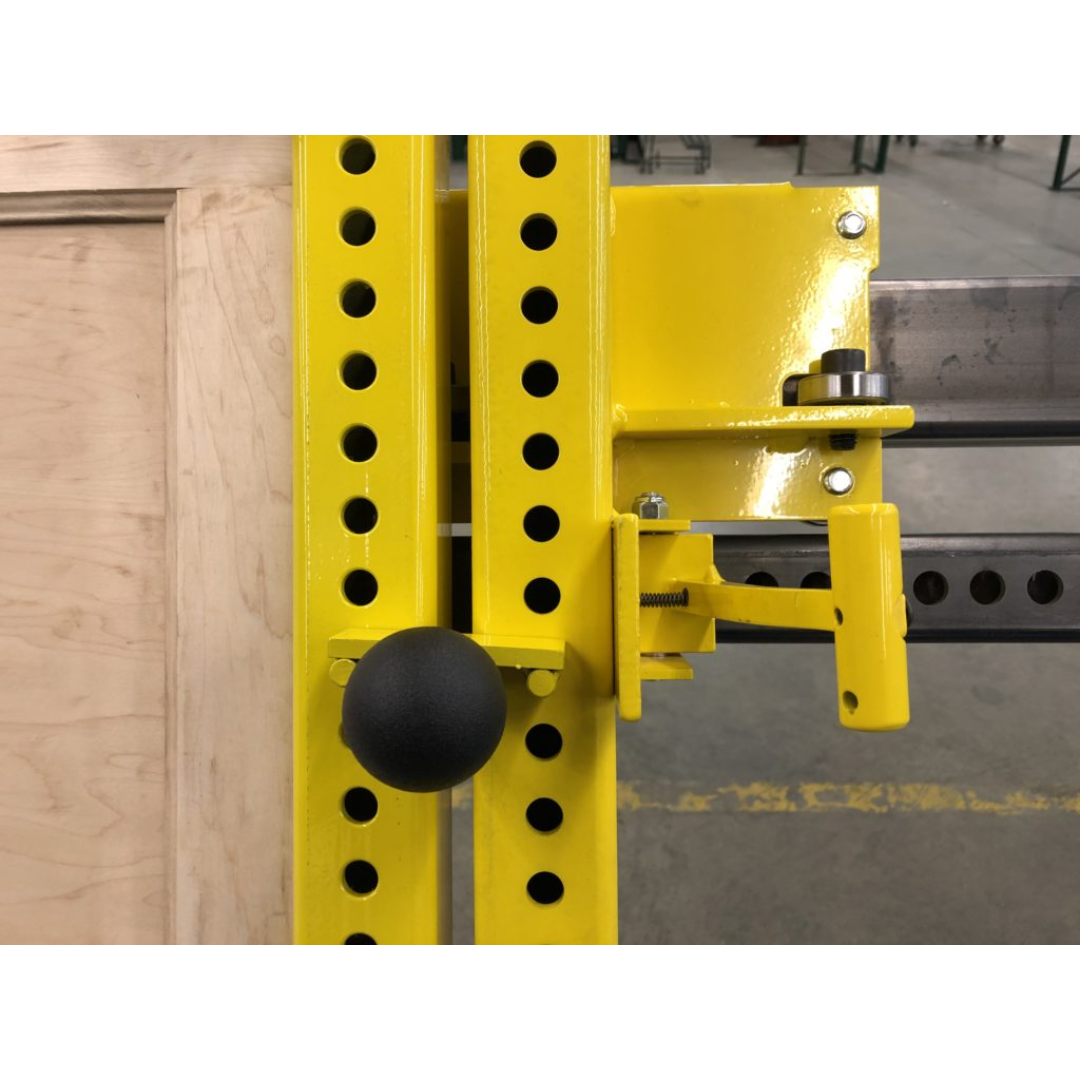

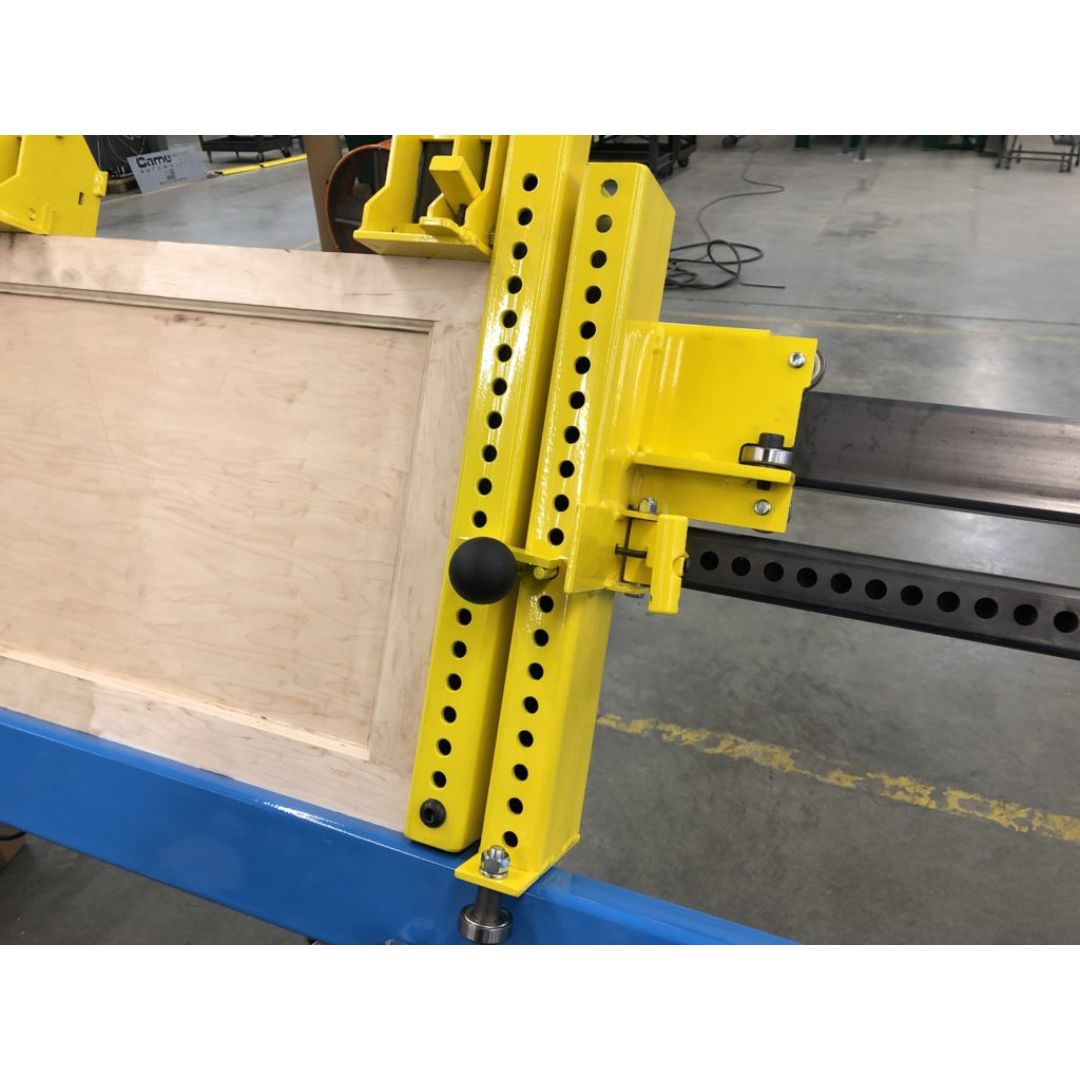

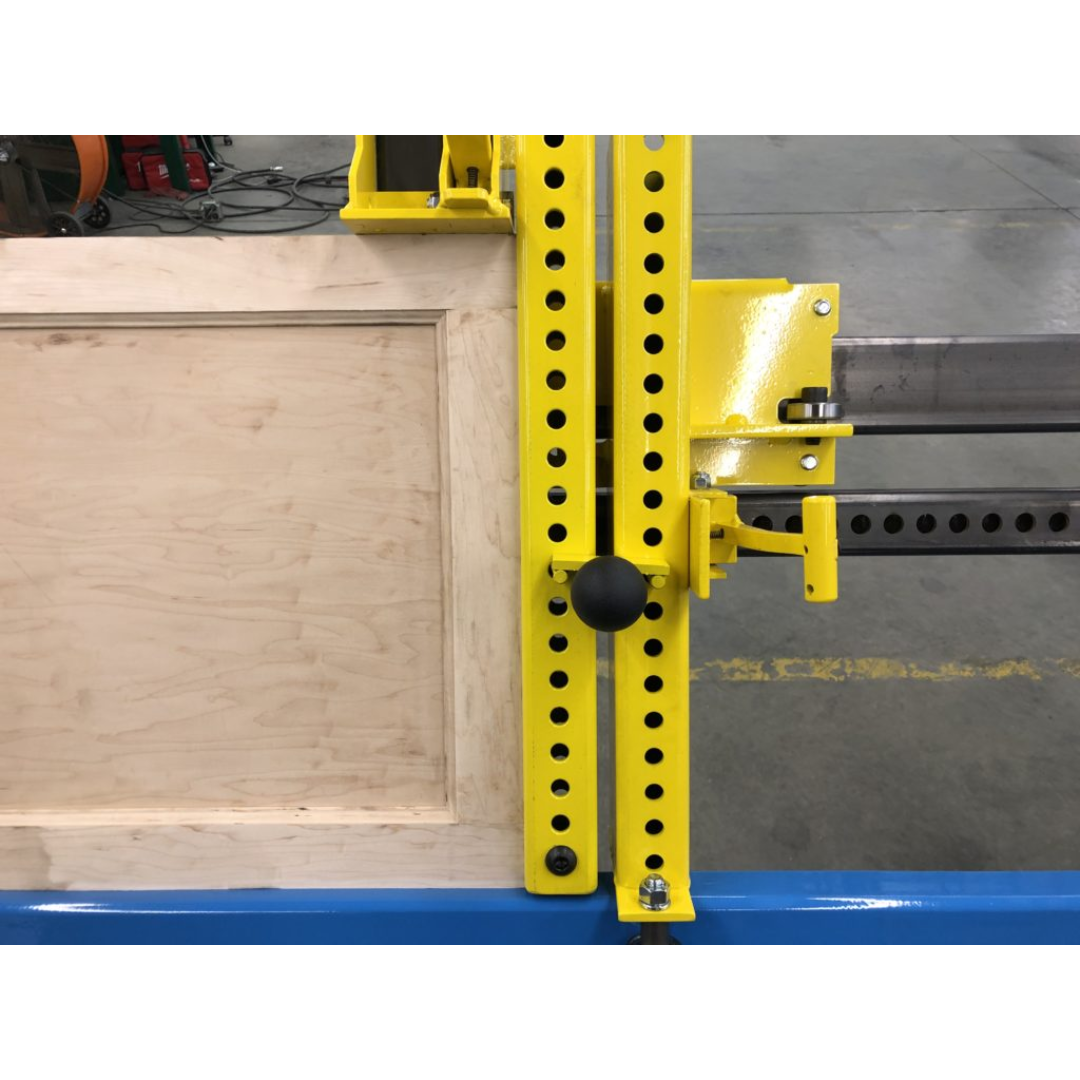

- Intuitive pin system enables fast, accurate setup and changeovers.

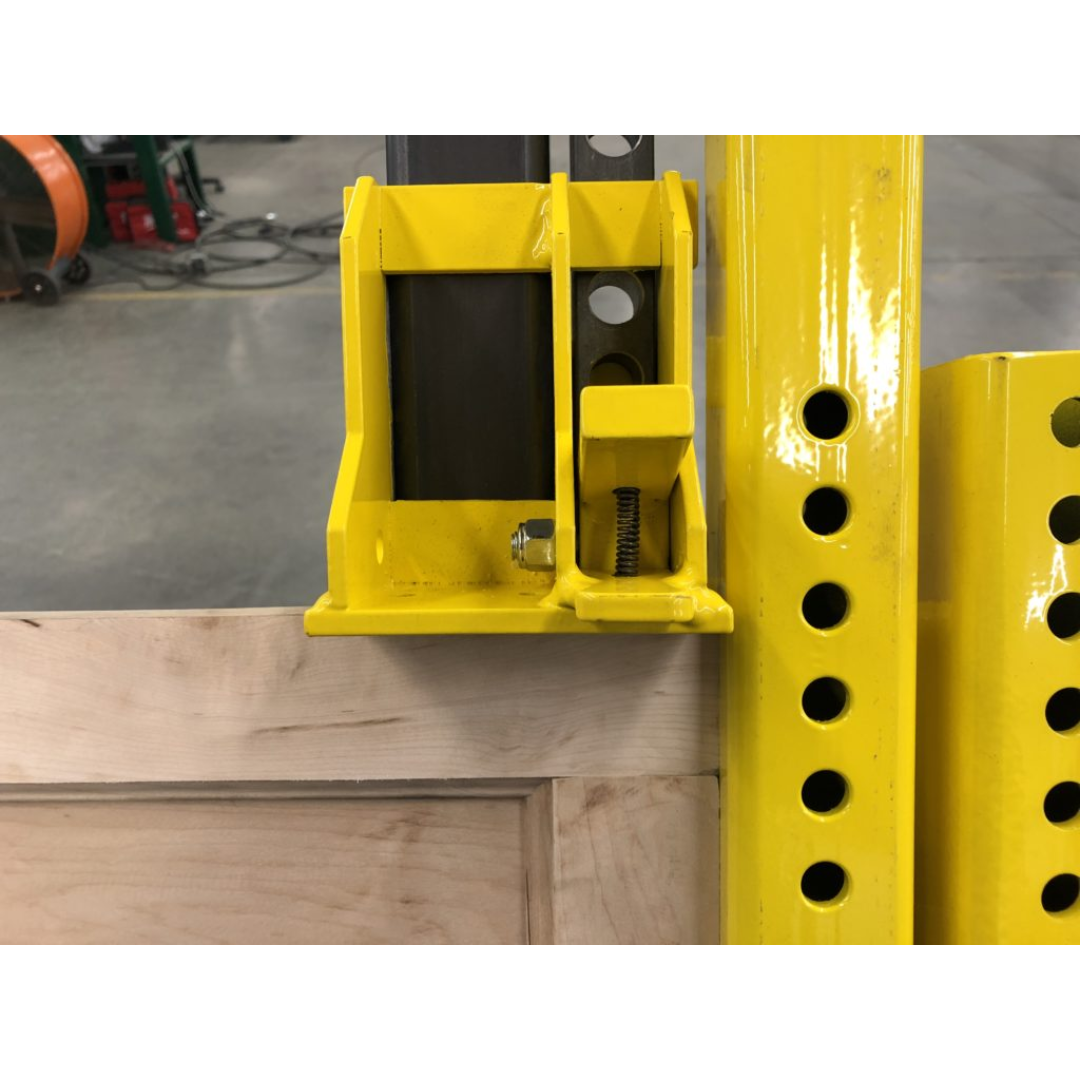

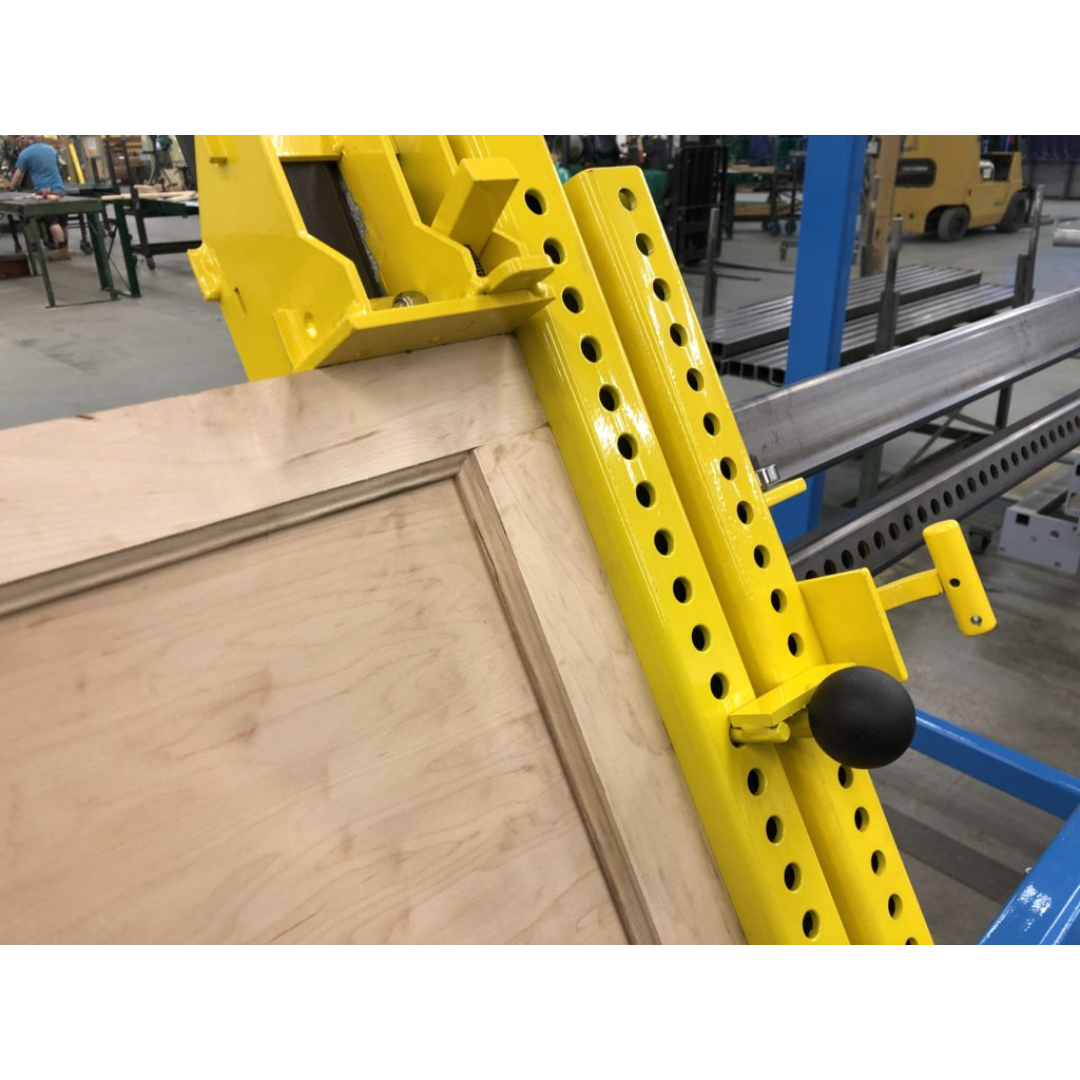

- Redesigned jaws with thumb plates increase positioning speed and efficiency.
- Thicker push bars reduce wear and extend machine service life.
Why Choose the JLT #717C-DDC Double Door Clamp
- Clamp and square multiple cabinet doors simultaneously for maximum throughput.
- Achieve production rates of 225+ cabinet doors per day.
- Flexible configuration for both double-door and full-size door applications.
- Fast setup and changeovers reduce downtime and increase productivity.
- Built with heavy-duty materials for long-term industrial use.
The JLT #717C-DDC Double Door Clamp is the ultimate high-production solution for cabinet manufacturers looking to increase output, improve accuracy, and streamline their door assembly process.
