JLT #717C Cabinet Door Clamp Applications
- Cabinet door and drawer front assembly operations
- Narrow stile and rail door production
- Custom woodworking shops and production cabinet facilities
- MDF and HDF door manufacturing environments
- High-volume door assembly requiring consistent squaring accuracy
Ideal for woodworking professionals producing high volumes of precision cabinet doors with narrow stiles.
JLT #717C Cabinet Door Clamp Specifications
| Model | #717C |
|---|---|
| Maximum Capacity | 26″ × 62″ |
| Minimum Clamping Capacity | 9″ |
| Squaring Speed | (2) Second Squaring Cycle |
| Clamp Configuration | (2) Vertical Clamps & (1) Horizontal Clamp |
| Working Angle | 15° |
| Door Compatibility | Stile & Rail, MDF, HDF Doors |
| Operation Type | Single Lever Operation |
JLT #717C Cabinet Door Clamp Performance & Construction

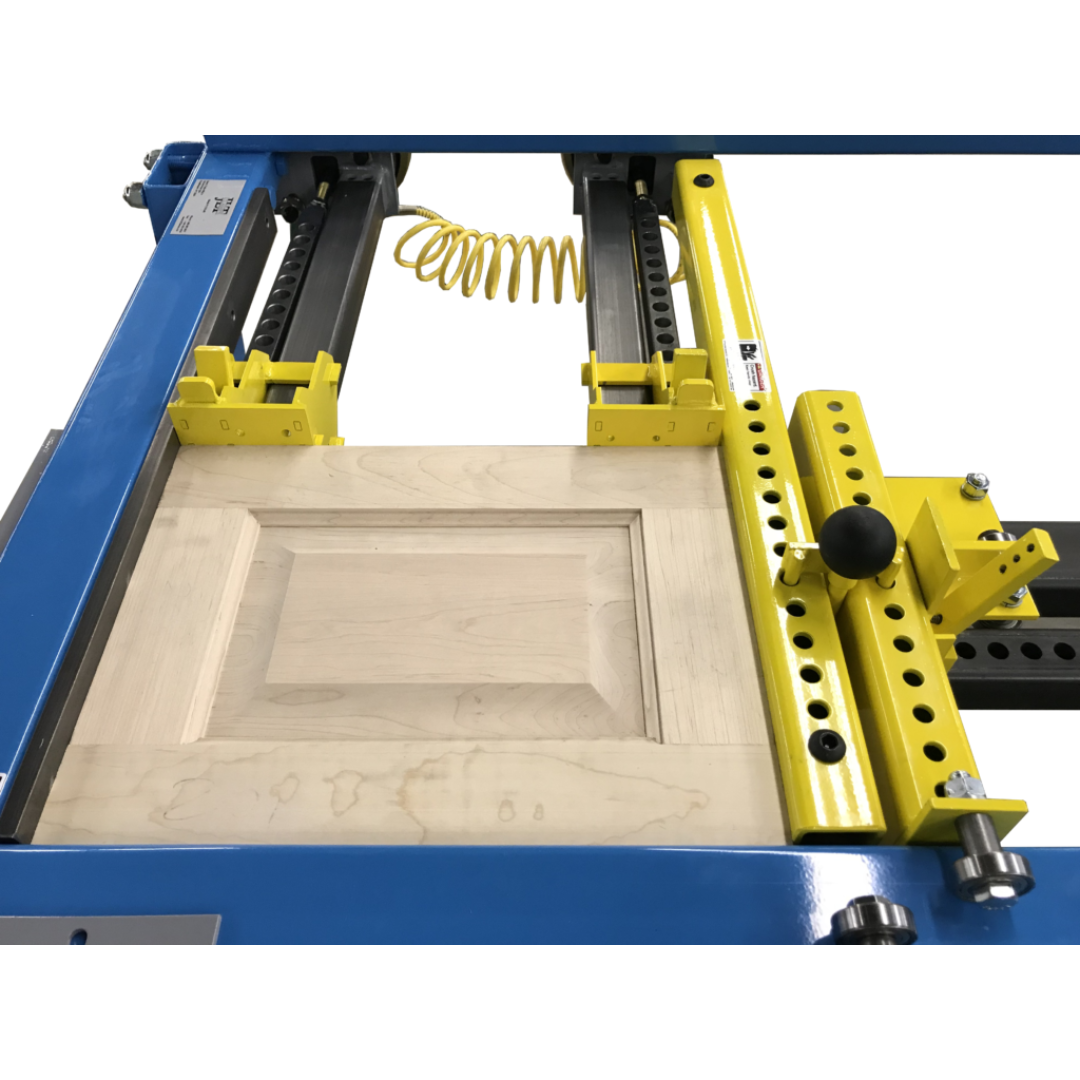

- Precision clamping and squaring system engineered specifically for narrow stile doors and drawer fronts.

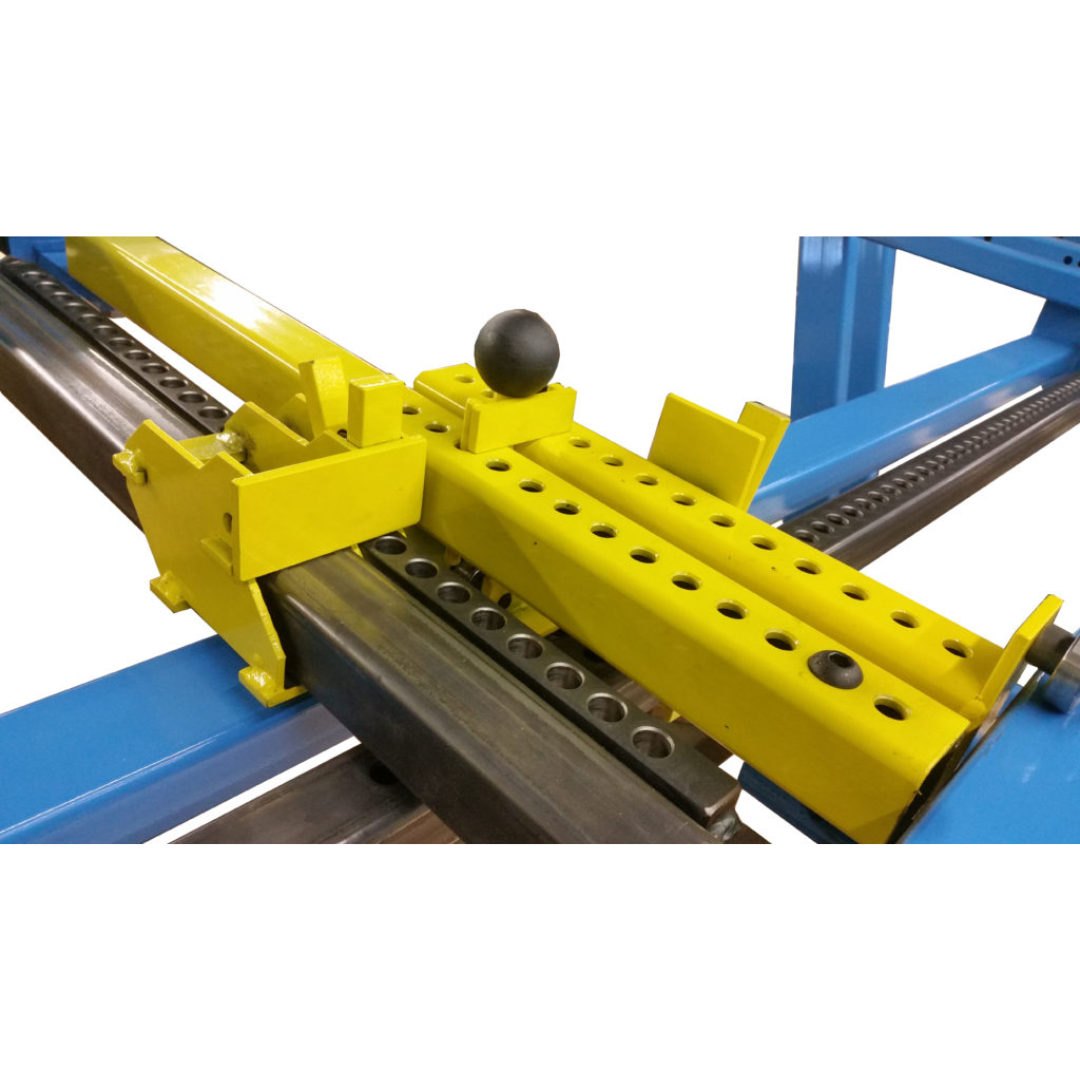

- Clamping force centered on stiles and rails ensures optimal bonding strength and structural accuracy.

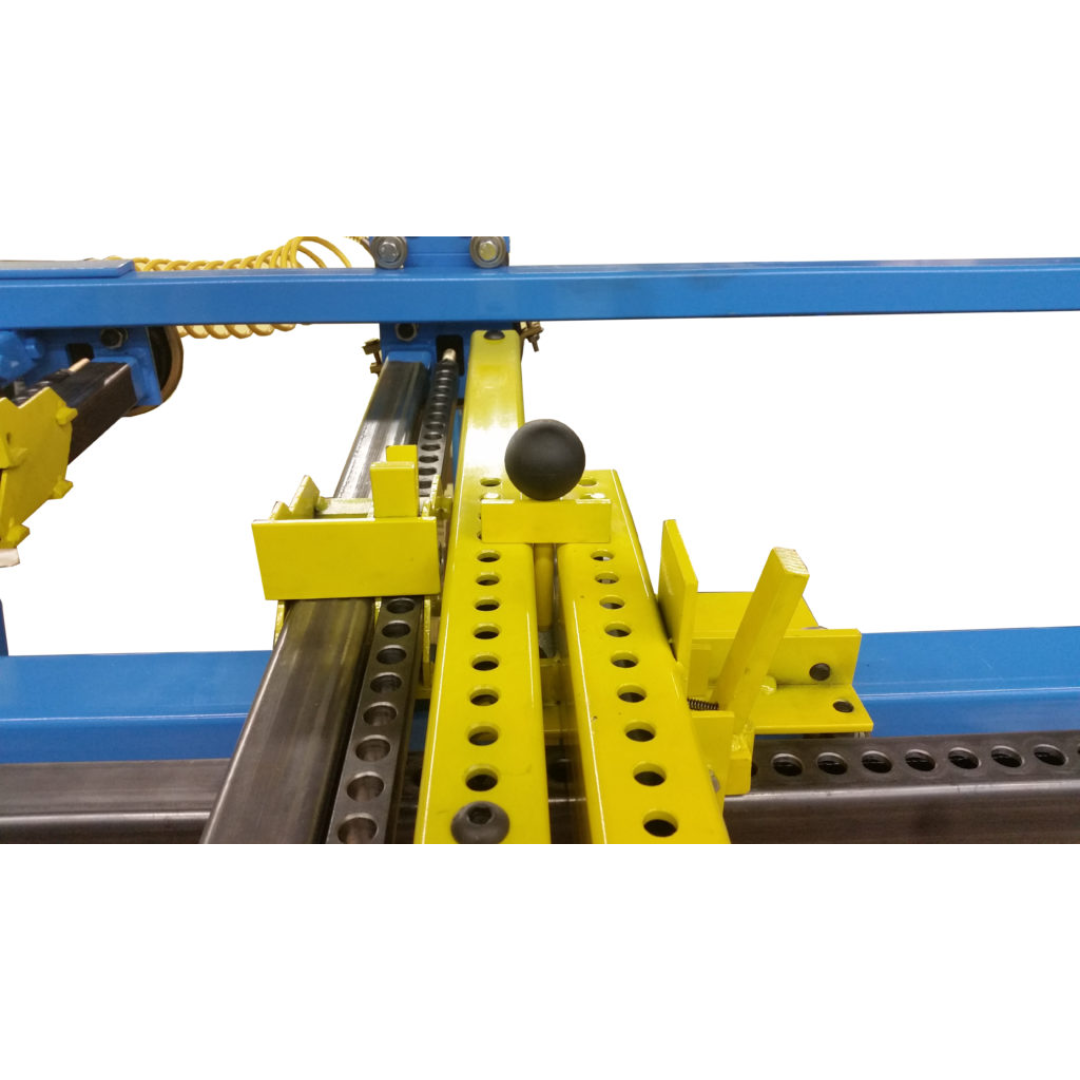

- Intuitive pin system enables fast, tool-free changeovers for different door sizes and configurations.
- Single lever operation simplifies workflow and reduces operator fatigue during repetitive tasks.
- 15-degree working angle improves ergonomics and enhances glue joint alignment during assembly.
- Rear-mounted cylinders provide additional working space for improved operator access and safety.
- Redesigned jaws with thumb plate increase efficiency and allow quicker positioning.
- Thicker push bars reduce wear and extend machine lifespan under daily production use.
- Fast (2) second squaring cycle increases throughput and production efficiency.
- Production capacity of 100+ doors per day supports high-output cabinet manufacturing environments.
- Heavy-duty industrial construction ensures durability in demanding woodworking environments.
Why Choose the JLT #717C Cabinet Door Clamp
- Designed specifically for narrow stile door precision and accuracy.
- Clamp and square 100+ stile & rail doors per day.
- Quick setup and fast changeovers maximize shop productivity.
- Enhanced durability with upgraded components from proven JLT designs.
- Consistent, repeatable squaring results for high-quality finished products.
The JLT #717C Cabinet Door Clamp is the ultimate solution for woodworking professionals seeking precision, speed, and reliability in cabinet door assembly operations.
