Who This System Is Designed For
- Large furniture manufacturing facilities.
- Cabinet and panel production plants.
- Industrial woodworking operations.
- Metallurgy and chemical industry dust control.
- Facilities requiring ATEX or explosion-rated safety standards.
This system is ideal for facilities requiring high CFM airflow, strict emission standards, and automated dust cleaning performance.

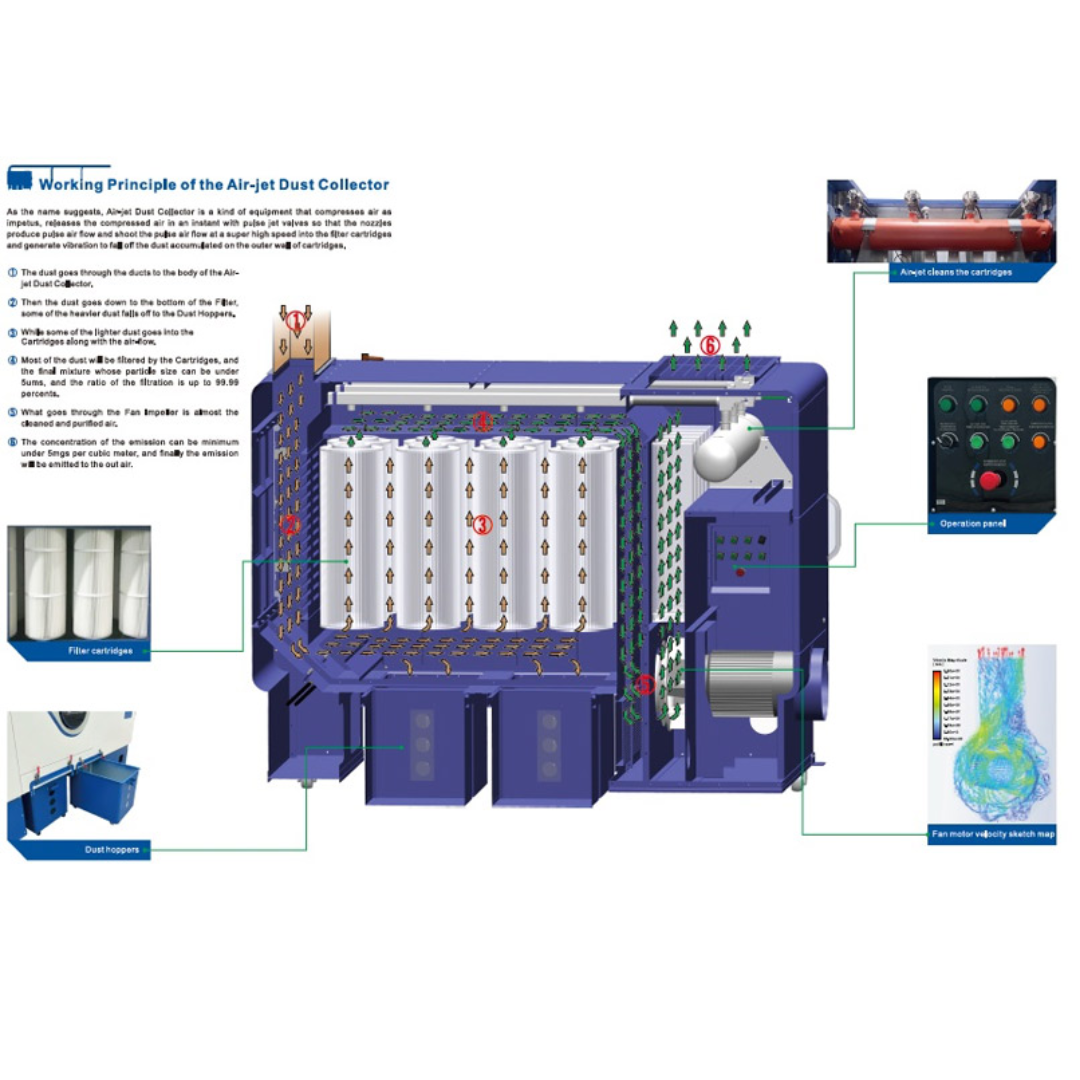

How the Castaly Air-Jet Dust Collector Works
The Air-Jet Dust Collector compresses air as the driving force. Pulse jet valves instantly release compressed air at high speed, generating powerful vibration inside the filter cartridges.
- Dust travels through ducts into the collector body.
- Heavier particles fall into the dust hoppers.
- Lighter dust enters filter cartridges with airflow.
- Cartridges filter particles down to under 5 microns.
- Filtration efficiency reaches up to 99.99%.
- Clean air passes through the fan impeller and exits.
- Emission concentration can be under 5 mg per cubic meter.
Construction & Components
- CE (ATEX), UL, and GB approved standards.
- 2mm galvanized zinc sheet with anti-static spray coating.
- PLC and VFD control systems from Mitsubishi, Siemens, Schneider, Rockwell, Omron and other premium brands.
- Heavy-duty steel frame construction.
- High-efficiency pulse jet cleaning system.
Performance Specifications (Example Configuration)
| Model | DC-HD2300-OD |
|---|---|
| Air Capacity | 13,500 CFM |
| Motor | 35 HP |
| Sound Rating | 75 – 85 dB |
| Air Inlet | 24" |
| Filter Cartridge Size | 325 mm Dia × 1000 mm |

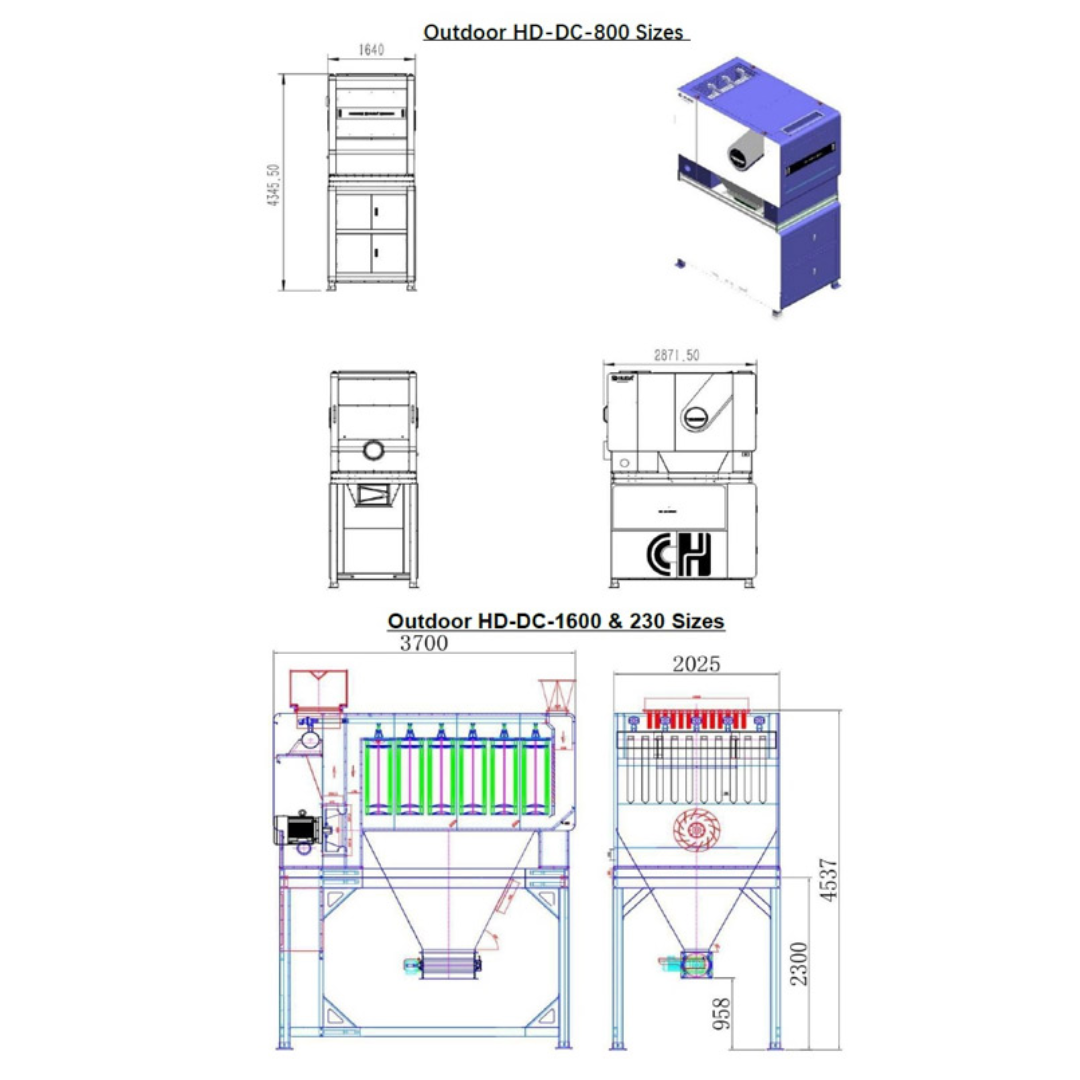

| Overall Dimensions | 146" L × 79" W × 178" H |
Available Options
- Extended HMI Controller – $890.00
- Anti-Explosion Package – $7,990.00
- Auto Water Extinguisher System – $4,690.00
Why Choose Castaly Air-Jet Dust Collector
- Up to 99.99% filtration efficiency.
- Industrial-grade components from global brands.
- ATEX and CE compliant for high safety standards.
- Pulse jet auto-cleaning reduces maintenance downtime.
- Expandable options for explosion protection and fire suppression.
The Castaly Air-Jet Dust Collector is engineered for facilities that demand high-capacity airflow, superior filtration performance, and long-term industrial reliability.
