Euroboor ECO.100S+/T Magnetic Drilling Machine Applications
- Structural steel fabrication and heavy steel construction
- Thread tapping operations on steel plates and structural members
- Bridge construction and infrastructure maintenance
- Railway track fabrication and maintenance
- Shipbuilding and offshore steel fabrication
- Industrial plant installation and maintenance
- Precision drilling and countersinking in thick steel materials
Perfect for fabrication shops and field professionals who require powerful drilling performance combined with reliable tapping capability.
Euroboor ECO.100S+/T Magnetic Drilling Machine Specifications
| Model | ECO.100S+/T |
|---|---|
| Maximum Annular Cutter Diameter | 4" |
| Threading Capacity | 1/8" – 1-3/16" |
| Twist Drill Capacity | 1/16" – 1-1/4" |
| Countersinking Capacity | 3/8" – 1-3/16" |
| Spindle Type | MT3 Morse Taper / Weldon 3/4" |
| Stroke | 10-1/4" |
| Magnetic Holding Force | 6,615 lbs |
| Gearbox | 4-Speed Oil Lubricated Gearbox |
| Rotation Direction | Bidirectional (Right/Left Rotation) |
| No-Load Speeds | 42 – 110 / 65 – 190 / 140 – 400 / 220 – 620 RPM |
| Loaded Speeds | 85 / 152 / 270 / 480 RPM |
| Motor Power | 2,050 W |
| Total Power Consumption | 2,000 W |
| Power Supply Voltage | 110 – 120 Volt |
| Power Supply Frequency | 60 Hz |
| Power Supply Connection | NEMA 5-15 Plug |
| Machine Weight | 61.3 lbs |
| Machine Dimensions (L × W × H) | 14-3/8" × 12-3/16" × 20-1/16" – 27-15/16" |
| Magnet Dimensions | 8-11/16" × 4-5/16" × 2-1/2" |
| Application Type | Drilling, Countersinking, Threading |
Euroboor ECO.100S+/T Magnetic Drilling Machine Performance & Technology
- Four-speed oil lubricated gearbox ensures efficient heat management and long-term mechanical durability.
- Bidirectional rotation (right/left) enables precise tapping operations and easier thread cutting.
- Electronic variable speed adjustment allows operators to match cutting speeds to different materials and tool sizes.
- Integrated torque control located on the motor housing for accurate tapping performance.
- Morse Taper 3 spindle with integrated cooling and lubrication improves cutting efficiency and tool life.
- Dual-coil CNC-machined magnetic base delivers strong holding power while reducing energy consumption.

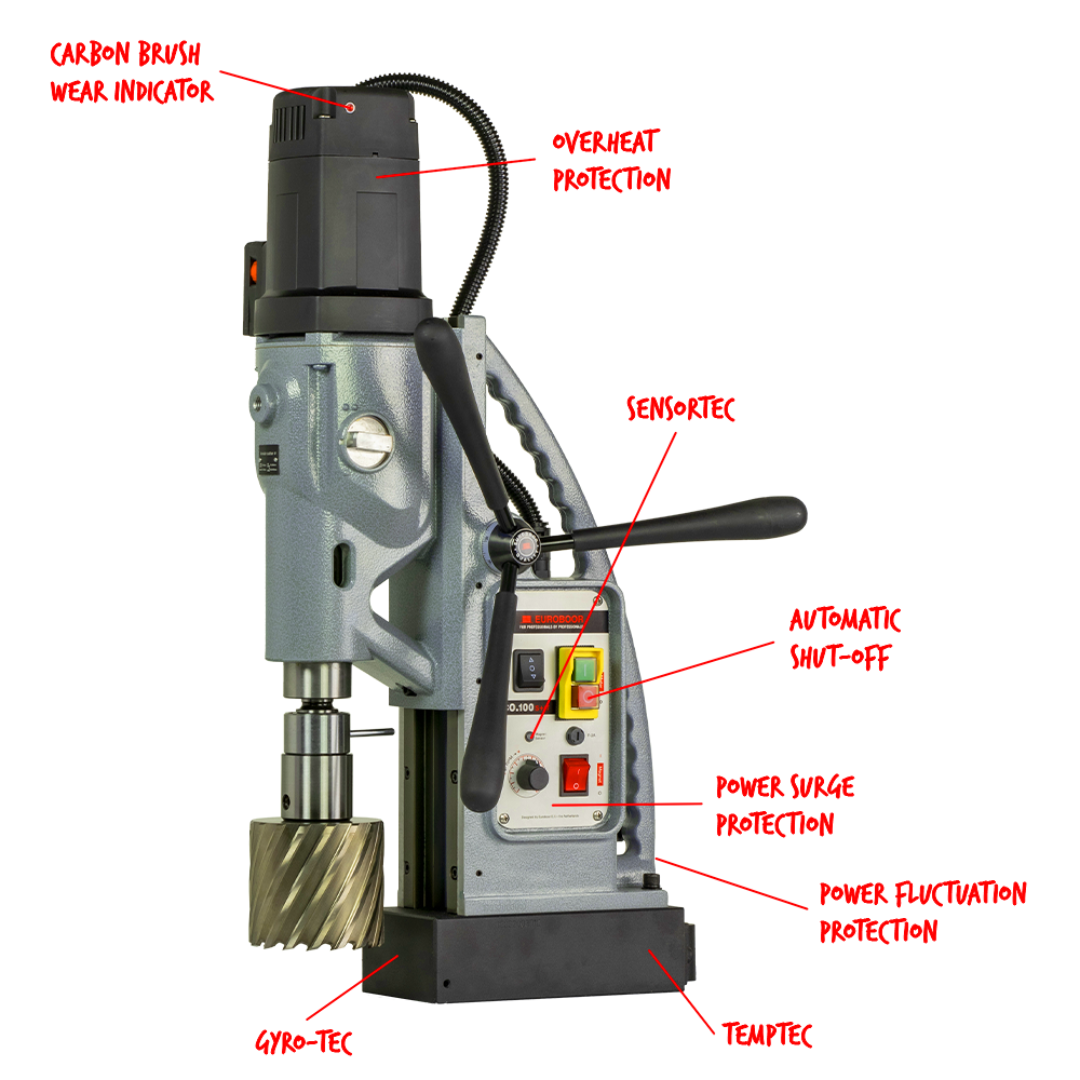

- Gyro-Tec safety monitoring system automatically stops the machine if excessive vibration or sudden movement is detected.
- Automatic shut-off protection prevents unsafe operation and improves user safety.
- Overload, overheat, power surge, and power fluctuation protection safeguard the motor and electronics.
- Carbon brush wear indicator and Smart Restart system help minimize downtime and improve maintenance planning.

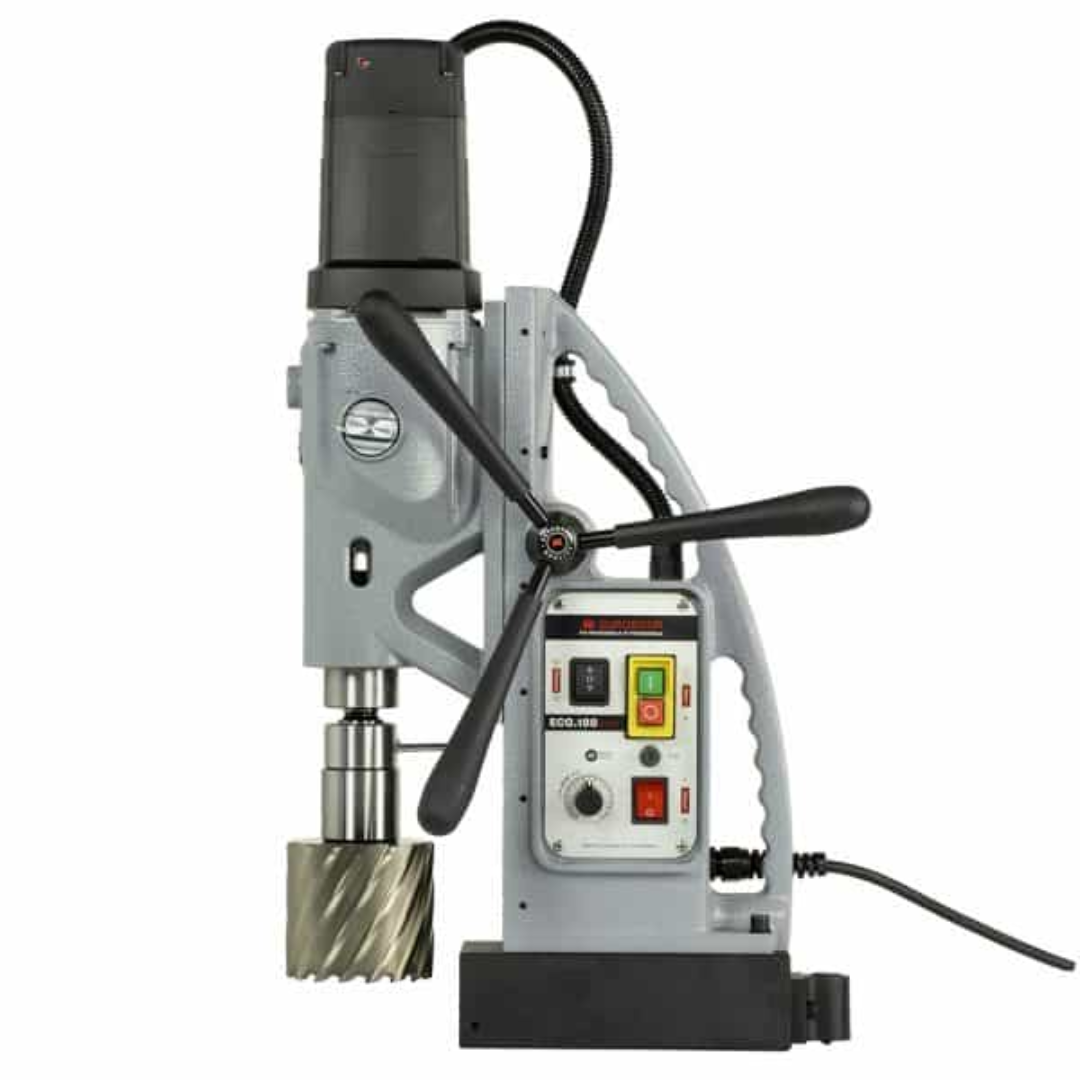

- Magnet LED indicator confirms correct magnetic engagement before drilling operations begin.
Euroboor ECO.100S+/T Magnetic Drilling Machine Package Contents
- 1 × Euroboor ECO.100S+/T Magnetic Drilling Machine
- 1 × Heavy-duty metal transport case
- 3 × Capstan hub feed handles
- 1 × MT3 – Weldon 31.75 mm (1-1/4") spindle holder with cooling/lubrication ring
- 1 × Weldon 31.75 mm to 19.05 mm adapter (1-1/4" to 3/4")
- 1 × Drift key
- 1 × Side handle
- 1 × Lubrication and cooling system
- Allen keys: 2.5 mm, 3 mm, 4 mm, and 5 mm

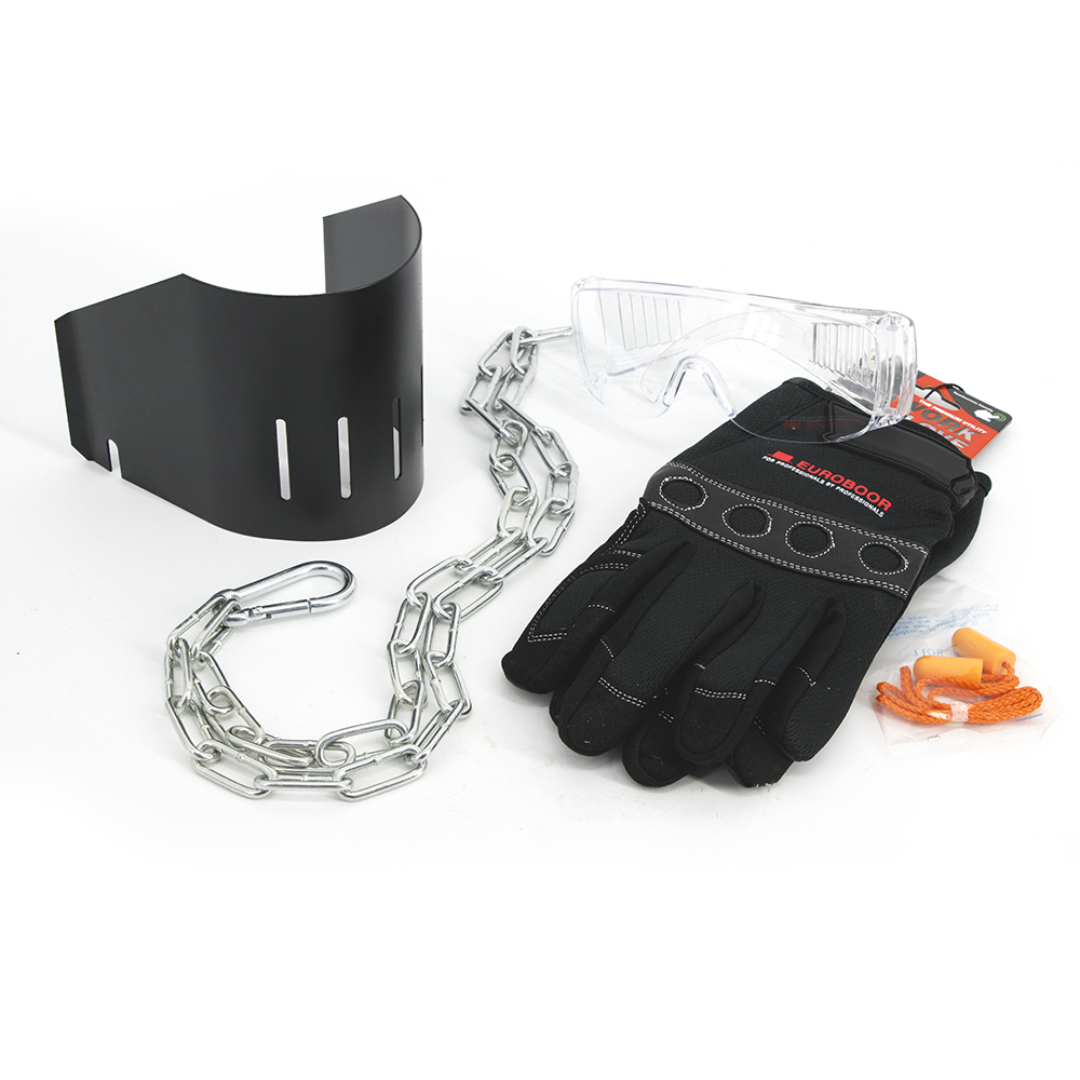

- 1 × Protective safety guard
- 1 × Safety chain
- 1 × Ear protection
- 1 × Safety goggles
- 1 × Safety gloves
- 1 × User manual
Why Choose the Euroboor ECO.100S+/T Magnetic Drilling Machine
- High-capacity drilling up to 4" diameter in steel.
- Integrated tapping capability with bidirectional rotation.
- Advanced electronics for safety, performance, and durability.
- Extremely powerful motor designed for heavy-duty fabrication work.
- Precision drilling, countersinking, and threading in one professional machine.
The Euroboor ECO.100S+/T Magnetic Drilling Machine is an advanced drilling solution for professionals who require high-capacity magnetic drilling combined with reliable tapping performance and industry-leading safety systems.
