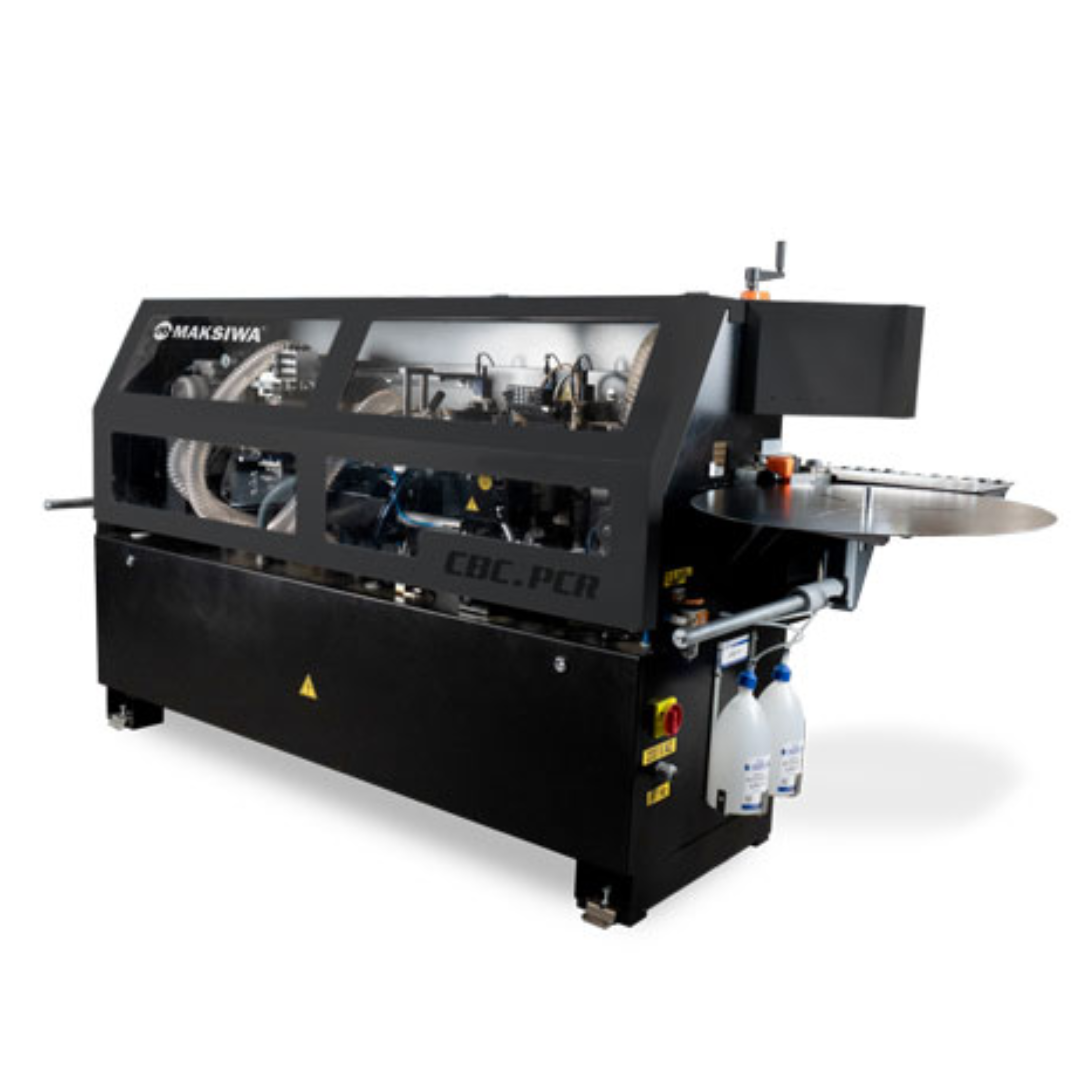

Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding
The Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding is the upgrade serious cabinet and furniture shops make when they’re done wasting labor on hand-finishing corners and cleaning glue mess off panels. Get pre-milling for clean adhesion, real corner rounding for a factory look, plus trimming, scraping, and buffing in one tight footprint.
Run 0.4–3 mm edge tape on 8–50 mm panels at up to 18 ft/min. The XMELT glue system supports EVA and PUR with easy drainage. This is production capability designed for shops that need results today—not “someday when we buy a full line.”
Why the Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding makes your shop money
-
Stop hand-finishing corners. Corner rounding is the difference between “shop quality” and “factory quality.” CBC.PCR rounds corners consistently so panels leave the machine looking like a premium brand built them.
-
Pre-milling fixes the problem before glue touches the panel. Dual HF pre-milling motors with diamond cutters remove saw marks and micro-variations. That means better adhesion, tighter seams, and cleaner results—especially on melamine and laminated board.
-
More uptime, less cleanup. Glue scraping + buffing reduces post-work. C.A.S.S cleaning agent spraying helps prevent residue buildup so operators aren’t stopping production to wipe glue stringing and panel marks.
-
Industrial results in a real-shop footprint. CBC.PCR is built for production, but it’s not a massive footprint monster. You get the process stations you actually need without sacrificing your whole floor.
Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding workflow (how panels come out finished)
Most shops lose time in the same places: rough edges, inconsistent glue, trimming touch-ups, and corner sanding. The Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding is built to remove those bottlenecks in a single pass.

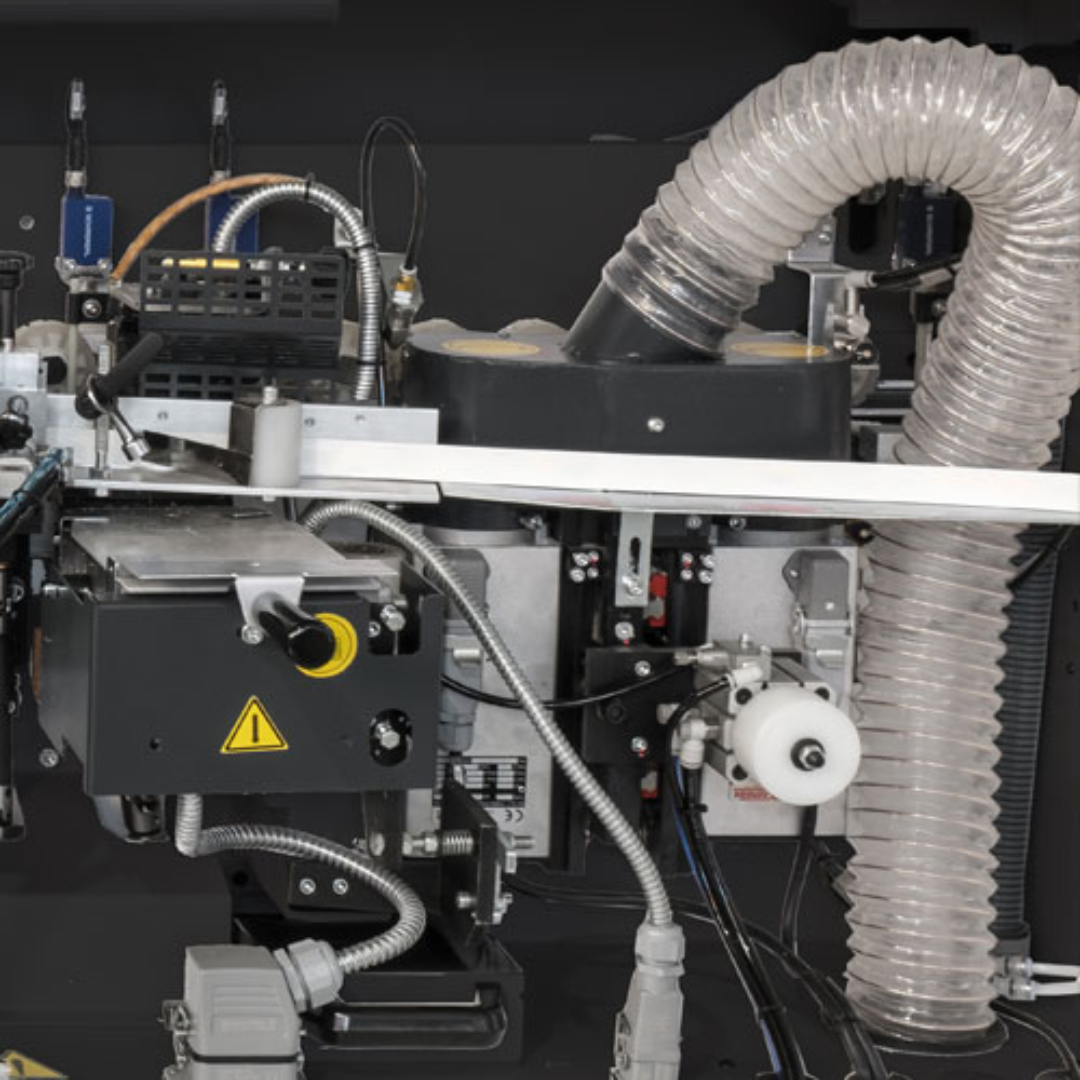

- Pre-milling (2 HF motors + diamond cutters): cleans and squares the panel edge for stronger bonding and cleaner seams.
- XMELT glue application (EVA/PUR): stable glue flow and temperature control helps prevent weak adhesion and messy squeeze-out.
- End trimming (HF motor): clean edge ends for a tight, professional transition.

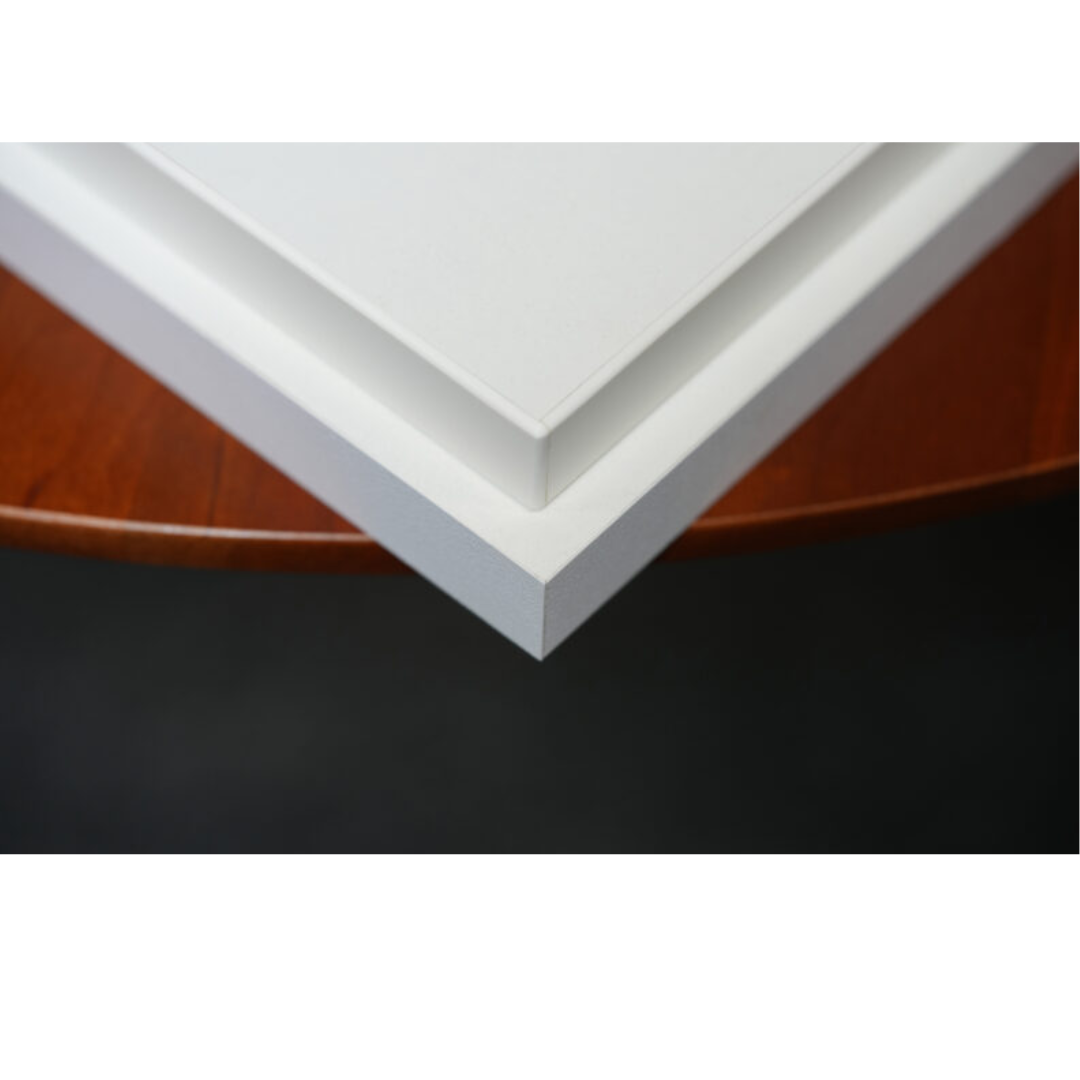

- Top/bottom trimming + corner rounding: consistent profile and factory-style rounded corners—no manual corner work.
- Glue scraping: removes excess adhesive so panel faces stay cleaner.
- Buffing: polishes the edge for a smooth finish that looks “done” immediately.
Bottom line: you produce faster, your finish quality becomes consistent, and you stop paying labor to fix what the machine should do.
Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding buyer notes (what matters in the real world)
If you’ve ever said “our edges look good until the corners” or “it looks great early in the run, then it gets messy,” you’re the exact customer for the Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding.
- Corner rounding is the premium signal. Customers notice corners first—especially on white melamine and high-gloss panels.
- Pre-milling improves adhesion consistency and helps reduce seam gaps caused by panel edge imperfections.
- EVA vs PUR flexibility lets you choose: EVA for speed/price, PUR for moisture resistance and high-end durability.
- Chain conveyor feed helps stabilize the panel through multiple stations for consistent processing.
This machine is for shops moving from “getting by” to “producing like a brand.”
Maksiwa Platinum Edgebander CBC.PCR - Corner Rounding full specifications
| Specification | Value |
|---|---|
| Model | CBC.PCR |
| Edge Tape Thickness | 0.4–3 mm (0.0157"–0.118") |
| Panel Thickness (Min/Max) | 8–50 mm (21/64"–1 31/32") |
| Max Pre-Milling Height | 30 mm (1") |
| Max Edgebanding Height | 51 mm (2") |
| Minimum Panel Width | 120 mm (4-3/4") |
| Minimum Panel Length | 200 mm (7-7/8") |
| Automatic Feeding Speed | 18 ft/min (5.5 m/min) |
| Glue System | XMELT Glue Pot System (EVA & PUR) + easy drainage |
| Glue Pot Capacity | 1.5 kg (3.3 lbs), Teflon coated |
| Recommended Glue Temp | 180–210°C (356–410°F) |
| Feed System | Conveyor chain feed system |
| Cleaning System | C.A.S.S – Cleaning Agent Spraying System |
| Dust Port Size | 150 mm (6") |
| Dust Collection Requirement (Min) | 1236 CFM (2100 m³/h) |
| Air Requirement | 14 SCFM @ 90 PSI (0.7 MPa / 400 L/min) |
| Machine Dimensions (L×W×H) | 119" × 40-13/16" × 48-7/16" (3026 × 1036 × 1230 mm) |
| Shipping Dimensions (L×W×H) | 111" × 30" × 57" (2820 × 760 × 1448 mm) |
| Net Weight | 1653 lbs (750 kg) |
| Electrical (Shop-Friendly) | 1 Phase 220V, 60Hz (30–40A per configuration) |
| Conveyor Motor | 60 Hz • 1390 RPM • 0.66 kW |
| Top/Bottom Trimmer HF Motor | 200 Hz • 12,000 RPM • 0.27 kW |
| End/Corner Rounding Trimmer Motor | 200 Hz • 12,000 RPM • 0.27 kW |
| Front/Rear Pre-Milling HF Motors | 150 Hz • 9000 RPM • 0.75 / 0.25 kW |
| Top Buffing Motor | 60 Hz • 1680 RPM • 0.11 kW |
| Bottom Buffing Motor | 60 Hz • 1680 RPM • 0.11 kW |
| Sound Rating | 80 dB |
Note: Specifications listed reflect the provided CBC.PCR details including feed speed, tape range, thickness range, utilities, and motor data. If you want, we can also format a “What’s Included / What You Need” section for even higher conversion (power, air, dust, glue type, and startup kit).
