Beveling Machine

A beveling machine is an industrial metalworking tool used to cut a precise, angled edge onto the end of a pipe, tube, or metal plate. This process is primarily done to prepare the material for welding, as the beveled edge provides a clean channel that allows for deeper, stronger, and more uniform weld penetration.

Beveling is performed to create angled edges for tight joinery fit-ups, eliminate sharp, vulnerable corners, and provide clean, decorative transitions on finished pieces.

You can bevel wood using stationary machines like a table saw or shaper, or manually with hand tools such as a block plane or a router fitted with a chamfer bit.

Beveling a pipe prepares the edge for a strong, penetrating V-groove weld joint through the following steps: Clean the Surface: Thoroughly clean the pipe end, removing any mill scale, rust, oil, or debris from both the interior and exterior surfaces. Secure the Pipe: Lock the pipe firmly into a pipe vise, stand, or lathe chuck to eliminate any vibration or movement during cutting. Select the Tool: Choose your beveling method—using a dedicated pneumatic or electric portable pipe-beveling machine (clamping internally or externally), an angle grinder with a grinding wheel or carbide milling bit, or a lathe. Cut the Bevel: Apply the cutter head or abrasive wheel at the standard 37.5-degree angle (the most common welding specification) to create a uniform chamfer around the circumference, leaving a small, flat "land" at the root if required by your welding procedure. Inspect and Deburr: Remove any slag, sharp burrs, or loose metallic debris from the freshly cut bevel to ensure a pristine fit-up before welding.

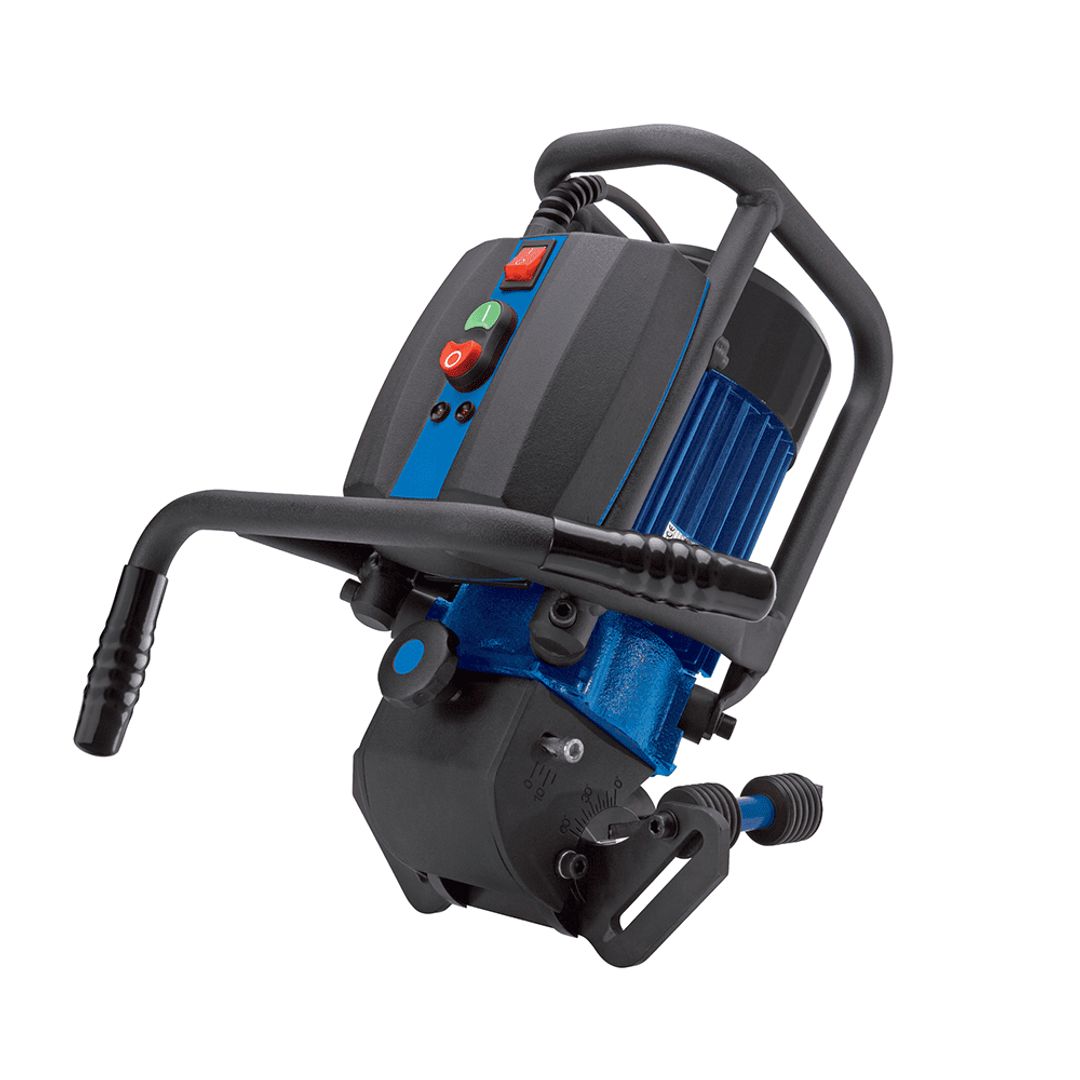

Selecting the right beveling machine depends on your primary application, material type, and workspace requirements: Material and Application: Determine whether you are beveling flat plate edges for welding preparation or prepping round pipes and tubes. Heavy industrial plate and pipe bevelers handle thick carbon steel, stainless steel, and aluminum. Drive Type: Choose between pneumatic (air-powered) machines for hazardous or wet environments, electric machines for standard shop use, or hydraulic units for heavy-duty pipeline construction. Mobility vs. Stationary: Decide if you need a handheld portable beveler that travels along the edge of large steel plates, a stationary benchtop machine for smaller brackets and components, or an auto-feed pipe beveling machine for high-volume fabrication shops. Cutting Mechanism: Compare rotary milling cutter heads (which produce clean, burr-free surfaces without thermal distortion) against thermal plasma or oxy-fuel beveling attachments.

The best tool for cutting bevels depends heavily on your material — table saws and routers lead for wood, while dedicated pipe and plate beveling machines like our Euroboor BM45AIR, B45S, and B60 dominate for structural metal and pipe preparation.
