Baileigh Welding Jig Table WJT-7839-HD 1010426 Applications
- Production welding and fabrication facilities.
- Machine shops requiring precision workholding.
- Structural steel fabrication and assembly.
- Prototype development and custom metal fabrication.
- Automotive, motorsports, and aerospace manufacturing.
- Fixture, jig, and tooling construction.
- Industrial manufacturing and heavy equipment production.
- Precision inspection, layout, and assembly operations.
The Baileigh Welding Jig Table WJT-7839-HD 1010426 delivers an exceptionally rigid and accurate fixturing platform that improves weld quality, shortens setup times, and increases repeatability throughout demanding fabrication processes.
Baileigh Welding Jig Table WJT-7839-HD 1010426 Specifications
| Model | WJT-7839-HD |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1010426 |
| Table Size | 78 in. × 39 in. |
| Assembled Dimensions | 80 in. × 45 in. × 45 in. |
| Construction Material | 250 Cast Iron with Nitride Coating |
| Working Surfaces | 5 Precision Fixturing Surfaces |
| Fixture Hole Diameter | 28 mm |
| Hole Spacing | 100 mm Centers |
| Number of Mounting Points | 5 |
| Load Capacity | 4,000 lbs. (Approx. 2 Tons) |
| Table Flatness | ±0.0025 in. |
| Surface Hardness | 140–160 Brinell (Approx. 18–25 HRC) |
| Legs Included | Yes |
| Included Accessories | Table Oiler, Cleaning Brush, and Cleaning Stone |
| Net Weight | 1,550 lbs. |
| Gross Weight | 1,550 lbs. |
| Warranty | Limited Warranty |
| UPC | 19907011354 |
Baileigh Welding Jig Table WJT-7839-HD 1010426 Performance & Construction

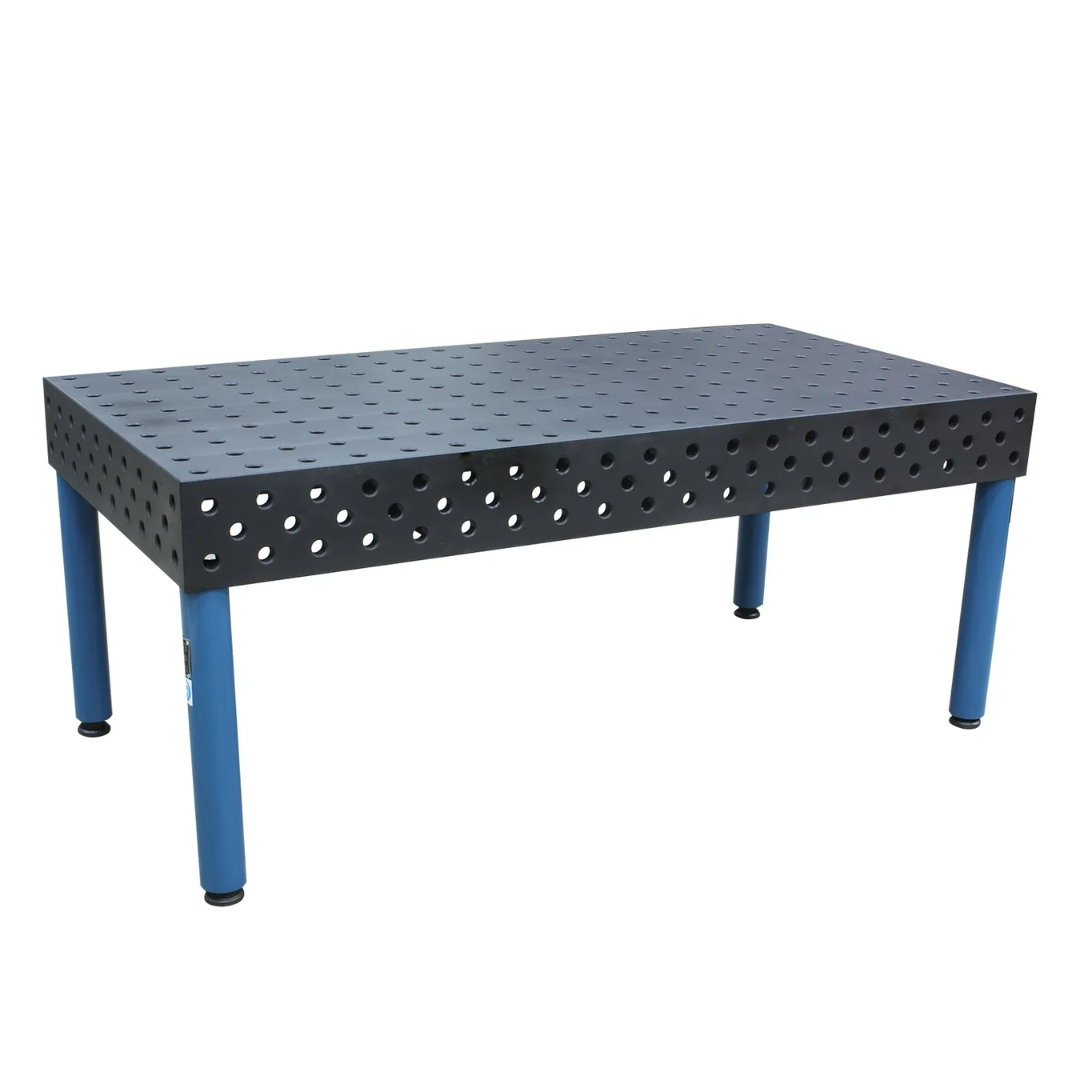

- Large 78-inch × 39-inch precision work surface provides generous space for fabricating long frames, structural components, and complex welded assemblies.
- 250 cast iron construction with nitride coating offers exceptional rigidity, wear resistance, corrosion protection, and long-term dimensional stability in demanding shop environments.
- Five precision-machined fixturing surfaces allow workpieces to be securely positioned horizontally or vertically for maximum setup flexibility.

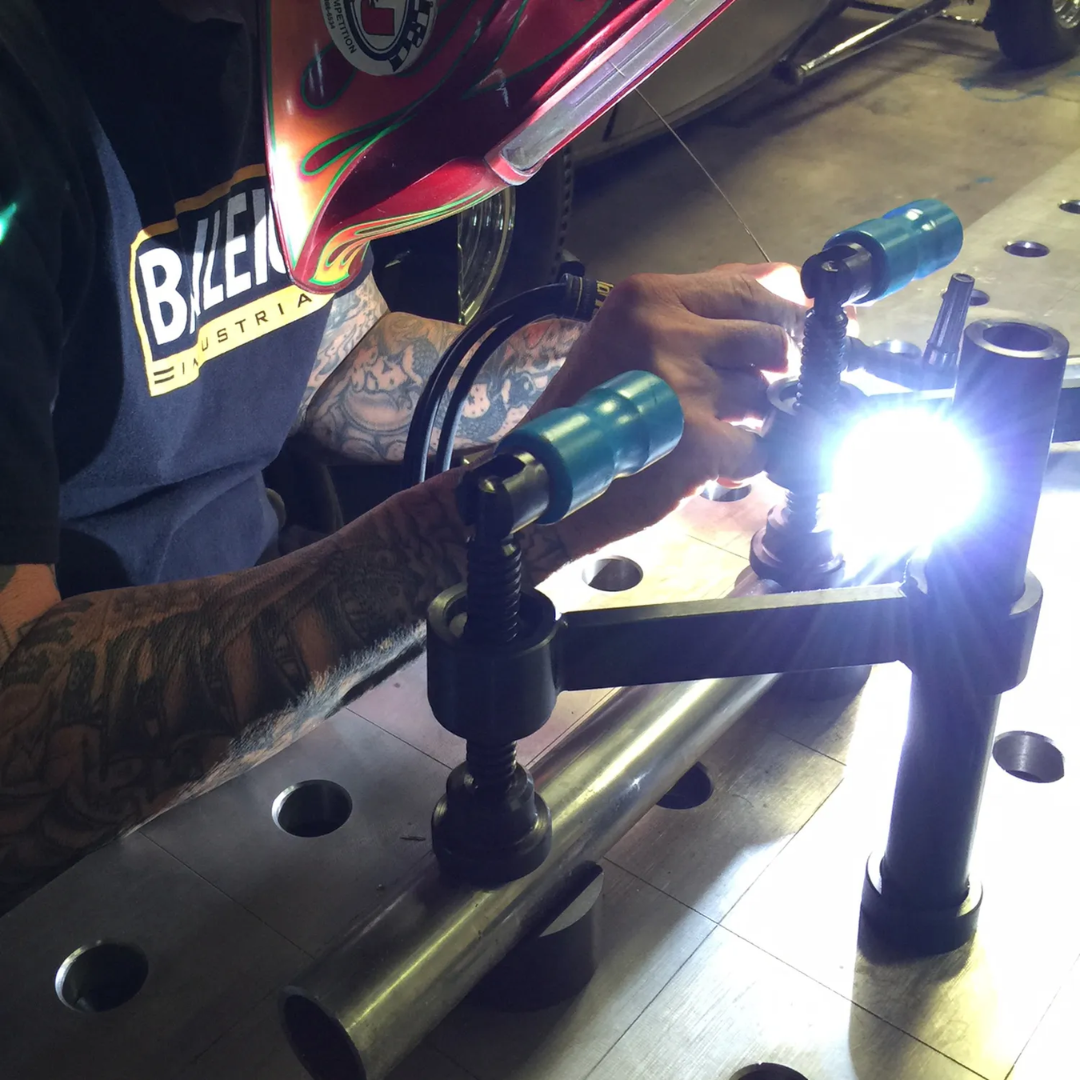

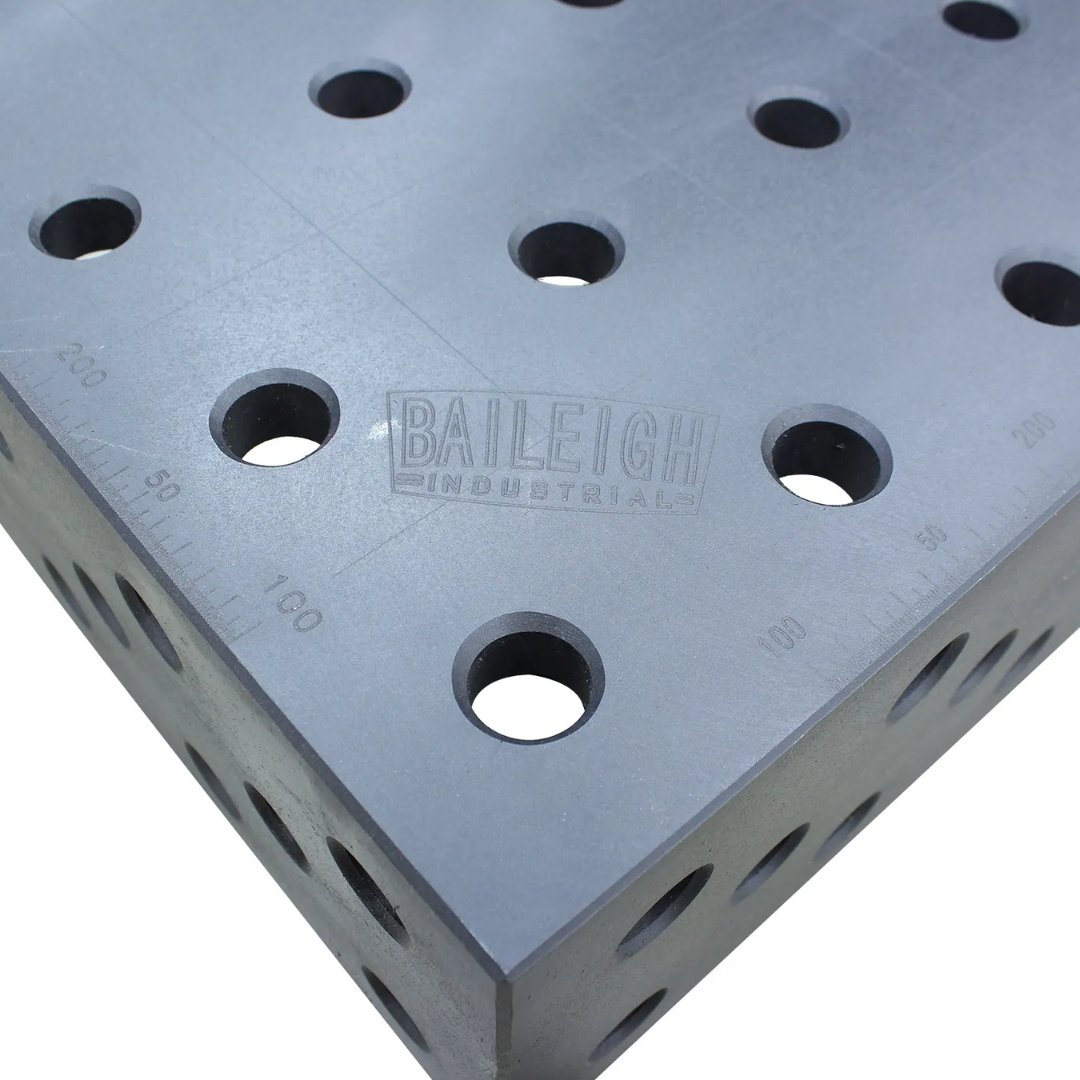

- Industry-standard 28 mm fixture holes are compatible with a wide range of professional welding clamps, stops, squares, and modular fixturing accessories.
- 100 mm hole spacing creates a repeatable fixture grid that speeds setup while improving production consistency.
- Precision flatness tolerance of ±0.0025 inch provides an accurate reference surface for welding, machining, inspection, and assembly work.
- Surface hardness of approximately 140–160 Brinell (18–25 HRC) delivers excellent durability while maintaining machinability and long-term accuracy.
- 4,000-pound load capacity supports large weldments, fixtures, tooling, and heavy industrial assemblies with confidence.

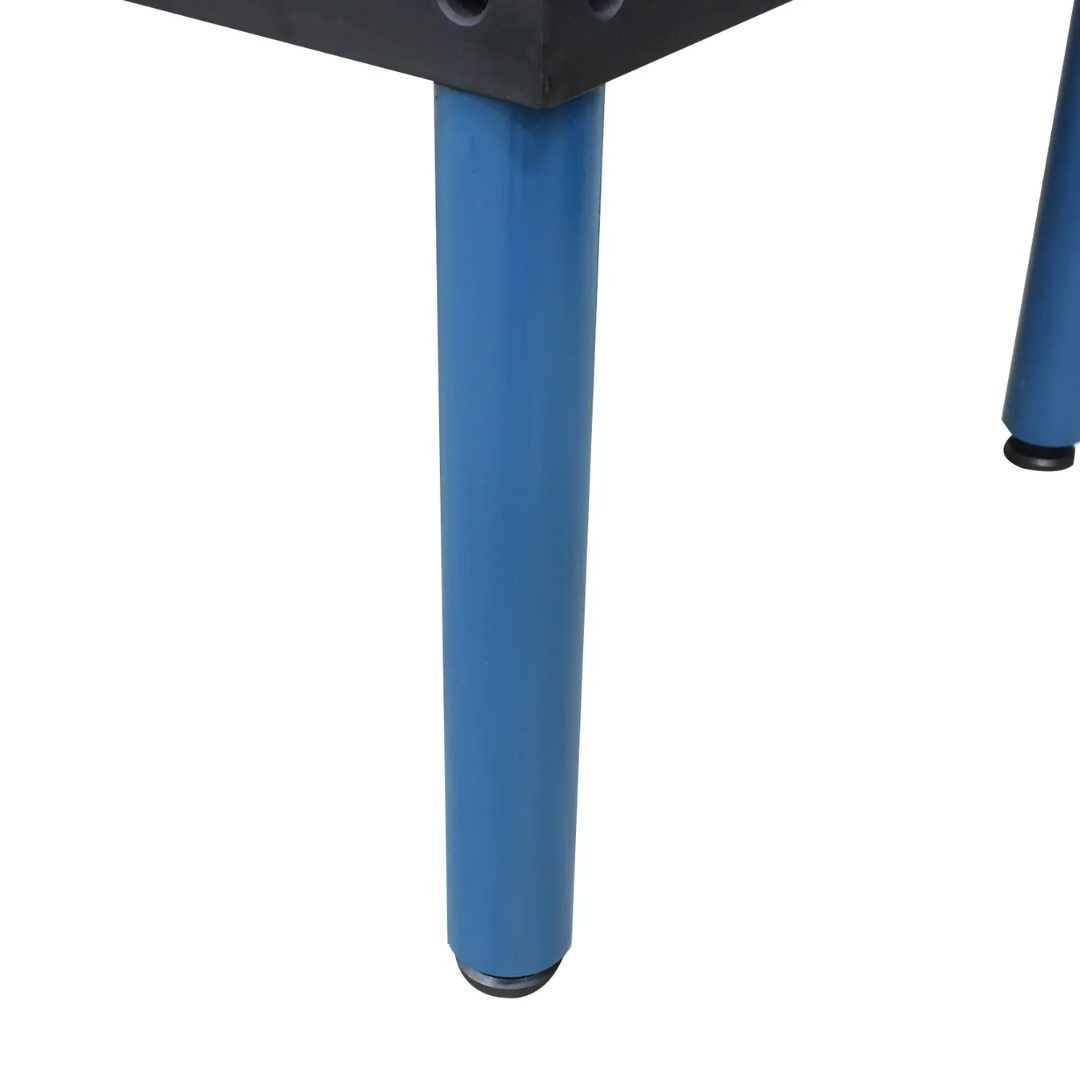

- Heavy-duty support legs included provide outstanding structural stability and an ergonomic working height for professional fabrication shops.
- Maintenance accessories included with a table oiler, cleaning brush, and cleaning stone to help preserve surface condition and long-term accuracy.
- Massive 1,550-pound construction minimizes vibration and movement during heavy welding and fabrication operations.

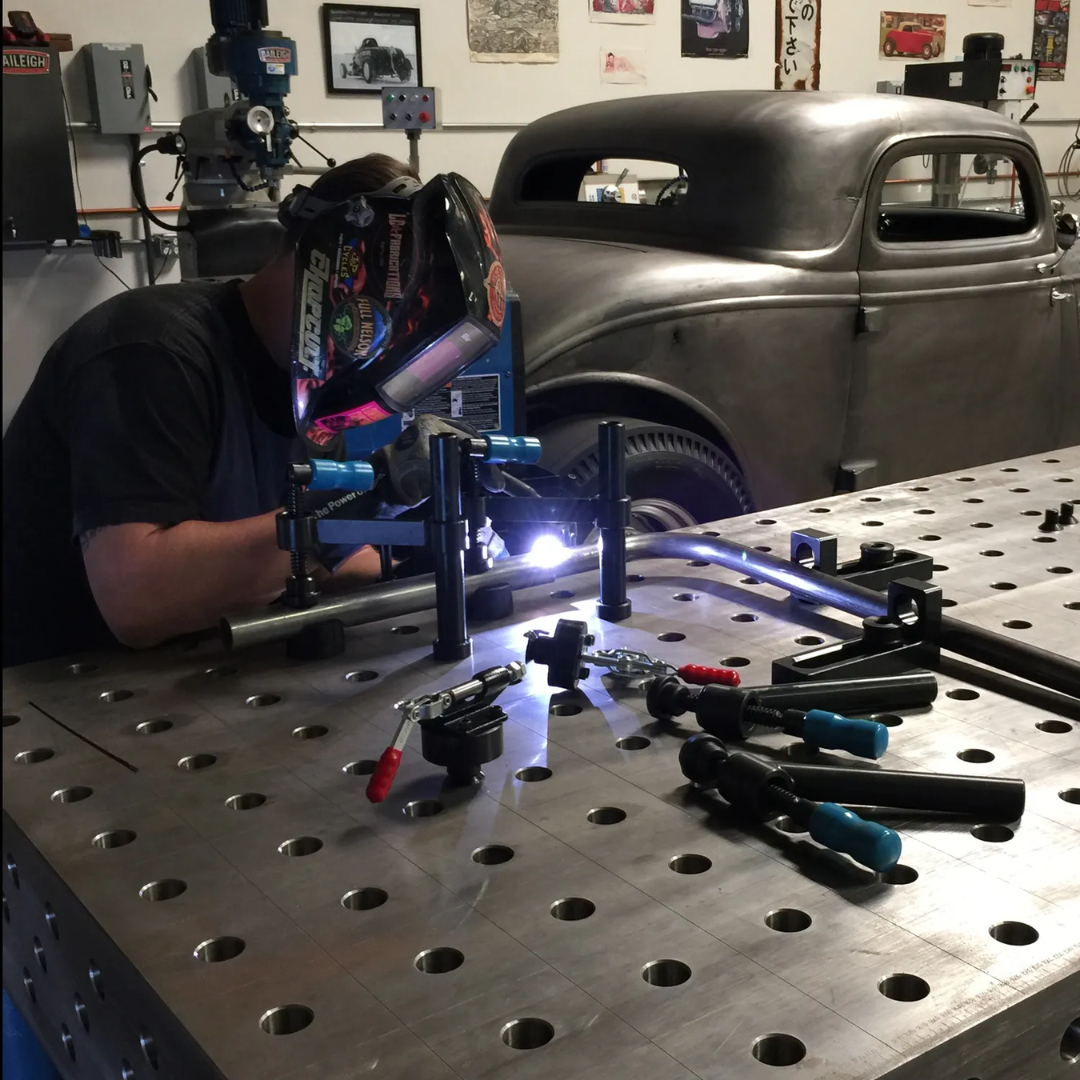

- Designed for modular fixturing systems that improve productivity, repeatability, and fabrication precision throughout production workflows.
- Supported by Baileigh's limited warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Welding Jig Table WJT-7839-HD 1010426
- Large 78" × 39" precision-machined cast iron work surface for oversized fabrication projects.
- Heavy-duty 250 cast iron construction with durable nitride coating for maximum service life.
- Five precision fixturing surfaces provide exceptional setup flexibility.
- Industry-standard 28 mm fixture hole system supports professional modular fixturing.
- Precision flatness of ±0.0025" ensures accurate fabrication and repeatable assembly.
- 4,000 lb load capacity handles demanding industrial weldments and fixtures.
- 100 mm fixturing grid speeds production setups and improves repeatability.
- Includes heavy-duty legs, table oiler, cleaning brush, and cleaning stone.
- Ideal for fabrication shops, manufacturing facilities, machine shops, and industrial production.
- Backed by Baileigh's limited warranty and lifetime technical support.
The Baileigh Welding Jig Table WJT-7839-HD 1010426 is an industrial-grade welding and fixturing platform designed for professionals who require uncompromising precision, durability, and repeatability. Featuring a massive nitride-coated 250 cast iron surface, five precision fixturing faces, industry-standard 28 mm hole pattern, and a 4,000-pound working capacity, this heavy-duty welding table delivers the stability and accuracy needed for advanced fabrication, machining, and production welding applications.
