Baileigh Welding Jig Table WJT-4747-HD 1010425 Applications
- Precision welding and fabrication shops.
- Structural steel assembly and fixturing.
- Machine shops requiring accurate workholding.
- Custom metal fabrication and prototype manufacturing.
- Production welding fixtures and repeatable assembly operations.
- Automotive, motorsports, and aerospace fabrication.
- Tooling, jig, and fixture construction.
- Industrial manufacturing and heavy-duty fabrication environments.

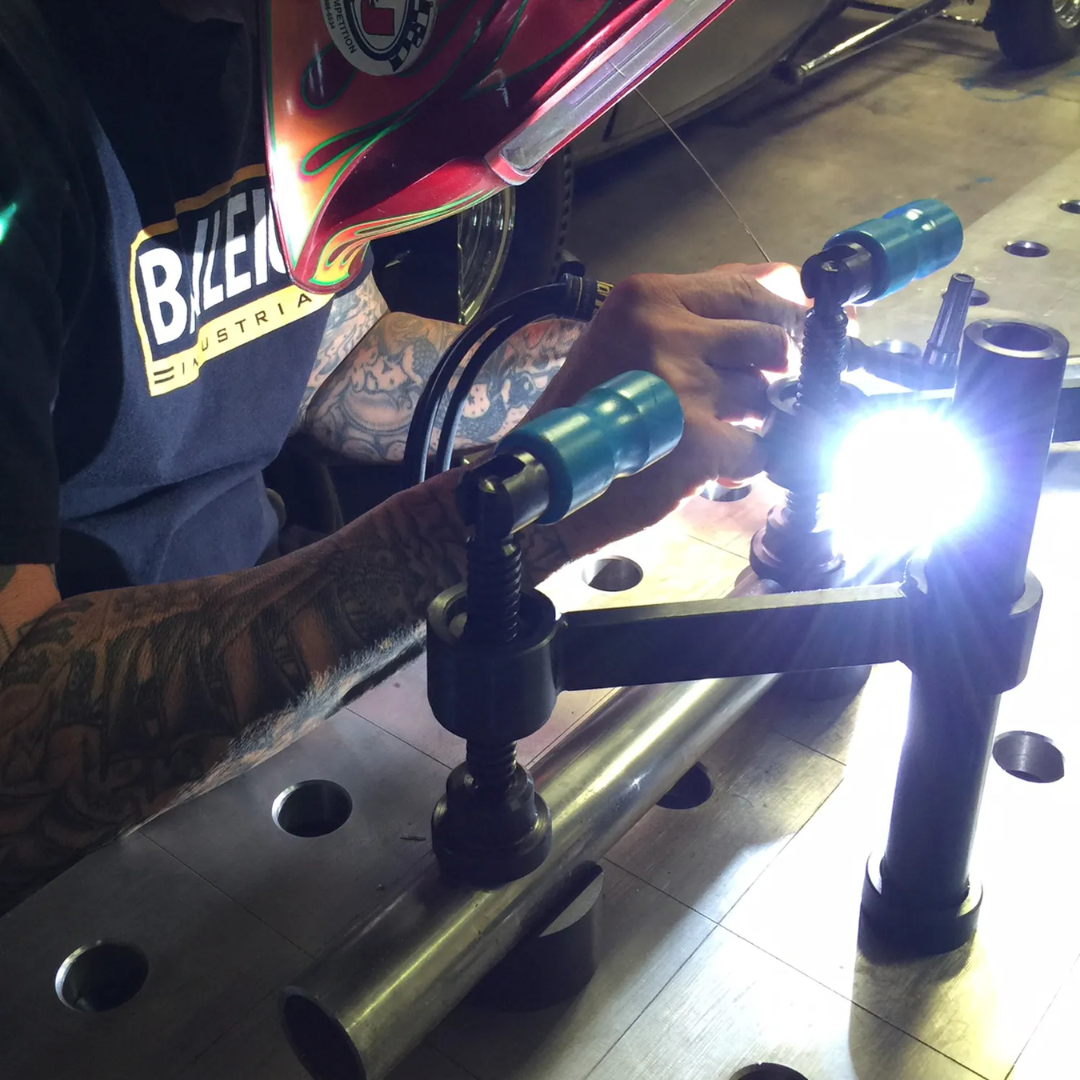

The Baileigh Welding Jig Table WJT-4747-HD 1010425 provides an extremely rigid and accurate fixturing platform that helps improve weld quality, increase repeatability, and streamline production workflows.
Baileigh Welding Jig Table WJT-4747-HD 1010425 Specifications
| Model | WJT-4747-HD |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1010425 |
| Table Size | 47 in. × 47 in. |
| Construction Material | 250 Cast Iron |
| Working Surfaces | 5 Precision Fixturing Surfaces |
| Fixture Hole Diameter | 28 mm |
| Hole Spacing | 100 mm Centers |
| Number of Mounting Points | 5 |
| Load Capacity | 4,000 lbs. (Approx. 2 Tons) |
| Table Flatness | ±0.0025 in. |
| Surface Hardness | 140–160 Brinell (Approx. 18–25 HRC) |
| Mounting Hole Diameter | 28 mm |
| Mounting Hole Spacing | 100 mm |
| Legs Included | Yes |
| Net Weight | 1,040 lbs. |
| Gross Weight | 1,040 lbs. |
| Warranty | Limited Warranty |
| UPC | 19907011347 |
Baileigh Welding Jig Table WJT-4747-HD 1010425 Performance & Construction

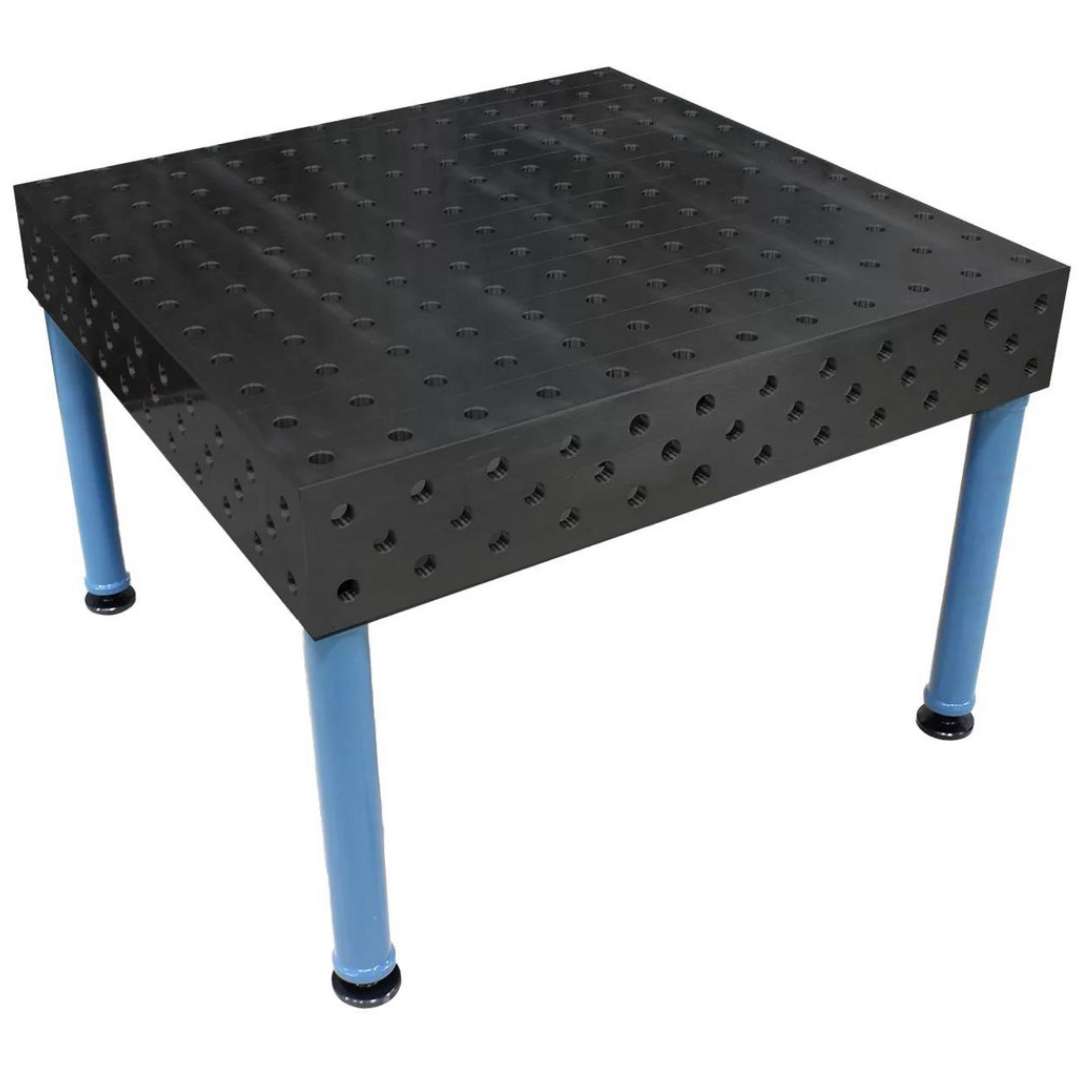

- Large 47-inch × 47-inch work surface provides ample space for welding, layout, fixture building, and fabrication of large assemblies.
- 250 cast iron construction delivers exceptional rigidity, vibration damping, and long-term dimensional stability for precision fabrication work.
- Five precision-machined fixturing surfaces allow workpieces to be positioned horizontally or vertically for maximum setup flexibility.

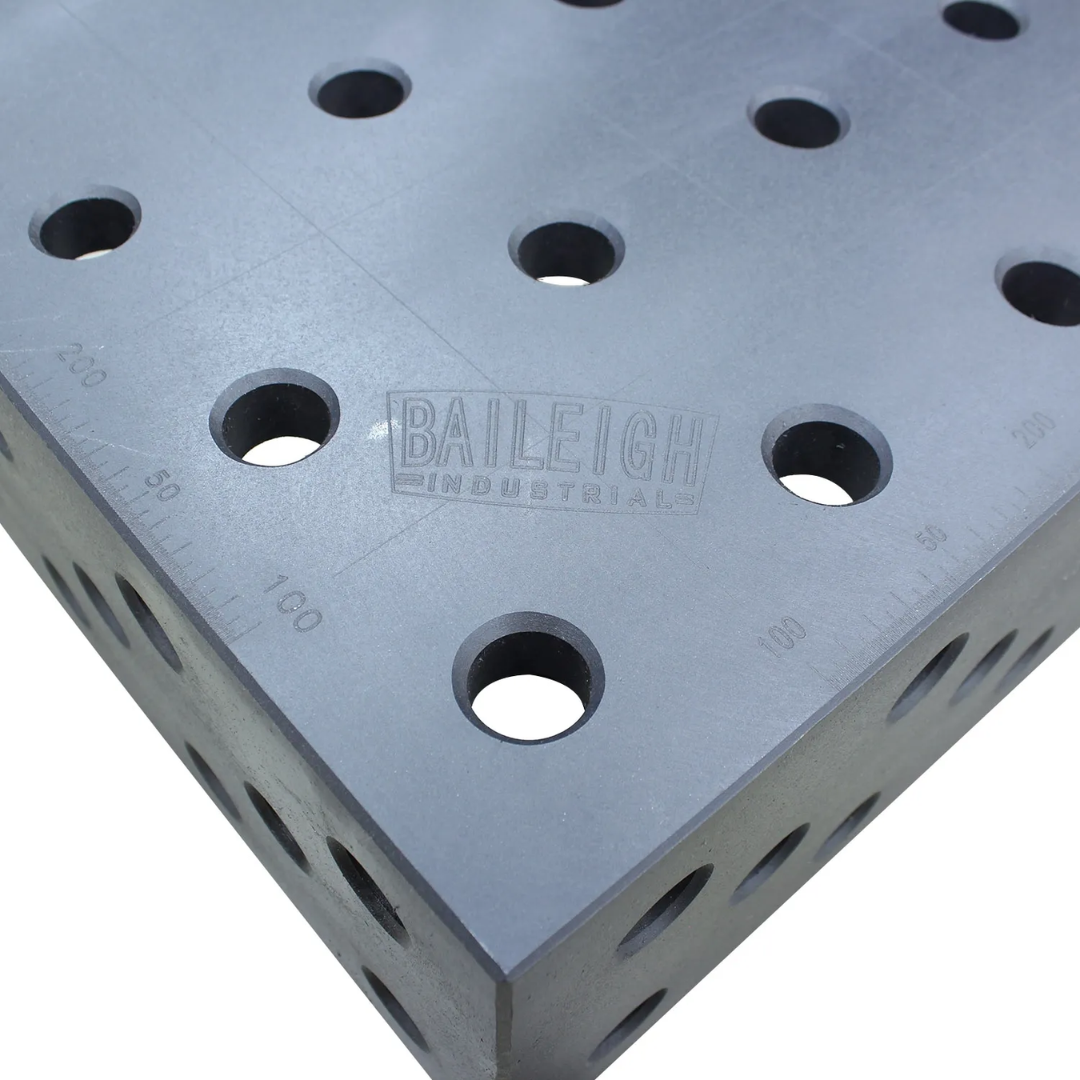

- Industry-standard 28 mm fixture holes are compatible with a wide variety of professional welding clamps, stops, and fixturing accessories.
- 100 mm hole spacing creates a consistent fixturing grid for accurate, repeatable setups and efficient workholding.
- Precision flatness tolerance of ±0.0025 inch provides an exceptionally accurate reference surface for welding, assembly, inspection, and fabrication.
- Surface hardness of approximately 140–160 Brinell (18–25 HRC) offers an excellent balance of durability, machinability, and resistance to shop wear.
- 4,000-pound load capacity supports heavy weldments, fixtures, structural components, and industrial assemblies with confidence.

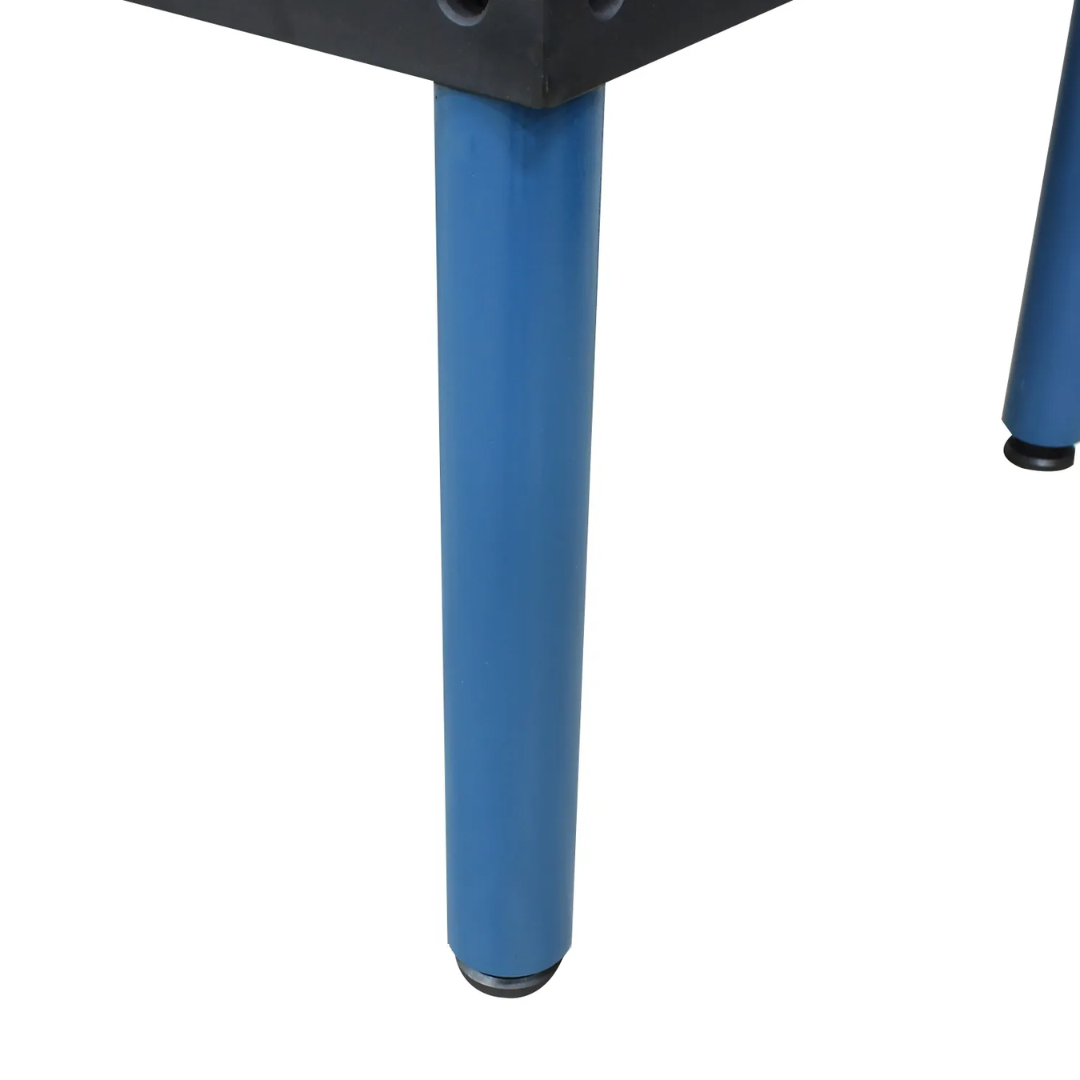

- Heavy-duty support legs included provide outstanding stability while maintaining comfortable ergonomic working height.
- Massive 1,040-pound construction minimizes vibration and movement during welding, machining, and heavy fabrication operations.

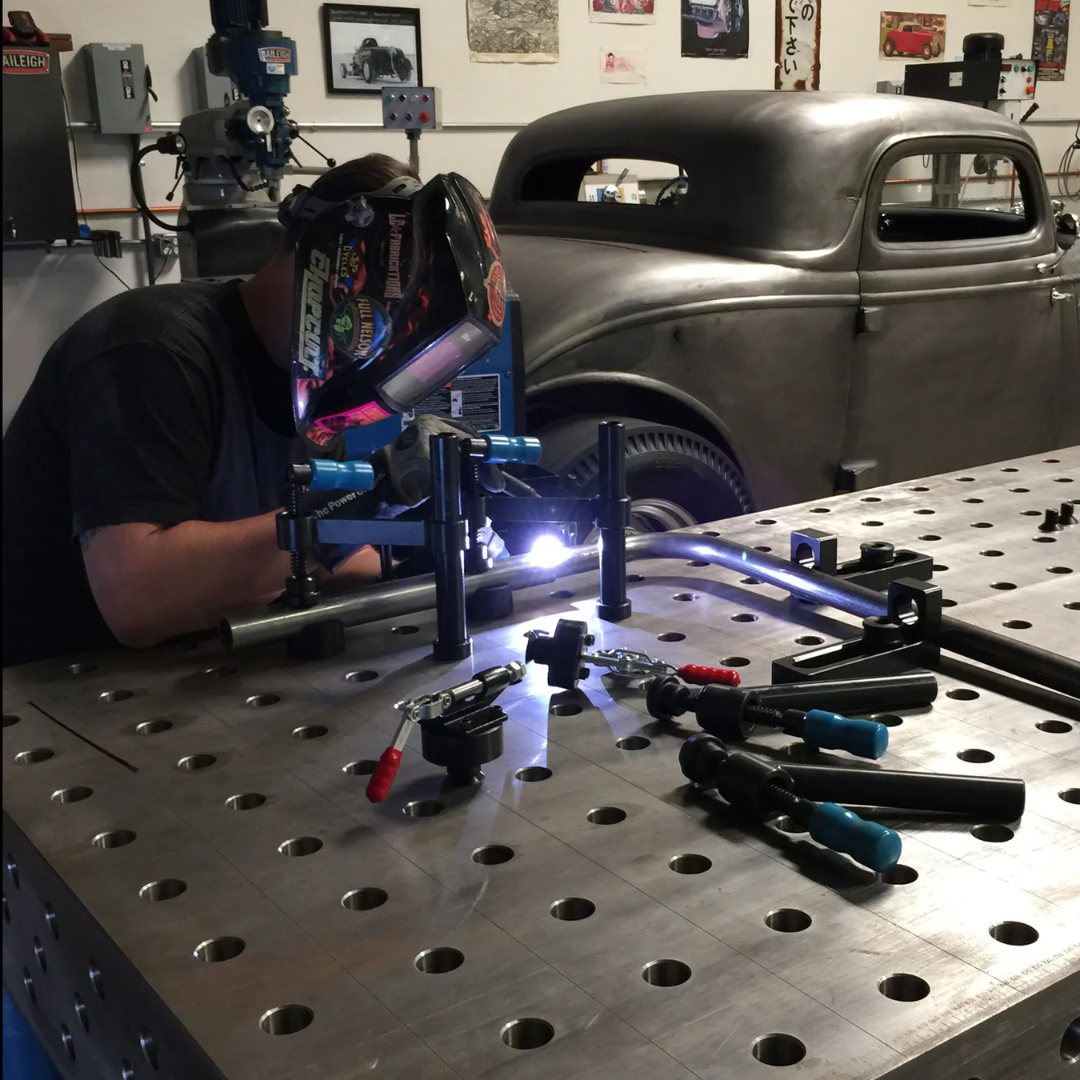

- Ideal for modular fixturing systems that improve production efficiency, part consistency, and repeatable manufacturing processes.
- Supported by Baileigh's limited warranty and lifetime technical support for dependable long-term performance.
Why Choose the Baileigh Welding Jig Table WJT-4747-HD 1010425
- Heavy-duty 250 cast iron construction for maximum rigidity and durability.
- Large 47" × 47" work surface accommodates substantial fabrication projects.
- Five precision fixturing surfaces increase workholding versatility.
- Industry-standard 28 mm hole system supports professional modular fixturing.
- Precision-machined flatness of ±0.0025" ensures accurate fabrication and assembly.
- 4,000 lb load capacity handles heavy industrial components with ease.
- 100 mm fixture grid enables fast, repeatable production setups.
- Includes heavy-duty support legs for immediate installation.
- Perfect for fabrication shops, machine shops, manufacturing facilities, and precision welding operations.
- Backed by Baileigh's limited warranty and lifetime technical support.
The Baileigh Welding Jig Table WJT-4747-HD 1010425 is an industrial-grade fixturing solution built for professionals who demand precision, rigidity, and repeatability. Combining a massive 250 cast iron construction, precision-machined fixturing surfaces, industry-standard 28 mm hole pattern, and a 4,000-pound load capacity, this heavy-duty welding table provides the accuracy and durability required for high-end fabrication, machining, and production welding environments.
