Baileigh Straight Brake (HB-12016) 1004639 Applications
- HVAC ductwork fabrication and long sheet metal panels.
- Architectural sheet metal fabrication including flashing, trim, and fascia.
- Commercial roofing and building component manufacturing.
- General fabrication shops producing channels, brackets, and formed sheet metal parts.
- Agricultural equipment and industrial enclosure fabrication.
- Production environments requiring consistent manual bending performance across full-length material.

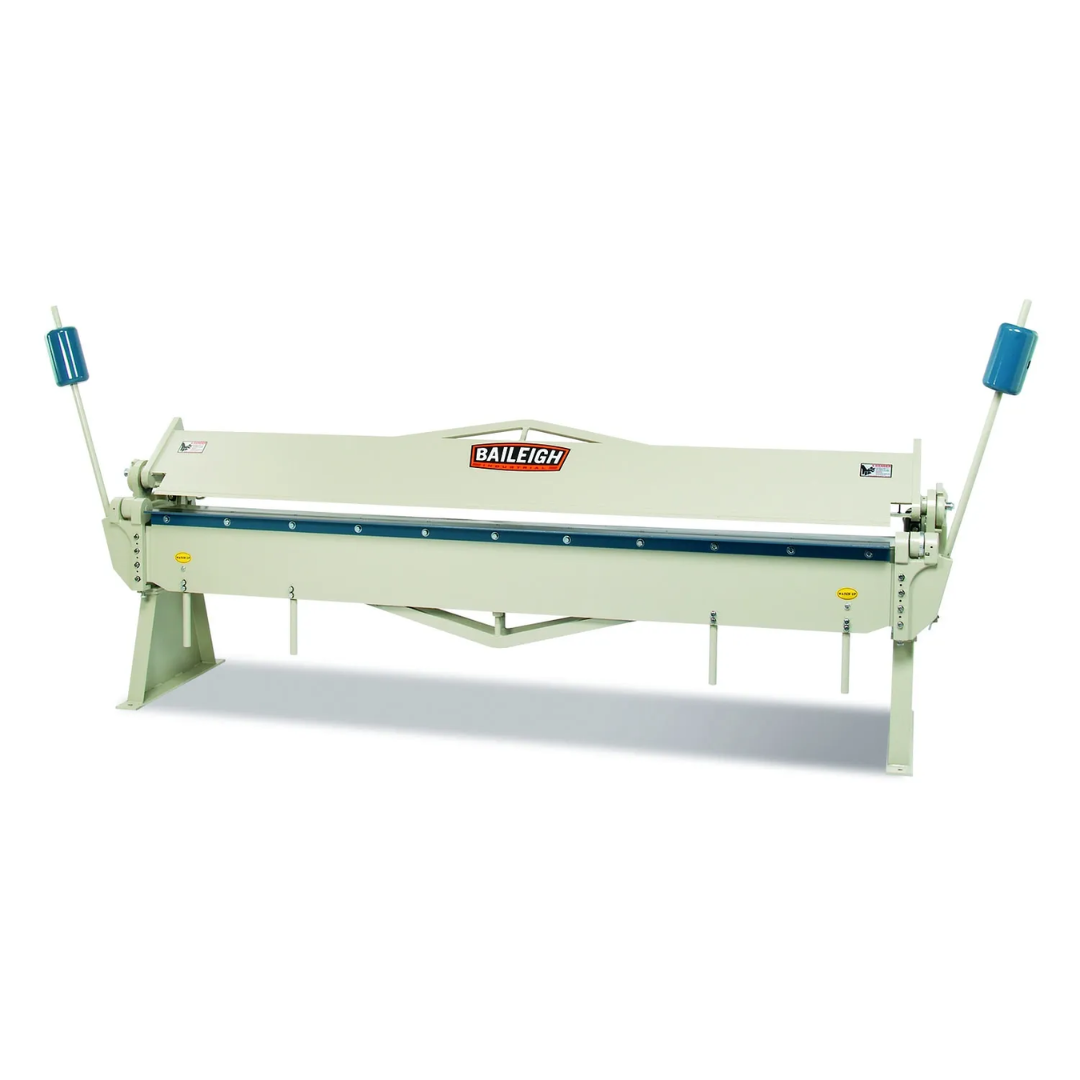

The Baileigh Straight Brake (HB-12016) 1004639 is built for professionals who need durable manual bending performance, exceptional accuracy, and reliable production capability across large sheet metal workpieces.
Baileigh Straight Brake (HB-12016) 1004639 Specifications
| Model | HB-12016 |
|---|---|
| Part Number | 1004639 |
| Machine Type | Manual Sheet Metal Straight Brake |
| Working Width | 120 in. (10 ft.) |
| Bending Capacity | 120 in. |
| Mild Steel Capacity | 16 Gauge |
| Maximum Bend Angle | 135° |
| Operation | Manual |
| Frame Construction | Fully Welded Plate Steel Top Beam and Bending Leaf |
| Counterbalance System | Dual Heavy-Duty Counterweights |
| Pivot Components | Precision-Machined Cast Iron Pivots, Supports, and Clamp Levers |
| Repeatability | Standard Stop Rod Included |
| Stand | Fully Welded Steel Stand with Floor Bolt Capability |
| Input Power | Manual |
| Net Weight | 2,840 lbs. |
| Gross Weight | 2,840 lbs. |
| Warranty | 1 Year Parts Warranty |
Baileigh Straight Brake (HB-12016) 1004639 Performance & Construction
- 120-inch (10-foot) working width accommodates full-size sheet metal panels for commercial fabrication and production applications.
- 16 gauge mild steel capacity delivers dependable bending performance across the machine's full working length.
- Maximum 135° bend angle provides flexibility for producing channels, flanges, boxes, trim components, and custom sheet metal profiles.

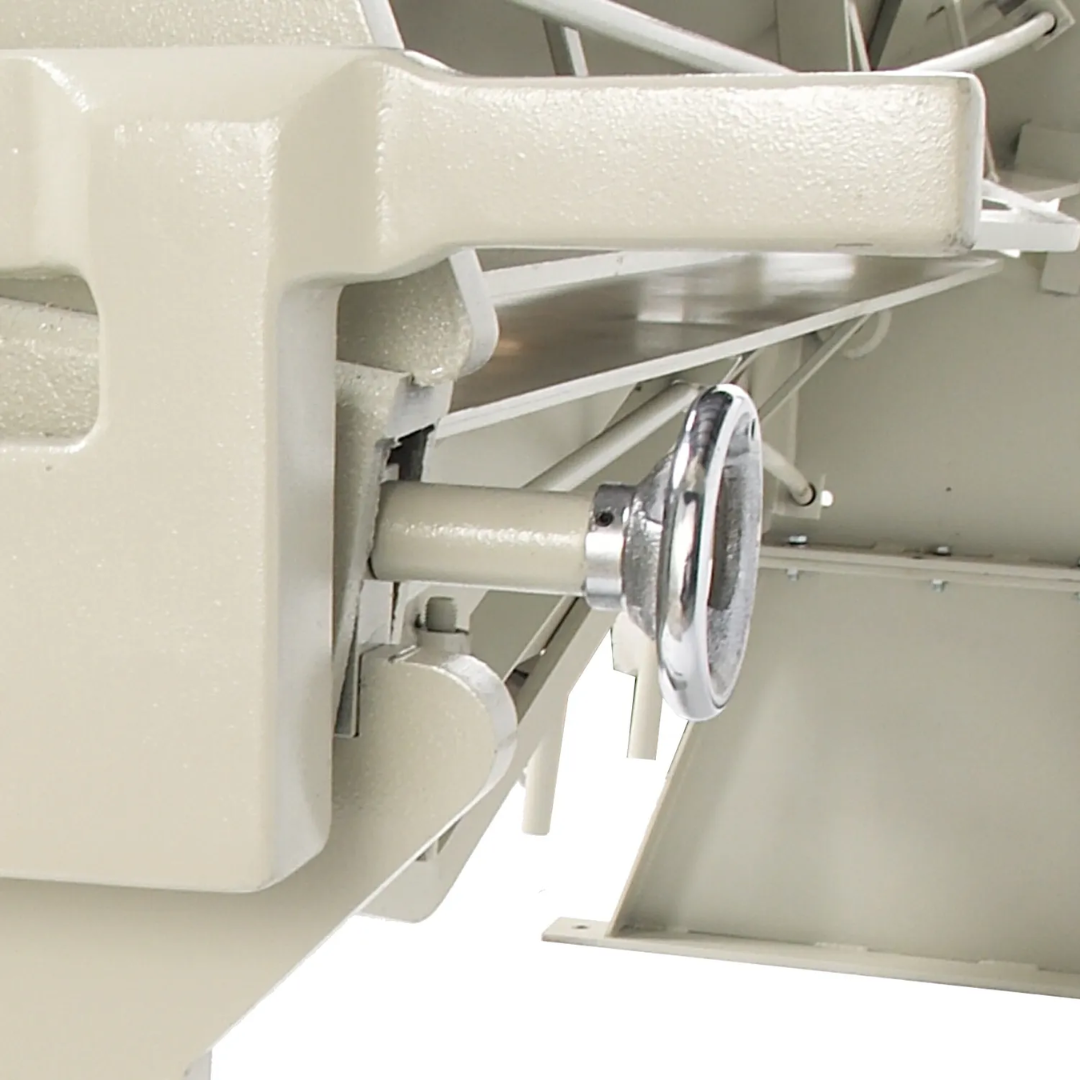

- Fully welded plate steel top beam and bending leaf minimize flexing under load to ensure accurate and repeatable bends.

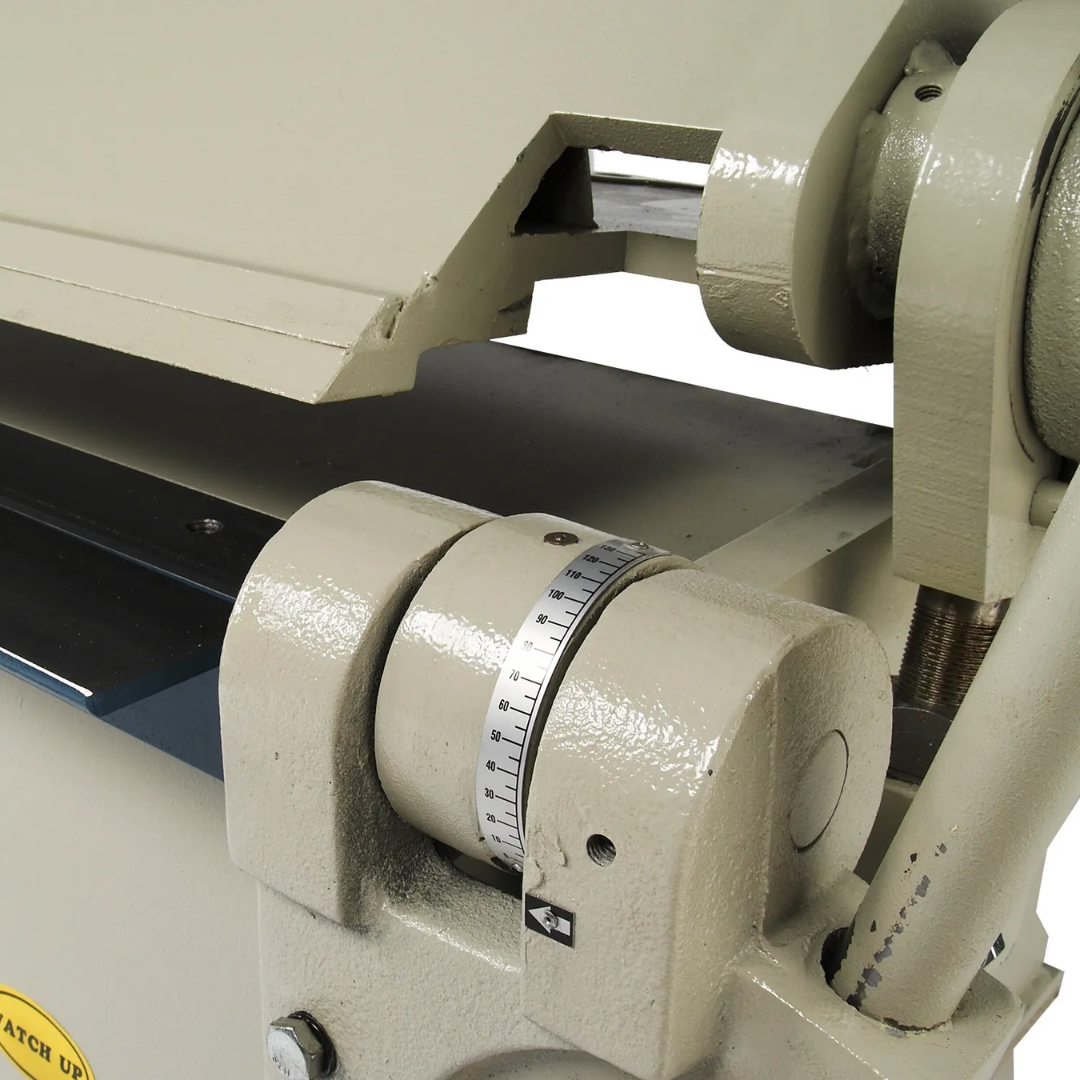

- Dual heavy-duty counterweights reduce operator effort and provide smoother control when bending larger or heavier sheet metal panels.

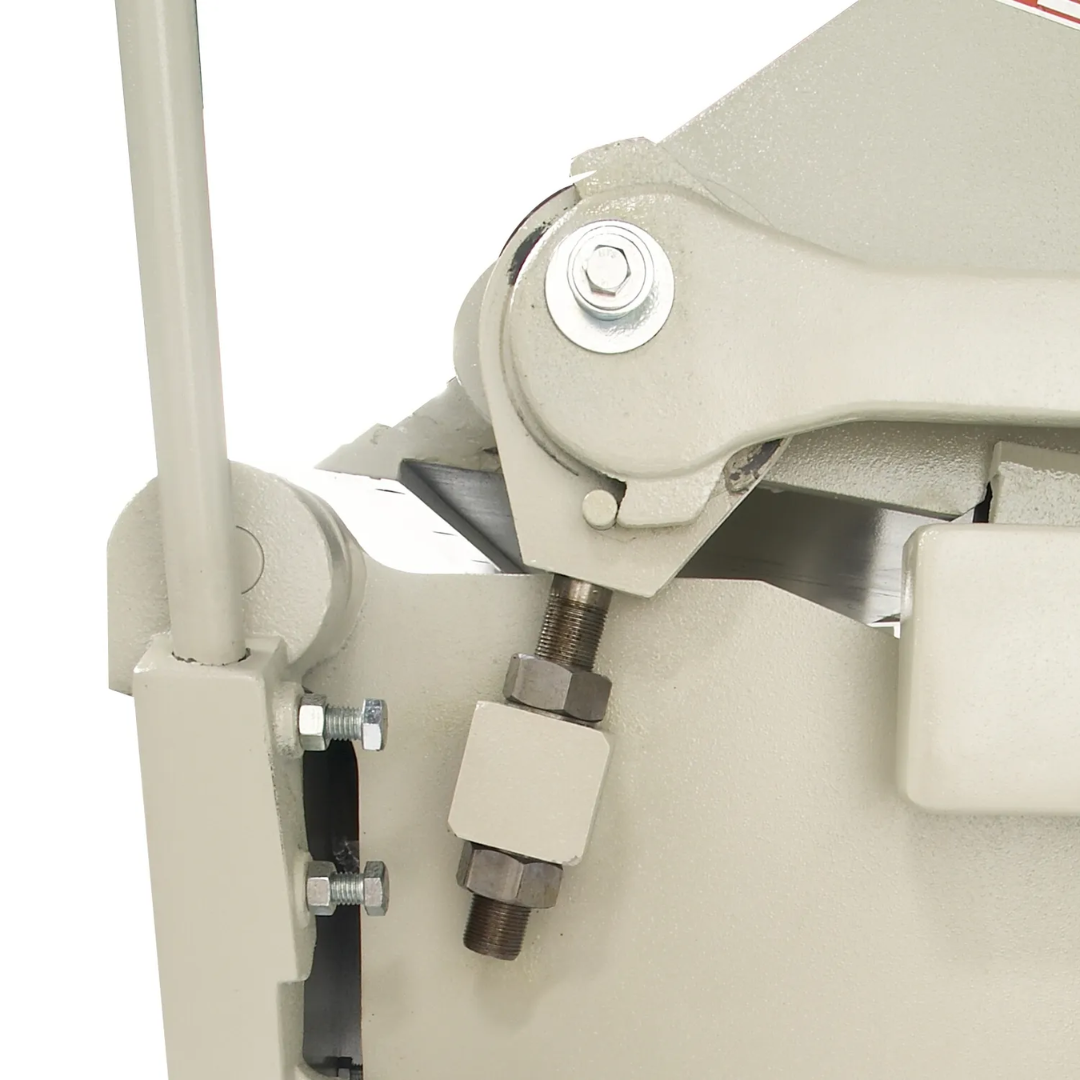

- Precision-machined cast iron pivots, supports, and clamp levers enhance durability while maintaining smooth, consistent brake movement.

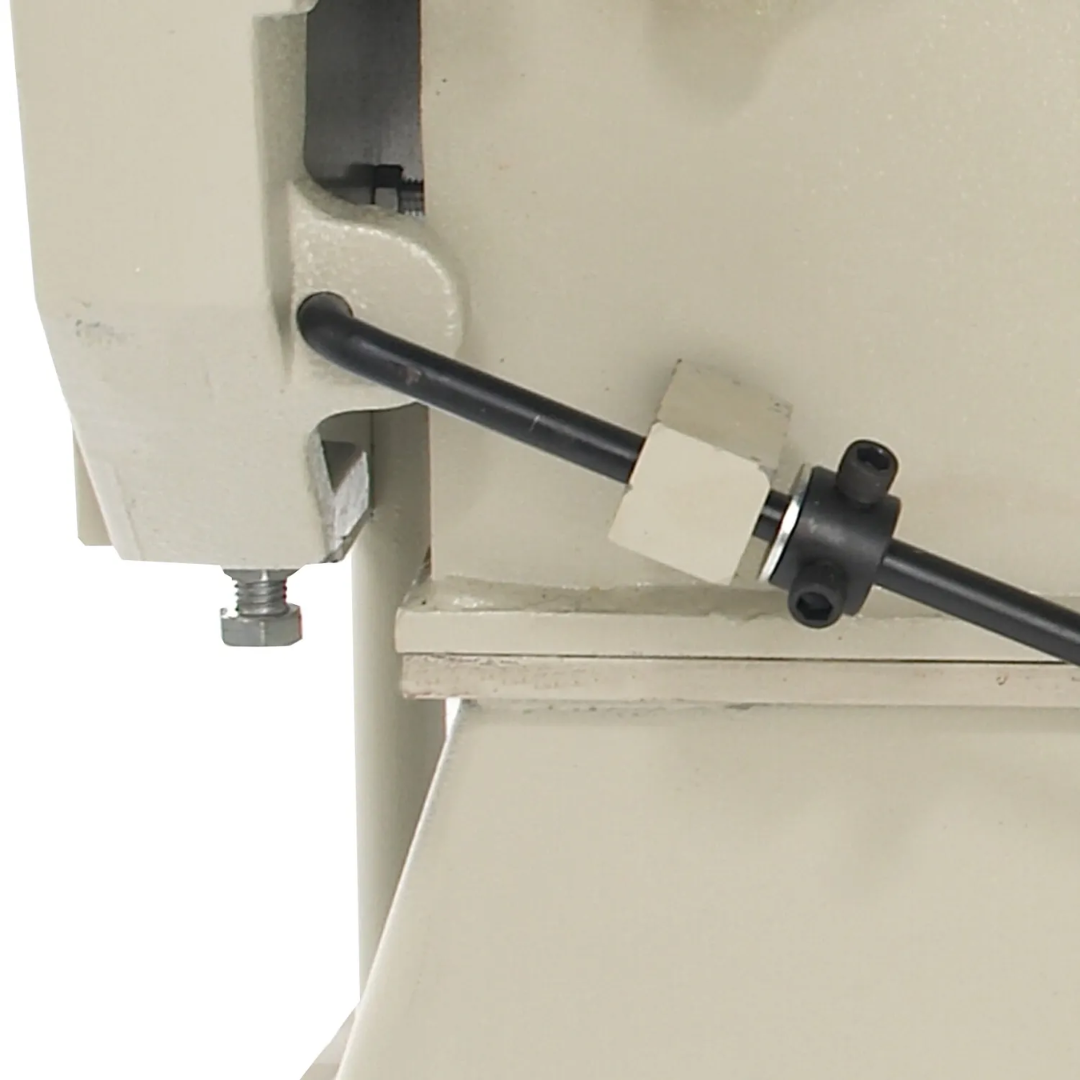

- Standard stop rod allows operators to quickly reproduce identical bends for improved production efficiency and repeatability.
- Heavy-duty welded steel stand can be securely bolted to the floor to maximize stability during demanding fabrication operations.
- Manual hand brake operation eliminates the need for electrical power or hydraulic systems, reducing maintenance while increasing reliability.
- Industrial-grade construction is engineered for long service life in fabrication shops, roofing operations, HVAC facilities, and manufacturing environments.
- Designed for precision by combining rigid construction with premium-machined components that maintain alignment through years of continuous use.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Straight Brake (HB-12016) 1004639
- Large 120-inch working width supports oversized sheet metal fabrication projects.
- Bends up to 16 gauge mild steel with excellent accuracy and repeatability.
- Fully welded steel construction minimizes flex for consistent professional results.
- Precision-machined cast iron pivots provide smooth operation and long-term durability.
- Dual counterweights reduce operator fatigue during full-capacity bending.
- Standard stop rod improves production efficiency through repeatable bend positioning.
- Manual operation provides dependable performance without electrical or hydraulic requirements.
- Ideal for HVAC fabrication, roofing, construction, architectural sheet metal, and industrial manufacturing.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh Straight Brake (HB-12016) 1004639 combines industrial-strength construction, precision-machined components, and smooth manual operation into a dependable sheet metal forming solution. Built for professionals who require long working capacity, accurate bends, and years of reliable performance, this heavy-duty straight brake is an outstanding addition to fabrication shops and production facilities.
