Baileigh Sheet Metal Brake (HB-9616) 1004653 Applications
- HVAC ductwork fabrication and custom air handling components.
- Architectural sheet metal, flashing, fascia, trim, and roofing panels.
- Commercial construction and metal building fabrication.
- General sheet metal fabrication for industrial and manufacturing facilities.
- Agricultural equipment panels and repair work.
- Production environments requiring repeatable bending of long sheet metal sections.

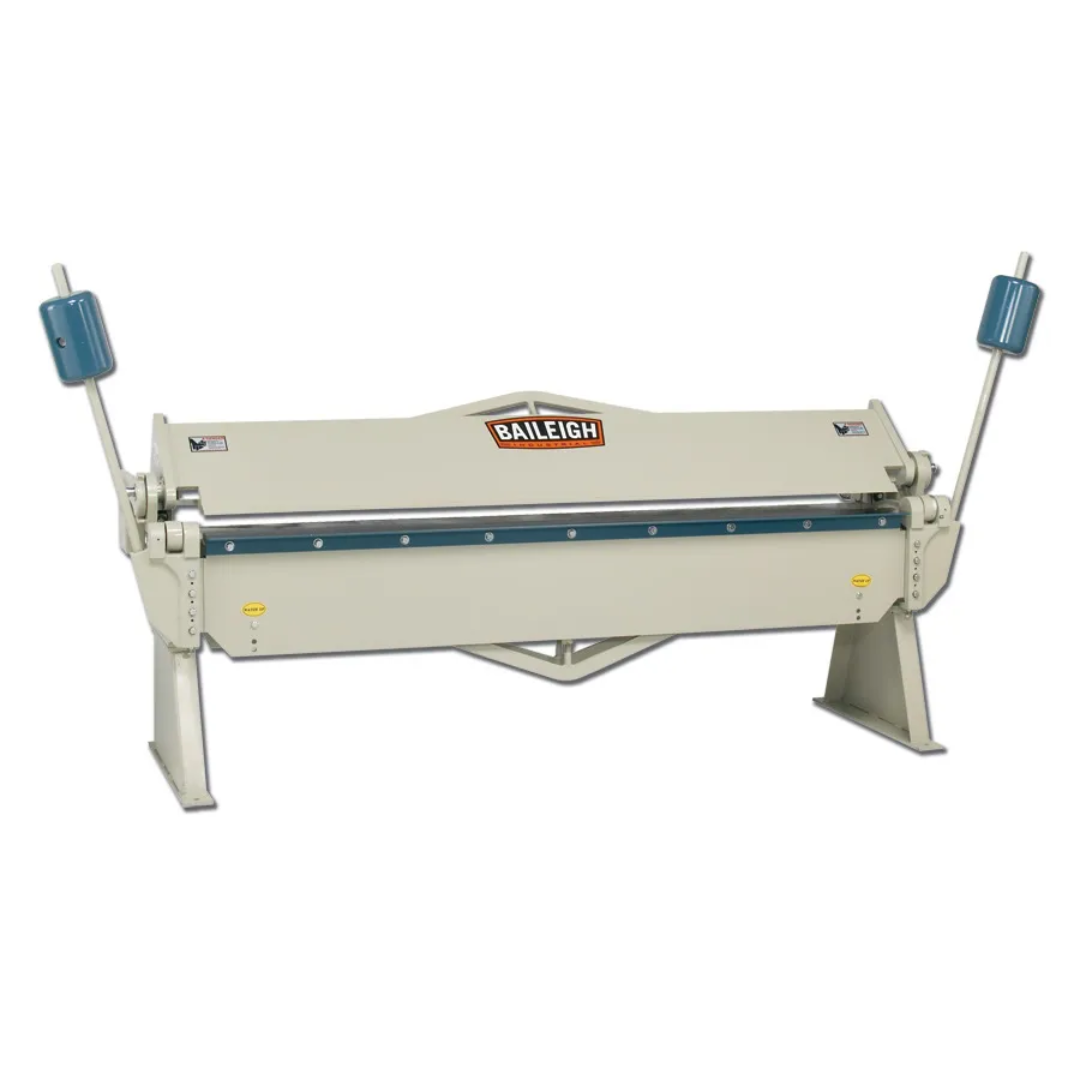

The Baileigh Sheet Metal Brake (HB-9616) 1004653 is built for professionals who require dependable manual bending performance, outstanding rigidity, and repeatable accuracy when working with full-size sheet metal panels.
Baileigh Sheet Metal Brake (HB-9616) 1004653 Specifications
| Model | HB-9616 |
|---|---|
| Part Number | 1004653 |
| Machine Type | Manual Straight Sheet Metal Brake |
| Working Width | 96 in. (8 ft.) |
| Bending Capacity | 96 in. |
| Mild Steel Capacity | 16 Gauge |
| Maximum Bend Angle | 135° |
| Operation | Manual |
| Material Adjustment | Adjustable Material Thickness Wheels |
| Bending Leaf | Removable Apron |
| Counterbalance System | Dual Heavy-Duty Counterweights |
| Repeatability | Standard Stop Rod Included |
| Frame Construction | Fully Welded Steel Frame with Reinforced Support Rods |
| Input Power | Manual |
| Net Weight | 2,260 lbs. |
| Gross Weight | 2,260 lbs. |
| Warranty | 1 Year Parts Warranty |
Baileigh Sheet Metal Brake (HB-9616) 1004653 Performance & Construction
- 96-inch (8-foot) working width accommodates full-size sheet metal panels for HVAC, architectural, and industrial fabrication applications.
- 16 gauge mild steel capacity provides dependable forming capability for professional fabrication and production environments.
- Maximum 135° bend angle allows the creation of channels, flanges, pans, boxes, trim pieces, and other custom sheet metal profiles.
- Fully welded steel frame with reinforced support rods minimizes flexing and maintains alignment for consistently accurate bends across the entire working width.
- Adjustable material thickness wheels enable precise blade clearance adjustments for lighter gauge materials, improving bend quality and versatility.
- Removable bending apron reduces the distance between bends, making complex multi-bend fabrication faster and more efficient.
- Dual heavy-duty counterweights reduce operator effort while providing smooth, controlled movement throughout the bending process.
- Included stop rod improves production efficiency by allowing quick, accurate, and repeatable bend positioning.
- Manual hand brake operation eliminates electrical and hydraulic requirements, reducing maintenance while providing dependable everyday performance.
- Industrial-grade welded construction delivers long-term durability for fabrication shops, HVAC manufacturers, roofing contractors, and production facilities.
- Precision alignment across the full 8-foot working length ensures consistent results even on large sheet metal panels.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Sheet Metal Brake (HB-9616) 1004653
- Large 96-inch working width is ideal for full-size sheet metal fabrication.
- Bends up to 16 gauge mild steel with consistent professional accuracy.
- Fully welded reinforced frame maintains rigidity and minimizes distortion.
- Adjustable material thickness wheels optimize bending performance for various materials.
- Removable apron simplifies multi-bend fabrication and tight bend spacing.
- Dual counterweights reduce operator fatigue during extended production work.
- Stop rod enables fast, repeatable bend positioning for improved productivity.
- Reliable manual operation requires no electrical power or hydraulic systems.
- Perfect for HVAC fabrication, roofing, architectural sheet metal, manufacturing, and industrial fabrication shops.
- Supported by Baileigh's 1-year warranty and lifetime technical assistance.
The Baileigh Sheet Metal Brake (HB-9616) 1004653 combines industrial-strength construction, precision adjustment features, and smooth manual operation to deliver exceptional sheet metal bending performance. Designed for professionals working with long panels, this heavy-duty straight brake provides the accuracy, durability, and repeatability required for years of dependable service in demanding fabrication environments.
