Baileigh Planishing Hammer - (PH-24A) 1005948 Applications
- Automotive restoration and classic vehicle body panel finishing.
- Custom hot rod, race car, and performance vehicle fabrication.
- Aircraft sheet metal repair and aluminum panel smoothing.
- Motorcycle tank, fender, and bodywork fabrication.
- General sheet metal fabrication and precision finishing.
- Prototype manufacturing and custom metal shaping.
- Removing dents, wrinkles, hammer marks, and weld imperfections from formed panels.
Designed for professionals who require fast, accurate, and repeatable sheet metal finishing with excellent operator control and industrial-grade durability.
Baileigh Planishing Hammer - (PH-24A) 1005948 Specifications
| Model | PH-24A |
|---|---|
| Product Number | 1005948 |
| Machine Type | Pneumatic Planishing Hammer |
| Throat Depth | 24 in. |
| Mild Steel Capacity | 16 Gauge |
| Aluminum Capacity | 14 Gauge |
| Operating Speed | 4,600 Beats Per Minute |
| Air Supply | 90–120 PSI Compressed Air |
| Frame Construction | Fully Welded 4" × 4" Steel Frame |
| Included Dies | 9 Radius Dies (Flat through 12" Radius) |
| Control | Foot Pedal Operation |
| Net Weight | 185 lbs. |
| Gross Weight | 185 lbs. |
| Warranty | 1 Year |
| UPC | 731325410259 |
| California Proposition 65 | Cancer and Reproductive Harm |
Baileigh Planishing Hammer - (PH-24A) 1005948 Performance & Construction

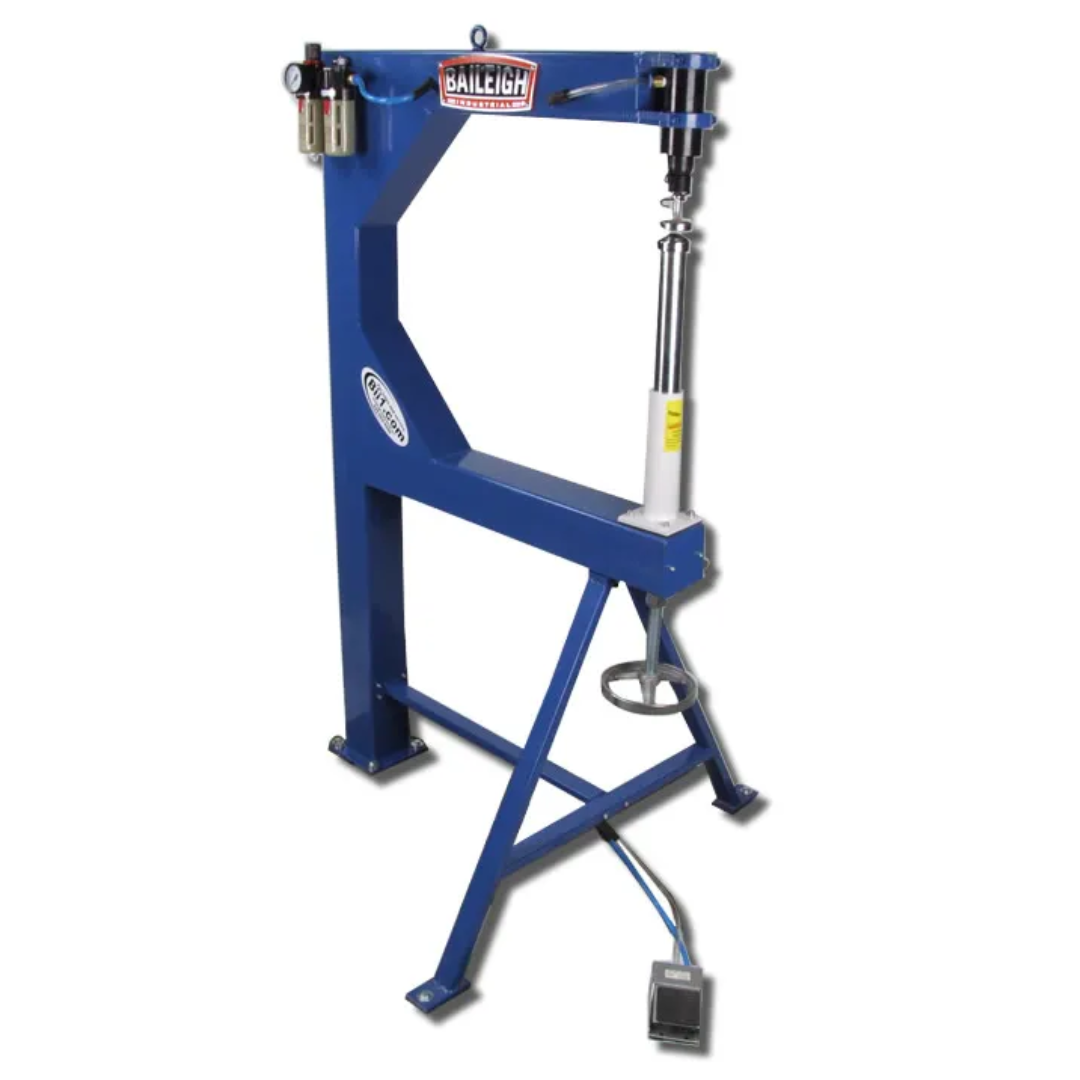

- Industrial welded construction features a rigid 4" × 4" steel frame that minimizes flex and maximizes energy transfer for smooth, consistent metal finishing.
- High-speed pneumatic operation delivers up to 4,600 beats per minute, allowing operators to quickly remove surface imperfections while maintaining excellent control.
- 24-inch throat depth provides easy access to larger body panels, allowing work farther from panel edges without sacrificing maneuverability.
- 16-gauge mild steel capacity makes the PH-24A ideal for finishing automotive panels, fabricated components, and restoration projects.
- 14-gauge aluminum capacity allows efficient smoothing and finishing of lightweight aluminum panels commonly used in motorsports and aircraft applications.
- Adjustable material opening enables quick setup for varying material thicknesses using the convenient handwheel adjustment.
- Foot pedal control keeps both hands free for precise positioning and movement of the workpiece throughout the finishing process.

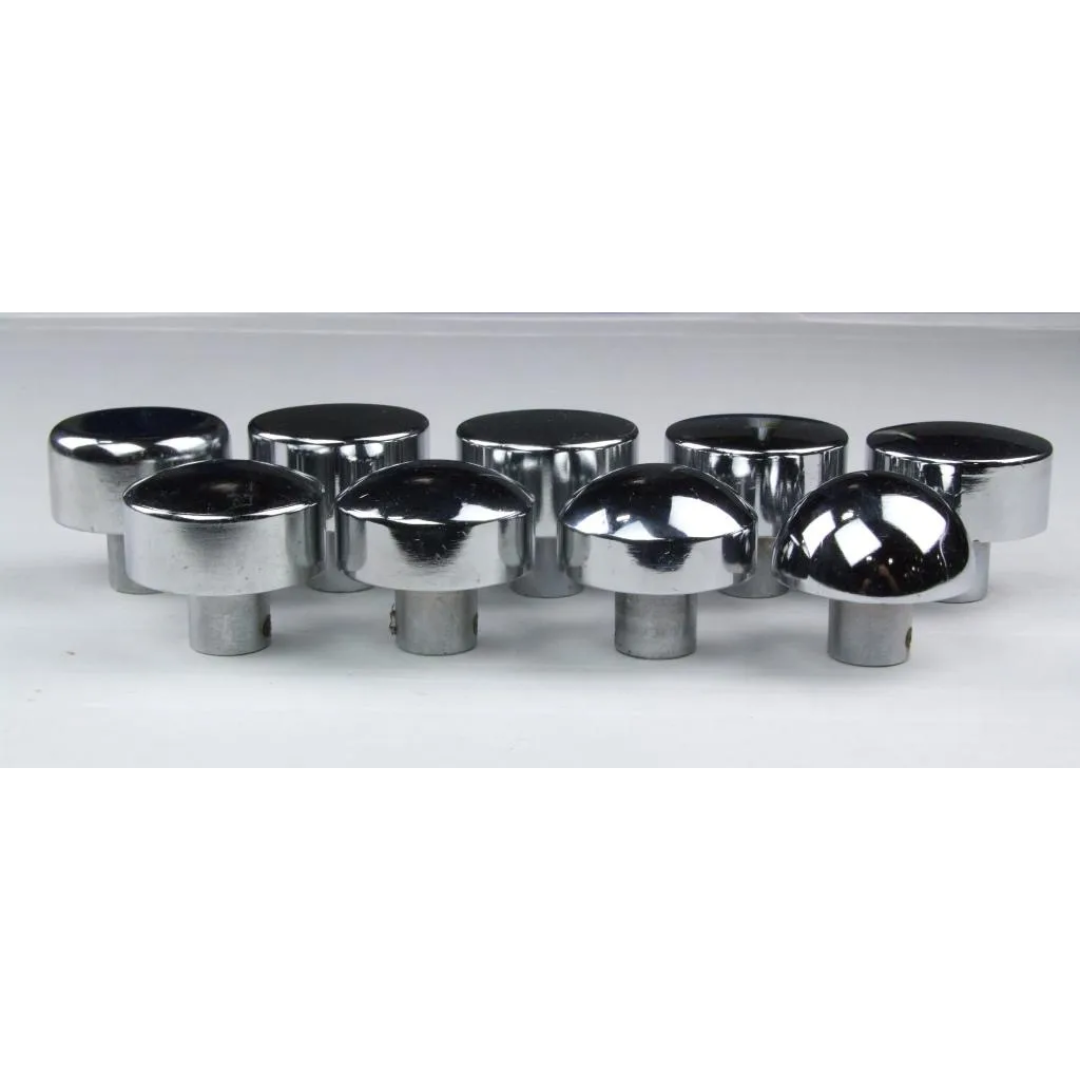

- Nine included radius dies provide versatility for working flat panels as well as curved surfaces with radii up to 12 inches.

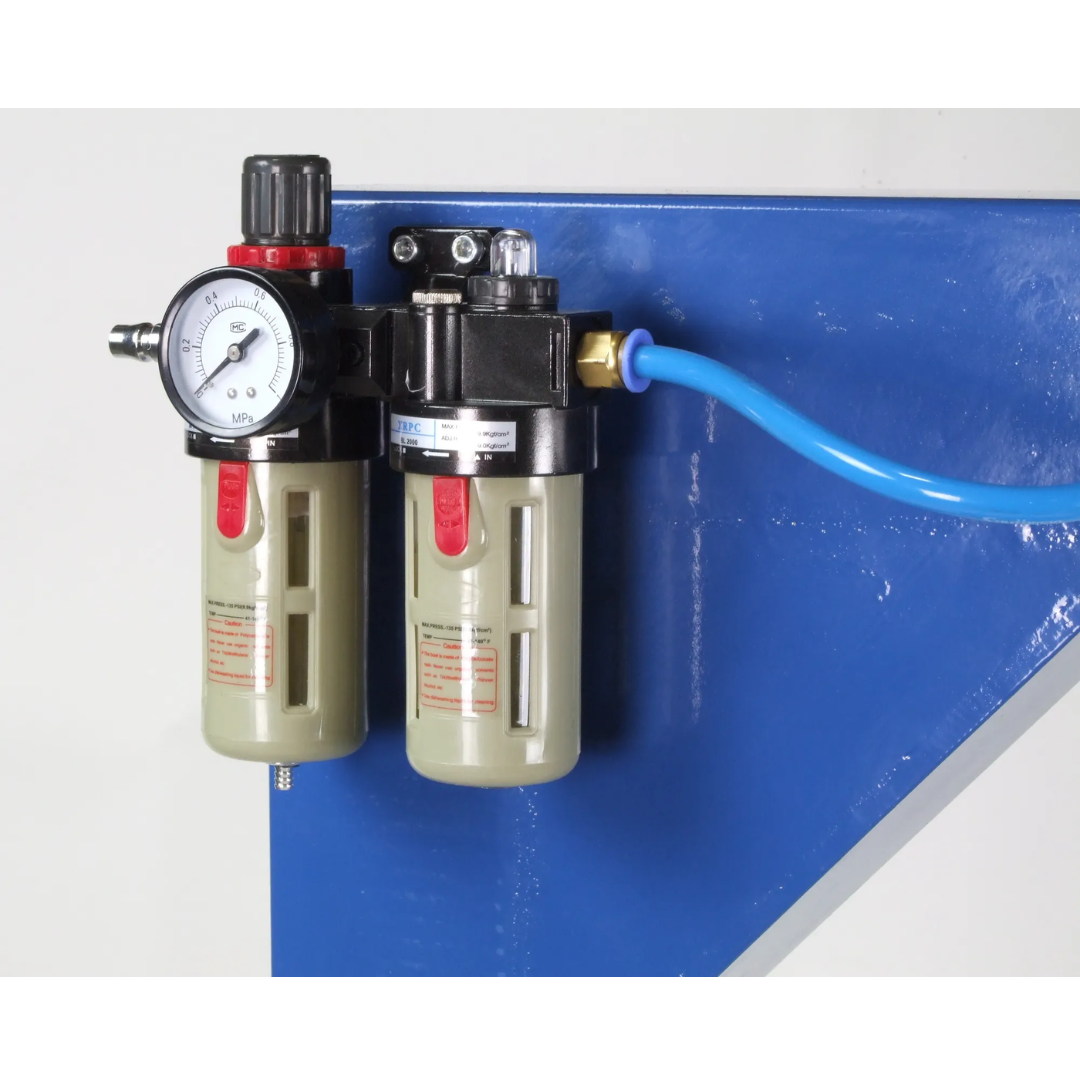

- Pneumatic power system operates using standard shop compressed air between 90 and 120 PSI for dependable daily production performance.
- Professional-grade durability is backed by Baileigh's 1-year warranty along with lifetime technical support.
Why Choose the Baileigh Planishing Hammer - (PH-24A) 1005948
- Professional pneumatic planishing hammer built for industrial and fabrication environments.
- Powerful 4,600 BPM operation provides fast, smooth, and consistent metal finishing.
- Rigid fully welded frame ensures accuracy while reducing vibration and frame deflection.
- Large 24-inch throat accommodates oversized body panels and fabricated components.
- Includes nine interchangeable radius dies for exceptional finishing versatility.
- Foot pedal operation improves operator control while keeping both hands on the workpiece.
- Ideal for automotive restoration, race fabrication, aircraft repair, and custom sheet metal work.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Planishing Hammer - (PH-24A) 1005948 combines industrial-strength construction, high-speed pneumatic performance, and precision operator control into a versatile finishing machine capable of producing smooth, professional-quality sheet metal surfaces across a wide range of fabrication and restoration applications.
