Baileigh Hydraulic Ironworker SW-95 1007865 Applications
- Structural steel fabrication and manufacturing.
- Production punching of plates, flat bar, and structural components.
- Angle iron, flat bar, and round bar shearing operations.
- Precision corner notching and coping applications.
- Industrial welding and fabrication shops.
- High-volume production requiring simultaneous multi-operator use.
- General heavy-duty metal fabrication and maintenance facilities.
Built for demanding fabrication environments where productivity, versatility, and reliable hydraulic performance are essential for continuous daily operation.
Baileigh Hydraulic Ironworker SW-95 1007865 Specifications
| Model | SW-95 |
|---|---|
| Product Number | 1007865 |
| Machine Type | Hydraulic Ironworker |
| Punching Force | 95 Tons |
| Shearing & Notching Force | 123 Tons |
| Motor Power | 10 HP |
| Input Power | 220V Three Phase |
| Integrated Workstations | Punching, Flat Bar Shearing, Angle Shearing, Bar Shearing, and Notching |
| Operator Configuration | Dual Operator |

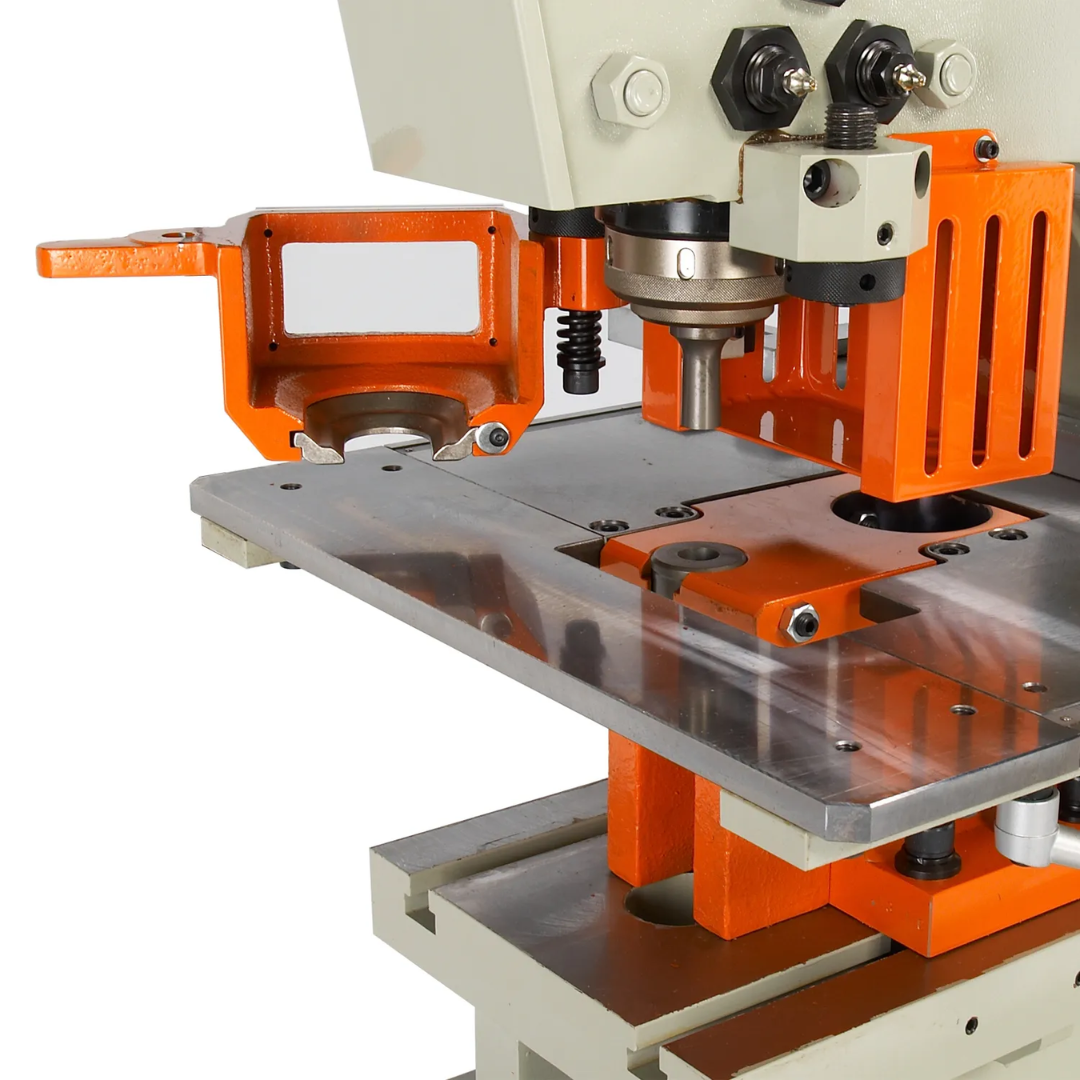

| Punch Capacity | 1 in. × 0.875 in. |
| Stroke Length | 3.25 in. |
| Throat Depth | 16 in. |
| Flat Bar Shear Work Height | 28.5 in. |
| Standard Tooling | 7 Punch and Die Sets Included |
| Back Gauge | Electric with Material Stops |
| Construction | Heavy Structural Steel Frame with Vertical Hydraulic Movement |
| Net Weight | 6,050 lbs. |
| Gross Weight | 6,050 lbs. |
| Warranty | 1 Year |
| UPC | 731325417869 |
Baileigh Hydraulic Ironworker SW-95 1007865 Performance & Construction
- 95 tons of hydraulic punching force provides exceptional power for demanding punching applications across a wide range of steel materials.

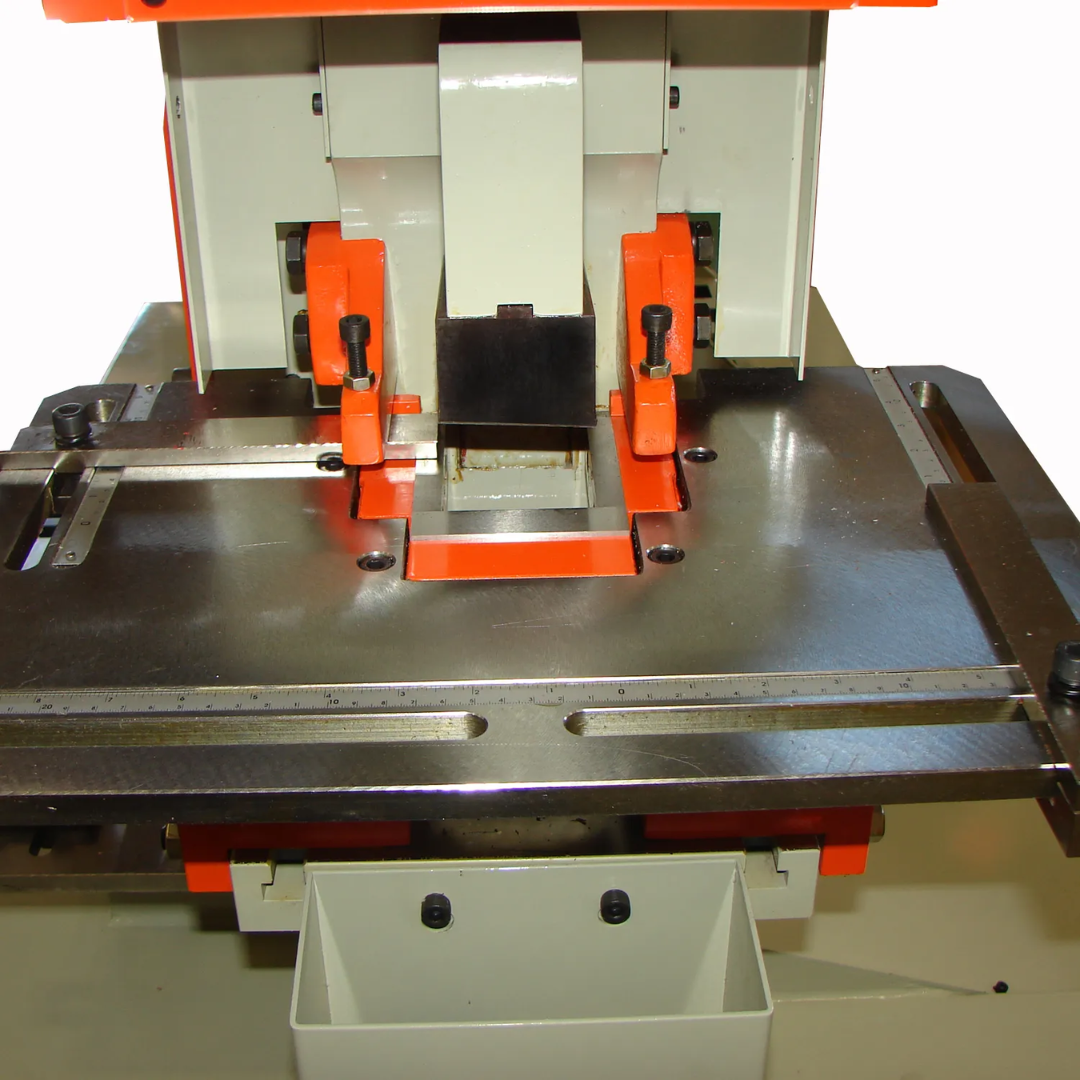

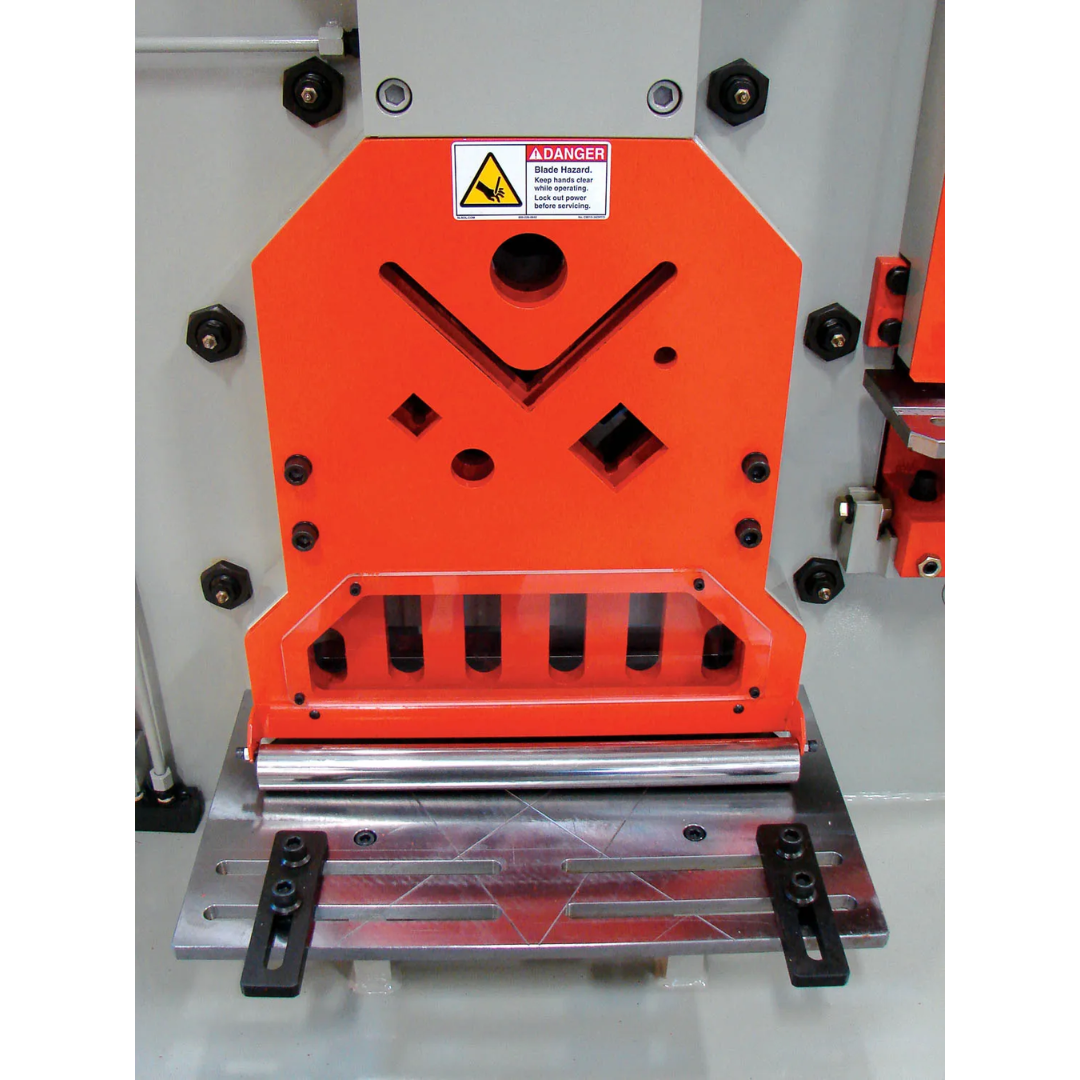

- 123 tons of shearing and notching force delivers fast, clean cutting performance for flat bar, angle iron, structural steel, and production notching operations.

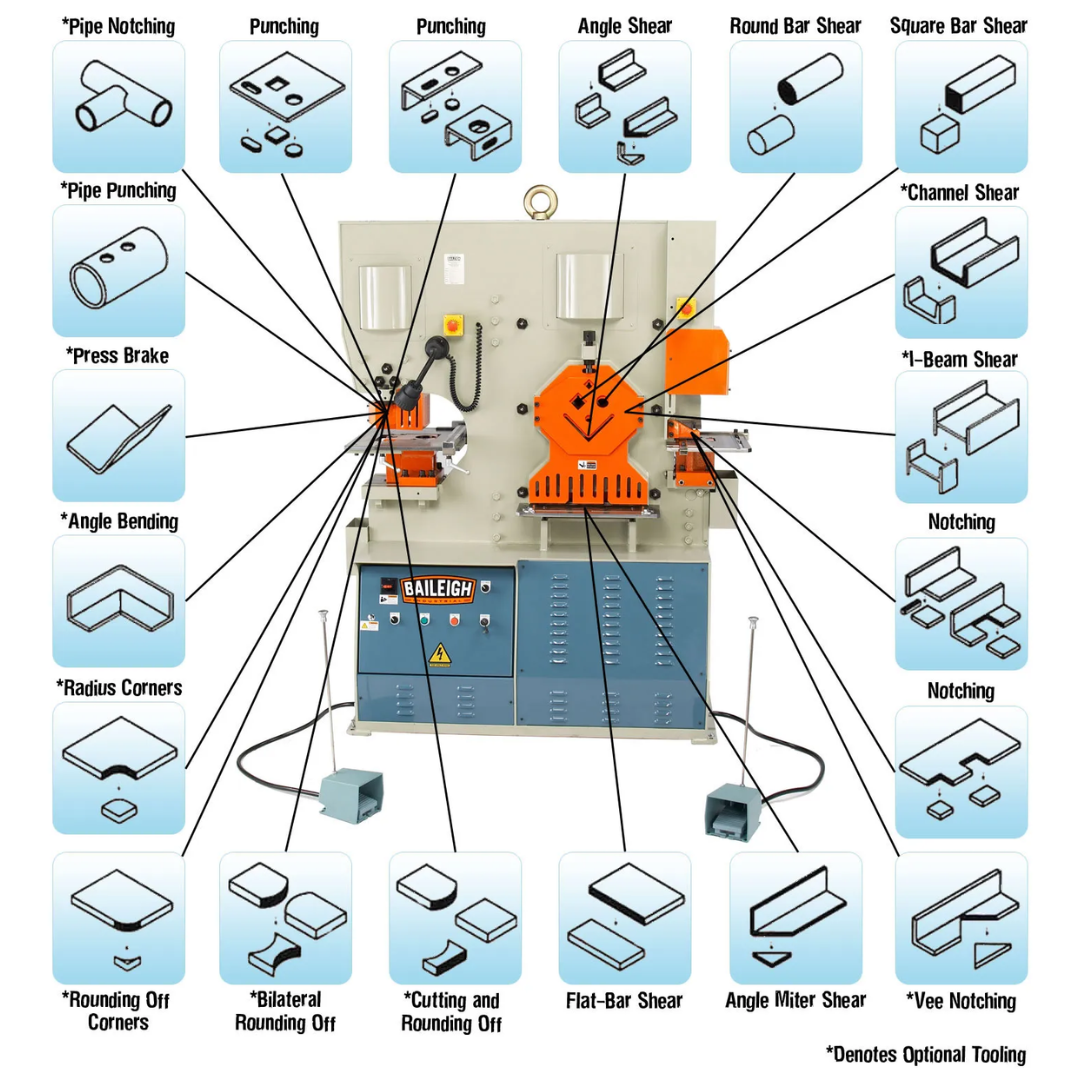

- Five integrated fabrication stations combine punching, flat bar shearing, angle shearing, bar shearing, and notching into one highly productive machine.
- Dual-operator configuration allows two operators to work simultaneously, significantly increasing production throughput without sacrificing hydraulic performance.

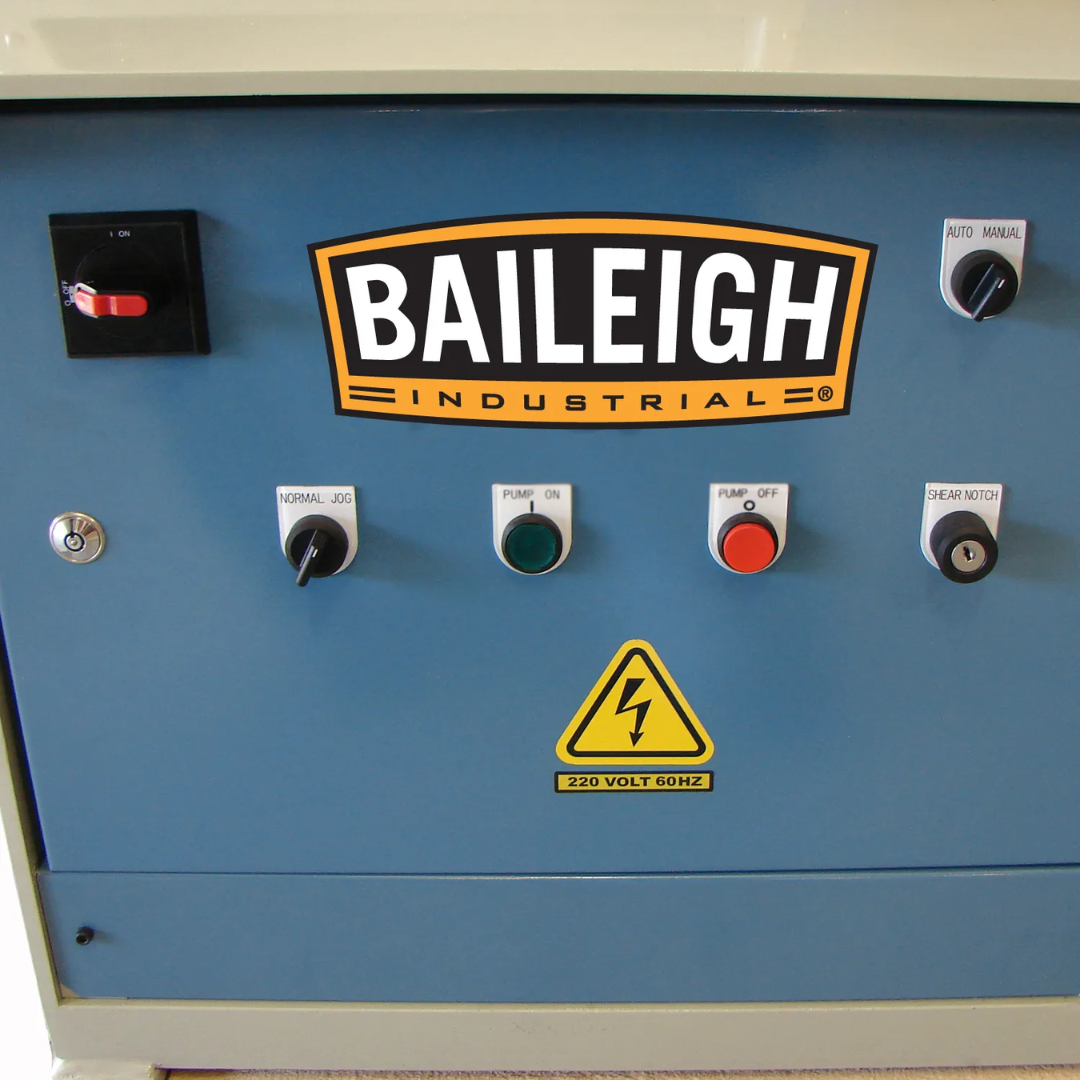

- Powerful 10 HP motor supplies dependable hydraulic power while operating on standard 220V three-phase electrical service.
- Vertical hydraulic ram movement produces cleaner cuts, greater precision, and reduced tooling wear compared to traditional pivot-style ironworkers.

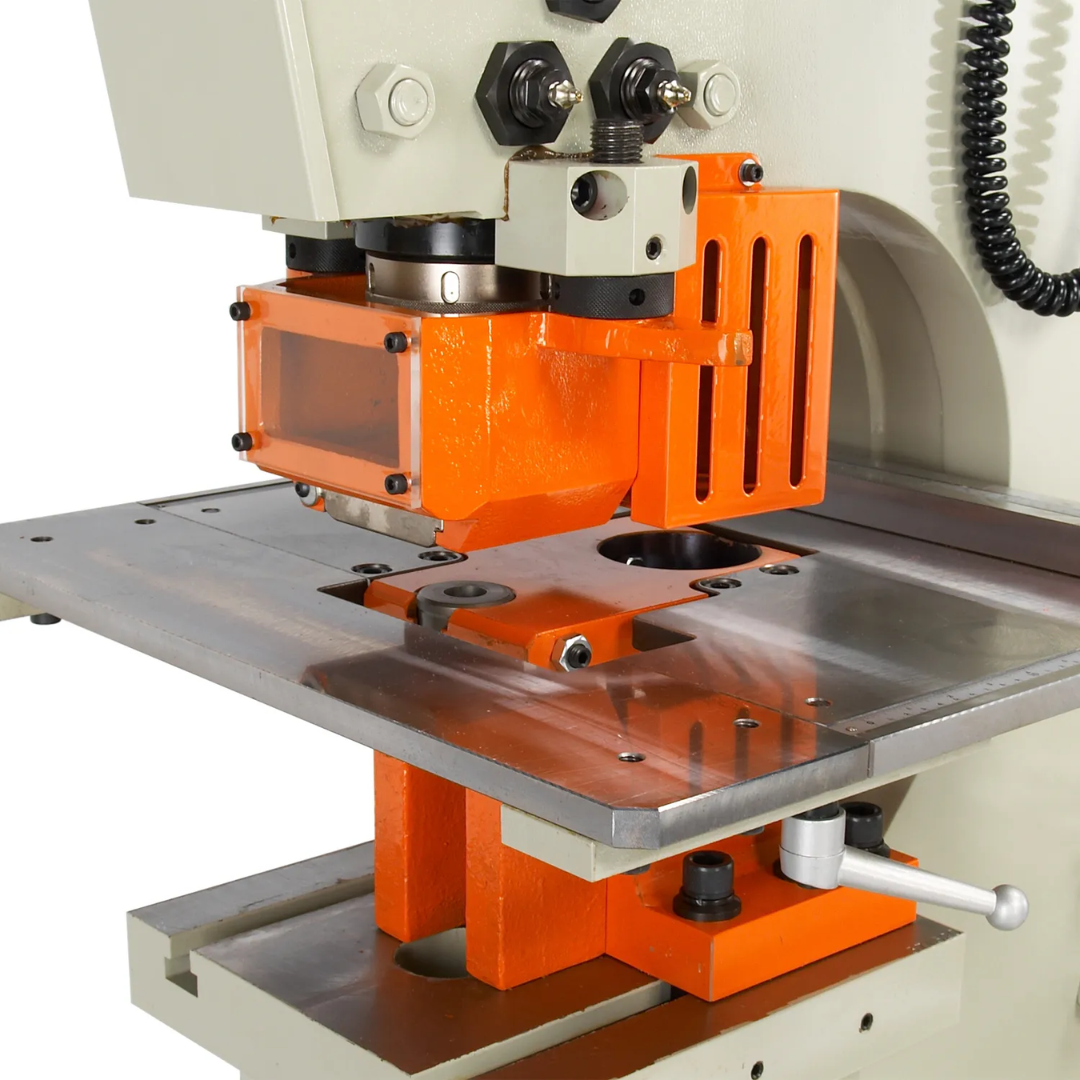

- Large 16-inch throat depth provides increased clearance for positioning oversized workpieces during punching operations.
- Maximum punch capacity of 1 in. × 0.875 in. accommodates heavy-duty fabrication requirements with consistent accuracy.

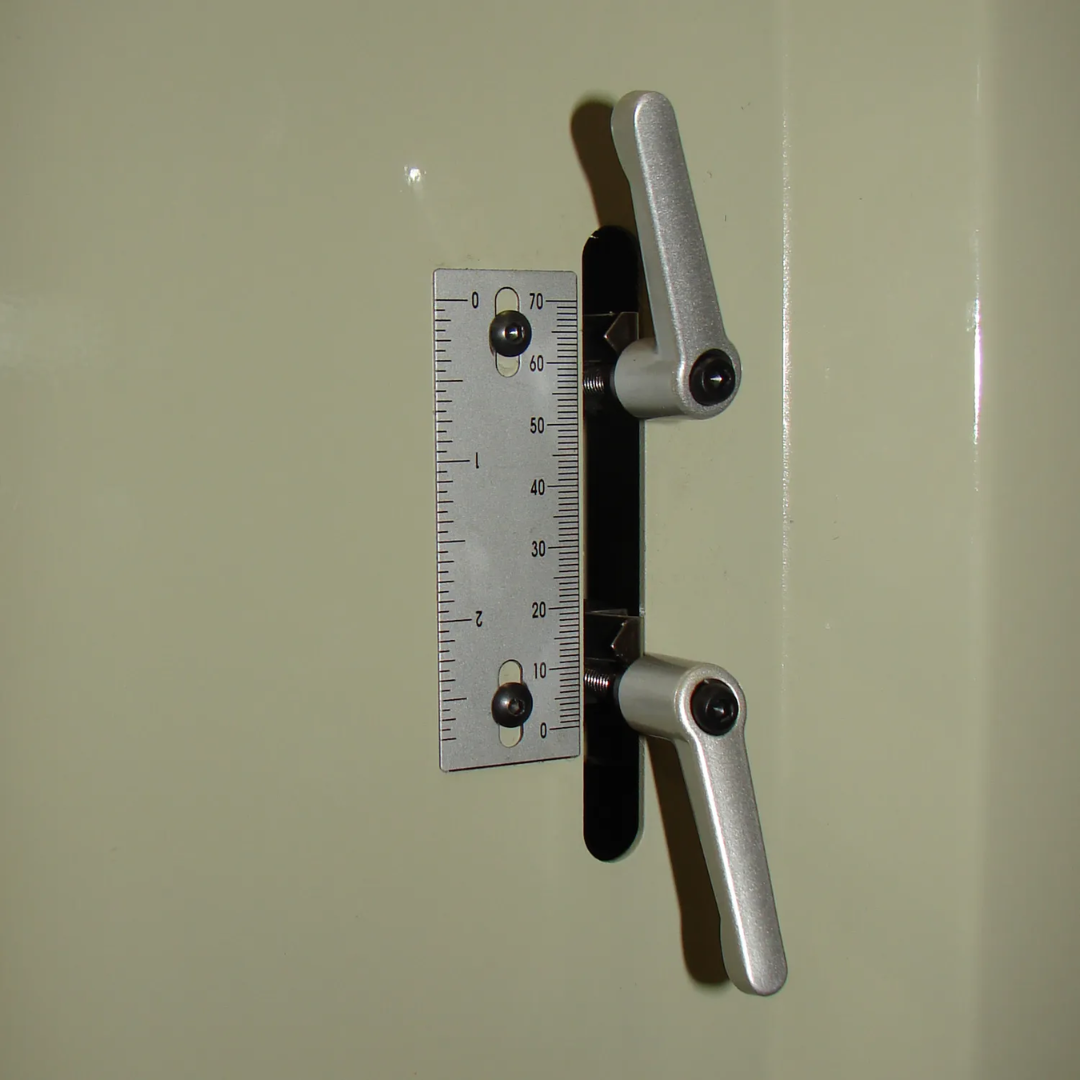

- Electric back gauge and integrated material stops improve repeatability during production runs while reducing setup time.
- Large split worktables offer excellent material support and improve handling of larger fabrication projects.
- Seven included punch and die sets provide exceptional versatility while minimizing additional tooling investment.
- Universal tooling compatibility allows expansion into specialized punching and fabrication applications as production requirements evolve.
- Heavy structural steel construction minimizes vibration while providing long-term durability under continuous industrial workloads.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Hydraulic Ironworker SW-95 1007865
- 95 tons of punching force and 123 tons of shearing capacity for demanding fabrication.
- Dual-operator design dramatically increases shop productivity.
- Five integrated workstations reduce floor space while expanding fabrication capability.
- Heavy-duty 10 HP hydraulic system delivers reliable industrial performance.
- Electric back gauge and included tooling improve production efficiency.
- Heavy structural steel construction ensures years of dependable operation.
- Ideal for structural steel fabricators, manufacturers, production facilities, and industrial fabrication shops.

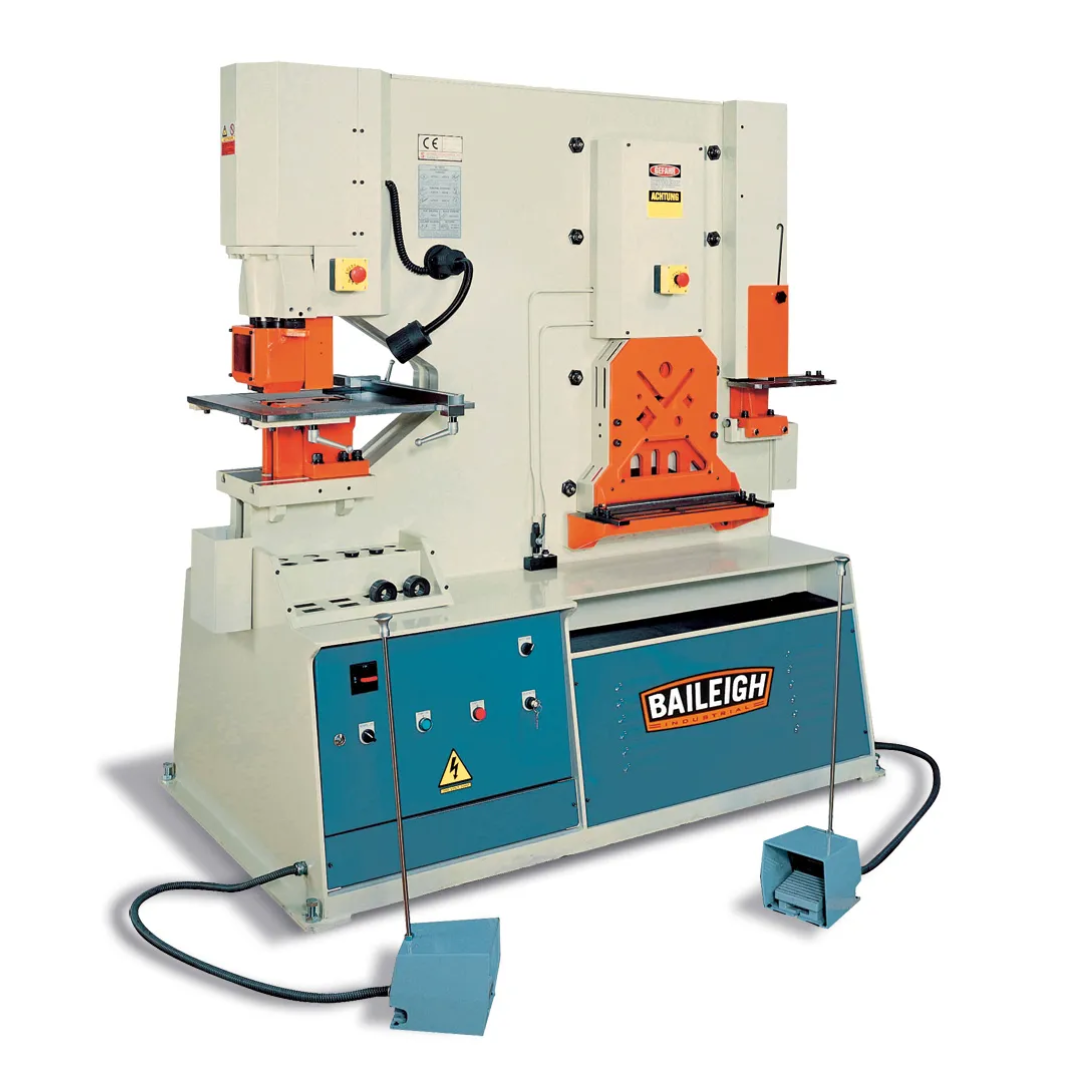

The Baileigh Hydraulic Ironworker SW-95 1007865 is engineered to maximize fabrication efficiency by combining exceptional hydraulic power, dual-operator productivity, and five versatile workstations into one industrial-grade machine. Built for continuous production and precision metalworking, it delivers the durability, accuracy, and performance professional fabricators expect from Baileigh Industrial.
