Baileigh Hydraulic Ironworker - (SW-501) 1007789 Applications
- General steel fabrication shops and welding facilities.
- Maintenance and repair departments requiring multiple fabrication functions in one machine.
- Structural steel fabrication and custom metalworking.
- Agricultural equipment manufacturing and repair.
- Trailer, utility, and equipment fabrication.
- Industrial maintenance operations.
- Machine shops producing brackets, gussets, supports, and custom components.
- Educational training facilities and vocational metalworking programs.

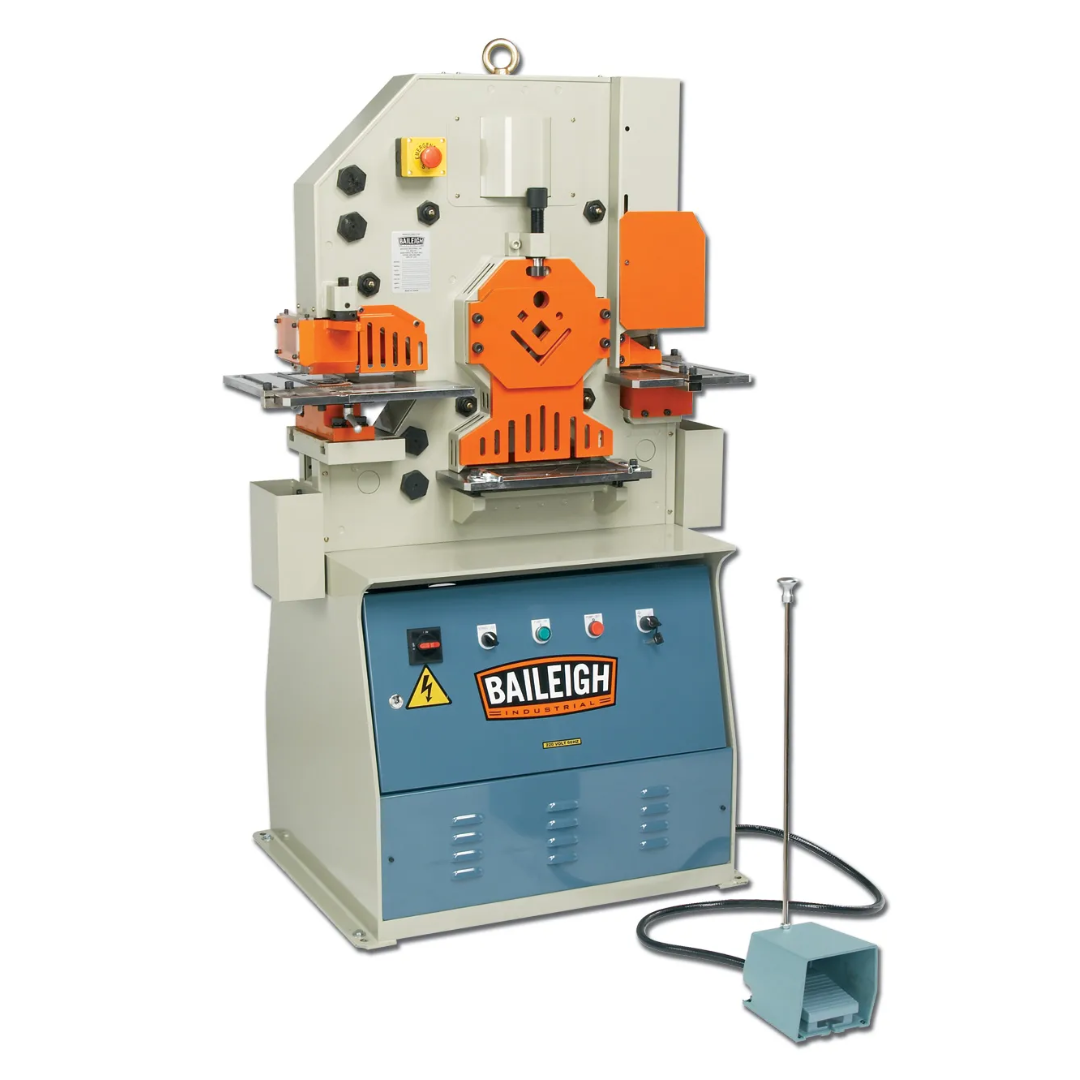

The Baileigh Hydraulic Ironworker - (SW-501) 1007789 replaces several standalone machines by combining punching, shearing, and notching into one compact hydraulic workstation, increasing productivity while reducing valuable floor space.
Baileigh Hydraulic Ironworker - (SW-501) 1007789 Specifications
| Model | SW-501 |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1007789 |
| Machine Type | Hydraulic Ironworker |
| Motor | 3 HP |
| Input Power | 220V Single Phase |
| Hydraulic Force | 50 Tons |
| Punch Capacity | .875 in. × .625 in. |
| Stroke Length | 1.125 in. |
| Throat Depth | 6 in. |
| Flat Bar Shear Work Height | 32.5 in. |
| Integrated Workstations | 5 Stations |
| Punch & Die Sets Included | 7 Sets |
| Gross Weight | 1,920 lbs. |
| Net Weight | 1,920 lbs. |
| Warranty | 1 Year |
| UPC | 731325417326 |
Baileigh Hydraulic Ironworker - (SW-501) 1007789 Performance & Construction

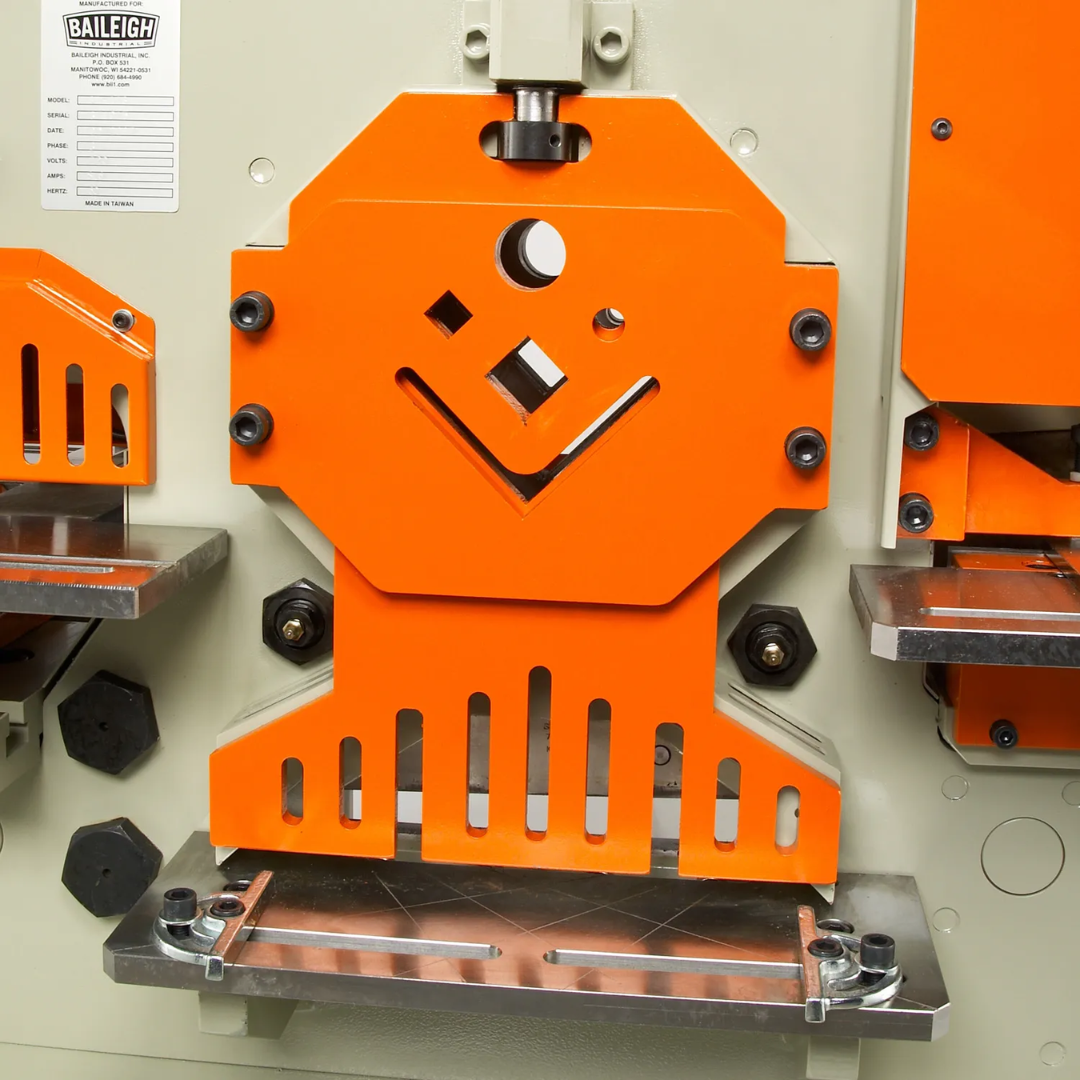

- Five integrated fabrication stations perform punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching without changing machines.
- 50 tons of hydraulic force provide powerful vertical pressure for clean, accurate metalworking across every workstation.
- 3 HP industrial motor operating on 220V single-phase power offers dependable performance for fabrication shops without requiring three-phase electrical service.
- Pure vertical hydraulic movement minimizes material deformation while improving cutting quality and punching accuracy.

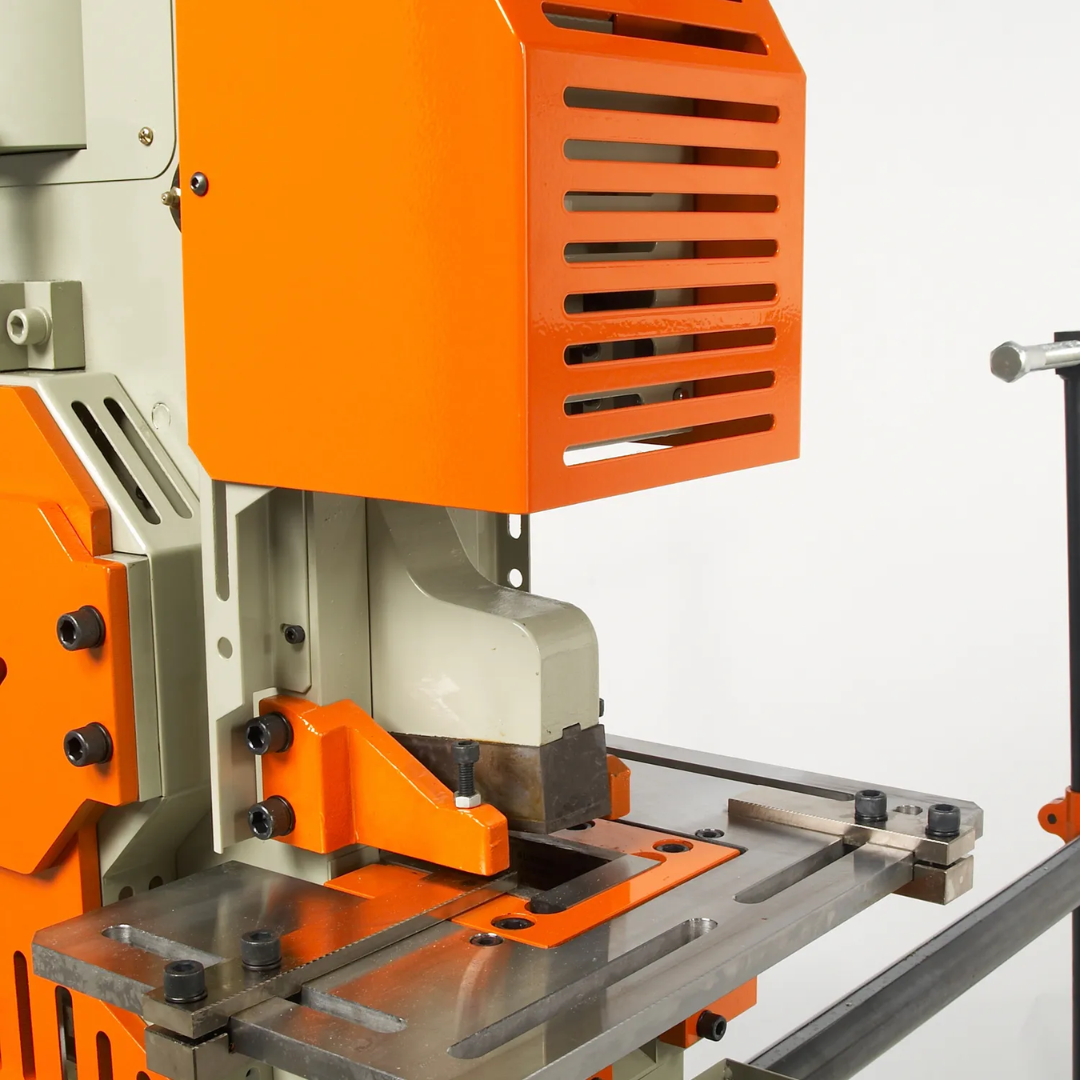

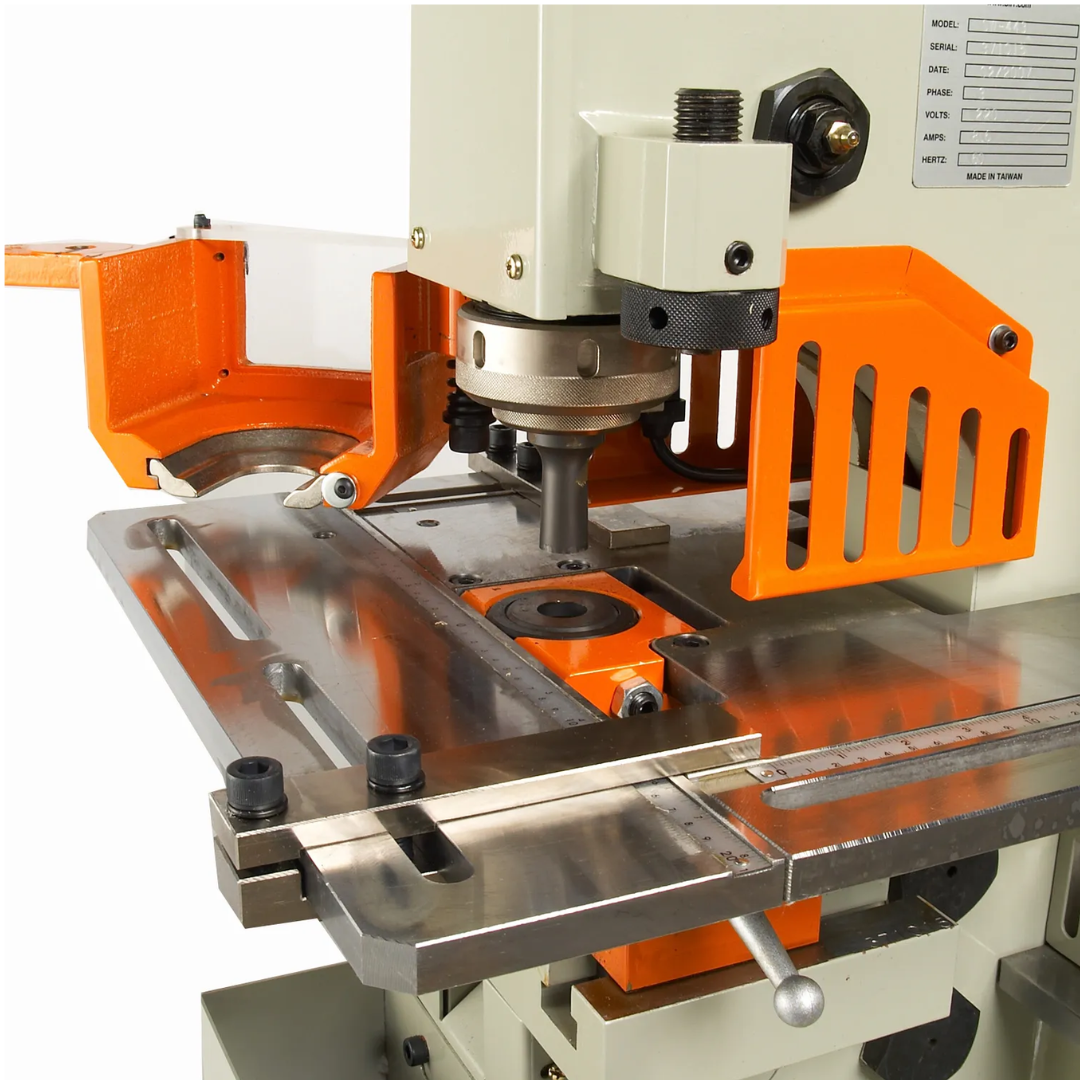

- Punch station accommodates maximum punch capacity of .875 in. × .625 in. for a wide variety of fabrication applications.

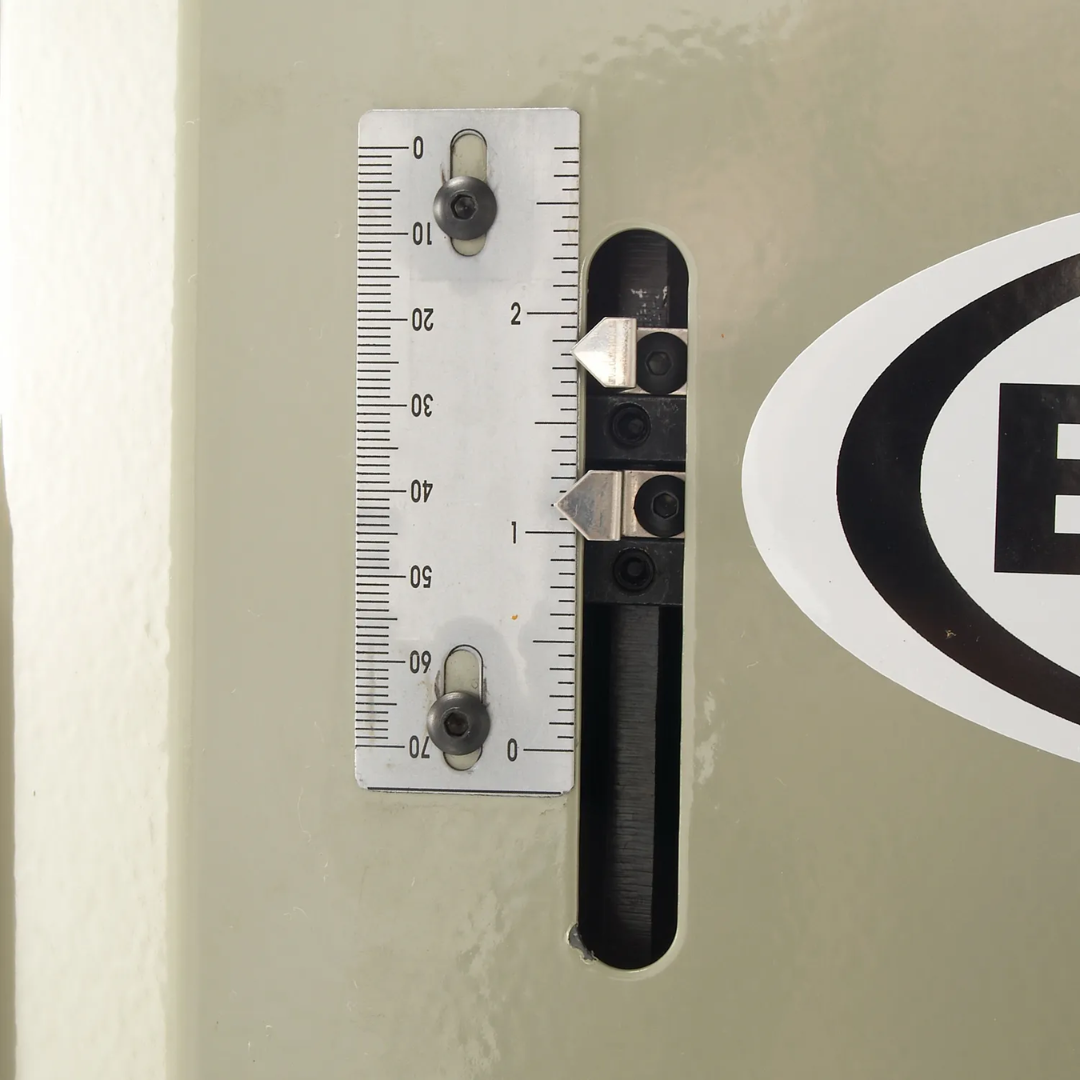

- Adjustable 1.125-inch stroke allows operators to optimize cycle times while reducing unnecessary travel during repetitive production work.
- 6-inch throat depth provides greater flexibility when positioning workpieces for punching operations.
- Seven included punch and die sets allow immediate production capability without purchasing additional tooling.

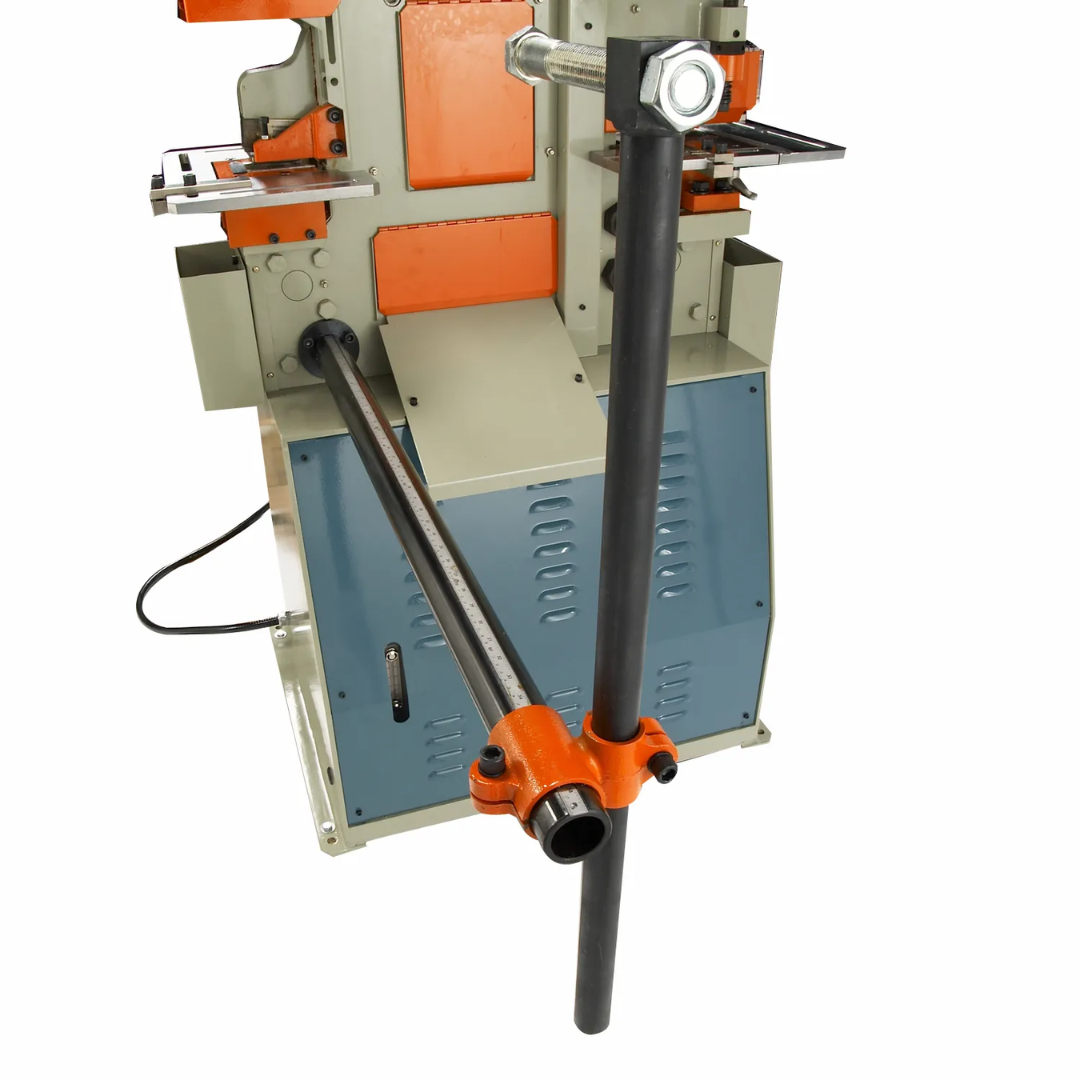

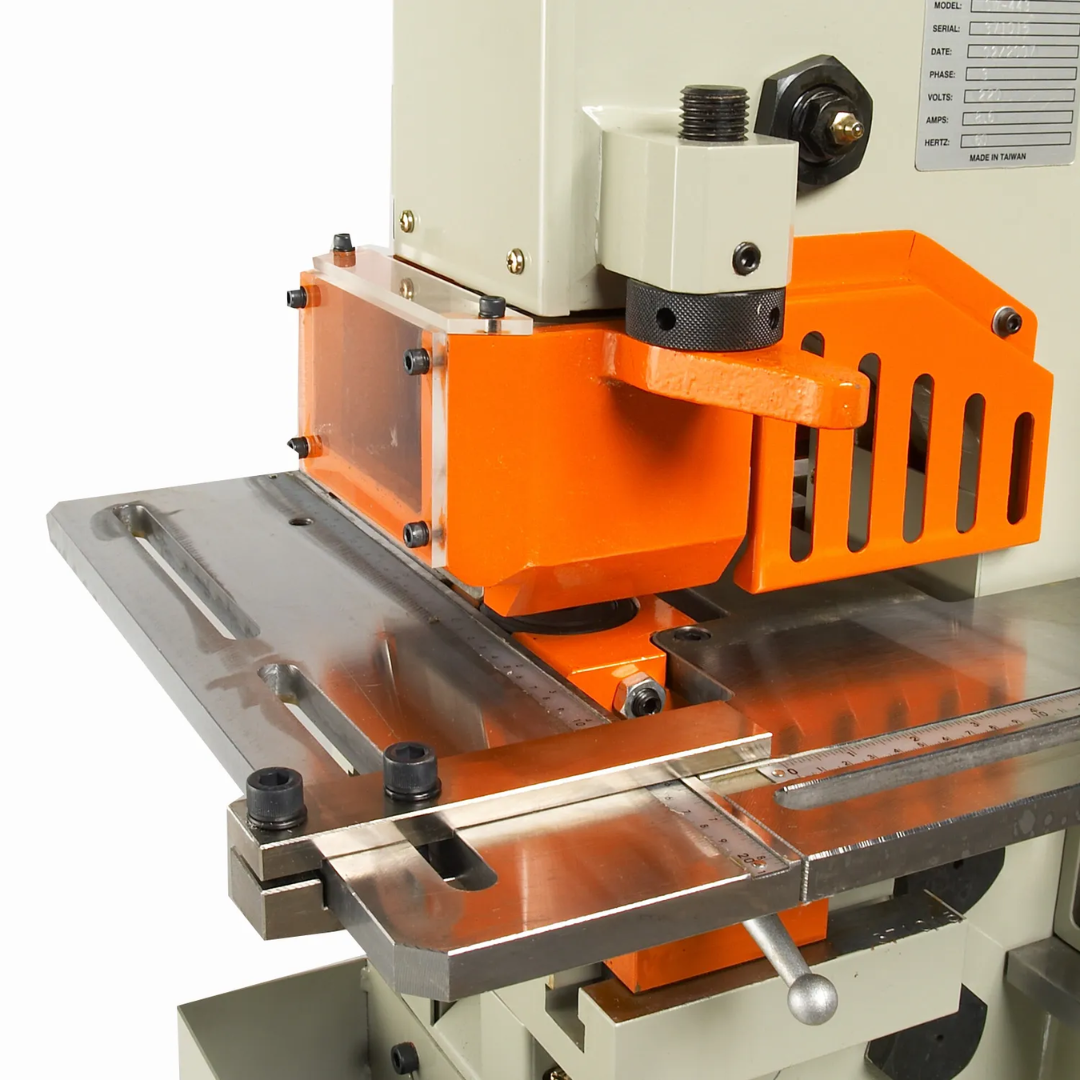

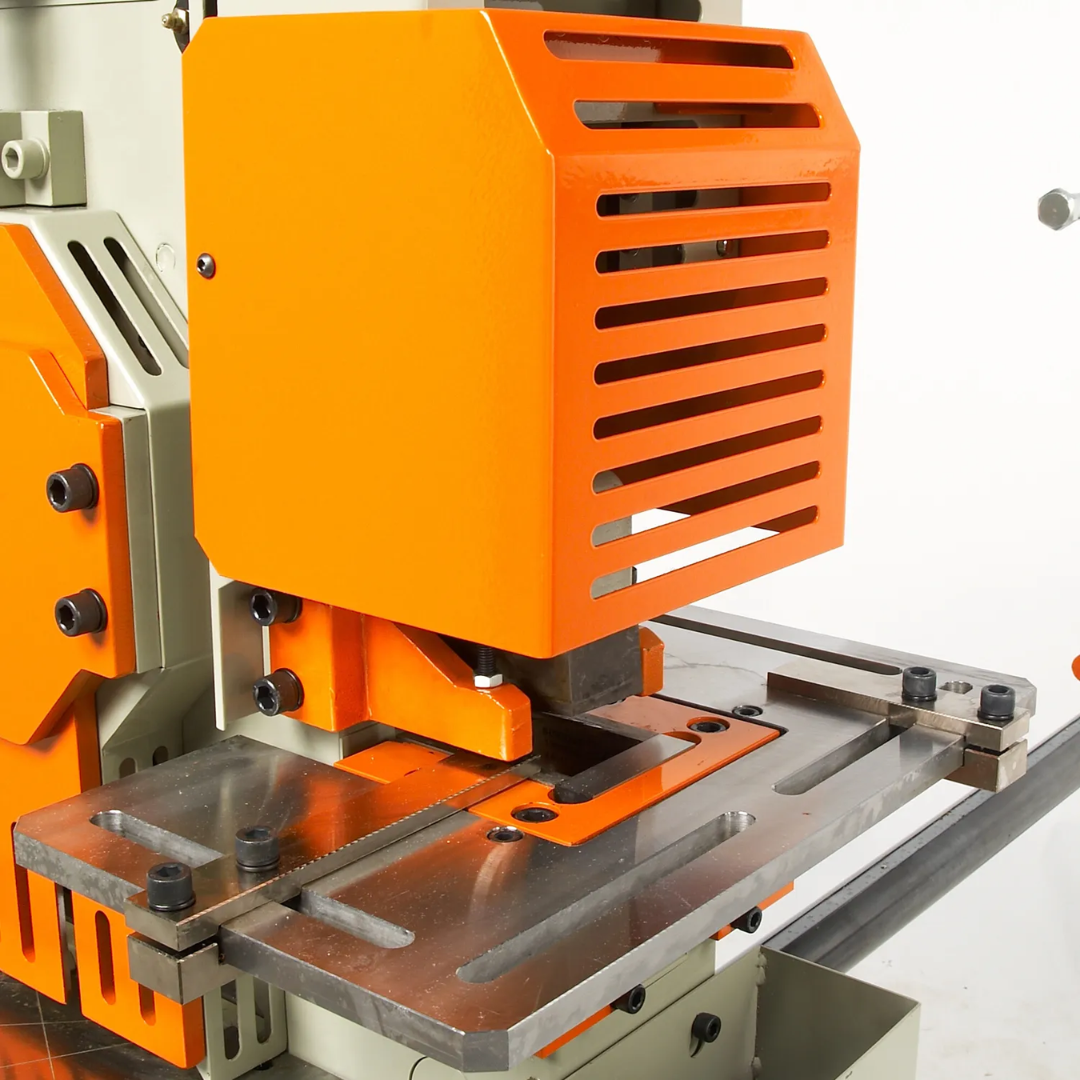

- Large integrated two-piece material support tables with meter guides improve positioning accuracy while supporting longer materials during fabrication.
- Swing-away stripper tooling enables faster punch changes, easier setup, and improved operator productivity.
- Foot pedal operation provides convenient hands-free hydraulic actuation while allowing operators to safely position workpieces.
- Heavy-duty welded construction delivers excellent rigidity and durability for demanding industrial production environments.
- Compact multi-function footprint replaces several standalone fabrication machines, saving valuable floor space while improving workflow.
- Backed by Baileigh's 1-year warranty along with lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Hydraulic Ironworker - (SW-501) 1007789
- Combines five essential fabrication operations into one compact hydraulic machine.
- Produces 50 tons of hydraulic force for demanding industrial metalworking applications.
- Runs on convenient 220V single-phase electrical service.
- Includes seven punch and die sets for immediate production capability.
- Large integrated material guides improve repeatability and production accuracy.
- Vertical hydraulic design reduces material distortion while producing clean, consistent results.
- Heavy-duty industrial construction built for fabrication shops, maintenance departments, and production facilities.
- Supported by Baileigh's industry-leading technical support and 1-year warranty.
The Baileigh Hydraulic Ironworker - (SW-501) 1007789 is an all-in-one fabrication solution that delivers industrial-grade punching, shearing, and notching performance in a compact footprint. With its powerful 50-ton hydraulic system, precision vertical movement, integrated material guides, and five dedicated workstations, it is an excellent choice for professionals seeking increased productivity, accuracy, and long-term reliability in demanding metal fabrication environments.
