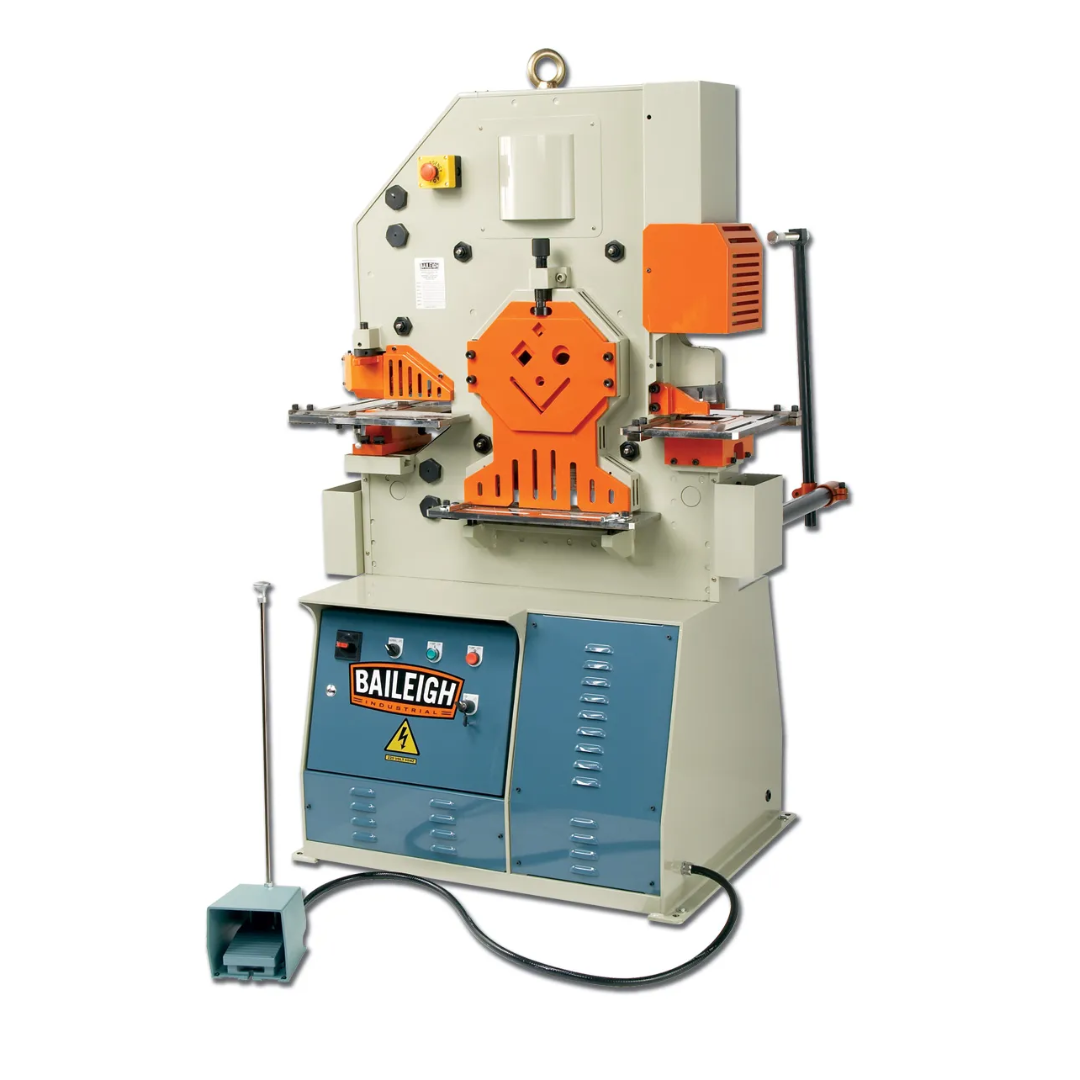

Baileigh Hydraulic Iron Worker SW-621 1007809 Applications
- Structural steel fabrication and production shops.
- General metal fabrication and manufacturing facilities.
- Maintenance and repair departments.
- Custom welding and fabrication businesses.
- Punching, shearing, and notching steel components.
- Production work requiring repeatable, accurate hydraulic cutting operations.
- Fabrication of brackets, frames, supports, and structural assemblies.
Ideal for fabrication professionals who need multiple hydraulic metalworking operations in one powerful, space-saving machine.
Baileigh Hydraulic Iron Worker SW-621 1007809 Specifications
| Model | SW-621 |
|---|---|
| Product Number | 1007809 |
| Machine Type | Hydraulic Ironworker |
| Hydraulic Capacity | 62 Tons |
| Motor Power | 5 HP |
| Input Power | 220V Single Phase |
| Punch Capacity | 1.125 in. × 0.625 in. Mild Steel |
| Stroke Length | 2 in. |
| Throat Depth | 8 in. |
| Flat Bar Shear Work Height | 31.5 in. |
| Integrated Workstations | Punching, Flat Bar Shearing, Angle Shearing, Bar Shearing, Rectangle Notching |
| Punch & Die Sets Included | 7 Sets |
| Net Weight | 2,310 lbs. |
| Gross Weight | 2,310 lbs. |
| Warranty | 1 Year |
| UPC | 731325417500 |
Baileigh Hydraulic Iron Worker SW-621 1007809 Performance & Construction
- 62 tons of hydraulic force delivers the power needed for demanding punching, shearing, and notching applications.

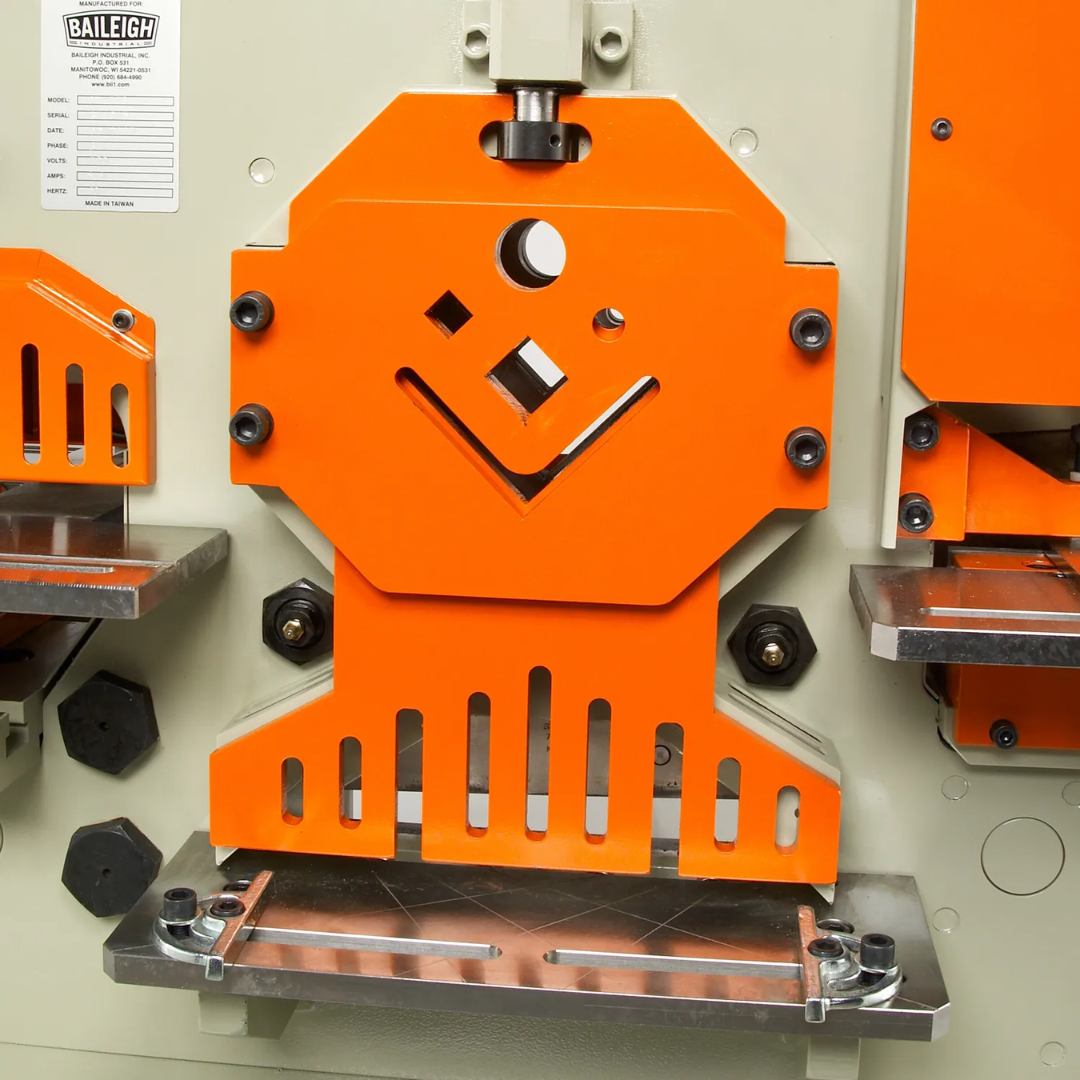

- Five integrated workstations combine punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching into one highly productive machine.
- Powerful 5 HP hydraulic motor provides dependable industrial performance while operating on convenient 220V single-phase electrical service.
- Vertical hydraulic ram design creates smoother, cleaner cuts while reducing side loading and tooling wear compared to traditional pivot-style ironworkers.

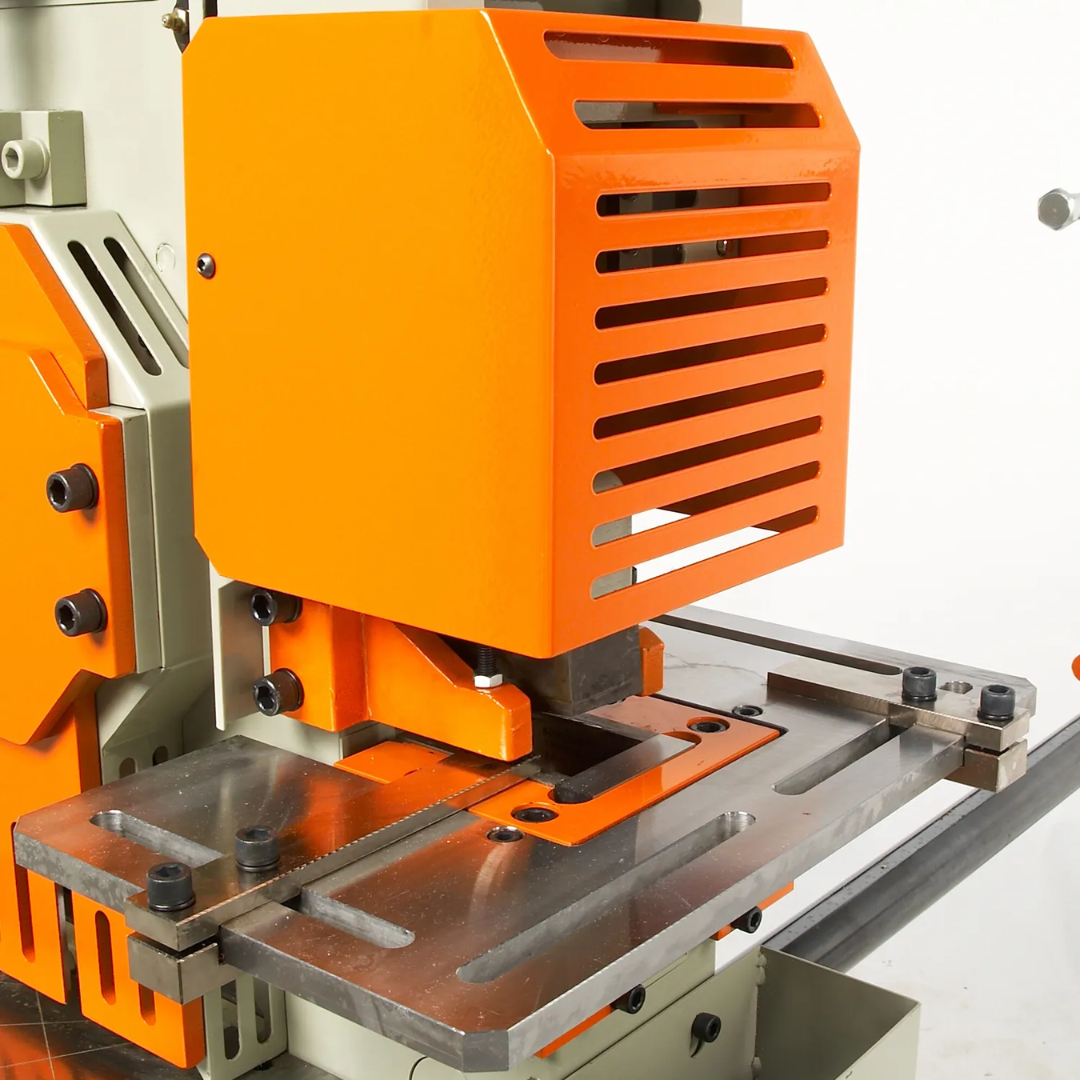

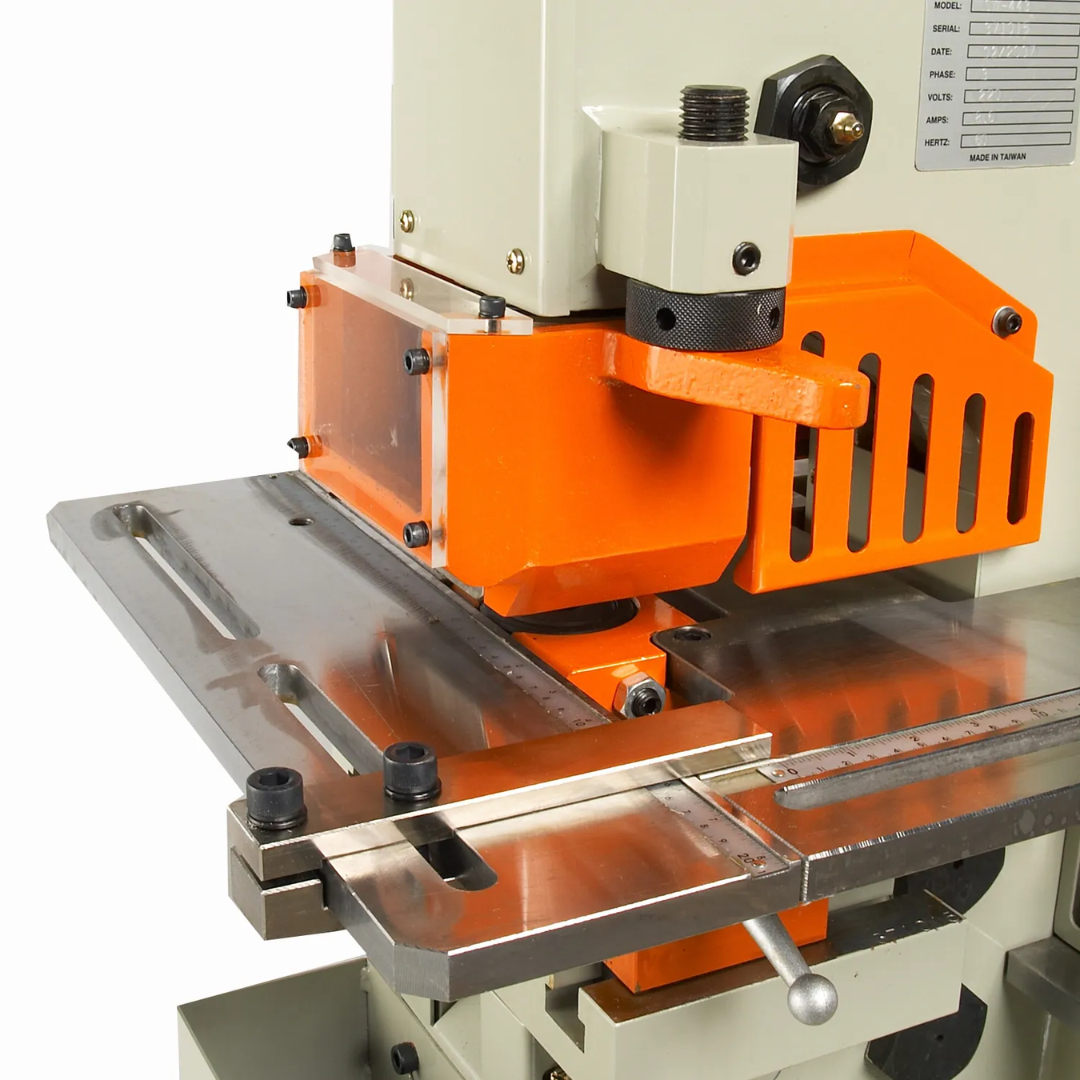

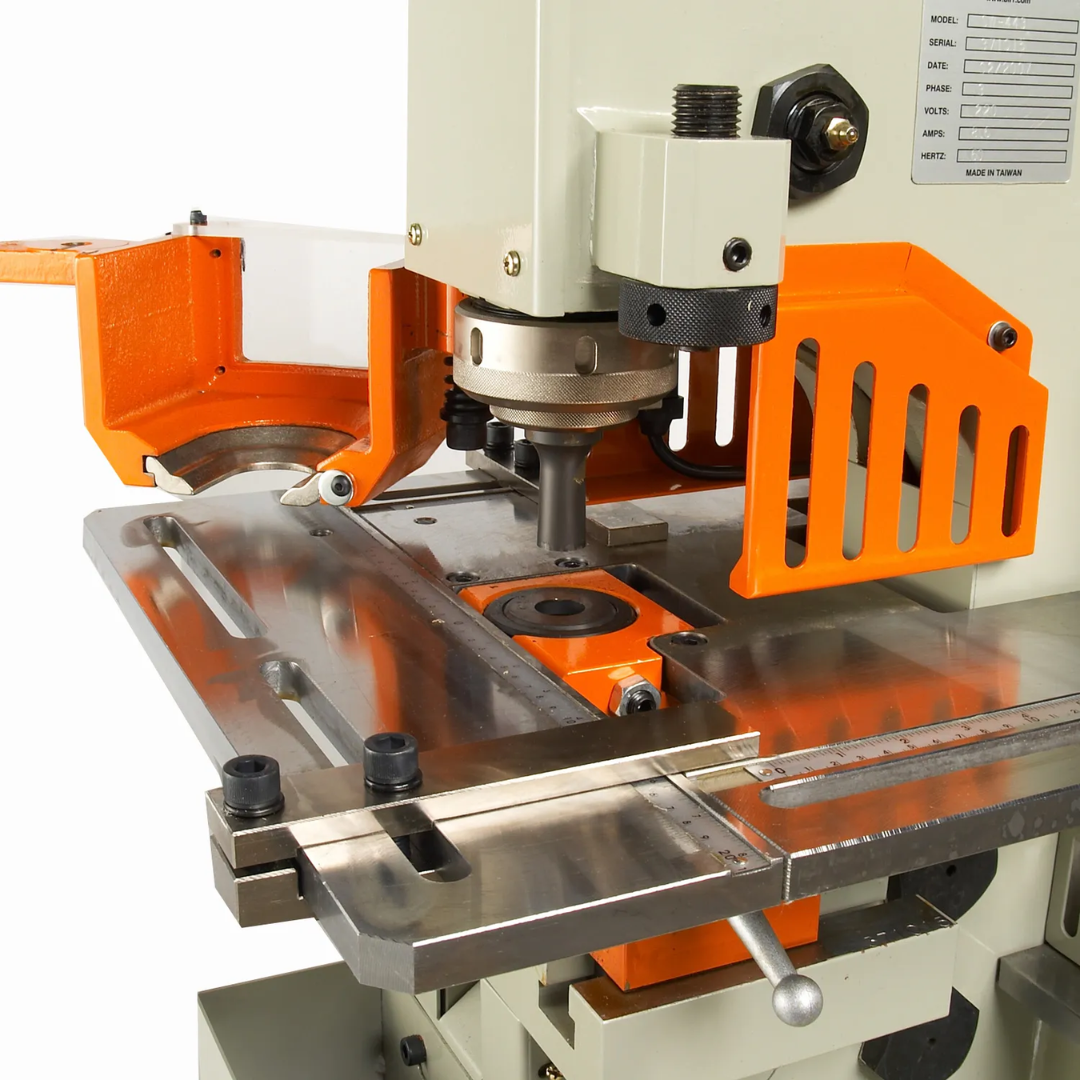

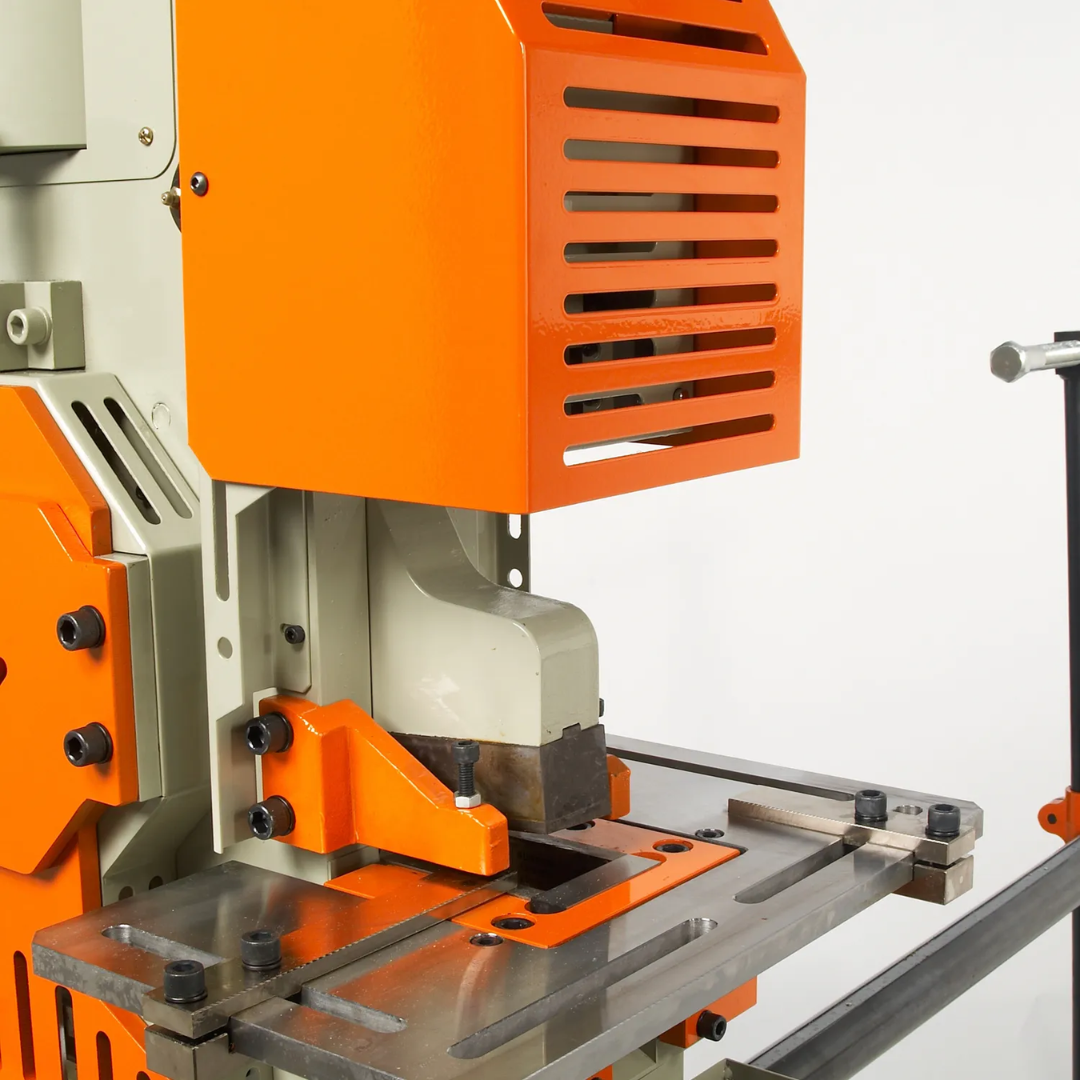

- Maximum punch capacity of 1.125 in. × 0.625 in. allows efficient punching through mild steel for a variety of fabrication projects.
- Eight-inch throat depth provides excellent access for positioning larger workpieces during punching operations.

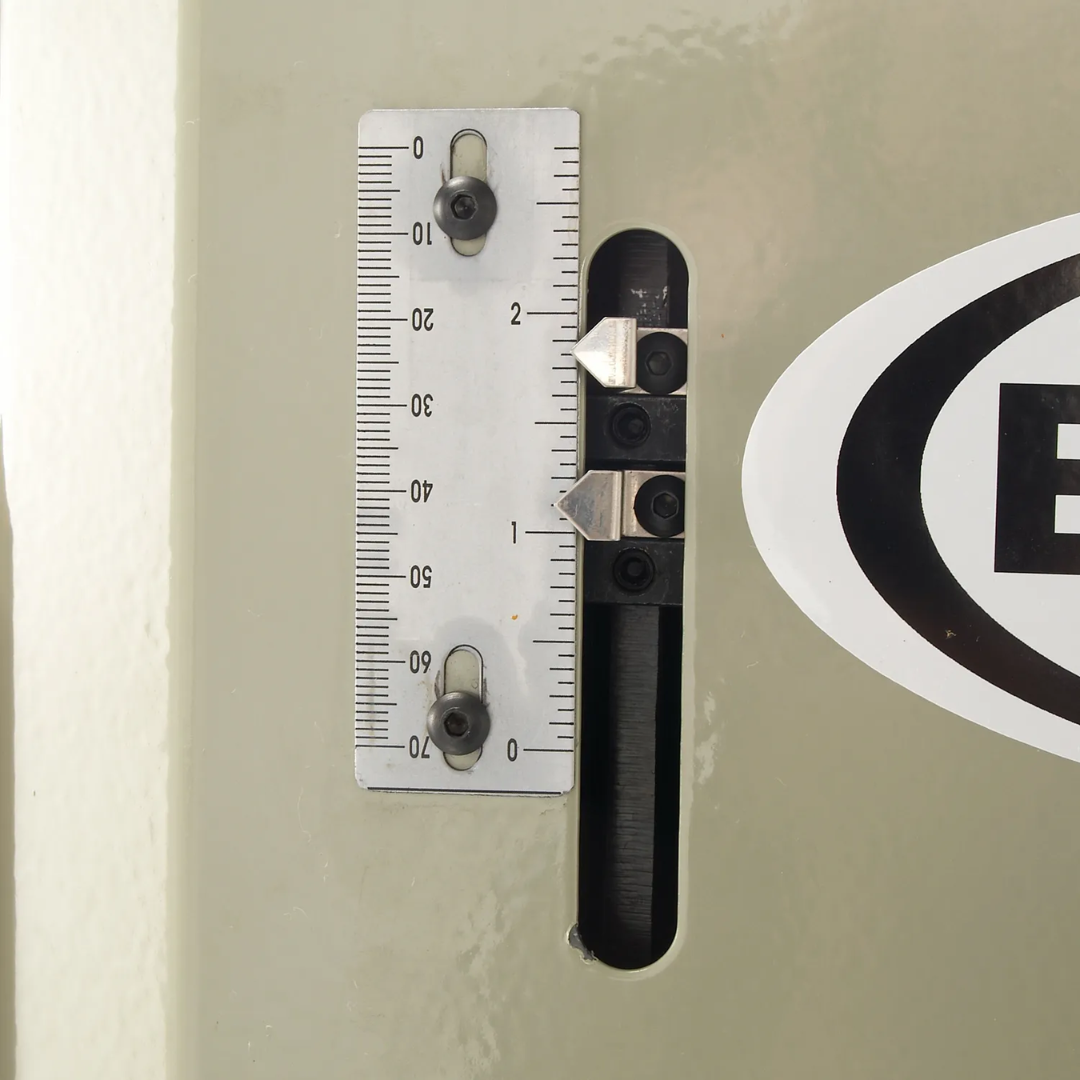

- Two-inch hydraulic stroke delivers consistent punching and cutting performance across multiple material thicknesses.
- Comfortable 31.5-inch flat bar shear work height improves ergonomics and operator efficiency during extended production runs.
- Seven included punch and die sets increase versatility and reduce setup time for different hole sizes and fabrication requirements.
- Heavy-duty welded steel construction minimizes vibration while maintaining precise alignment and long-term durability under continuous industrial use.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable ownership and service.
Why Choose the Baileigh Hydraulic Iron Worker SW-621 1007809
- 62 tons of hydraulic power for demanding fabrication work.
- Five integrated workstations eliminate the need for multiple standalone machines.
- Operates from convenient 220V single-phase power.
- Vertical hydraulic design improves cut quality while reducing tooling wear.
- Includes seven punch and die sets for greater production flexibility.
- Heavy-duty industrial construction built for daily fabrication shop use.
- Excellent choice for production shops, welders, maintenance facilities, and structural steel fabricators.
The Baileigh Hydraulic Iron Worker SW-621 1007809 combines industrial-grade hydraulic power, precision engineering, and five versatile fabrication stations into one efficient machine. Designed to increase productivity while reducing setup time and floor space, it delivers dependable punching, shearing, and notching performance for demanding professional metalworking environments.
