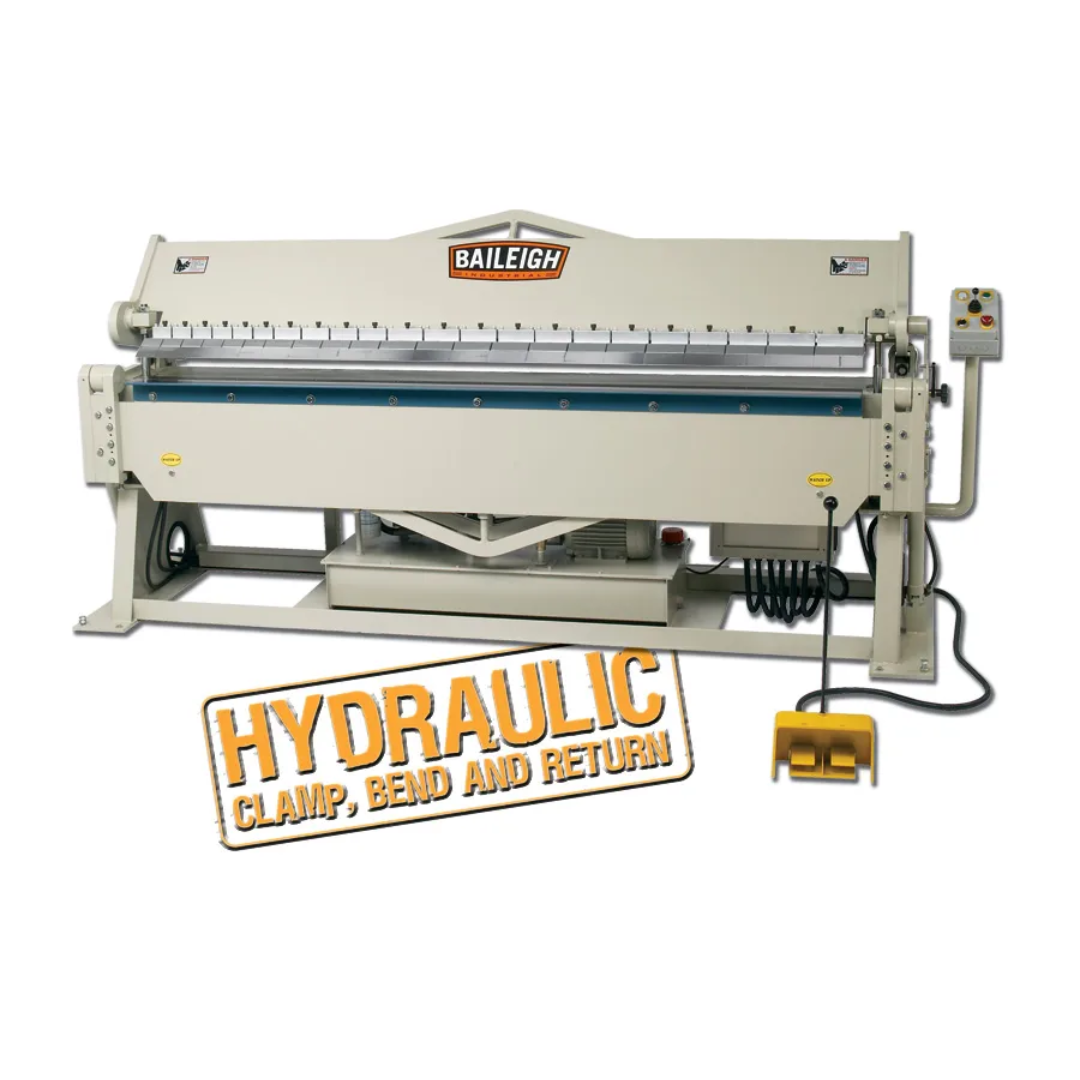

Baileigh Hydraulic Box and Pan Brake (BB-9612H) Applications
- HVAC ductwork fabrication.
- Commercial and industrial sheet metal fabrication.
- Electrical enclosure and equipment cabinet production.
- Architectural sheet metal and flashing fabrication.
- Large boxes, pans, trays, and channel fabrication.
- Production sheet metal manufacturing.
- Custom fabrication requiring accurate, repeatable hydraulic bending.
Ideal for fabrication professionals who need hydraulic clamping, programmable repeatability, and full-length bending capacity for production sheet metal applications.
Baileigh Hydraulic Box and Pan Brake (BB-9612H) Specifications
| Model | BB-9612H |
|---|---|
| Product Number | 1021004 |
| Operation | Hydraulic Box & Pan Brake |
| Working Width | 96 in. (8 ft.) |
| Material Capacity | 12 Gauge Mild Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Motor | 3 HP Hydraulic Motor |
| Power Requirement | 220V Three Phase |
| Finger Configuration | 22 Hardened Fingers (6 × 3", 4 × 4", 10 × 5", 2 × 6") |
| Control Modes | Manual or Semi-Automatic (Toggle Switch / Foot Pedal) |
| Hydraulic Functions | Hydraulic Clamp, Bend & Return |
| Programmable Auto-Stop | Adjustable Bend Auto-Stop for Repeatable Production |
| Frame Construction | Fully Welded Heavy Steel Frame |
| Net Weight | 4,060 lb |
| Gross Weight | 4,060 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325489927 |
Baileigh Hydraulic Box and Pan Brake (BB-9612H) Performance & Construction
- Industrial 3 HP hydraulic power unit delivers smooth hydraulic lifting, clamping, bending, and return functions for reliable production performance.
- 96-inch (8-foot) working width allows operators to bend long sheet metal panels commonly used in HVAC systems, architectural fabrication, and industrial manufacturing.
- 12-gauge mild steel capacity provides the strength required for demanding fabrication jobs while maintaining consistent bend accuracy.
- Fully welded heavy-duty steel frame minimizes deflection during heavy bending operations to ensure accurate forming across the entire working width.
- 22 removable hardened fingers provide exceptional flexibility for producing boxes, pans, trays, channels, and custom fabricated sheet metal components up to 6 inches deep.
- Hydraulic clamp, bend, and return operation reduces operator fatigue while improving consistency and production speed during repetitive forming applications.
- Programmable bend auto-stop enables repeatable bend angles up to 135°, helping improve efficiency and reduce setup time during production runs.
- Manual or semi-automatic controls with toggle switch and foot pedal operation provide flexible machine control to match production requirements.
- Heavy-duty 4,060-pound construction delivers outstanding rigidity, stability, and dependable long-term performance in demanding fabrication environments.
Baileigh Hydraulic Box and Pan Brake (BB-9612H) Features & Benefits
- 96-inch (8-foot) hydraulic bending capacity for large sheet metal fabrication.
- Handles up to 12-gauge mild steel.
- Powered by a 3 HP hydraulic system with 220V three-phase electrical service.
- Includes 22 removable hardened fingers for versatile box and pan forming.
- Maximum 6-inch box depth accommodates deep fabricated components.
- Hydraulic clamp, bend, and return functions reduce operator effort.
- Programmable bend auto-stop improves repeatability and production efficiency.
- Manual and semi-automatic operating modes provide flexible workflow.
- Fully welded steel frame ensures long-term accuracy and durability.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh Hydraulic Box and Pan Brake (BB-9612H)
- Industrial hydraulic operation improves forming consistency and productivity.
- 8-foot working width accommodates long sheet metal panels.
- Hydraulic clamp, bend, and return simplify repetitive production work.
- 22 hardened fingers provide outstanding flexibility for box and pan fabrication.
- Heavy-duty welded construction delivers dependable industrial performance.
- Ideal for fabrication shops, HVAC manufacturers, and architectural sheet metal professionals.
The Baileigh Hydraulic Box and Pan Brake (BB-9612H) combines industrial hydraulic power, programmable repeatability, rugged welded construction, and versatile segmented finger tooling into a professional sheet metal forming solution. Built for demanding fabrication environments, it delivers the precision, durability, and productivity required to manufacture boxes, pans, channels, ductwork, and custom formed components with confidence.
