Baileigh Horizontal Press Brake HPB-45NC 1004703 Applications
- Precision bending of brackets, flanges, channels, and formed components.
- Production fabrication requiring repeatable programmable bending sequences.
- Metal fabrication shops and industrial manufacturing facilities.
- Maintenance departments performing custom repair and forming work.
- Pipe, tube, flat bar, and specialty tooling applications.
- Punching, shearing, straightening, and custom forming using optional tooling.
- Short-run and high-volume production environments requiring hydraulic precision.
Designed for fabricators who require one hydraulic machine capable of performing multiple forming operations while maintaining exceptional accuracy and production efficiency.

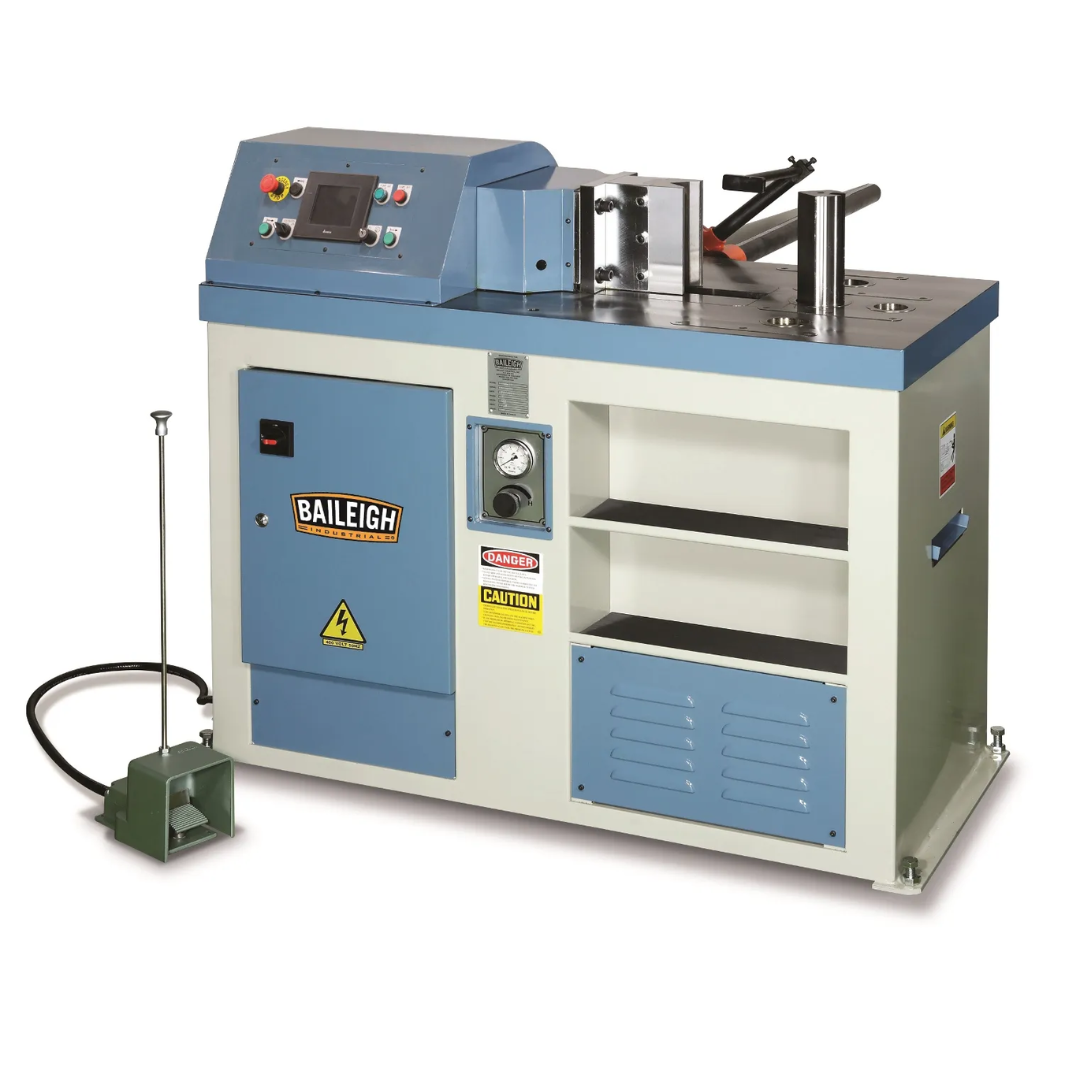

Baileigh Horizontal Press Brake HPB-45NC 1004703 Specifications
| Model | HPB-45NC |
|---|---|
| Product Number | 1004703 |
| Machine Type | Horizontal Hydraulic Press Brake |
| Hydraulic Capacity | 45 Tons |
| Motor Power | 5 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Stroke Length | 9.84 in. (Specification lists 9.75 in.) |
| Approach Speed | 1.5 in./sec. |
| Maximum Bend Angle | 135° |
| Bending Length Capacity | Unlimited |
| Fixture Holes | 1 × 3.25 in. Diameter / 3 × 2.25 in. Diameter |
| Working Accuracy | ±0.002 in. |
| Working Height | 36 in. |
| Back Gauge | Manual |
| Control System | Programmable NC Controller |
| Net Weight | 2,270 lbs. |
| Gross Weight | 2,270 lbs. |
| Warranty | 1 Year |
| UPC | 731325407150 |
Baileigh Horizontal Press Brake HPB-45NC 1004703 Performance & Construction
- 45 tons of hydraulic forming force provides ample power for bending, forming, punching, and shearing a wide variety of metal components.
- Programmable NC controller stores multiple bend programs and production sequences for fast setup, repeatable accuracy, and increased manufacturing efficiency.
- Powerful 5 HP hydraulic motor delivers reliable industrial performance while operating from standard 220V three-phase electrical service.
- Long hydraulic stroke of approximately 9.84 inches allows deep forming operations and accommodates a broad range of tooling applications.
- Horizontal press brake configuration offers unrestricted access to long workpieces with virtually unlimited bending length capacity.
- Hydraulic system with encoder feedback delivers positioning accuracy of ±0.002 inch for highly repeatable production results.
- Manual back gauge simplifies repeat positioning for consistent bends during batch production.
- Machined 36-inch work height provides a comfortable ergonomic operating position while supporting accurate material alignment.
- Hands-free foot pedal and dual-button stroke controls allow operators to safely guide material while maintaining precise machine control.

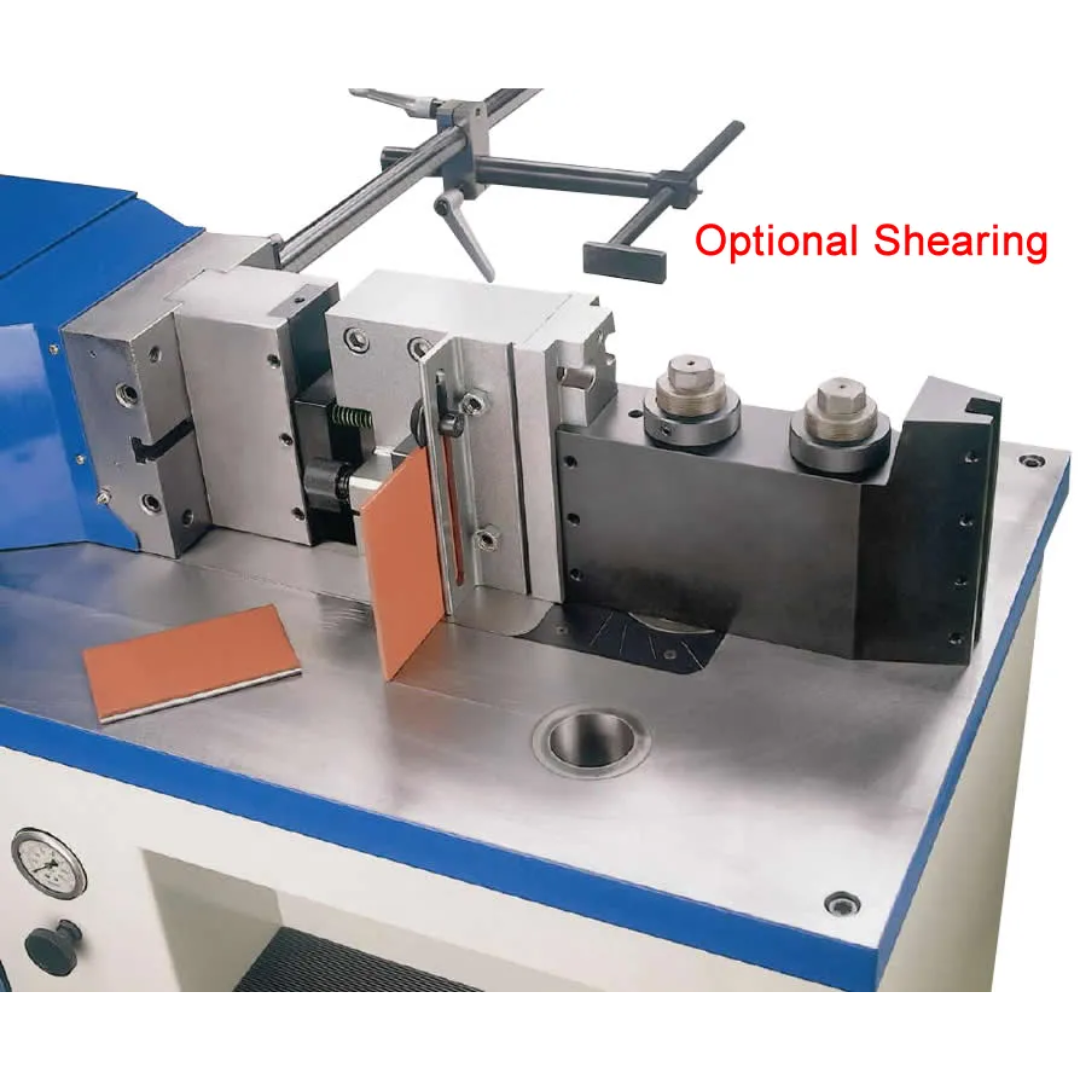

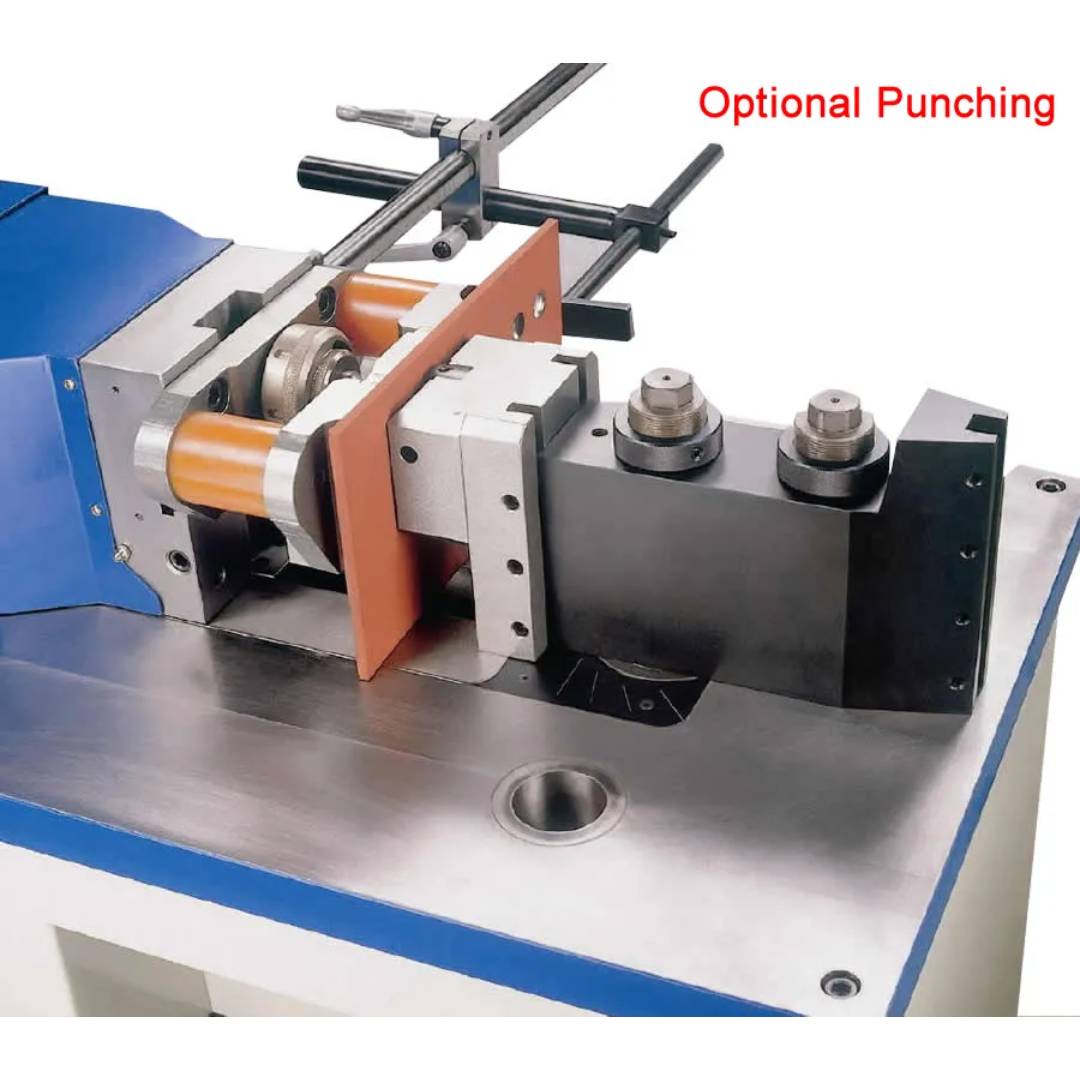

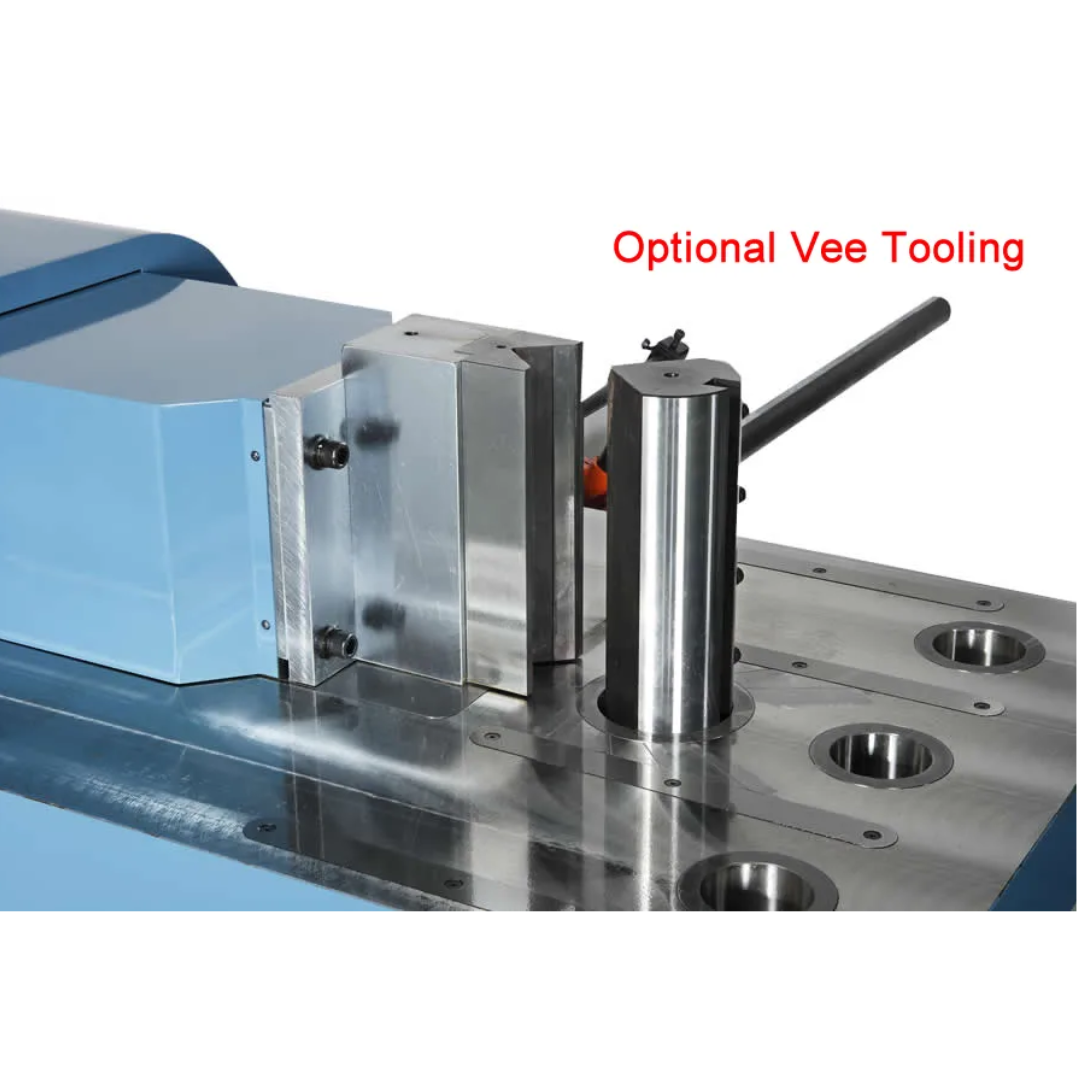

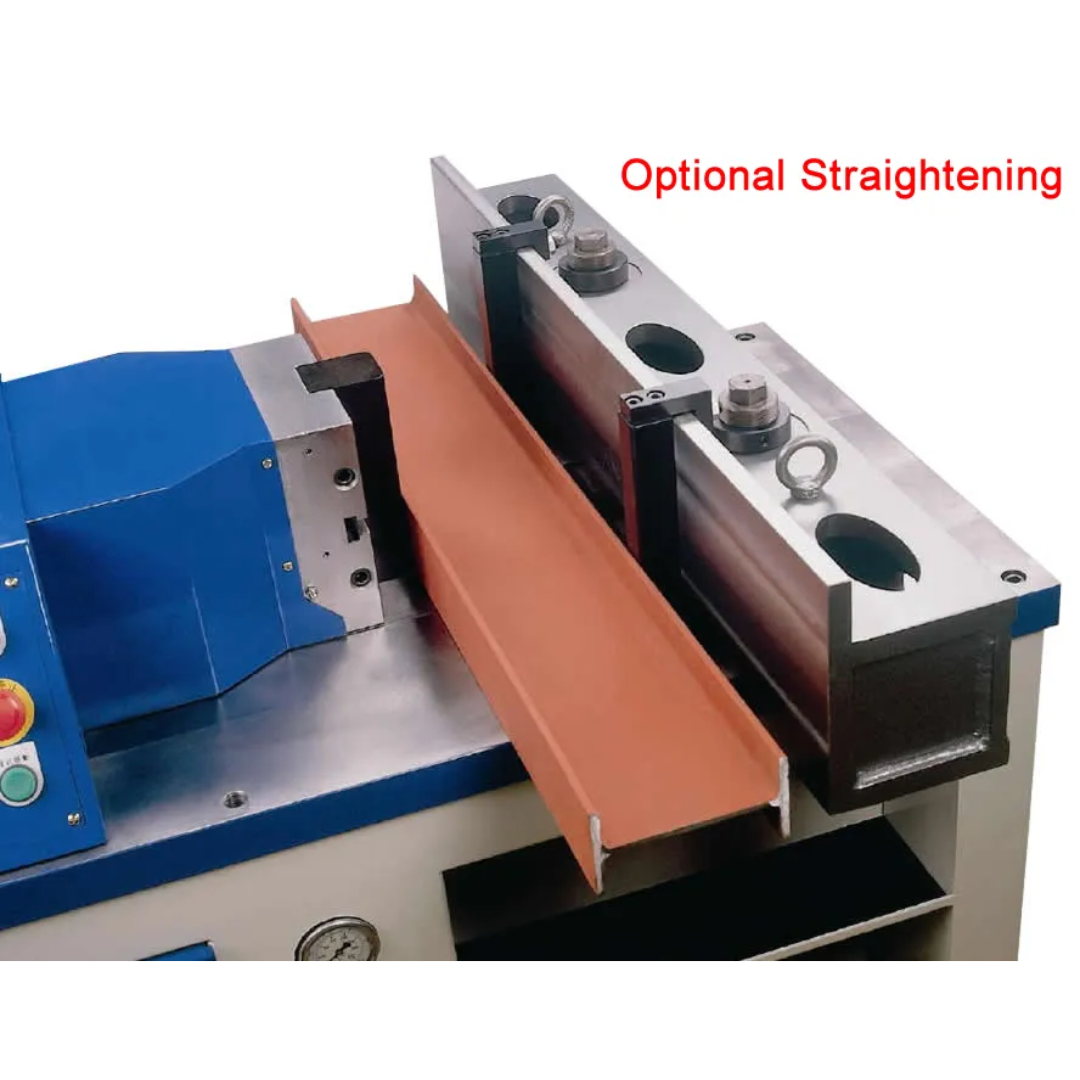

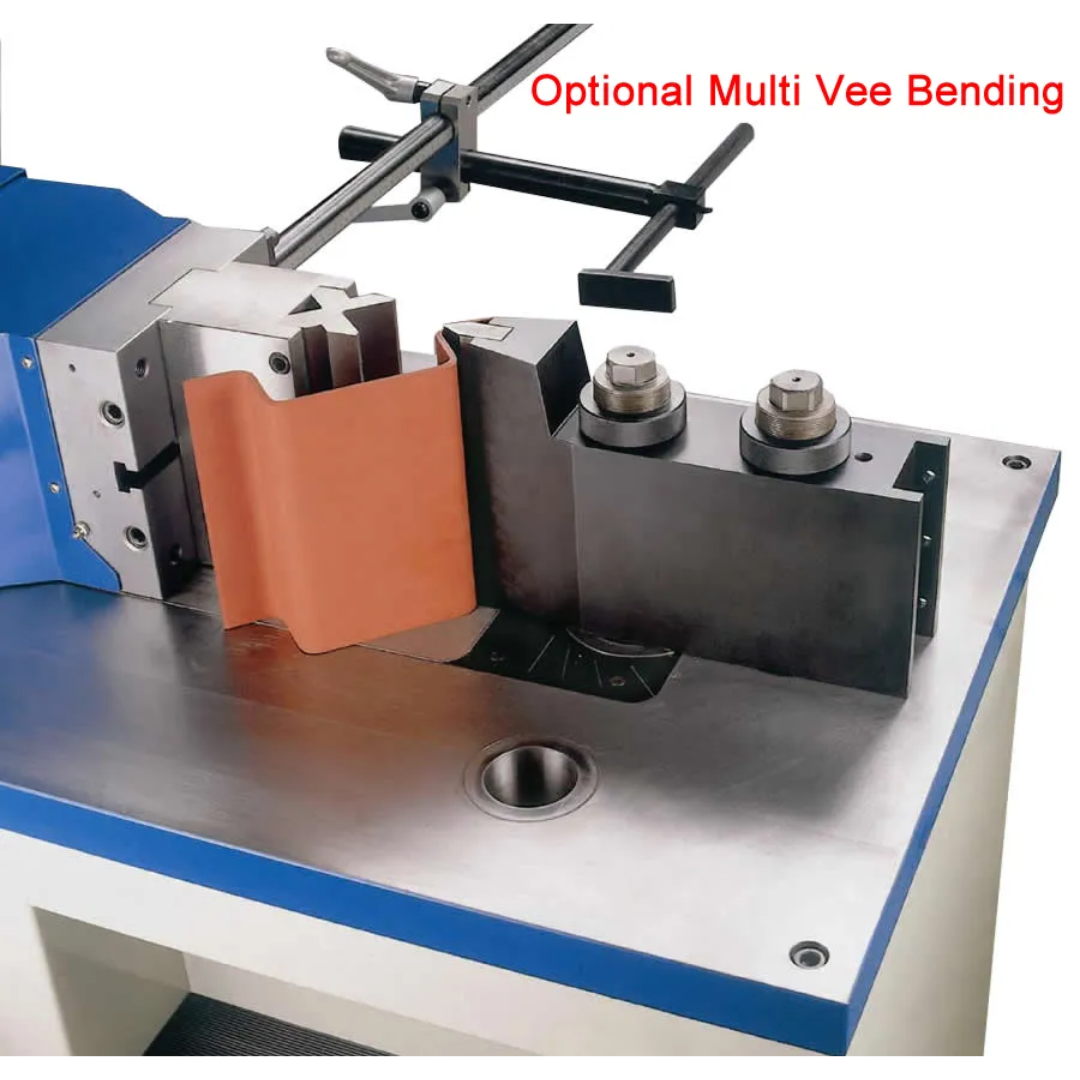

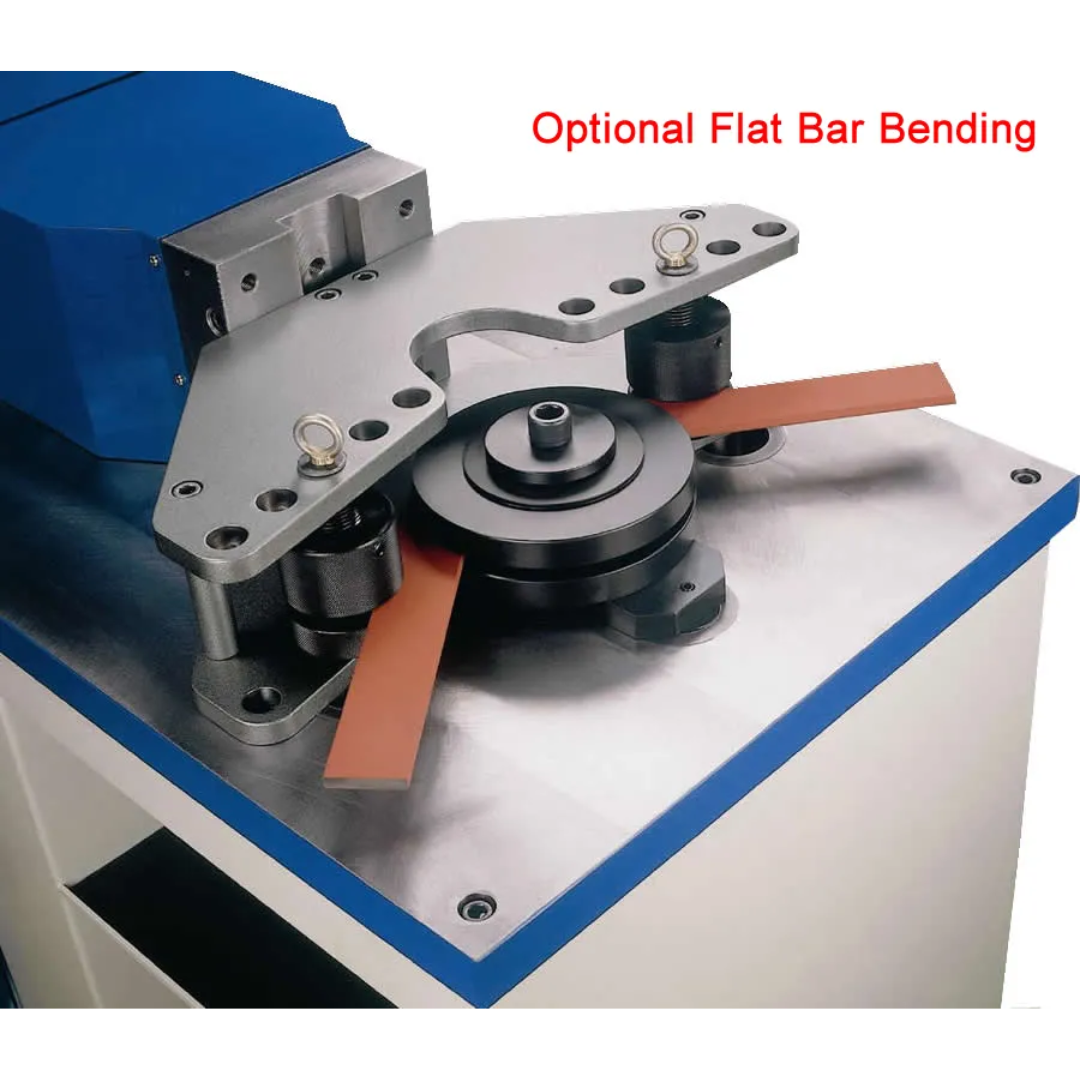

- Compatible with multiple tooling options including bending, punching, shearing, pipe bending, straightening, V-bending, and specialty forming attachments.
- Heavy-duty welded steel construction minimizes deflection under load while providing exceptional durability in demanding fabrication environments.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Horizontal Press Brake HPB-45NC 1004703
- 45-ton hydraulic capacity for demanding forming applications.
- Programmable NC controller increases production efficiency and repeatability.
- Hydraulic accuracy of ±0.002 inch supports precision fabrication.
- Horizontal design accommodates long workpieces with unlimited bending length.
- Compatible with numerous optional tooling systems for exceptional versatility.
- Heavy-duty industrial construction built for continuous shop production.
- Ideal for fabrication shops, manufacturers, maintenance facilities, and custom metalworking operations.
The Baileigh Horizontal Press Brake HPB-45NC 1004703 combines industrial hydraulic power, programmable NC controls, precision positioning, and multi-function tooling capability into one exceptionally versatile fabrication machine. Whether producing repeatable production bends or handling specialized forming operations, it delivers the accuracy, flexibility, and durability professionals expect from Baileigh Industrial.
