Baileigh Hand Brake - (HBR-7222) 1004659 Applications
- HVAC duct fabrication and installation.
- General sheet metal fabrication shops.
- Custom metal panel and enclosure manufacturing.
- Roofing, flashing, and trim fabrication.
- Maintenance and repair departments.
- Agricultural and industrial equipment fabrication.
- Prototype development and low-volume production work.
- Educational metalworking and technical training facilities.

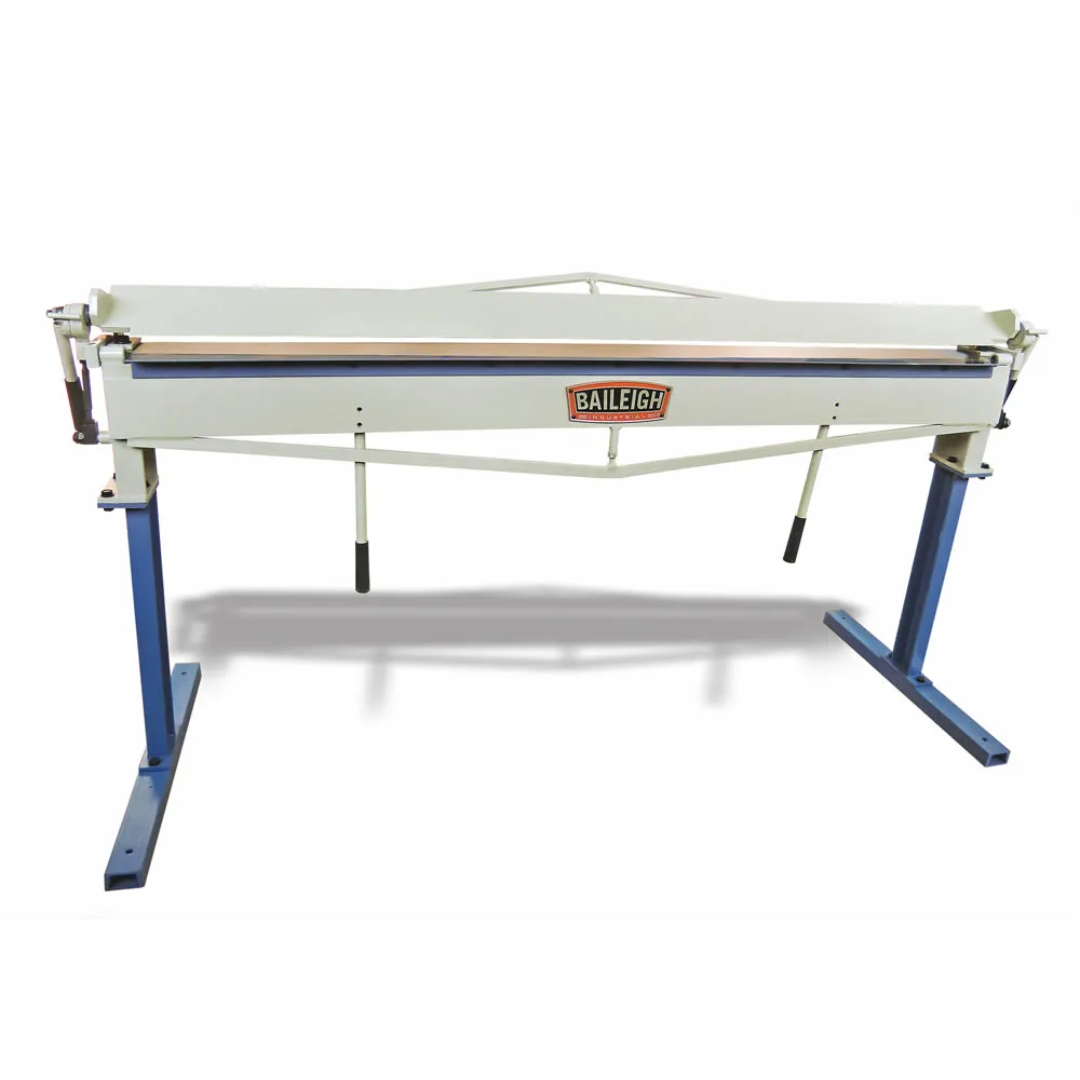

The Baileigh Hand Brake - (HBR-7222) 1004659 provides professional-quality manual bending for long sheet metal panels while eliminating the need for electrical power, making it an ideal solution for fabrication shops and field applications.
Baileigh Hand Brake - (HBR-7222) 1004659 Specifications
| Model | HBR-7222 |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1004659 |
| Machine Type | Manual Straight Metal Brake |
| Bending Width | 72 in. (6 ft) |
| Mild Steel Capacity | 22 Gauge |
| Maximum Bend Angle | 120° |
| Operation | Manual |
| Frame Construction | Fully Welded Steel Frame |
| Stand | Heavy-Duty Steel Floor Stand Included |
| Net Weight | 420 lbs. |
| Gross Weight | 420 lbs. |
| Warranty | 1 Year |
| UPC | 731325407044 |
Baileigh Hand Brake - (HBR-7222) 1004659 Performance & Construction
- 72-inch working length allows full-width bending of long sheet metal panels commonly used in fabrication and HVAC applications.
- 22 gauge mild steel capacity delivers accurate, repeatable bends across the machine's full working width.
- Maximum 120° bending capability provides flexibility for forming channels, brackets, trim pieces, flashing, and custom sheet metal components.

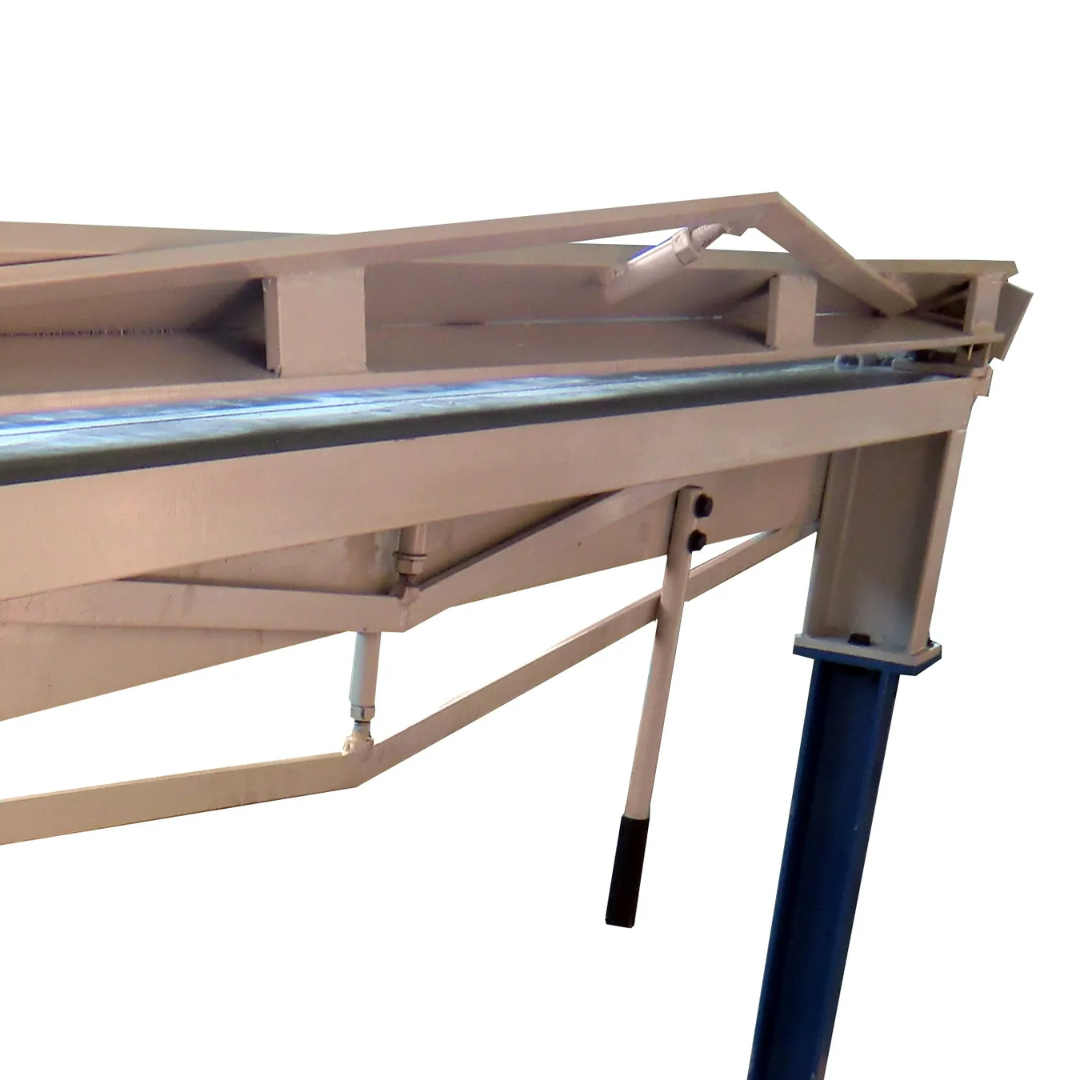

- Fully welded steel framework with heavy-duty upper and lower support trusses minimizes deflection while maintaining long-term structural rigidity.

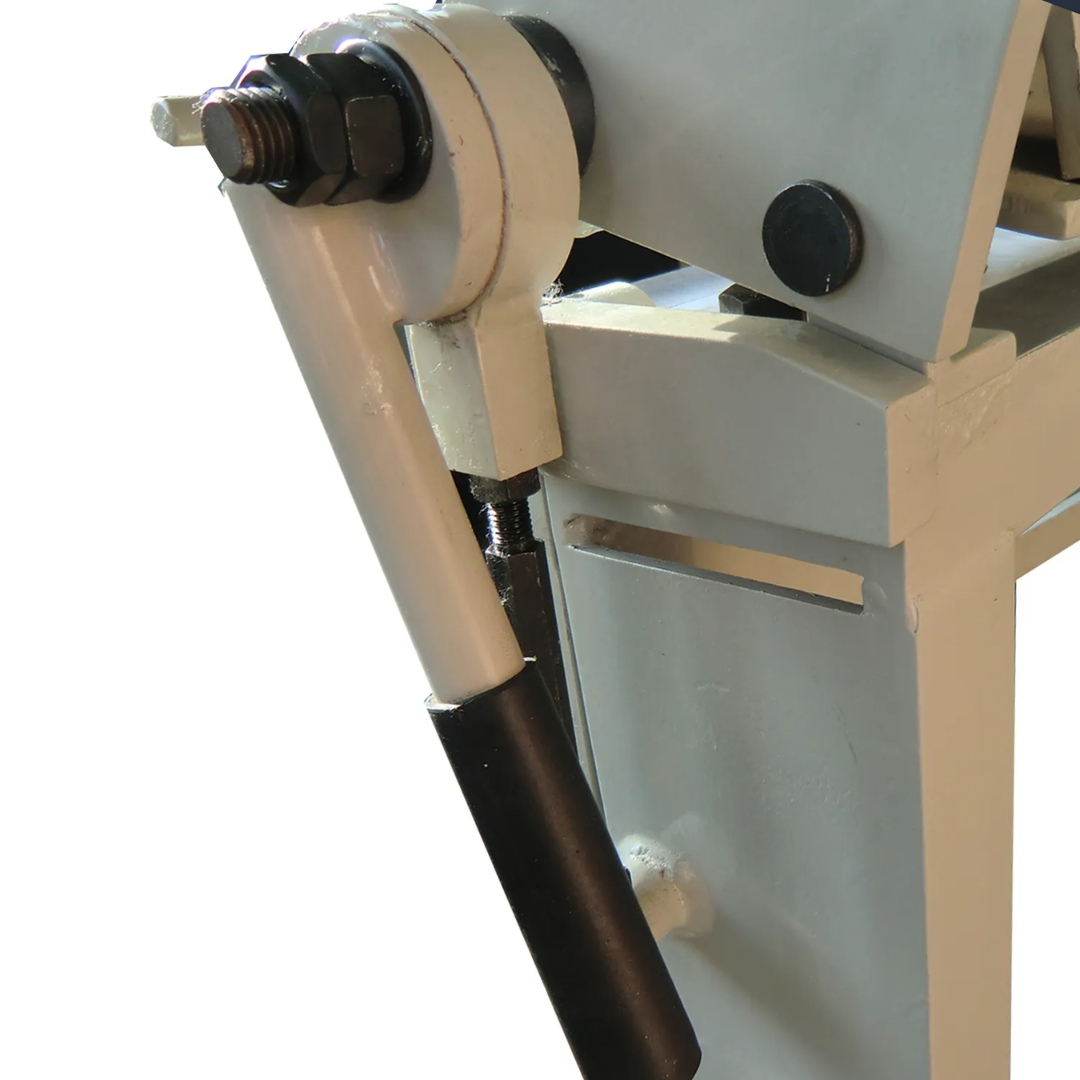

- Precision right and left cam lever arms provide smooth, controlled clamping action for accurate material positioning and consistent bending results.
- Adjustable clamping pressure allows operators to accommodate varying material thicknesses while protecting delicate sheet metal from unnecessary marking or distortion.

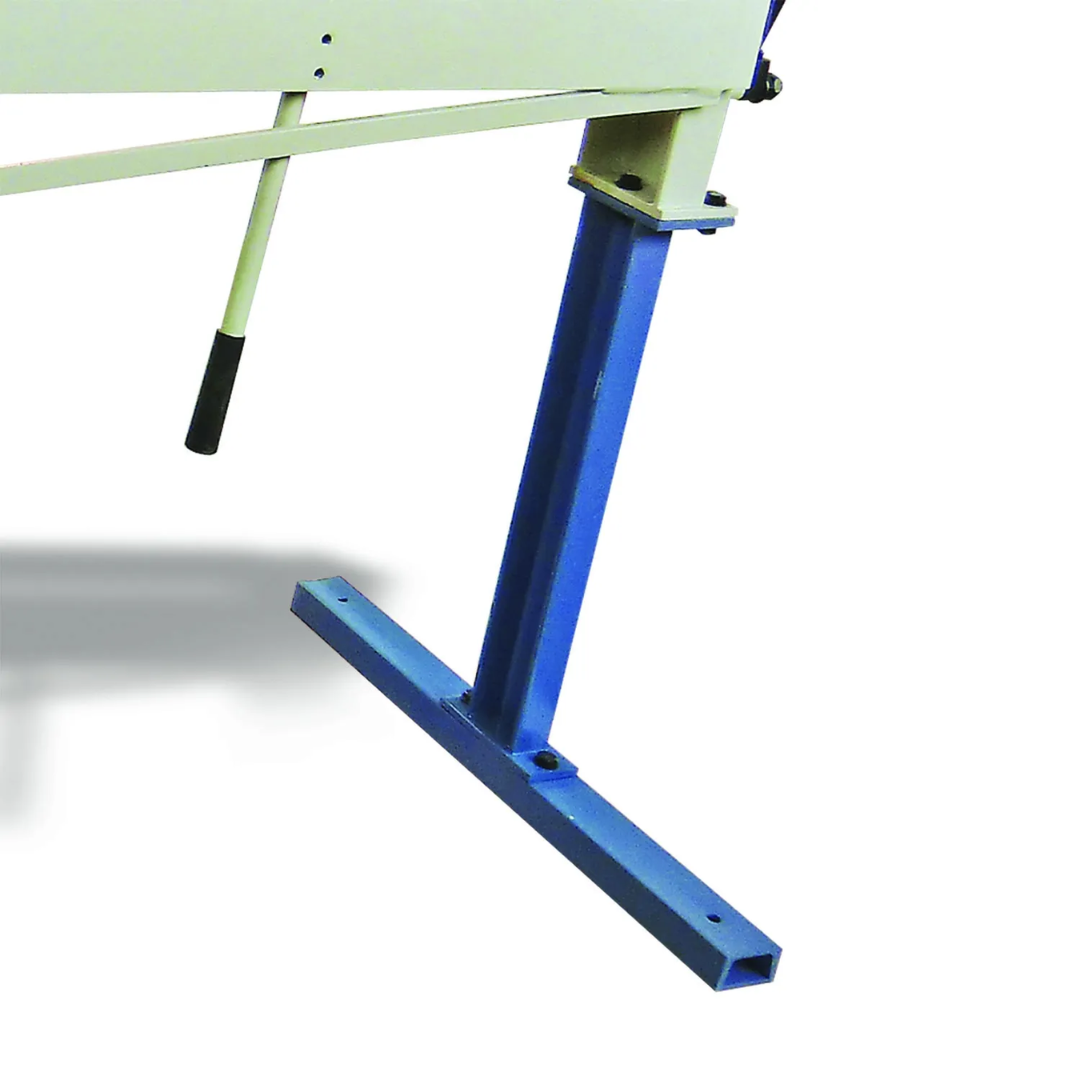

- Heavy-duty steel floor stand offers a stable working platform that improves operator comfort and machine stability during repetitive production.
- Manual operation eliminates the need for electrical power, making the brake suitable for workshops, maintenance facilities, and field fabrication.

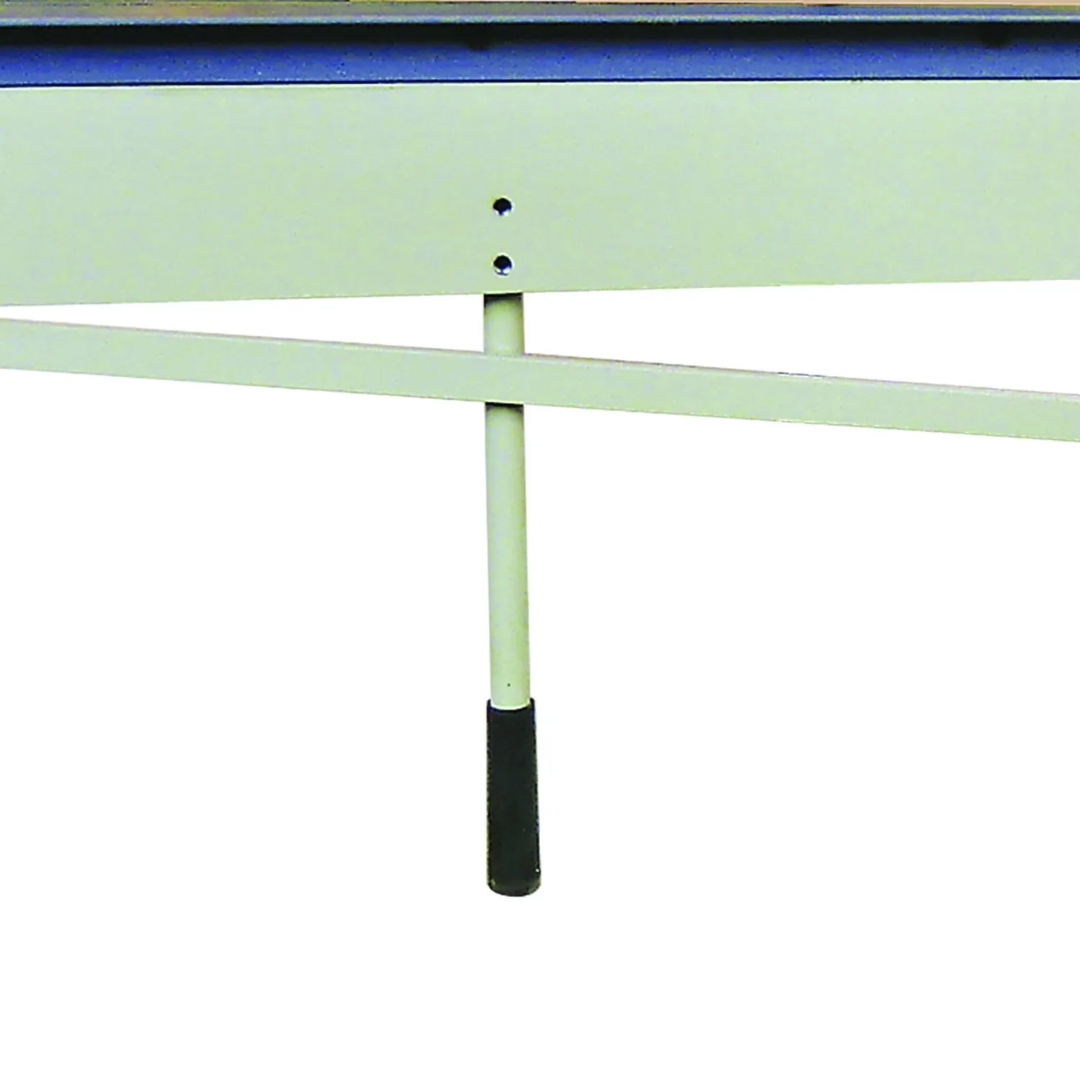

- Ergonomic lever design simplifies clamp-and-release operation for improved productivity and reduced operator fatigue.
- Industrial-grade construction is built to withstand demanding daily use while maintaining long-term bending accuracy.
- Backed by Baileigh's 1-year warranty and supported by lifetime technical assistance for dependable ownership.
Why Choose the Baileigh Hand Brake - (HBR-7222) 1004659
- Professional 72-inch manual sheet metal brake for long workpieces.
- Accurately bends 22 gauge mild steel across the full working width.
- Produces bends up to 120° for a wide range of fabrication applications.
- Fully welded steel frame delivers exceptional rigidity and long service life.
- Precision cam lever clamping system improves accuracy and repeatability.
- Adjustable clamping pressure accommodates multiple material types and thicknesses.
- Includes a heavy-duty steel floor stand for stable operation.
- Reliable manual design requires no electrical power while minimizing maintenance.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Hand Brake - (HBR-7222) 1004659 combines heavy-duty construction, precision manual operation, and a generous 72-inch bending capacity into one dependable fabrication tool. Built for professionals who require accurate sheet metal forming without the complexity of powered equipment, it delivers consistent performance, excellent durability, and dependable results for HVAC, fabrication, maintenance, and custom metalworking applications.
