Baileigh Exhaust Bender - (EB-300) 1004134 Applications
- Automotive exhaust system fabrication.
- Performance exhaust manufacturing.
- Custom hot rod and restoration shops.
- Muffler and exhaust repair facilities.
- Industrial tube fabrication.
- Pipe and tubing forming operations.
- Automotive service centers.
- General metal fabrication environments.

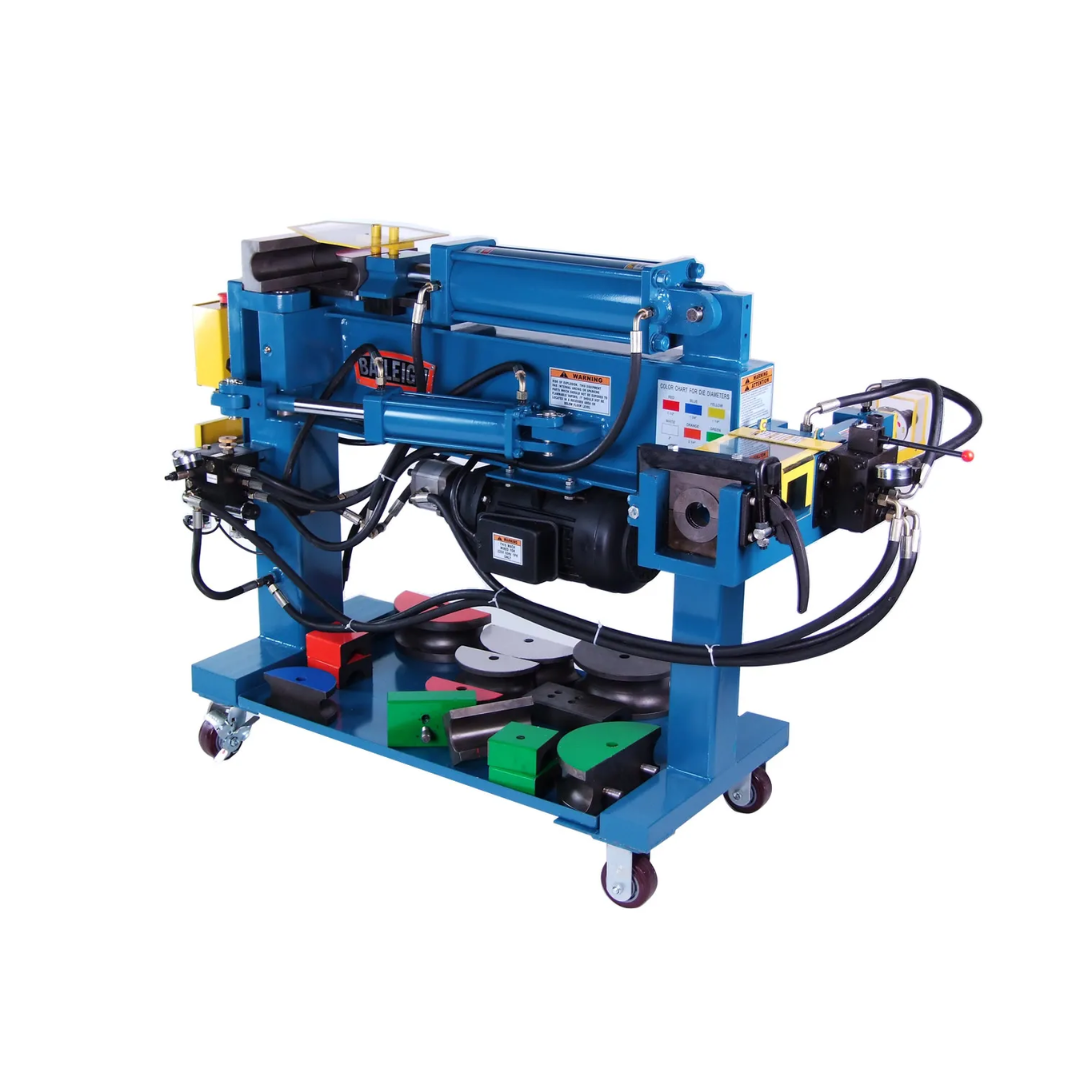

The Baileigh Exhaust Bender EB-300 combines hydraulic compression bending, tube-end forming, and complete tooling into one versatile machine designed for efficient production of professional-quality exhaust systems and custom tubing assemblies.
Baileigh Exhaust Bender - (EB-300) 1004134 Specifications
| Model | EB-300 |
|---|---|
| Manufacturer | Baileigh Industrial |
| Product Number | 1004134 |
| Machine Type | Hydraulic Exhaust Bender / Tube End Former |
| Motor Power | 4 HP |
| Input Power | 220V Single Phase |
| Bending Method | Hydraulic Compression Style |
| Tube Capacity | 1-1/2 in. to 3 in. OD Round Tubing |
| Maximum Bend Angle | 180° |
| Center Line Radius | 5 in. |
| Tube End Forming | Expanding, Flaring, Swaging, Ball Joint & Flange Forming |
| Controls | Hands-Free Knee Controls |
| Tooling Included | Complete Radius Tooling Set Included |
| Construction | Heavy Steel Frame with Hydraulic Reservoir and Oil Sight Glass |
| Net Weight | 1,660 lbs. |
| Gross Weight | 1,660 lbs. |
| Warranty | 1 Year |
| UPC | 19907765882 |
Baileigh Exhaust Bender - (EB-300) 1004134 Performance & Construction

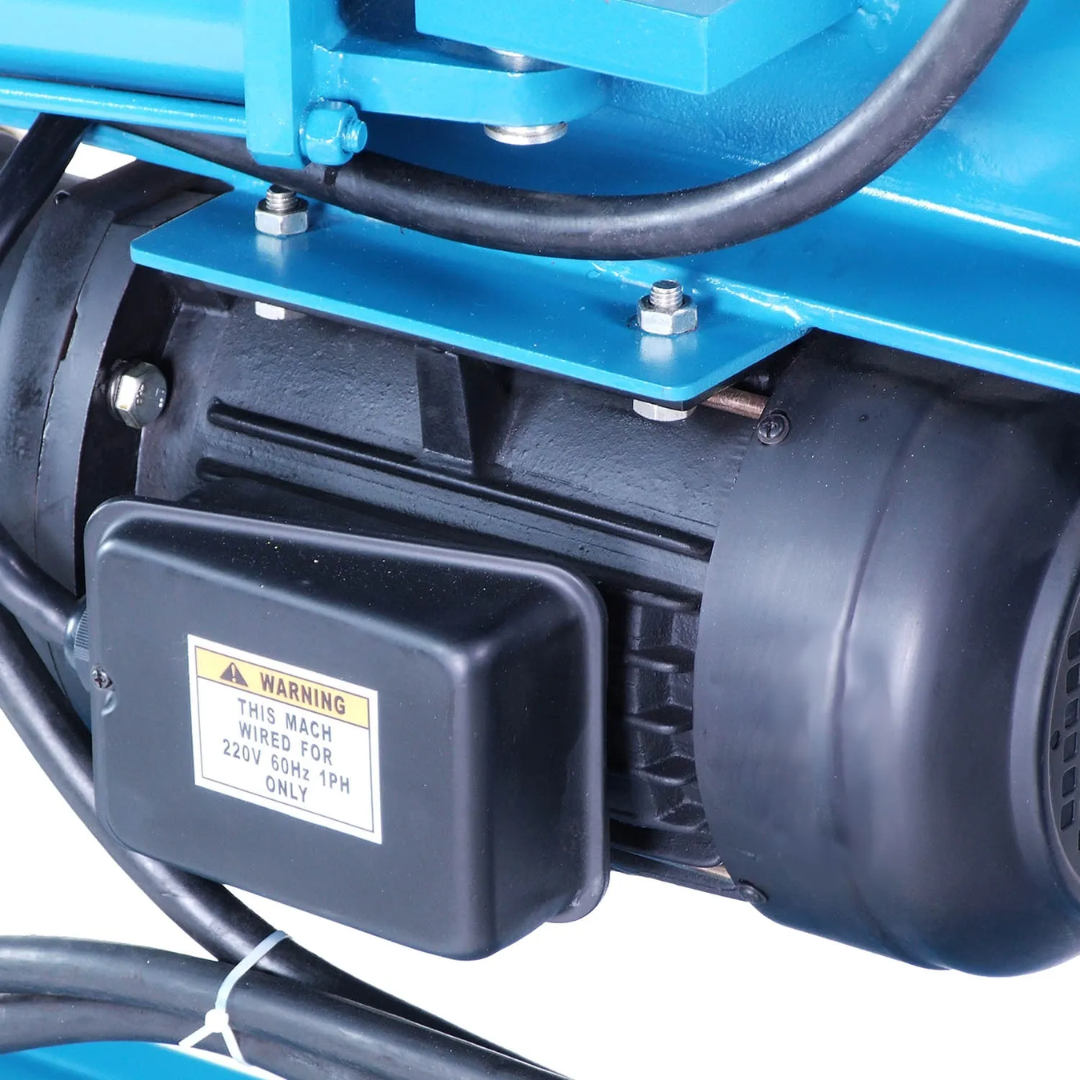

- Powerful 4 HP industrial motor provides dependable hydraulic power for continuous bending and tube-forming operations.
- Operates on 220V single-phase electrical service, making installation convenient for automotive and fabrication shops without requiring three-phase power.

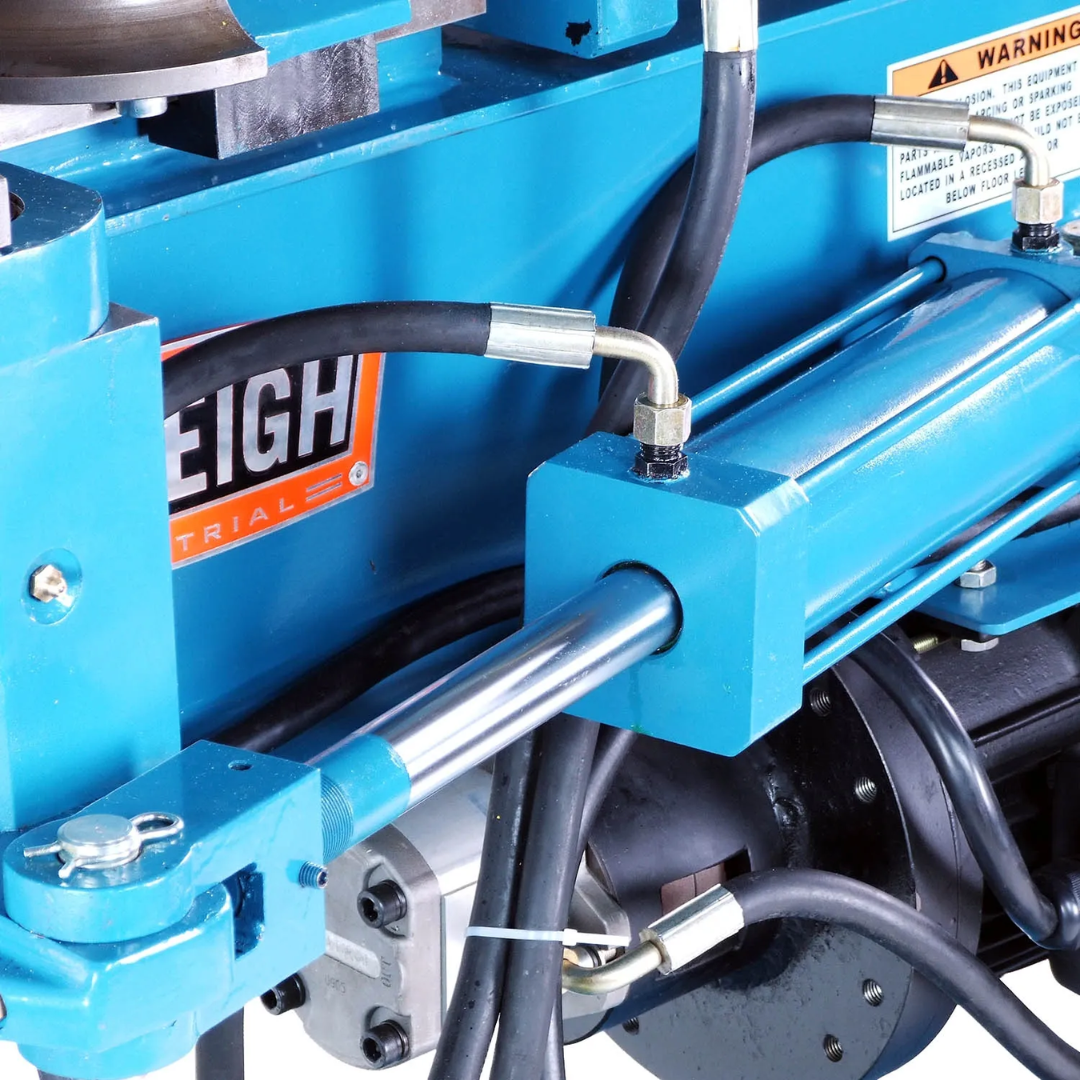

- Hydraulic compression bending system produces smooth, controlled, wrinkle-free bends while minimizing material distortion.
- Bends round tubing from 1-1/2" to 3" outside diameter, making it ideal for automotive exhaust fabrication and custom tube work.

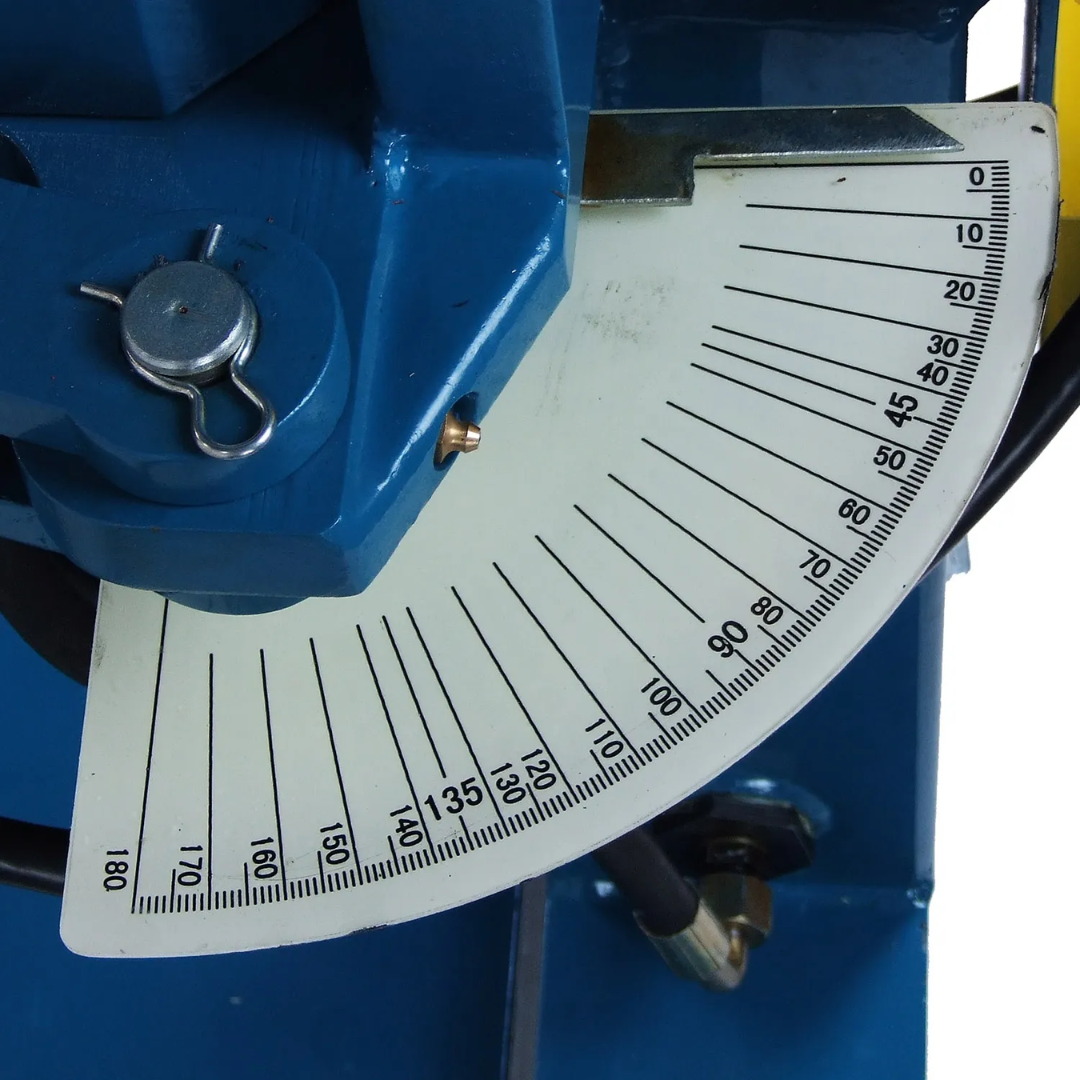

- Capable of bends up to 180° for complex exhaust routing and tight-radius fabrication projects.

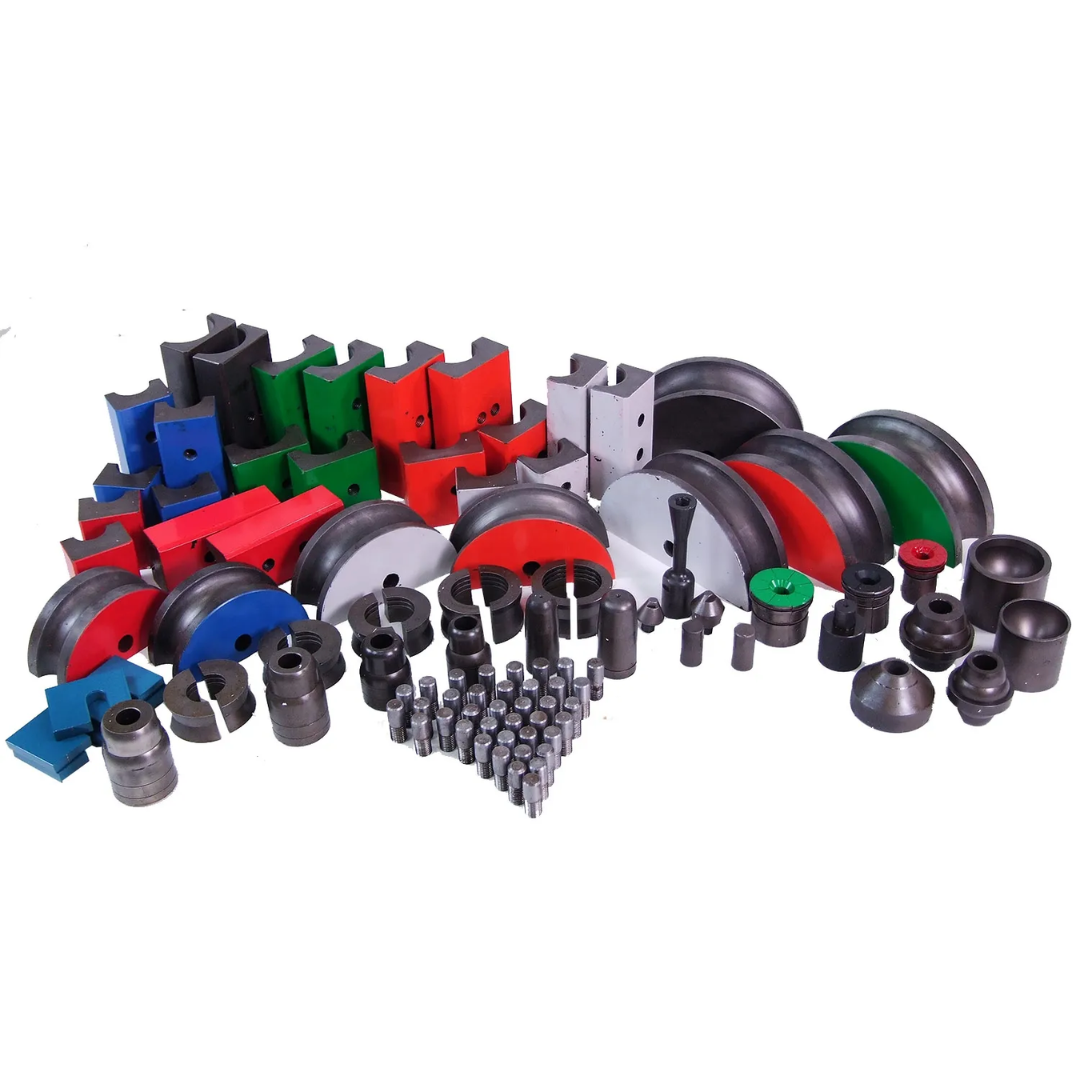

- Complete radius tooling package included allows immediate production without additional tooling investment.

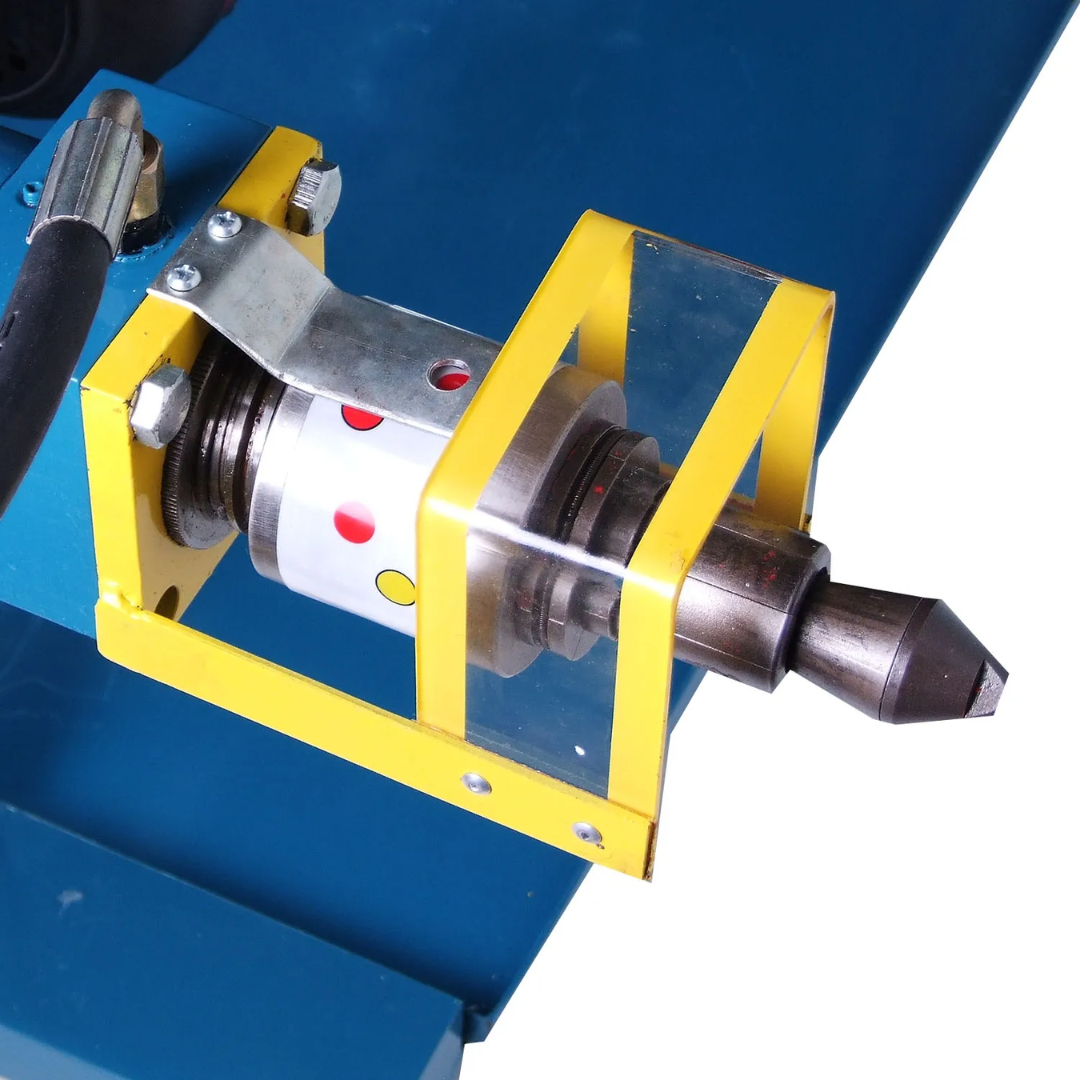

- Integrated tube-end forming station expands, flares, swages, and forms ball joints and flanges for professional exhaust system fabrication.

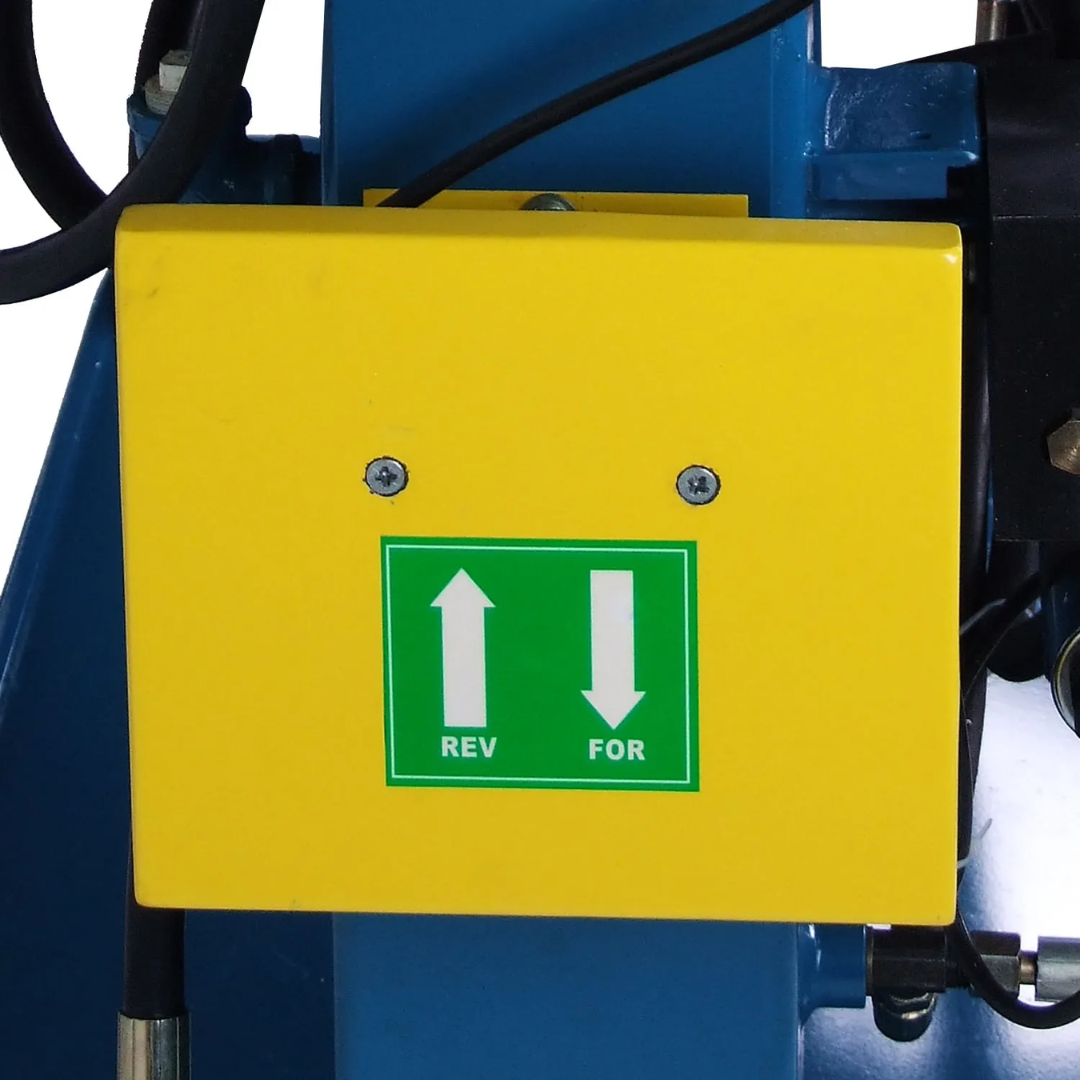

- Hands-free knee controls improve operator efficiency by allowing both hands to remain on the workpiece during bending operations.
- Heavy-duty welded steel construction withstands demanding production environments while maintaining bending accuracy and long service life.

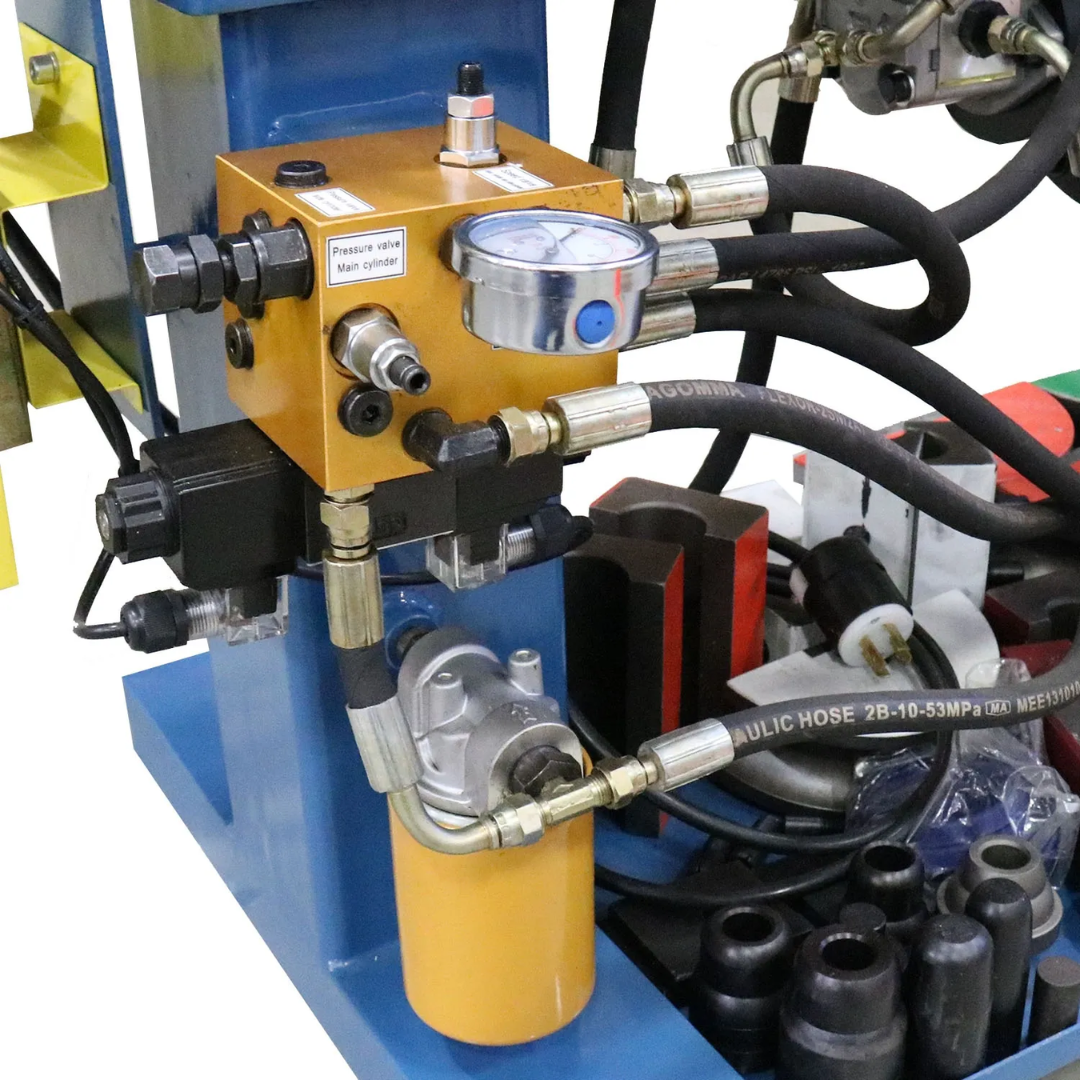

- Hydraulic reservoir with oil sight glass simplifies fluid level monitoring and routine maintenance.
- Designed for repetitive production work to improve shop productivity while producing consistent, repeatable bends.
- Recommended for 2-1/4" to 3" OD tubing with a minimum 12-gauge wall thickness for optimal bending performance.
- Backed by Baileigh's 1-year warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Exhaust Bender - (EB-300) 1004134
- Heavy-duty hydraulic compression bending system produces clean, wrinkle-free bends.
- Powerful 4 HP motor delivers dependable industrial performance.
- Operates on convenient 220V single-phase electrical service.
- Bends tubing from 1-1/2" to 3" OD with up to 180° bend capability.
- Integrated tube-end forming station expands, flares, and swages tubing.
- Complete tooling package included for immediate operation.
- Hands-free knee controls improve operator efficiency and safety.
- Heavy steel construction built for demanding production environments.
- Ideal for exhaust fabrication, muffler shops, automotive repair, and custom tube work.
- Backed by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh Exhaust Bender - (EB-300) 1004134 is a complete exhaust fabrication solution that combines hydraulic compression bending, tube-end forming, heavy-duty industrial construction, and a full tooling package into one versatile machine. Designed for professional automotive and fabrication shops, it delivers reliable performance, precise bends, and the flexibility to produce high-quality custom exhaust systems with maximum efficiency.
