Baileigh Box and Pan Brake (BB-14418) Applications
- HVAC ductwork and ventilation fabrication.
- Architectural sheet metal and flashing production.
- Commercial roofing trim fabrication.
- Electrical enclosures and control panels.
- Large boxes, pans, trays, channels, and custom formed components.
- Industrial maintenance and repair facilities.
- General sheet metal fabrication and production work.
Designed for fabricators who require extra-long bending capacity, dependable manual operation, and versatile removable finger tooling for producing precision sheet metal components.
Baileigh Box and Pan Brake (BB-14418) Specifications
| Model | BB-14418 |
|---|---|
| Product Number | 1000381 |
| Operation | Manual Sheet Metal Finger Brake |
| Working Width | 144 in. (12 ft.) |
| Material Capacity | 18 Gauge Mild Steel / 22 Gauge Stainless Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Finger Configuration | 31 Interchangeable Hardened Fingers (6 × 3", 6 × 4", 10 × 5", 9 × 6") |
| Minimum Reverse Bend | 0.625 in. |
| Counterweights | Dual Large Counterweights |
| Frame Construction | Electro-Welded Steel Frame |
| Operation Type | Manual Hand Operation |
| Net Weight | 5,390 lb |
| Gross Weight | 5,390 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325392111 |
Baileigh Box and Pan Brake (BB-14418) Performance & Construction
- Massive 144-inch (12-foot) working width easily handles long sheet metal panels, making it ideal for HVAC duct sections, architectural panels, and large fabrication projects.
- 18-gauge mild steel and 22-gauge stainless steel capacity provides excellent versatility for commercial fabrication, maintenance work, and production manufacturing.
- Electro-welded heavy-duty steel frame resists twisting and frame deflection, maintaining precise bend accuracy across the machine's full working length.
- 31 interchangeable hardened fingers allow operators to configure tooling for boxes, pans, trays, channels, and complex custom shapes with depths up to 6 inches.
- Dual oversized counterweights significantly reduce operator effort while providing smoother bending action over the entire 12-foot bending leaf.
- 135-degree maximum bend angle supports a broad range of fabrication requirements, from standard bends to specialized formed components.
- 0.625-inch minimum reverse bend capability expands forming versatility for complex sheet metal designs and tighter return flanges.
- Manual operation eliminates electrical or hydraulic requirements while providing dependable performance in virtually any fabrication environment.
- Heavy-duty 5,390-pound construction delivers exceptional rigidity, stability, and years of reliable industrial service.
Baileigh Box and Pan Brake (BB-14418) Features & Benefits
- 144-inch (12-foot) working width for oversized sheet metal fabrication.
- Bends up to 18-gauge mild steel and 22-gauge stainless steel.
- Includes 31 interchangeable hardened fingers for highly versatile box and pan forming.
- Maximum 6-inch box depth accommodates deep fabricated components.
- 135° bending capability supports a wide range of forming applications.
- Dual counterweights reduce operator fatigue during long bending operations.
- Heavy-duty electro-welded steel frame maintains long-term bending accuracy.
- 0.625-inch reverse bend capability increases fabrication flexibility.
- Manual operation requires no electrical or hydraulic power.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh Box and Pan Brake (BB-14418)
- Extra-long 12-foot working width handles oversized fabrication projects.
- Heavy-duty welded construction ensures dependable long-term performance.
- 31 interchangeable fingers maximize flexibility for custom box and pan fabrication.
- Dual counterweights provide smoother operation and reduce operator fatigue.
- Reverse bend capability expands the range of parts that can be produced.
- Ideal for fabrication shops, HVAC contractors, architectural metalworkers, and industrial manufacturers.

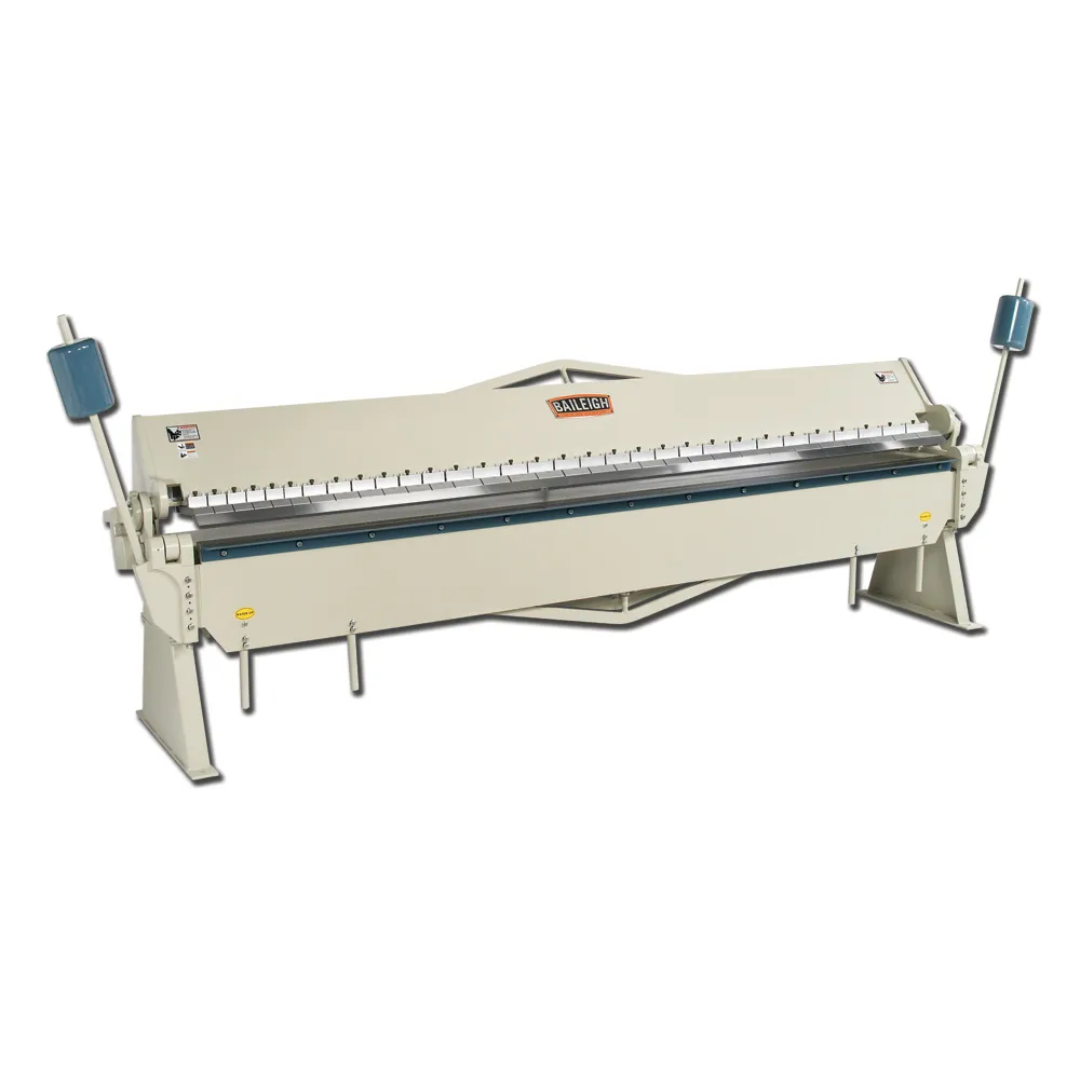

The Baileigh Box and Pan Brake (BB-14418) combines professional-grade manual operation, rugged electro-welded construction, interchangeable hardened finger tooling, and extra-long bending capacity into a versatile sheet metal forming solution. Built for demanding industrial fabrication environments, it delivers the precision, durability, and flexibility needed to manufacture large boxes, pans, channels, ductwork, and custom sheet metal components with consistent, repeatable results.
