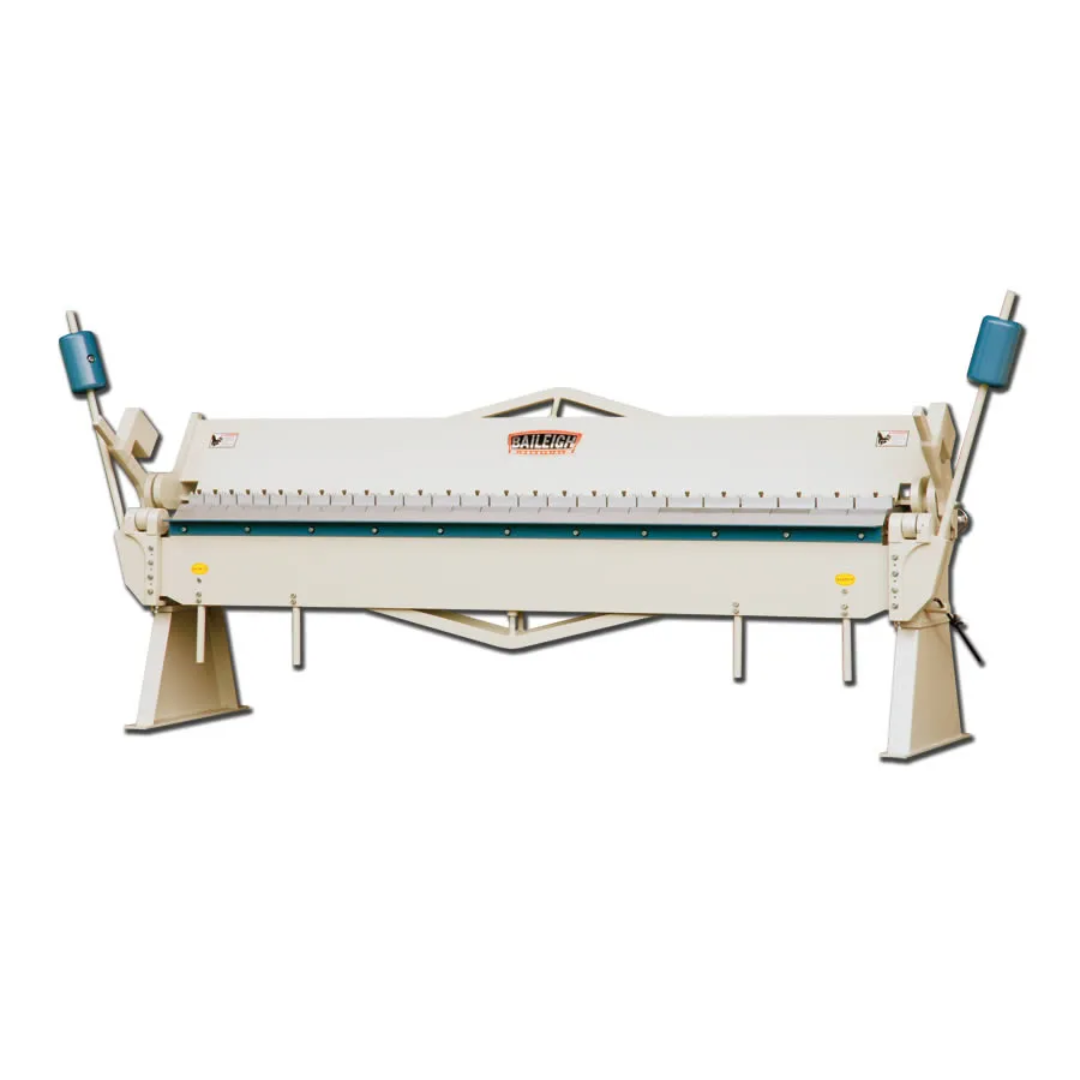

Baileigh Box and Pan Brake (BB-12016) Applications
- HVAC ductwork and ventilation system fabrication.
- Architectural sheet metal and flashing production.
- Electrical enclosures, cabinets, and control panels.
- Custom boxes, pans, channels, trays, and brackets.
- Agricultural and industrial equipment fabrication.
- Metal fabrication shops and maintenance departments.
- General-purpose sheet metal manufacturing and repair.
Ideal for fabricators who require long-bed manual bending capacity, versatile removable finger tooling, and dependable industrial-grade construction for everyday production work.
Baileigh Box and Pan Brake (BB-12016) Specifications
| Model | BB-12016 |
|---|---|
| Product Number | 1000380 |
| Operation | Manual Finger Brake |
| Working Width | 120 in. (10 ft.) |
| Material Capacity | 16 Gauge Mild Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Finger Configuration | 26 Hardened Removable Fingers (6 × 3", 4 × 4", 10 × 5", 6 × 6") |
| Frame Construction | Electro-Welded Steel Framework |
| Counterweights | Dual Large Counterweights |
| Bending Leaf Bearings | Precision Lube-for-Life Bearings |
| Power Requirement | Manual Operation (No Electrical Power Required) |
| Net Weight | 3,500 lb |
| Gross Weight | 3,500 lb |
| Warranty | 1 Year |
| UPC | 731325392104 |
Baileigh Box and Pan Brake (BB-12016) Performance & Construction
- 120-inch (10-foot) working width provides ample capacity for bending long sheet metal panels commonly used in HVAC, architectural fabrication, and industrial manufacturing.
- 16 gauge mild steel capacity delivers dependable performance for forming light- to medium-gauge sheet metal used in production and custom fabrication.
- Electro-welded heavy-duty steel framework with integrated support rods minimizes frame deflection, helping maintain bend accuracy across the machine's full working length.
- 26 removable hardened fingers allow countless tooling configurations for producing boxes, pans, channels, trays, and custom profiles up to 6 inches deep.
- Precision lube-for-life bearings on the bending leaf shafts provide exceptionally smooth operation while reducing maintenance requirements and operator effort.
- Dual oversized counterweights assist during bending operations, reducing fatigue while improving control and consistency during repetitive production work.
- 135-degree maximum bending angle offers the flexibility required for standard bends, return flanges, channels, and specialized formed components.
- Manual operation eliminates electrical requirements while providing reliable forming capability in virtually any fabrication environment.
- Heavy-duty 3,500-pound construction provides exceptional stability, rigidity, and long service life in demanding industrial applications.
Baileigh Box and Pan Brake (BB-12016) Features & Benefits
- 120-inch (10-foot) bending capacity for oversized sheet metal fabrication.
- Bends up to 16 gauge mild steel with consistent precision.
- 26 removable hardened fingers support numerous box and pan configurations.
- Maximum 6-inch box depth accommodates deep formed parts.
- 135° bending range for versatile forming applications.
- Electro-welded steel frame provides exceptional rigidity and durability.
- Dual counterweights reduce operator fatigue during long bending cycles.
- Precision bearing-supported bending leaf ensures smooth, repeatable operation.
- Manual hand operation requires no electrical power.
- Backed by Baileigh's 1-Year Warranty and Lifetime Technical Support.
Why Choose the Baileigh Box and Pan Brake (BB-12016)
- Professional-grade 10-foot manual finger brake for fabrication professionals.
- Rigid welded steel construction delivers accurate bends and long-term durability.
- 26 interchangeable hardened fingers maximize forming flexibility.
- Counterweighted manual design minimizes operator effort while improving productivity.
- Ideal for HVAC fabrication, architectural sheet metal, industrial manufacturing, and custom fabrication work.
The Baileigh Box and Pan Brake (BB-12016) delivers industrial-quality sheet metal forming with heavy-duty welded construction, precision bearing-supported operation, removable hardened finger tooling, and a full 10-foot working width. Built for demanding fabrication environments, it provides the versatility, durability, and consistent accuracy required for producing high-quality boxes, pans, channels, and custom sheet metal components.
