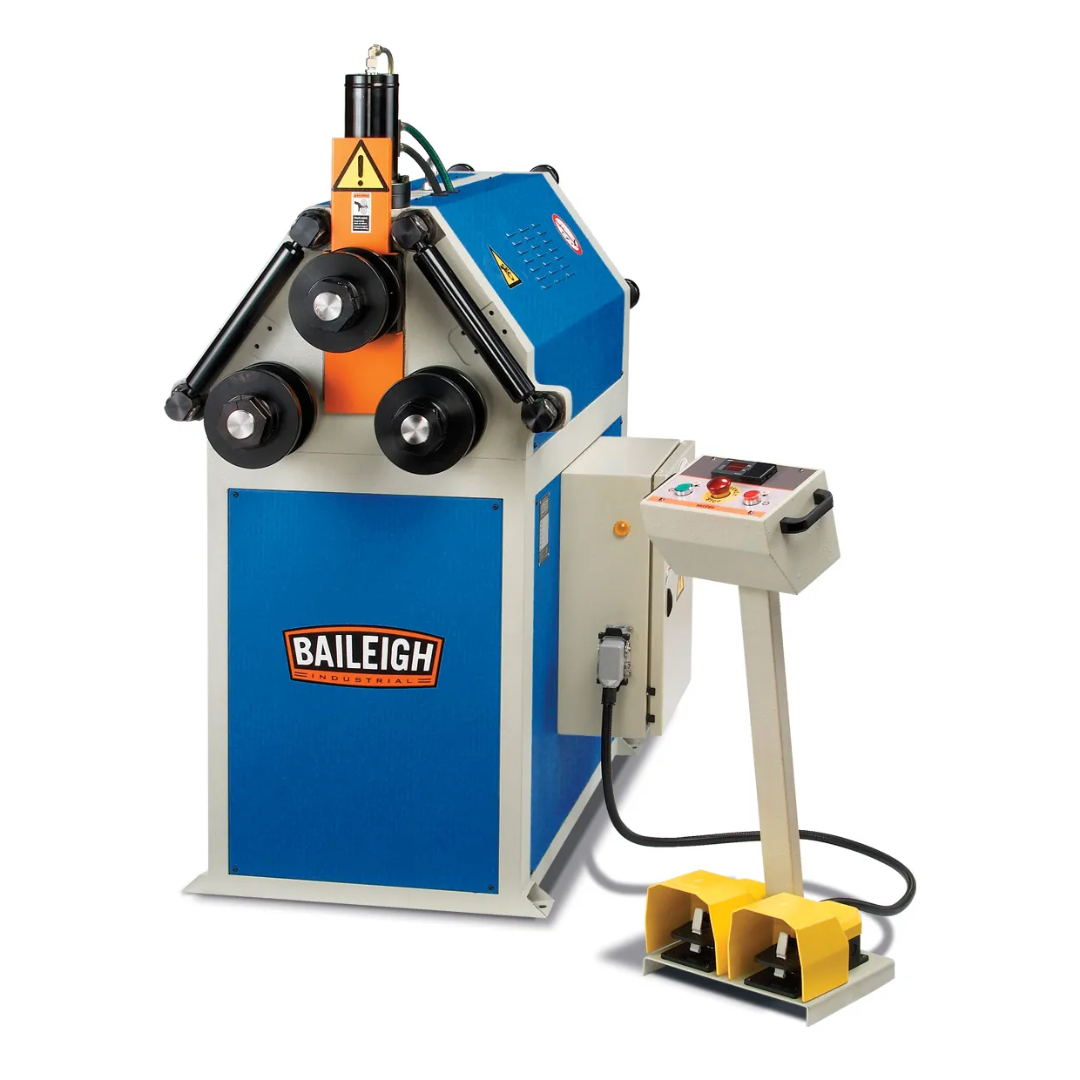

Baileigh Angle Roller R-H55 1006836 Applications
- Rolling round tube, pipe, square tubing, and rectangular tubing.
- Forming angle iron, flat bar, channel, and structural steel profiles.
- Architectural metal fabrication and ornamental iron work.
- Handrail, guardrail, stair, and railing fabrication.
- Automotive, trailer, and chassis component manufacturing.
- Industrial fabrication requiring repeatable large-radius bends.
- Production rolling of curved structural components.
Designed for fabrication professionals who require hydraulic precision, repeatable forming accuracy, and the versatility to bend a wide variety of structural profiles.
Baileigh Angle Roller R-H55 1006836 Specifications
| Model | R-H55 |
|---|---|
| Product Number | 1006836 |
| Machine Type | Hydraulic Angle & Section Roller |
| Motor Power | 7 HP |
| Input Power | 220V Three Phase |
| Motor Phase | Three Phase |
| Driven Rolls | 3 Powered Rolls |
| Top Roll Adjustment | Hydraulic with Digital Position Readout |
| Round Tube Capacity | Up to 2-3/4 in. OD Maximum Capacity |
| Pipe Capacity | Up to 2.5 in. Schedule 40 |
| Maximum Bend Capacity | 3 in. OD |
| Operating Position | Vertical or Horizontal |
| Lateral Guides | Integrated Adjustable Side Guides |
| Construction | Fully Welded Steel Frame with Hardened Rolls |
| Controls | Foot Pedal Operation |
| Net Weight | 1,320 lbs. |
| Gross Weight | 1,320 lbs. |
| Warranty | 1 Year |
| UPC | 19907415732 |
Baileigh Angle Roller R-H55 1006836 Performance & Construction
- Powerful 7 HP industrial motor provides the torque required for forming structural profiles and heavy tubing with consistent results.
- 220V three-phase electrical operation delivers dependable hydraulic performance for demanding fabrication and production environments.

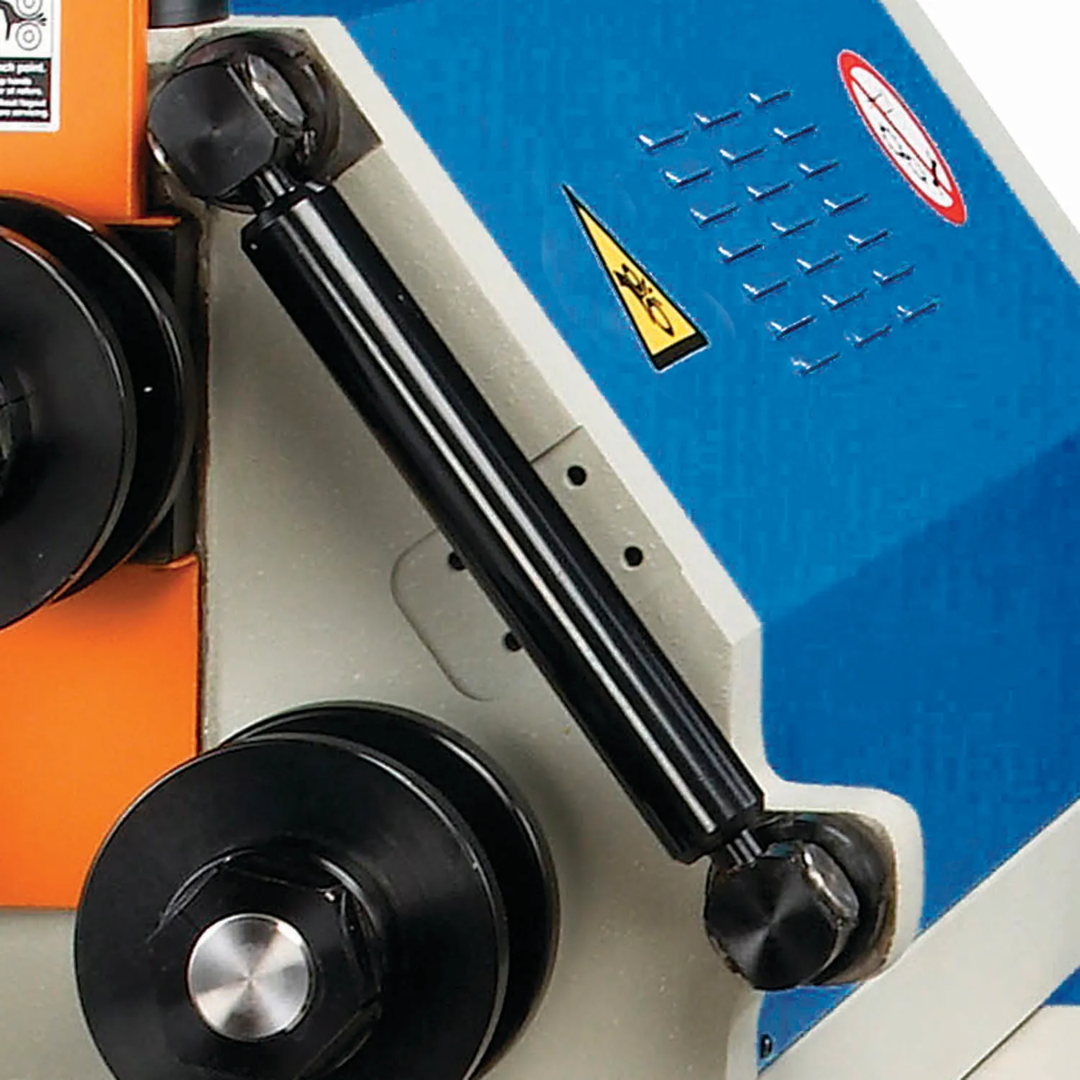

- Three fully driven rolls provide smooth material feeding while maintaining consistent bending pressure throughout the forming process.

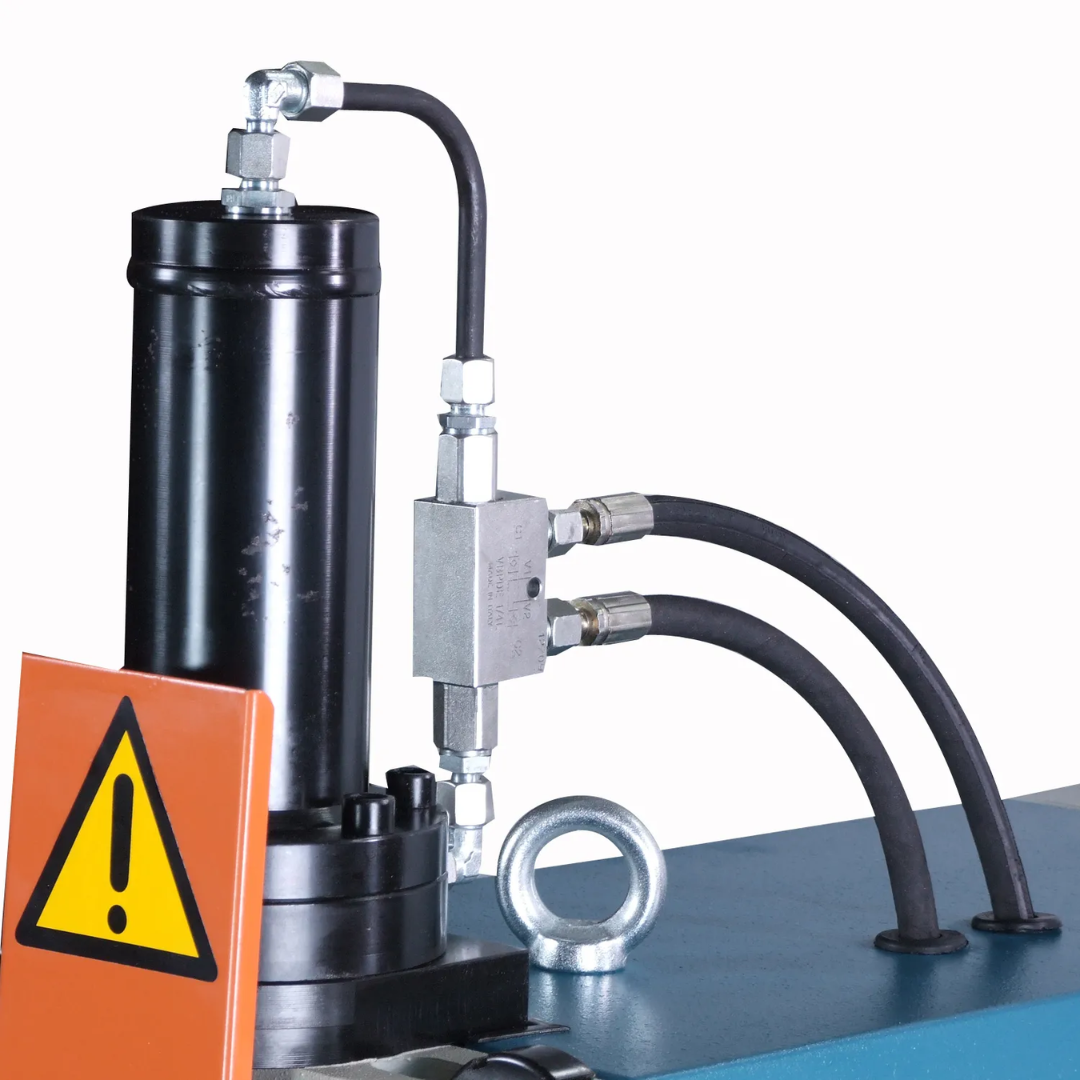

- Hydraulic top roll movement allows fast, precise adjustment of bending pressure for improved accuracy and repeatability.

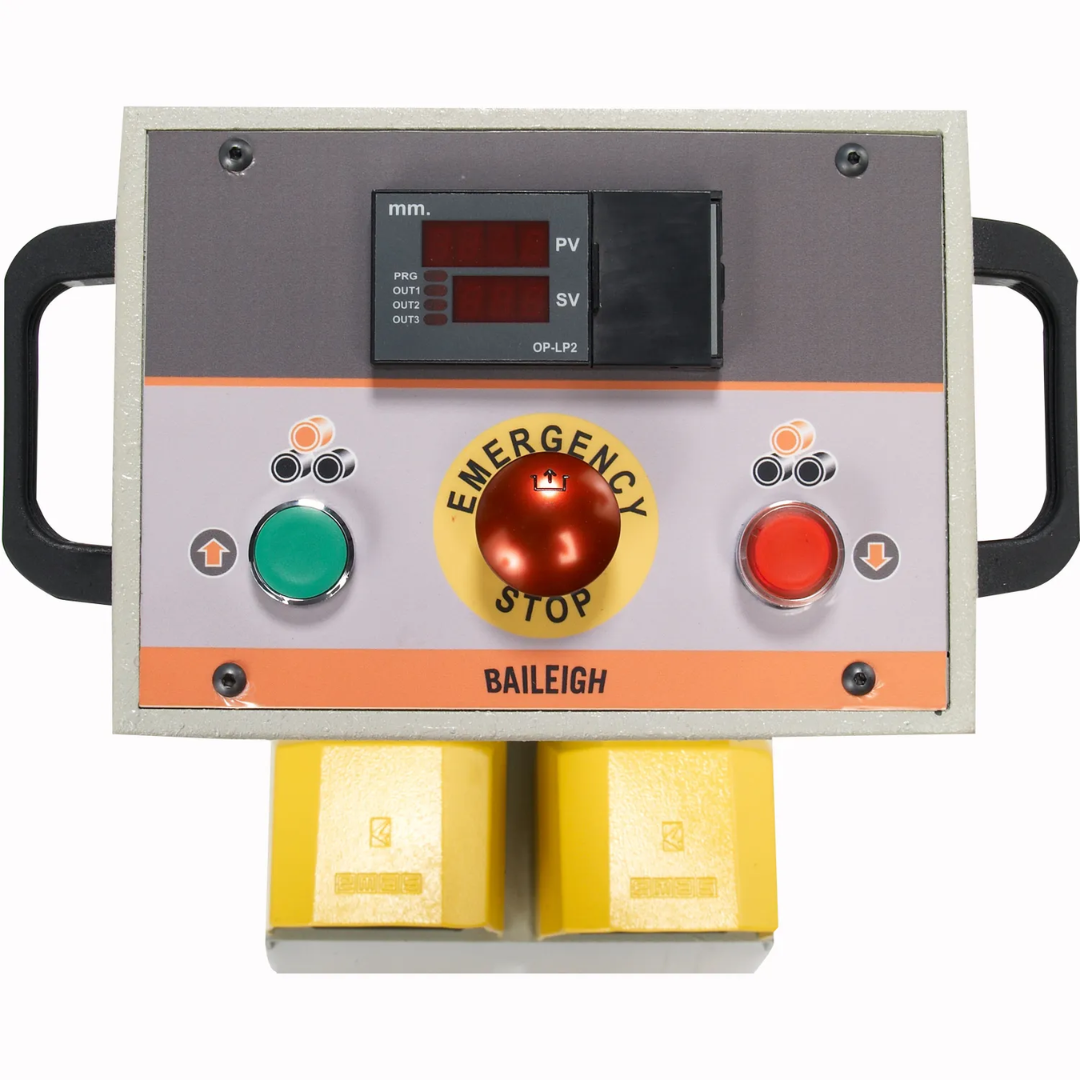

- Digital top roll position readout enables operators to duplicate bend settings for multiple parts and production runs.
- Maximum round tube capacity of 2-3/4 inches OD accommodates a broad range of tubing commonly used in industrial fabrication.
- Pipe rolling capacity up to 2.5-inch Schedule 40 expands the machine's versatility for industrial pipe forming applications.
- Vertical or horizontal operating positions provide flexibility for handling different material lengths and shop layouts.
- Integrated lateral guide rollers improve material stability while reducing twisting during profile rolling operations.
- Heavy-duty fully welded steel frame minimizes deflection under load while increasing long-term durability and forming precision.

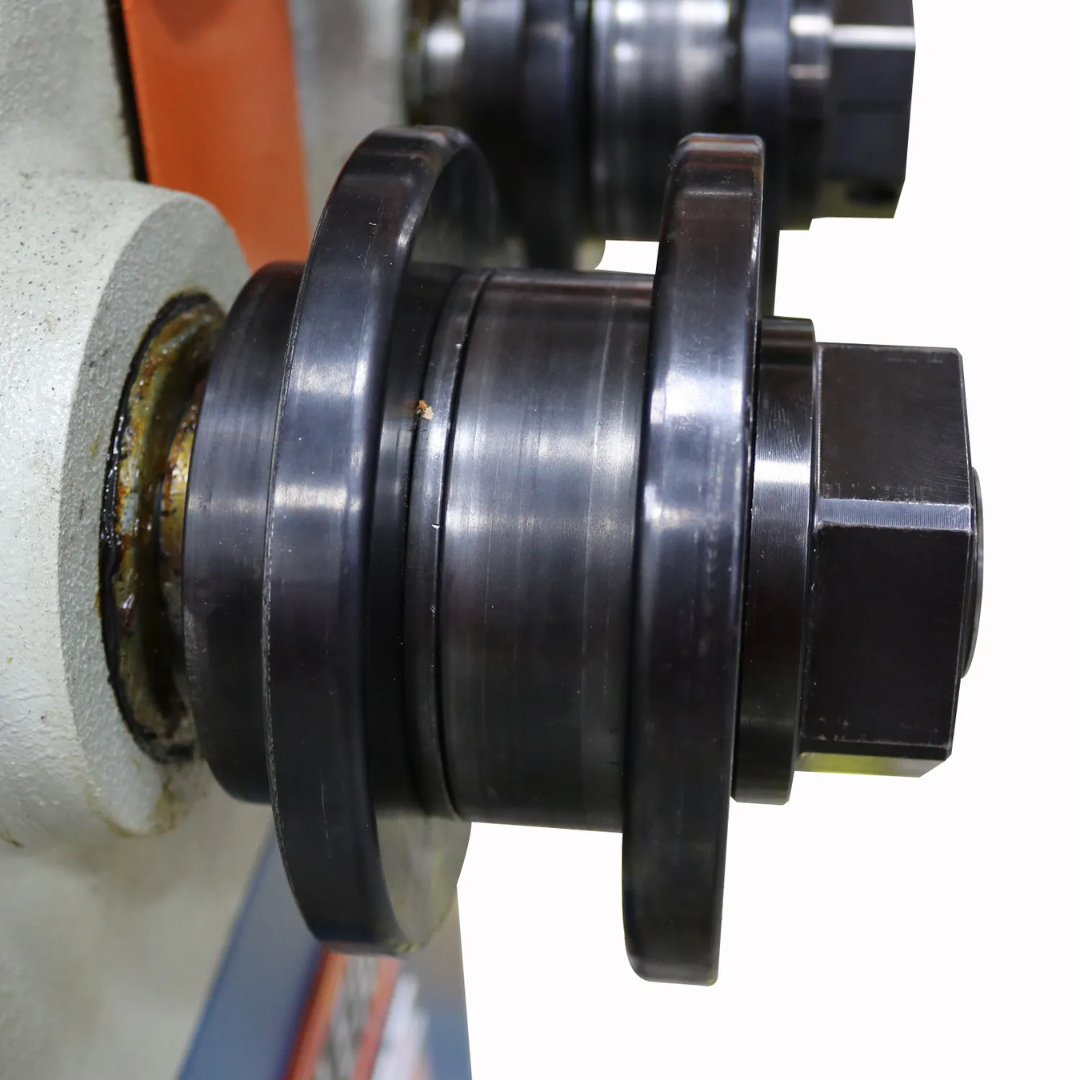

- Hardened precision rolls resist wear and maintain accurate profile geometry throughout years of production use.

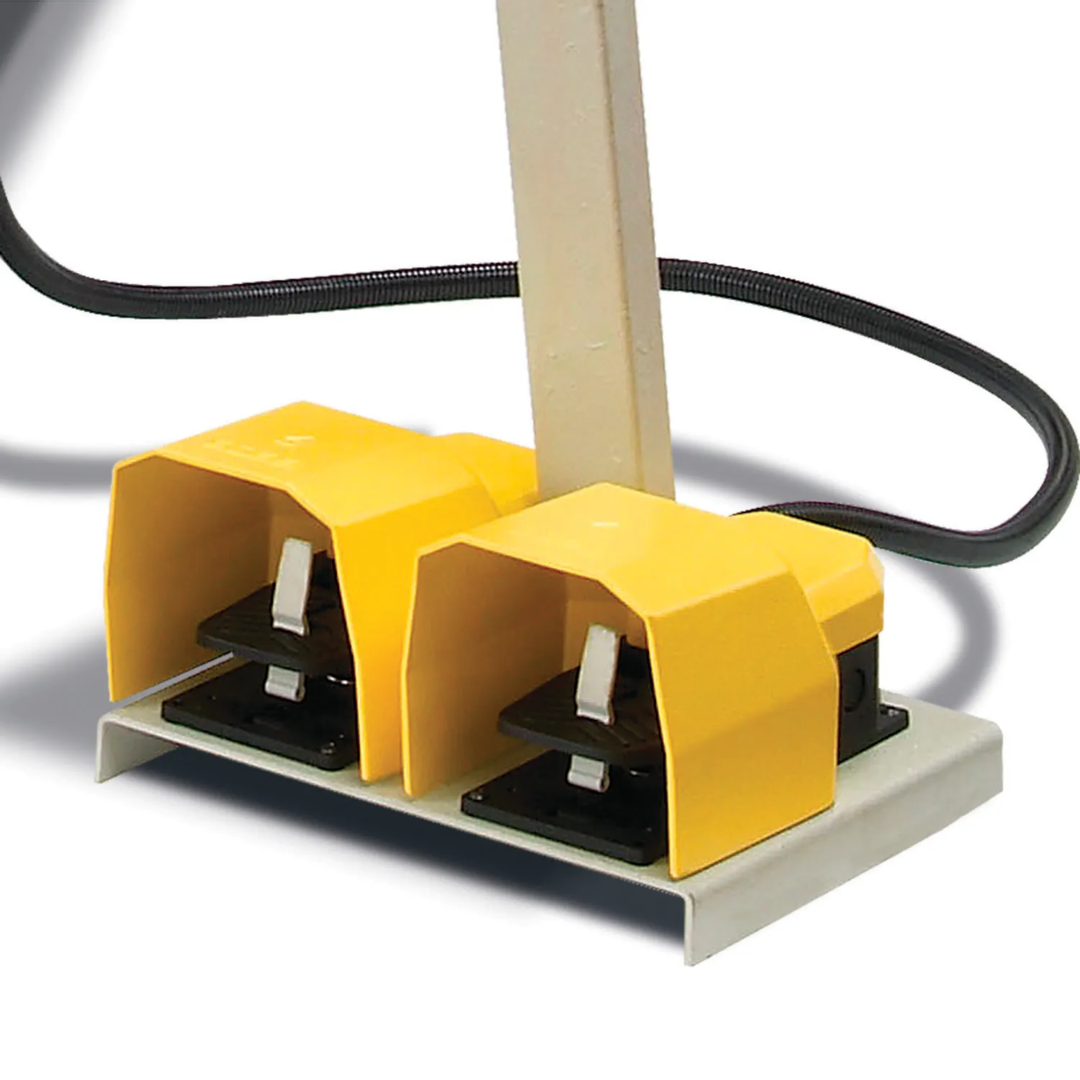

- Hands-free foot pedal controls improve operator safety and productivity by allowing both hands to remain on the workpiece during rolling.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh Angle Roller R-H55 1006836

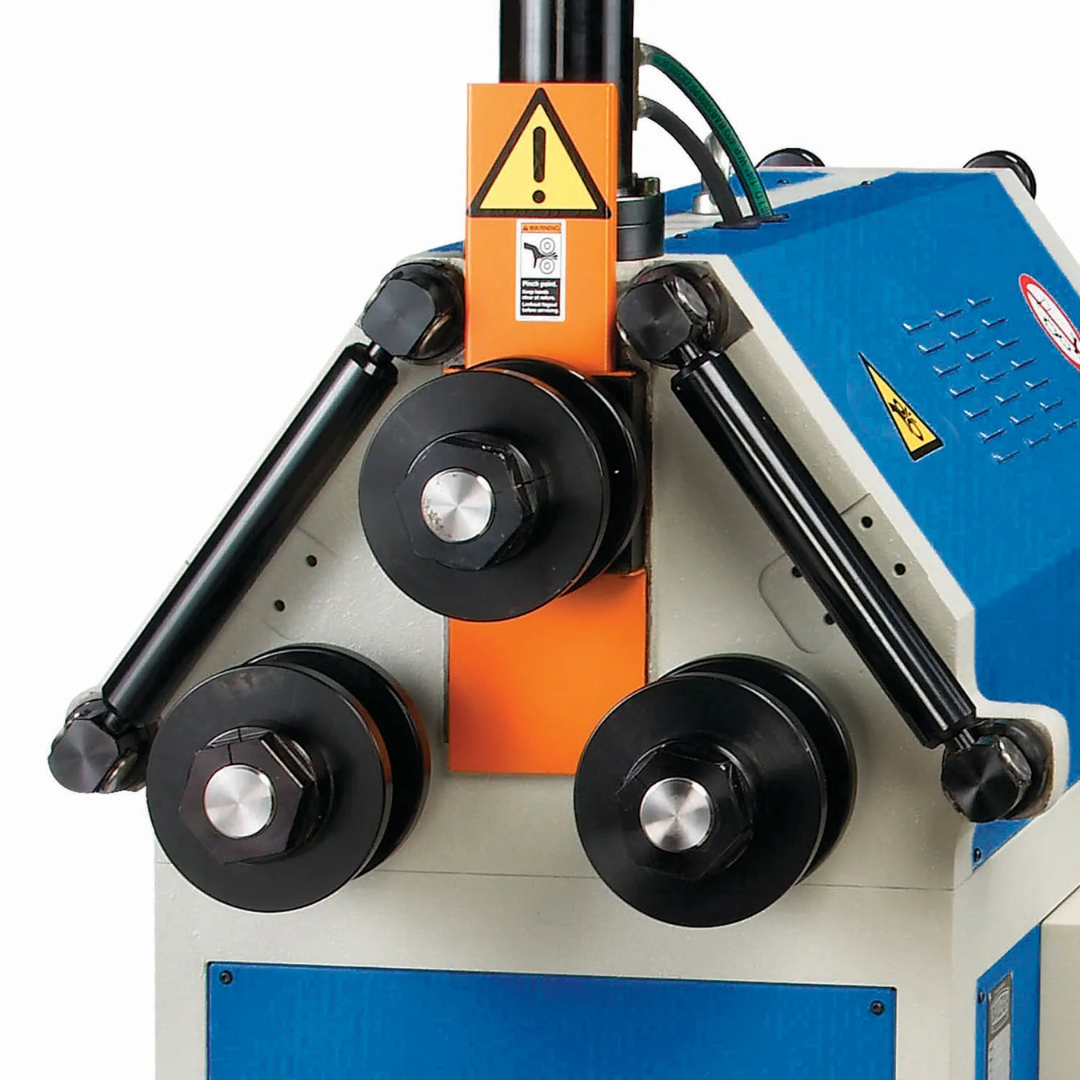

- Hydraulic three-roll design provides smooth, accurate profile bending.
- Digital roll position readout improves repeatability for production work.
- Heavy-duty welded steel construction ensures industrial durability.
- Operates vertically or horizontally for greater application flexibility.
- Capable of rolling tubing, pipe, angle iron, flat bar, and structural profiles.
- Foot pedal controls improve operator efficiency and material handling.
- Ideal for fabrication shops, structural steel manufacturers, ornamental iron fabricators, and production facilities.
The Baileigh Angle Roller R-H55 1006836 combines industrial hydraulic power, three driven rolls, digital positioning technology, and rugged welded construction to deliver precise, repeatable profile rolling for demanding fabrication environments. Built for accuracy, productivity, and long-term reliability, it is an outstanding solution for professional metal forming operations.
