Baileigh 96-Inch Hydraulic Box & Pan Brake (BB-9610H) Applications
- Industrial sheet metal fabrication.
- HVAC ductwork and ventilation system manufacturing.
- Architectural sheet metal fabrication.
- Electrical enclosures and equipment cabinet production.
- Commercial roofing, flashing, and trim fabrication.
- Boxes, pans, trays, channels, and custom formed components.
- Production environments requiring repeatable hydraulic bending.
Designed for fabricators who require industrial hydraulic performance, heavy-gauge forming capability, and accurate repeatability across full-length sheet metal panels.
Baileigh 96-Inch Hydraulic Box & Pan Brake (BB-9610H) Specifications
| Model | BB-9610H |
|---|---|
| Product Number | 1021003 |
| Operation | Hydraulic Box & Pan Brake |
| Working Width | 96 in. (8 ft.) |
| Material Capacity | 10 Gauge Mild Steel / 13 Gauge Stainless Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Motor | 5 HP Hydraulic Motor |
| Power Requirement | 220V Three Phase |
| Finger Configuration | 22 Hardened Three-Piece Fingers (6 × 3", 4 × 4", 10 × 5", 2 × 6") |
| Control Modes | Manual or Semi-Automatic (Foot Pedal & Toggle Joystick) |
| Hydraulic Functions | Hydraulic Clamping and Bending System |
| Frame Construction | Fully Welded Heavy-Duty Steel Frame |
| Net Weight | 5,640 lb |
| Gross Weight | 5,640 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325489910 |

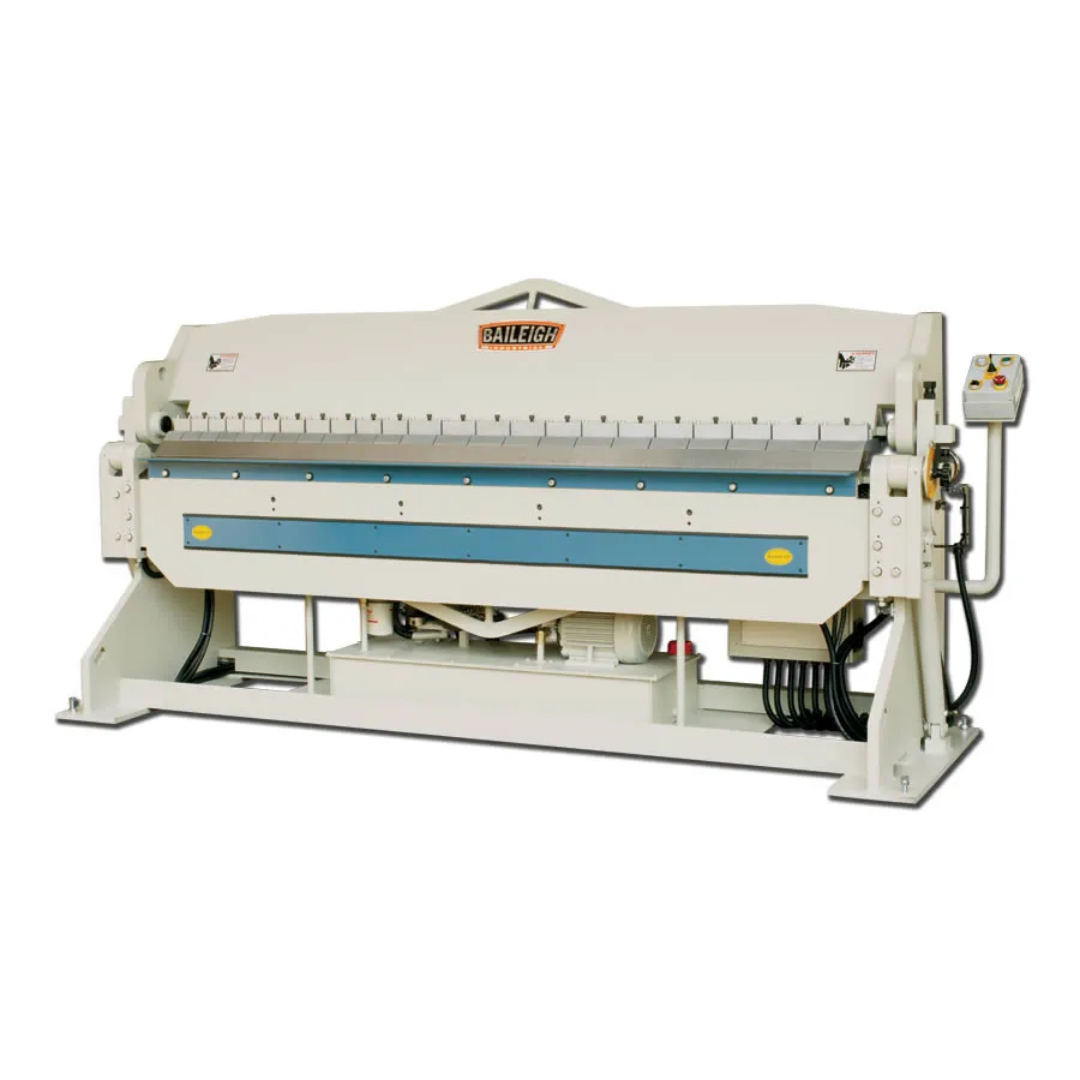

Baileigh 96-Inch Hydraulic Box & Pan Brake (BB-9610H) Performance & Construction
- Powerful 5 HP hydraulic drive system delivers smooth, controlled clamping and bending performance for demanding production environments and heavy-gauge materials.
- 96-inch (8-foot) working width allows operators to form large sheet metal panels used in HVAC systems, architectural fabrication, equipment enclosures, and industrial manufacturing.
- 10-gauge mild steel and 13-gauge stainless steel capacity provides exceptional versatility for commercial fabrication and production applications.
- Fully welded heavy-duty steel frame minimizes deflection under load to maintain consistent bending accuracy across the full working length.
- Hydraulic clamping and bending system reduces manual effort while delivering smooth, repeatable forming pressure for professional-quality bends.
- 22 removable hardened three-piece fingers provide outstanding flexibility for creating boxes, pans, trays, channels, and custom sheet metal shapes up to 6 inches deep.
- 135-degree maximum bend angle supports a wide range of fabrication requirements, from standard bends to complex formed components.
- Manual or semi-automatic operating modes with foot pedal and toggle joystick controls allow operators to choose the workflow that best matches production demands.
- Heavy-duty 5,640-pound construction provides excellent stability, vibration resistance, and dependable long-term performance in industrial environments.
Baileigh 96-Inch Hydraulic Box & Pan Brake (BB-9610H) Features & Benefits
- 96-inch (8-foot) hydraulic forming capacity for large sheet metal projects.
- Handles up to 10-gauge mild steel and 13-gauge stainless steel.
- Powered by a 5 HP hydraulic system with 220V three-phase electrical service.
- Includes 22 removable hardened three-piece fingers for versatile box and pan fabrication.
- Maximum 6-inch box depth accommodates deep formed components.
- Hydraulic clamping and bending reduce operator fatigue while improving consistency.
- Manual and semi-automatic operation adapt to varying production requirements.
- Heavy-duty welded steel construction ensures long-term precision and durability.
- 135° bending capability supports a wide range of forming applications.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 96-Inch Hydraulic Box & Pan Brake (BB-9610H)
- Industrial hydraulic system delivers smooth, powerful, and repeatable bending.
- 8-foot working width handles oversized sheet metal fabrication with ease.
- Heavy-duty 5 HP motor provides dependable production performance.
- 22 hardened fingers offer exceptional flexibility for box and pan forming.
- Rigid welded construction maintains precision over years of industrial use.
- Ideal for fabrication shops, HVAC manufacturers, architectural metalworkers, and production facilities.
The Baileigh 96-Inch Hydraulic Box & Pan Brake (BB-9610H) delivers industrial hydraulic power, exceptional forming accuracy, and rugged construction in a professional-grade sheet metal brake. With its 8-foot working width, 10-gauge capacity, 5 HP hydraulic drive, and versatile segmented finger tooling, the BB-9610H is engineered to provide consistent, repeatable performance for demanding box, pan, channel, and custom fabrication applications.
