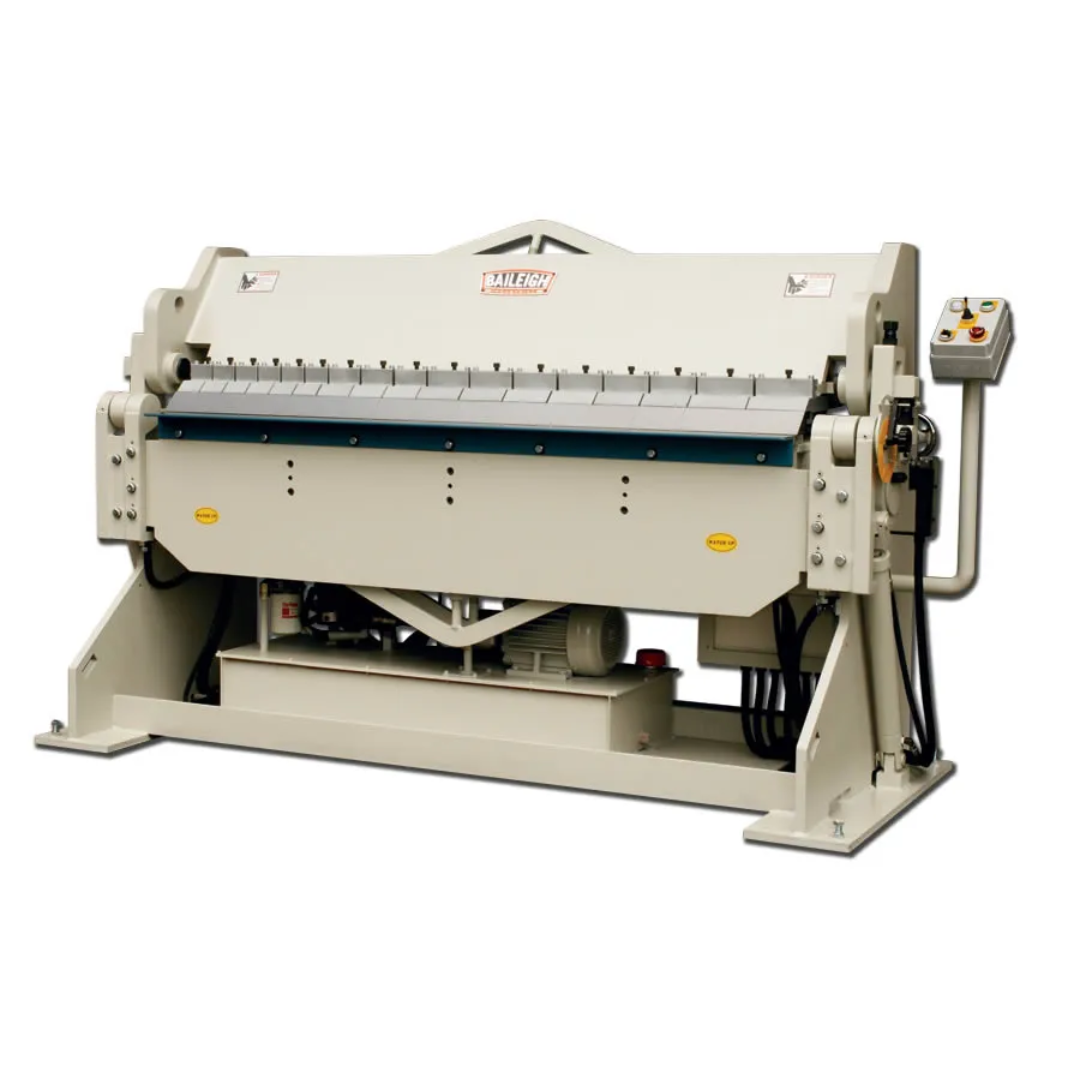

Baileigh 72-Inch Hydraulic Box & Pan Brake (BB-7210H) Applications
- General sheet metal fabrication.
- HVAC duct and ventilation component manufacturing.
- Architectural sheet metal fabrication.
- Electrical enclosures and equipment cabinets.
- Commercial roofing trim and flashing production.
- Boxes, pans, channels, trays, and custom fabricated components.
- Production environments requiring repeatable hydraulic forming.
Designed for fabricators who require heavy-duty hydraulic bending performance, accurate repeatability, and professional box and pan forming capabilities for medium to high-volume production.
Baileigh 72-Inch Hydraulic Box & Pan Brake (BB-7210H) Specifications
| Model | BB-7210H |
|---|---|
| Product Number | 1021002 |
| Operation | Hydraulic Box & Pan Brake |
| Working Width | 72 in. (6 ft.) |
| Material Capacity | 10 Gauge Mild Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Motor | 5 HP Hydraulic Motor |
| Power Requirement | 220V Three Phase |
| Finger Configuration | 17 Hardened Removable Fingers (3" to 6") |
| Hydraulic System | Hydraulic Clamping and Bending |
| Frame Construction | Fully Welded Heavy-Duty Steel Frame |
| Net Weight | 5,010 lb |
| Gross Weight | 5,010 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325489903 |
Baileigh 72-Inch Hydraulic Box & Pan Brake (BB-7210H) Performance & Construction
- Powerful 5 HP hydraulic drive system provides smooth, controlled clamping and bending force for demanding fabrication and production applications.
- 72-inch (6-foot) working width accommodates long sheet metal panels while maintaining excellent bending accuracy across the full length.
- 10-gauge mild steel capacity allows fabricators to produce heavy-duty components used in commercial, industrial, and architectural applications.
- Fully welded heavy-duty steel frame minimizes frame deflection during maximum-capacity bends, ensuring long-term accuracy and structural rigidity.
- Hydraulic clamping and bending system reduces manual effort while delivering consistent pressure for clean, repeatable bends throughout production runs.
- 17 hardened removable fingers provide flexibility for creating boxes, pans, trays, channels, and custom sheet metal shapes with depths up to 6 inches.
- Programmable bend auto-stop improves repeatability by allowing operators to consistently produce identical bend angles during repetitive manufacturing.
- Industrial hydraulic controls help increase productivity while reducing operator fatigue compared to manual forming equipment.
- Heavy-duty 5,010-pound construction provides exceptional stability, vibration resistance, and dependable long-term industrial performance.
Baileigh 72-Inch Hydraulic Box & Pan Brake (BB-7210H) Features & Benefits
- 72-inch (6-foot) hydraulic bending capacity for medium and large sheet metal fabrication.
- Handles up to 10-gauge mild steel.
- Powered by a 5 HP hydraulic system operating on 220V three-phase electrical service.
- Includes 17 hardened removable fingers for versatile box and pan forming.
- Maximum 6-inch box depth supports deep fabricated components.
- Hydraulic clamping and bending reduce operator effort while improving forming consistency.
- Programmable bend auto-stop enhances repeatability during production work.
- Heavy-duty welded steel frame delivers outstanding rigidity and long service life.
- Maximum bend angle of 135° supports a wide variety of fabrication projects.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 72-Inch Hydraulic Box & Pan Brake (BB-7210H)
- Industrial hydraulic system provides smooth, accurate, and repeatable bending performance.
- 6-foot working width accommodates large fabrication projects without sacrificing precision.
- Heavy-duty 5 HP motor delivers dependable forming power for demanding production environments.
- 17 removable hardened fingers offer exceptional versatility for box and pan fabrication.
- Fully welded steel construction ensures long-lasting durability and accuracy.
- Ideal for fabrication shops, HVAC manufacturers, industrial maintenance departments, and architectural metalworking professionals.
The Baileigh 72-Inch Hydraulic Box & Pan Brake (BB-7210H) combines industrial hydraulic power, rugged welded construction, precision bending control, and versatile removable finger tooling into a reliable sheet metal forming solution. Designed for professional fabrication environments, it delivers the accuracy, repeatability, and durability required for producing boxes, pans, channels, ductwork, and custom fabricated components with confidence.
