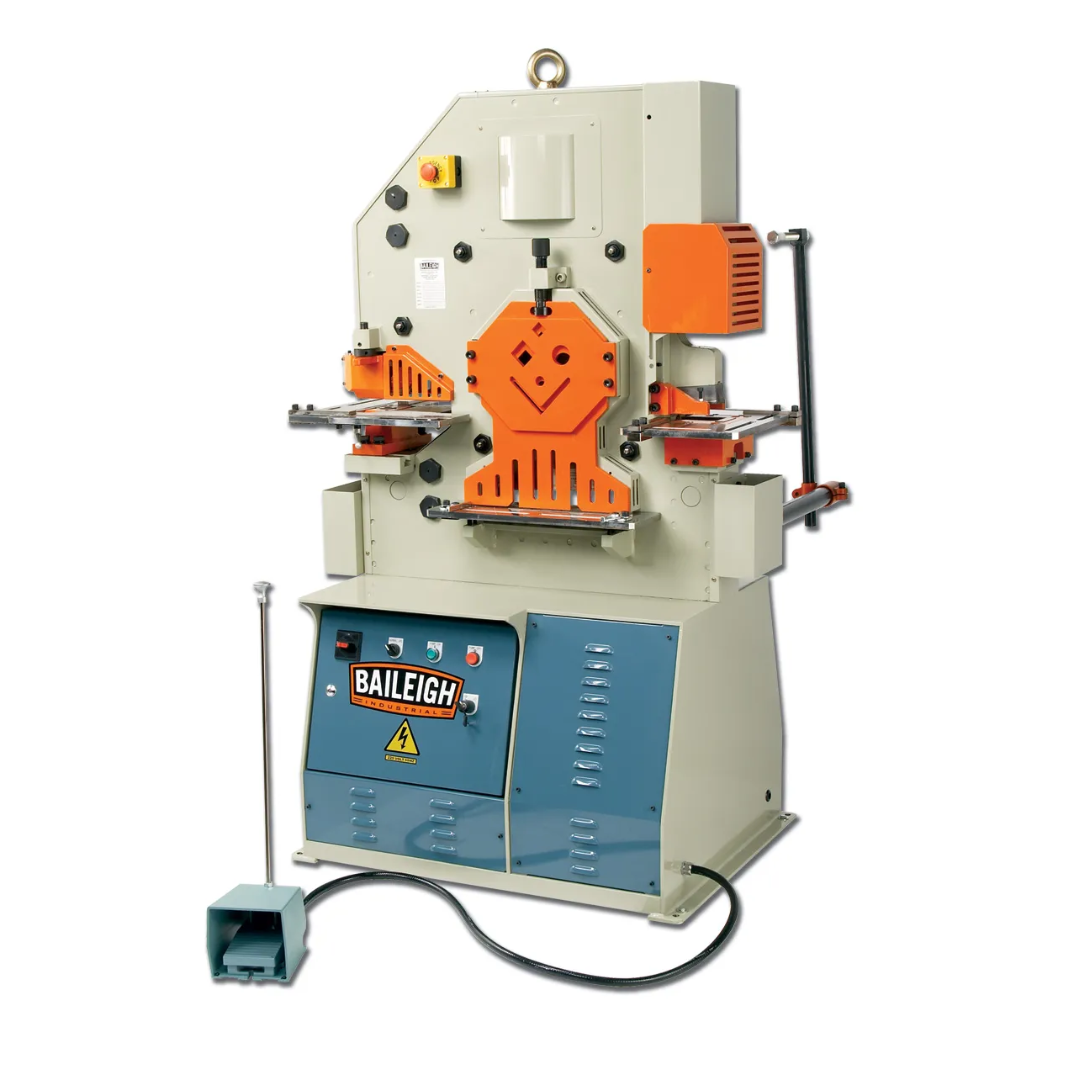

Baileigh 62-Ton 5-Station Ironworker SW-623 1007812 Applications
- Structural steel fabrication and manufacturing.
- Punching holes in plate, flat bar, and structural components.
- Flat bar, angle iron, and bar stock shearing.
- Rectangle notching for fabrication and coping operations.
- General welding and fabrication shops.
- Maintenance departments and industrial repair facilities.
- Production environments requiring fast, repeatable fabrication processes.
Designed for fabrication professionals who need multiple hydraulic metalworking functions in one durable machine to improve workflow, accuracy, and shop productivity.
Baileigh 62-Ton 5-Station Ironworker SW-623 1007812 Specifications
| Model | SW-623 |
|---|---|
| Product Number | 1007812 |
| Machine Type | Hydraulic 5-Station Ironworker |
| Hydraulic Capacity | 62 Tons |
| Motor Power | 5 HP |
| Input Power | 220V Three Phase |
| Integrated Workstations | Punching, Flat Bar Shearing, Angle Shearing, Bar Shearing, and Rectangle Notching |
| Punch Capacity | 1.125 in. × 0.625 in. |

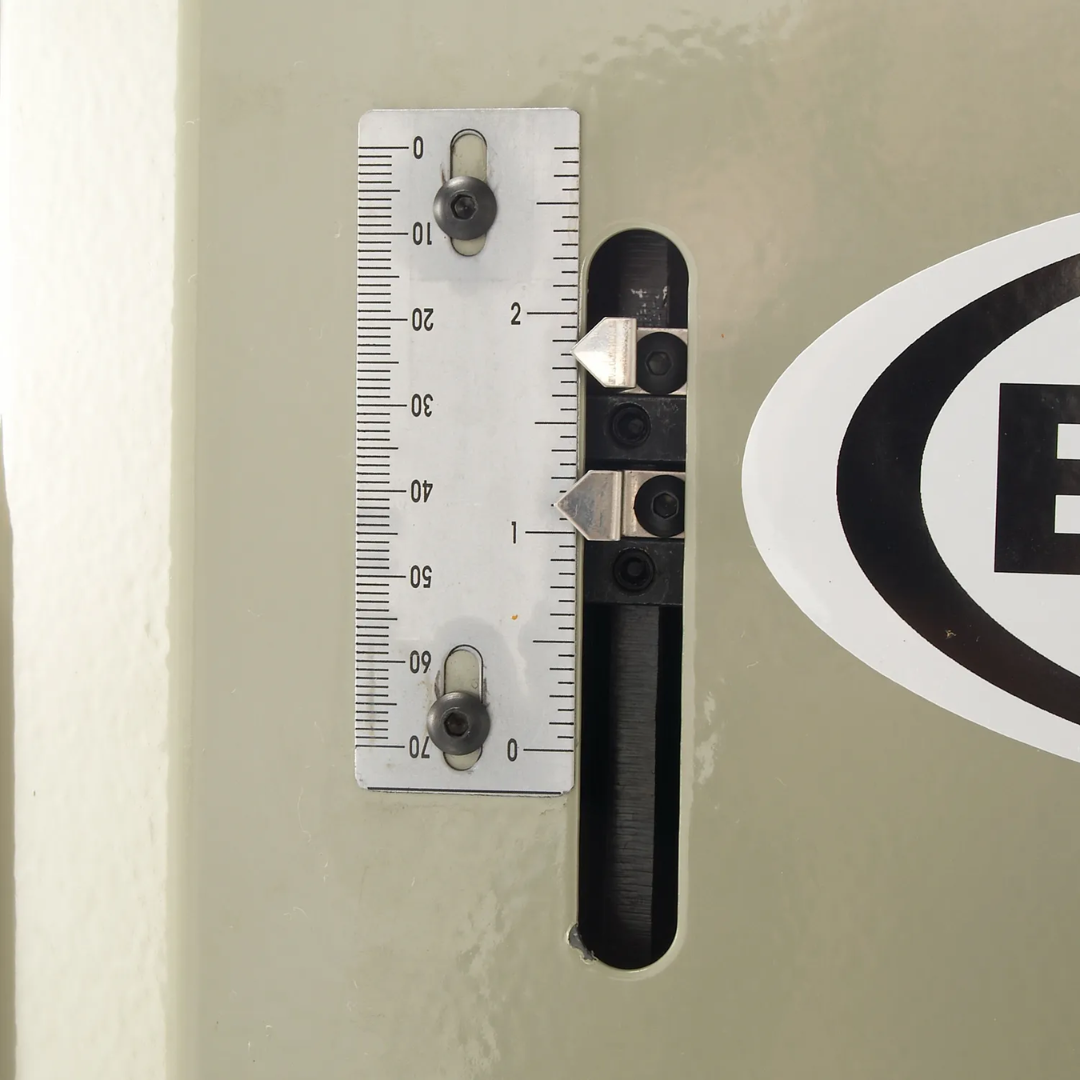

| Stroke Length | 2 in. |
| Throat Depth | 8 in. |
| Angle Iron Capacity | 3.93 in. × 3.93 in. × 5/16 in. |
| Angle Shear Work Height | 40 in. |
| Flat Bar Shear Work Height | 31.5 in. |
| Tooling Included | 7 Punch and Die Sets |
| Construction | Heavy-Duty Welded Steel Frame |
| Controls | Foot Pedal Operation |
| Net Weight | 2,465 lbs. |
| Gross Weight | 2,465 lbs. |
| Warranty | 1 Year |
| UPC | 731325417531 |
Baileigh 62-Ton 5-Station Ironworker SW-623 1007812 Performance & Construction
- 62 tons of hydraulic force delivers reliable industrial power for punching, shearing, and notching a wide variety of steel materials.
- Five fully integrated workstations combine punching, flat bar shearing, angle shearing, bar shearing, and rectangle notching into one highly efficient fabrication system.
- Powerful 5 HP industrial motor provides dependable hydraulic performance while operating from 220V three-phase electrical service.
- Vertical hydraulic ram movement produces cleaner cuts, improved accuracy, and reduced tooling wear compared to traditional pivot-style ironworkers.

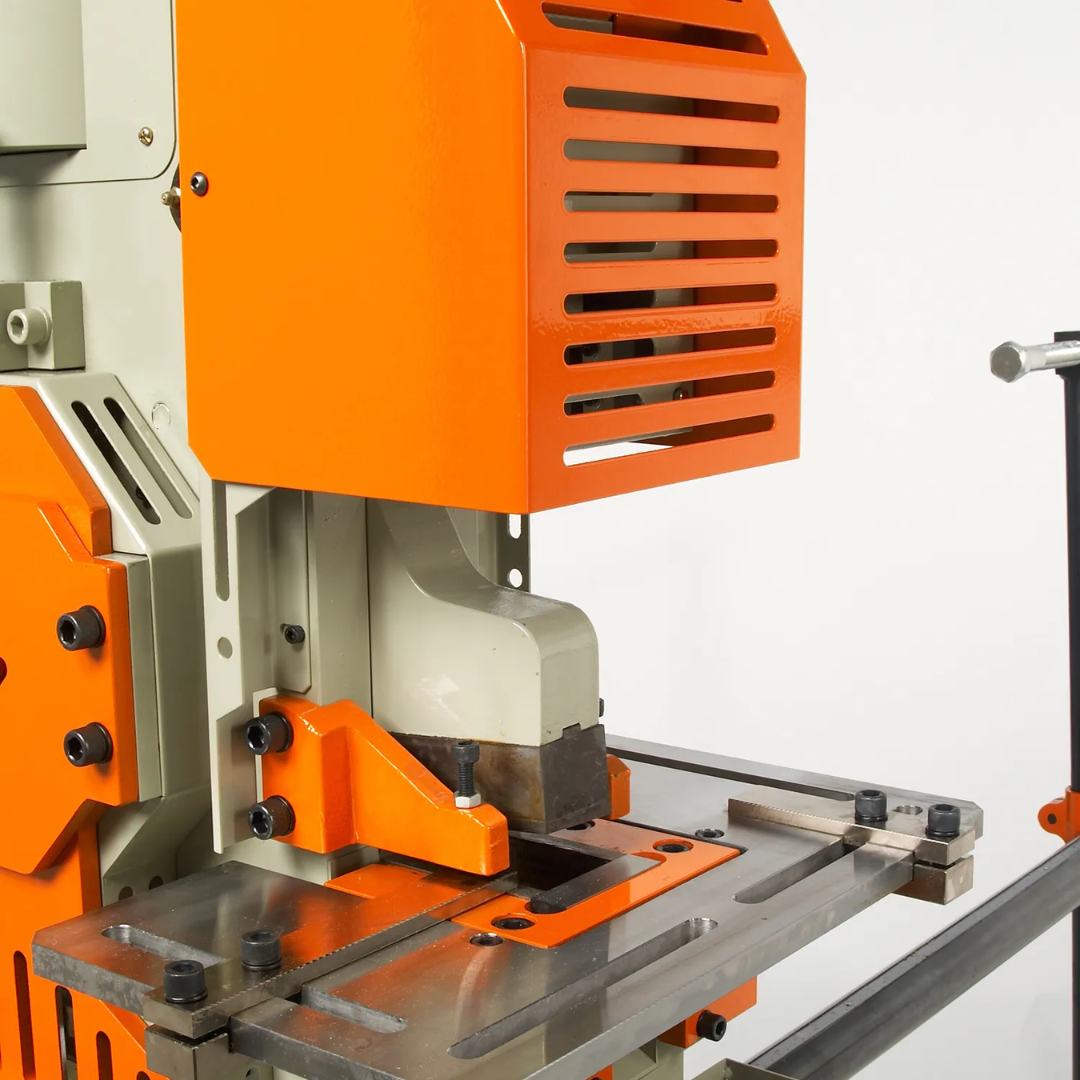

- Maximum punch capacity of 1.125 in. × 0.625 in. supports a wide range of structural and fabrication applications.

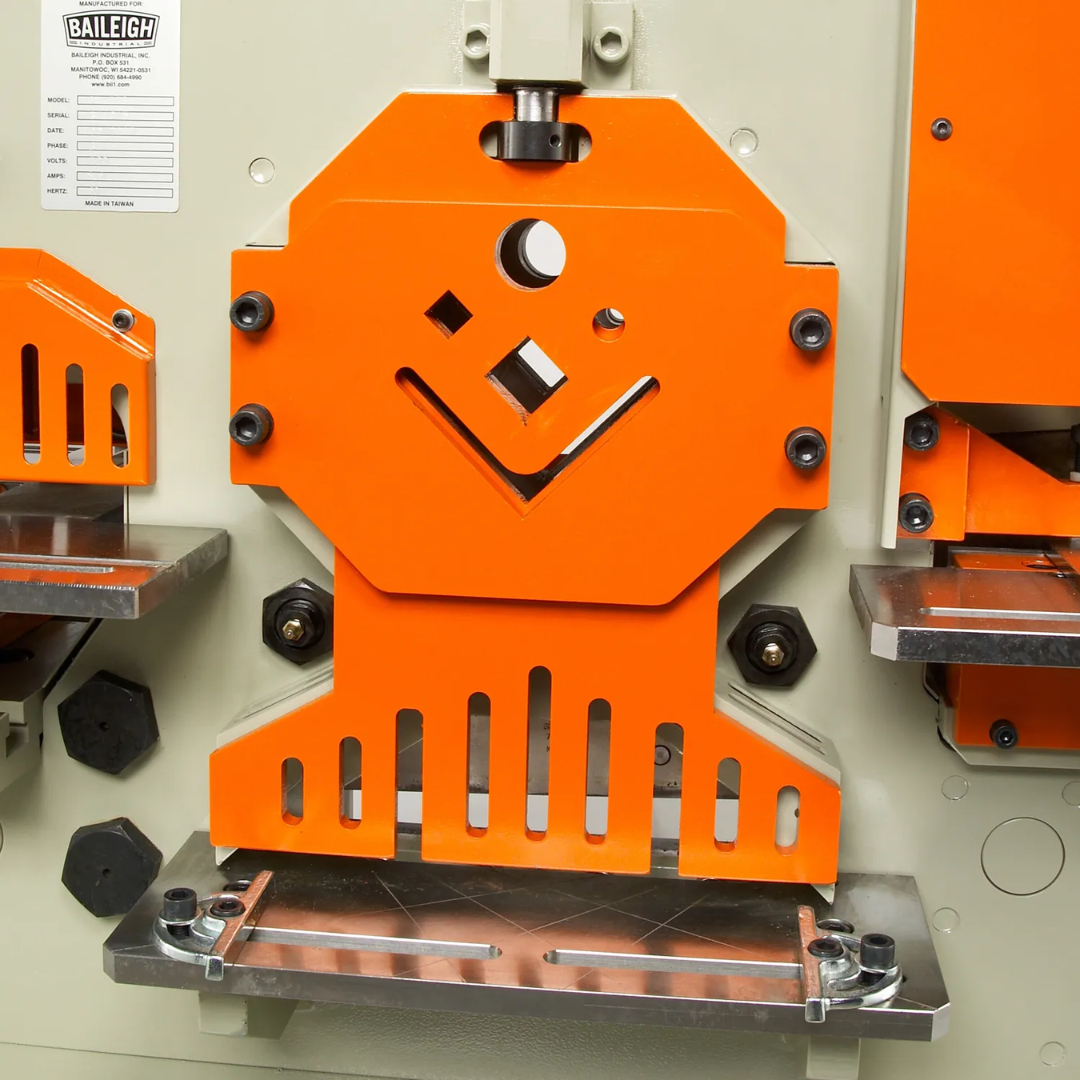

- Heavy-duty flat bar shear quickly processes steel flat stock with smooth, accurate cutting performance.
- Dedicated angle shear station cleanly cuts angle iron up to 3.93 in. × 3.93 in. × 5/16 in. for structural fabrication.

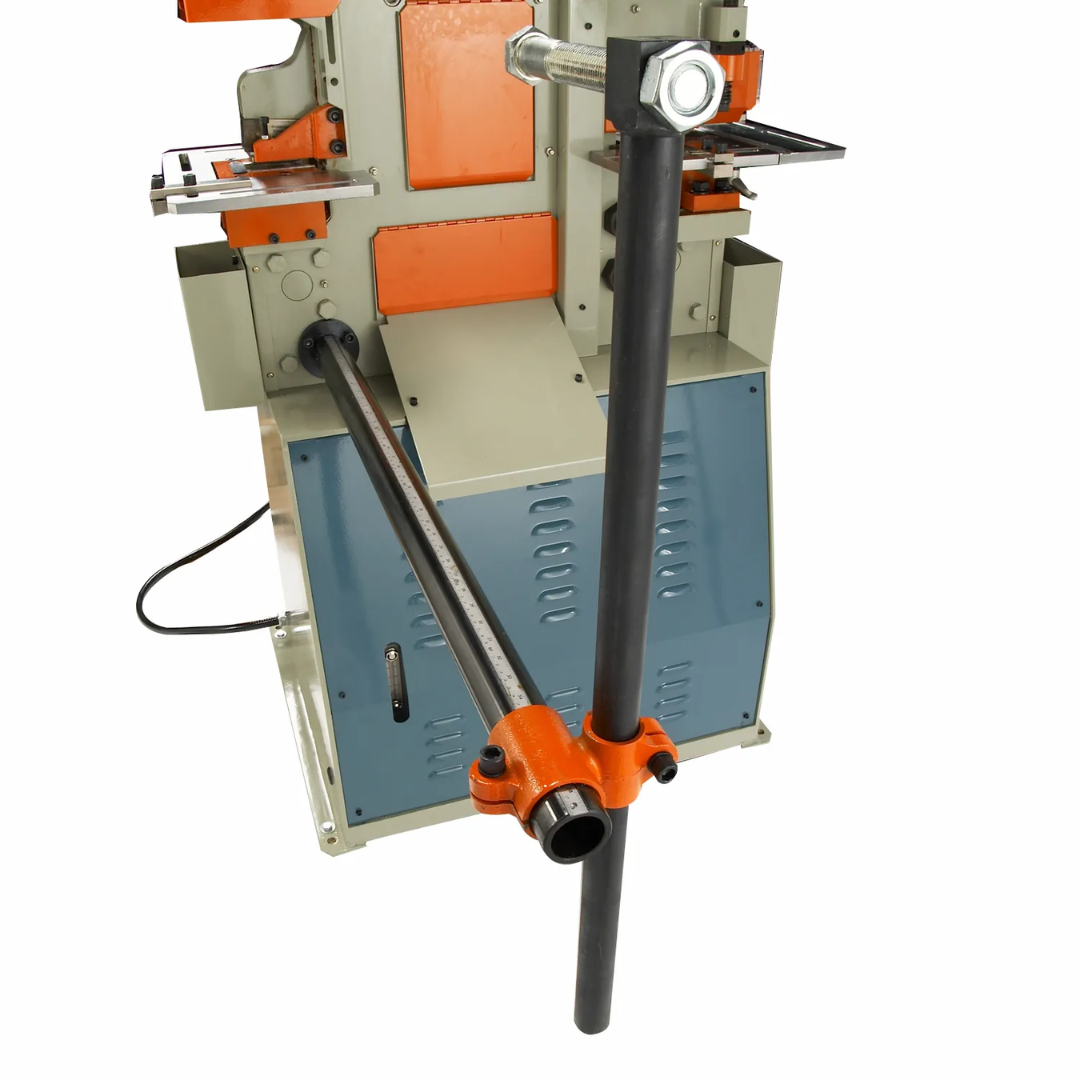

- Integrated bar cutting station efficiently cuts round and square bar stock for production and maintenance operations.
- Rectangle notching station simplifies coping, corner preparation, and sheet metal fabrication tasks.
- Seven included punch and die sets expand machine versatility while reducing the need for additional tooling purchases.
- Quick-change tooling system minimizes setup time and improves workflow when switching between fabrication operations.

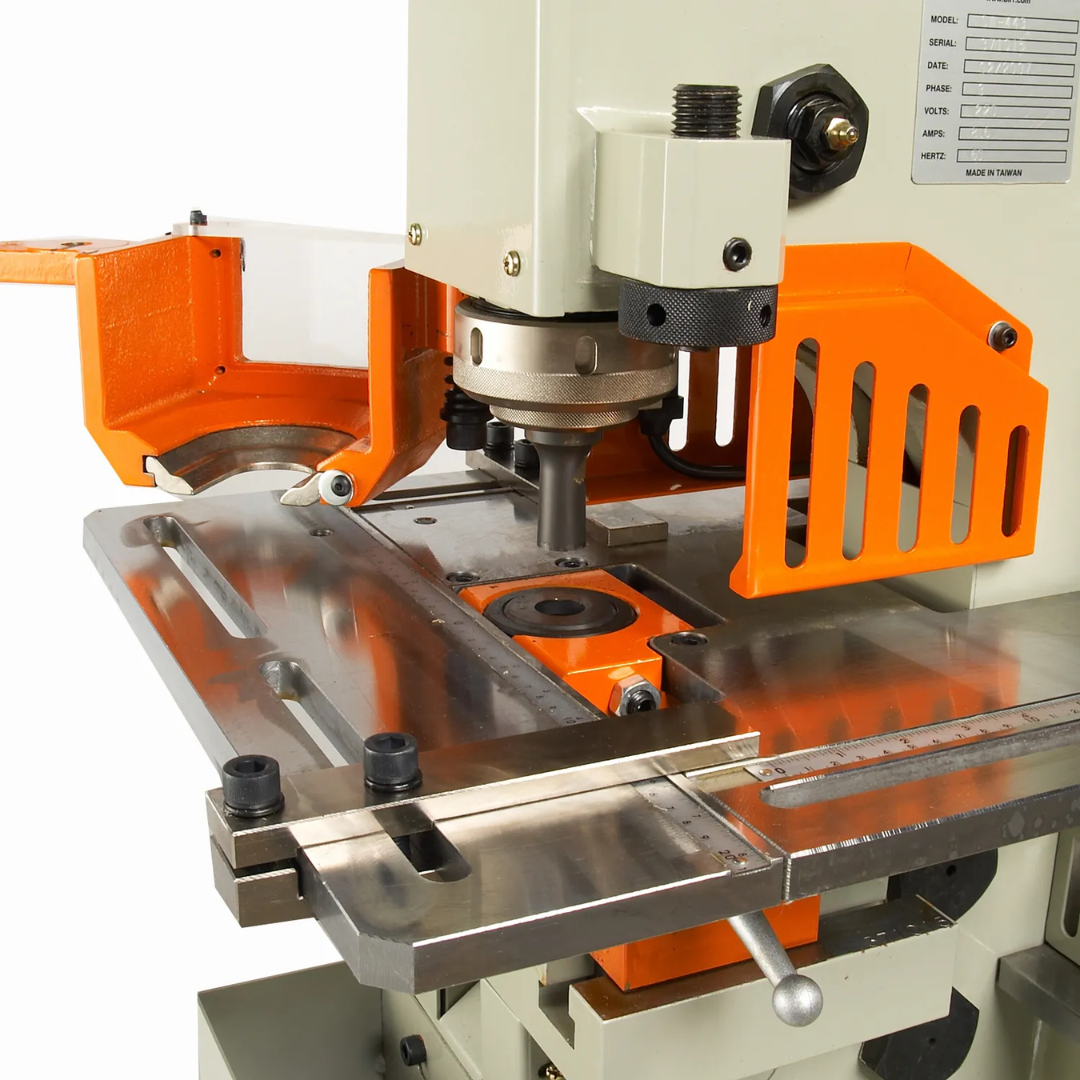

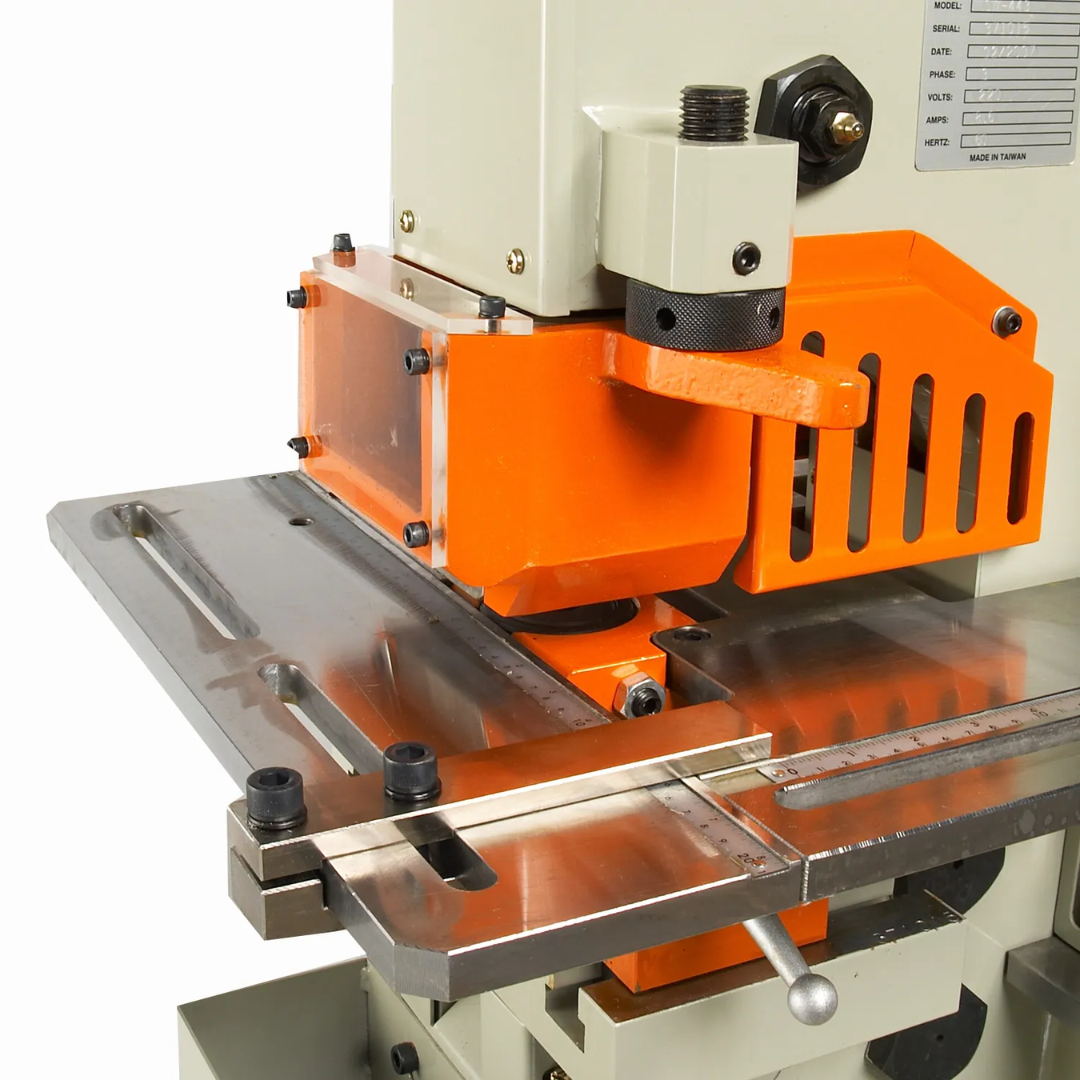

- Built-in material guides enhance positioning accuracy and improve repeatability during production runs.
- Hands-free foot pedal control improves operator safety and productivity while allowing better material handling.

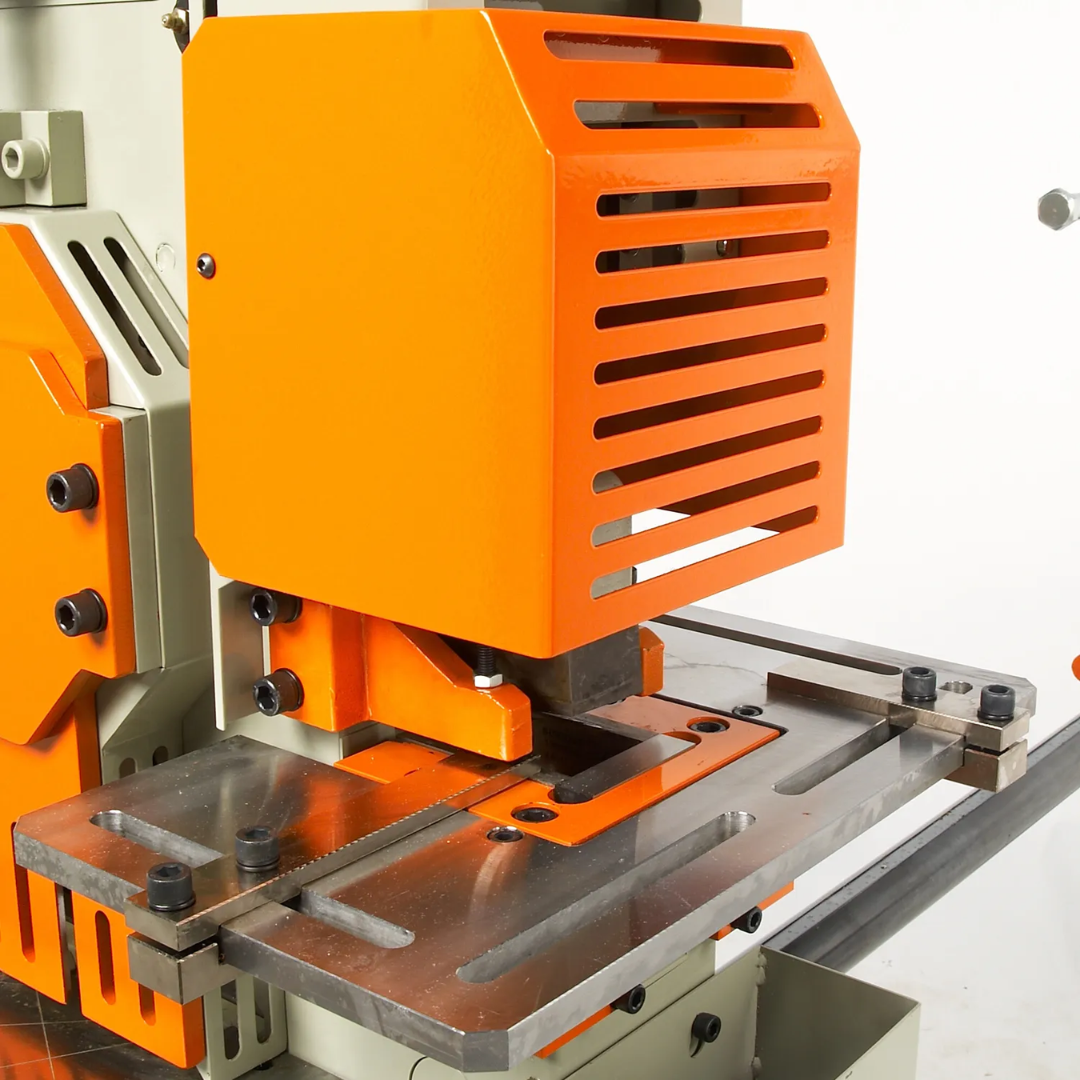

- Heavy-duty welded steel construction minimizes vibration and provides exceptional durability for continuous industrial use.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh 62-Ton 5-Station Ironworker SW-623 1007812
- 62 tons of hydraulic force for demanding fabrication applications.
- Five integrated workstations maximize productivity while saving valuable floor space.
- Includes seven punch and die sets for greater fabrication flexibility.
- Heavy-duty welded construction ensures years of reliable industrial performance.
- Quick-change tooling and material guides improve efficiency and repeatability.
- Foot pedal operation enhances operator control and workplace safety.
- Ideal for fabrication shops, manufacturers, maintenance departments, and structural steel professionals.
The Baileigh 62-Ton 5-Station Ironworker SW-623 1007812 delivers industrial-grade hydraulic power, exceptional versatility, and dependable durability in one compact fabrication system. Designed for professionals who demand efficient punching, shearing, and notching performance, it provides the precision, productivity, and reliability that have made Baileigh a trusted name in metal fabrication equipment.
