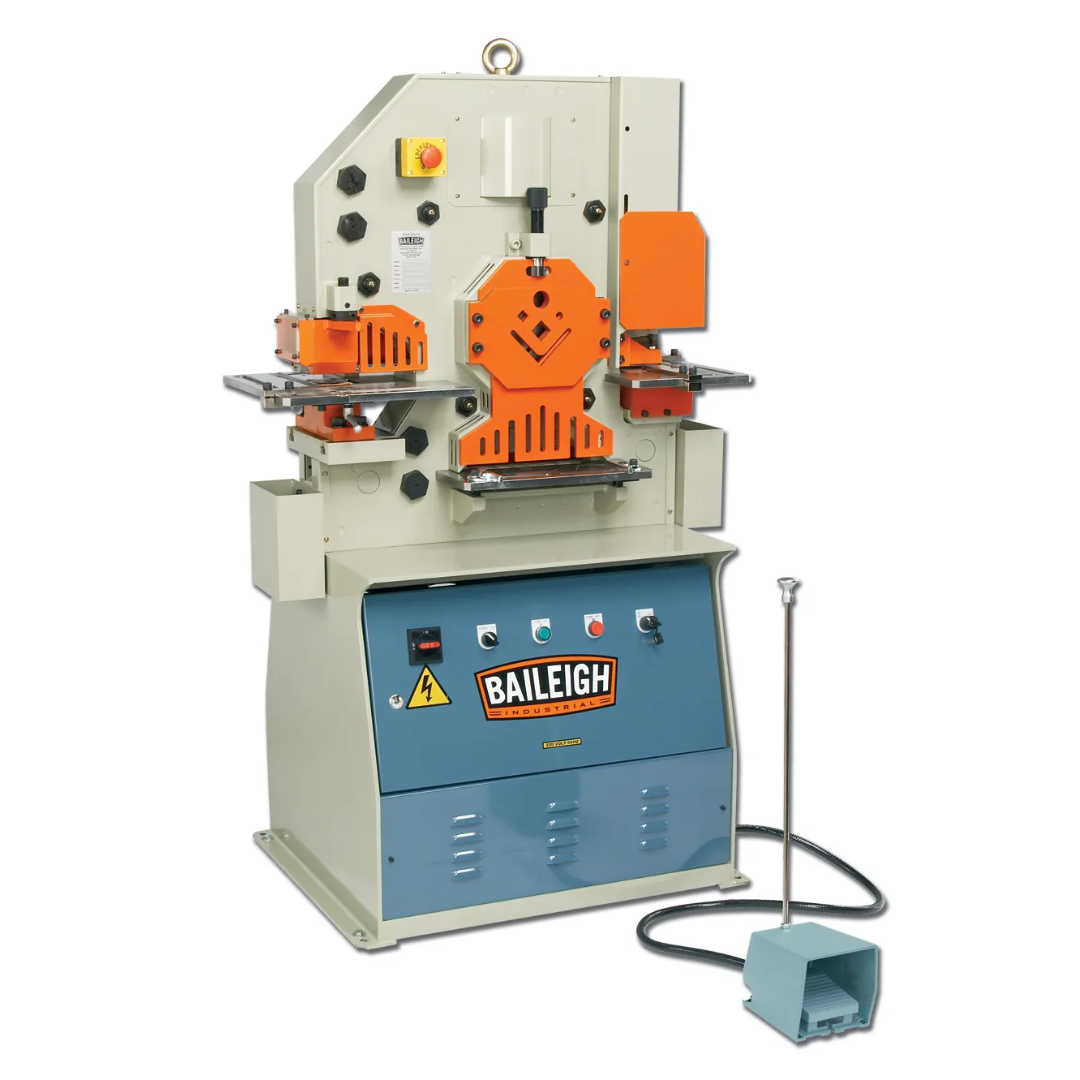

Baileigh 50-Ton 5-Station Ironworker, 3 HP, 220V 3Ph (SW-503) 1007792 Applications
- Structural steel fabrication and general metalworking.
- Industrial maintenance and repair departments.
- Fabrication of brackets, gussets, base plates, and structural components.
- Manufacturing facilities requiring multiple metalworking operations from one machine.
- Agricultural equipment fabrication and repair.
- Machine shops and small production environments.
- Custom fabrication requiring punching, shearing, cutting, and notching operations.
Ideal for fabrication shops seeking one compact hydraulic machine capable of performing multiple metalworking operations with professional accuracy and repeatable production results.
Baileigh 50-Ton 5-Station Ironworker, 3 HP, 220V 3Ph (SW-503) 1007792 Specifications
| Model | SW-503 |
|---|---|
| Product Number | 1007792 |
| Machine Type | Hydraulic 5-Station Ironworker |
| Hydraulic Capacity | 50 Tons |
| Motor | 3 HP |
| Electrical Requirements | 220V, 3-Phase |
| Punch Capacity | 0.875 in. × 0.625 in. |
| Stroke Length | 1.125 in. |
| Throat Depth | 6 in. |
| Angle Iron Capacity | 3 in. × 3 in. × 0.25 in. |
| Angle Shear Work Height | 40 in. |
| Flat Bar Shear Work Height | 32.5 in. |
| Included Tooling | 7 Sets of Punches and Dies |
| Net Weight | 1,860 lbs. |
| Gross Weight | 1,860 lbs. |
| Warranty | 1 Year |
| UPC | 731325417357 |
| California Proposition 65 | Cancer and Reproductive Harm |
Baileigh 50-Ton 5-Station Ironworker, 3 HP, 220V 3Ph (SW-503) 1007792 Performance & Construction

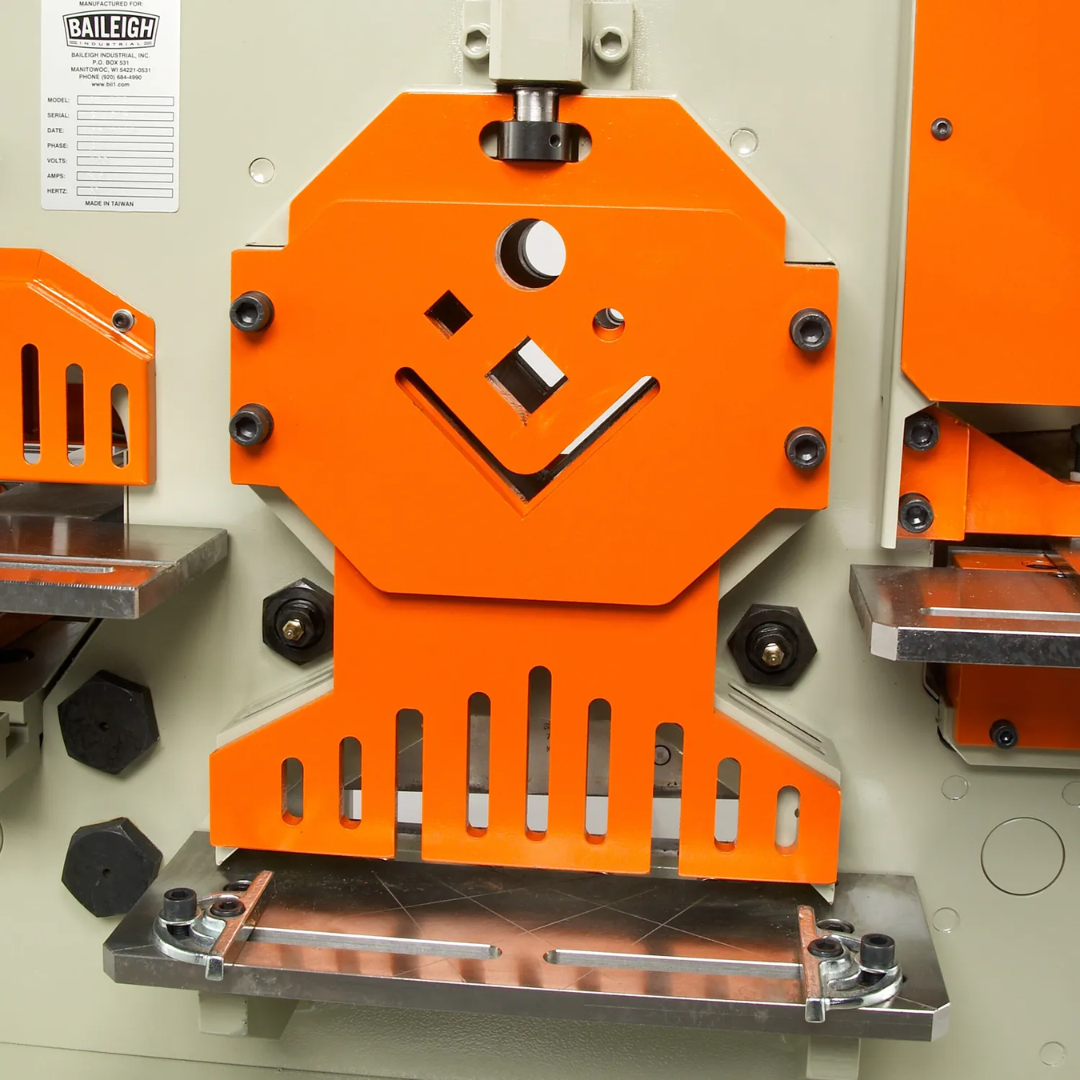

- Five integrated workstations combine punching, flat bar shearing, angle shearing, bar cutting, and rectangle notching into one efficient fabrication machine.
- 50 tons of hydraulic force provide the power needed for demanding structural steel and production fabrication applications.

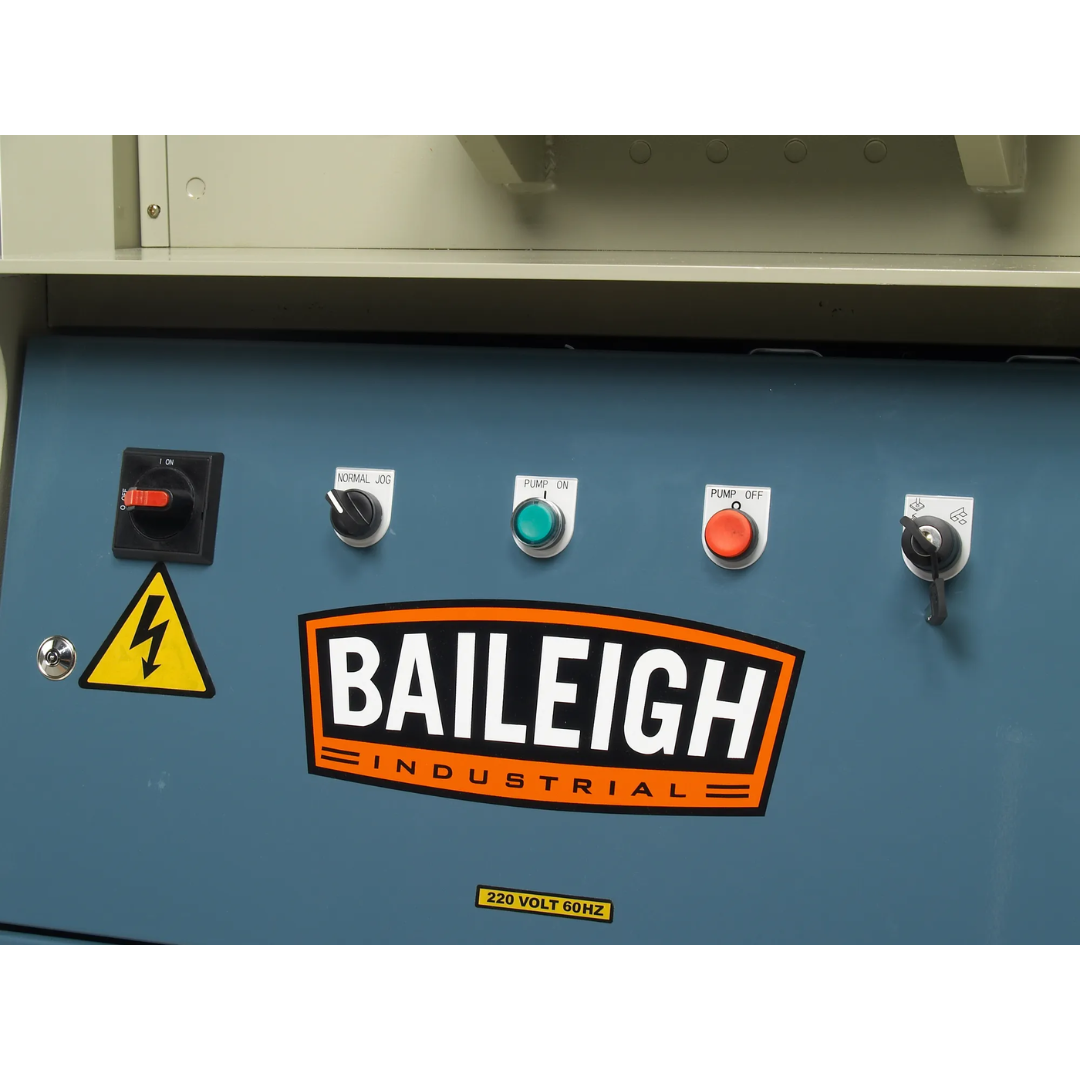

- 3 HP industrial motor running on 220V three-phase power delivers dependable hydraulic performance and smooth operation throughout the workday.

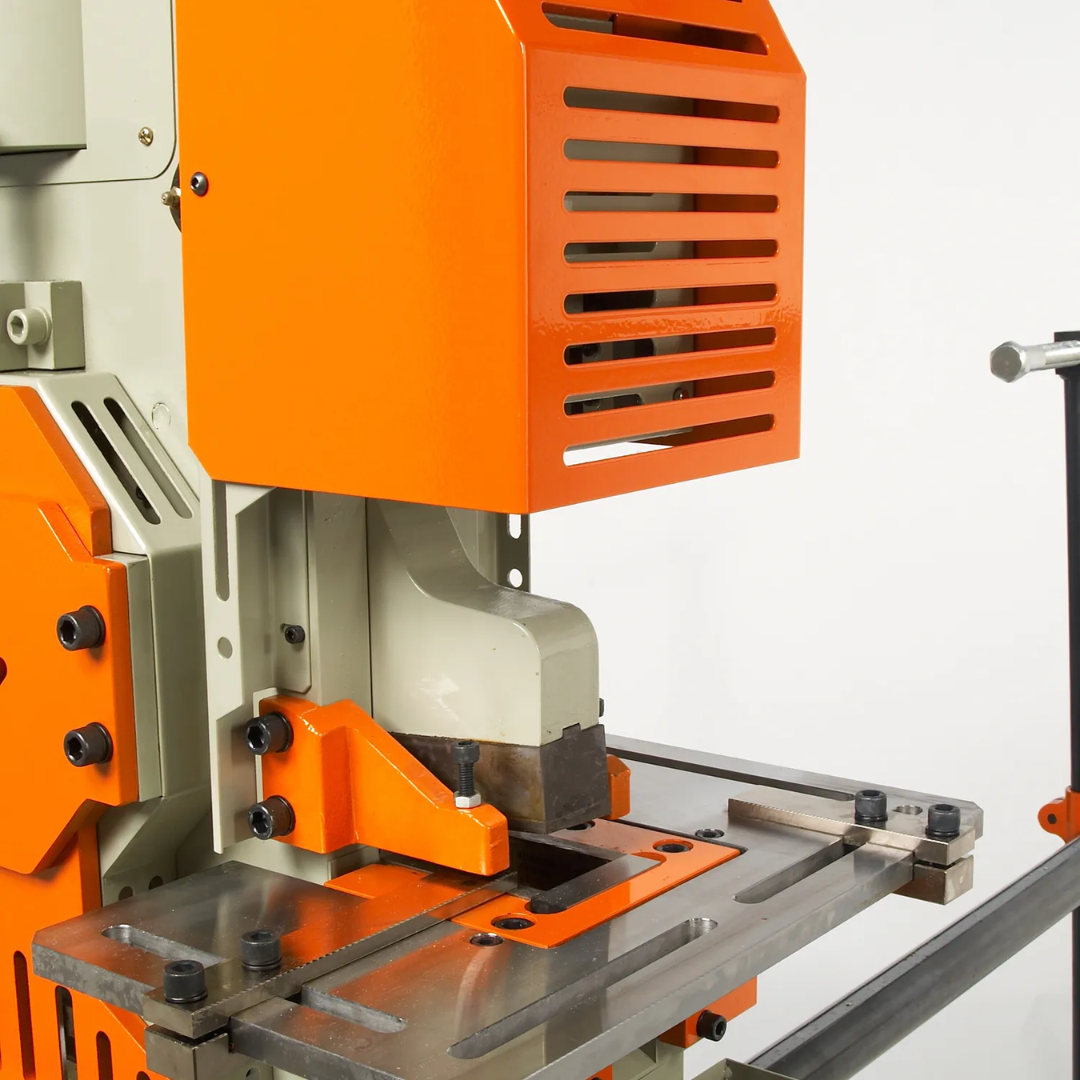

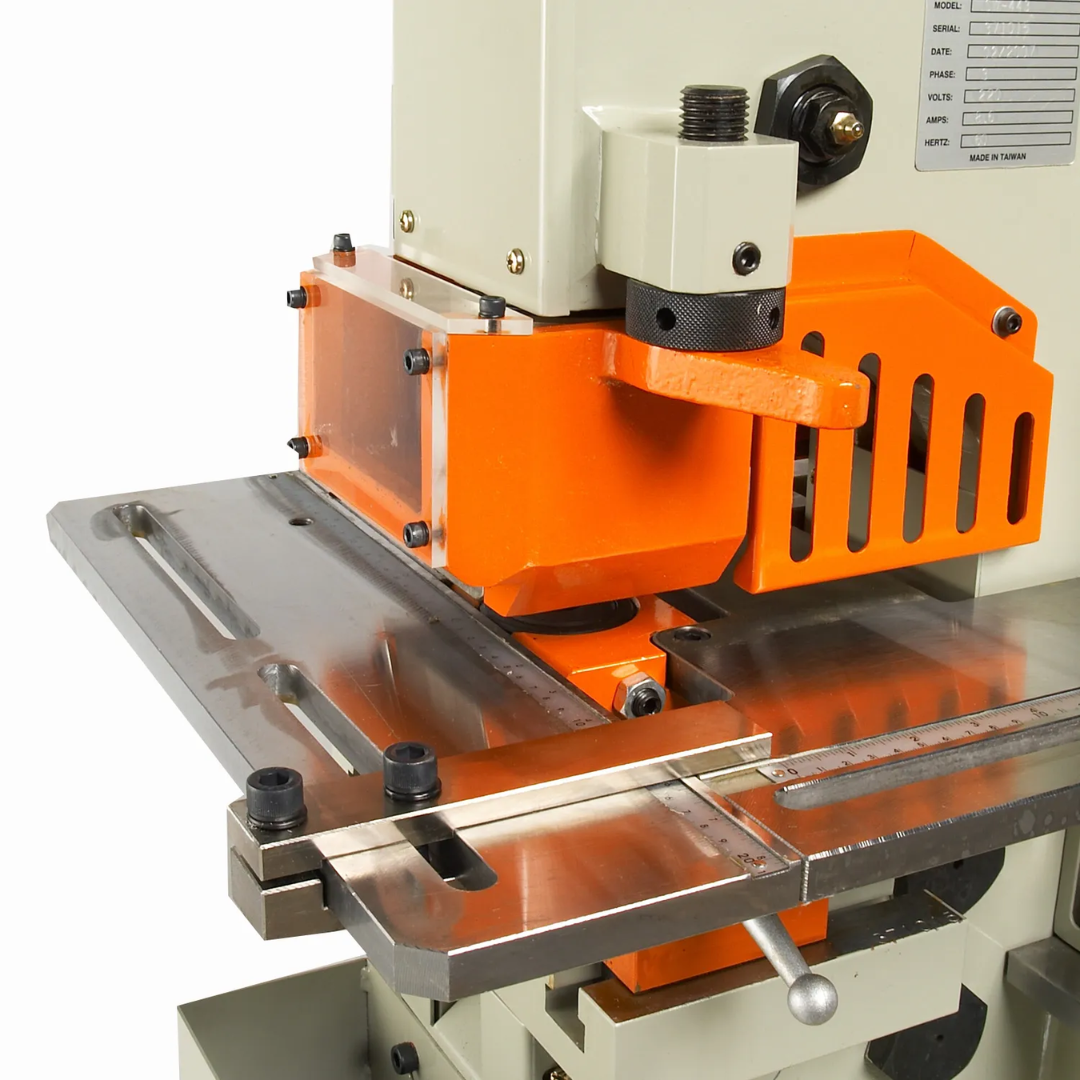

- Punching station accepts material up to 0.875 in. × 0.625 in. while providing accurate, repeatable hole production.
- 6-inch throat depth allows larger workpieces to be positioned with greater flexibility during punching operations.

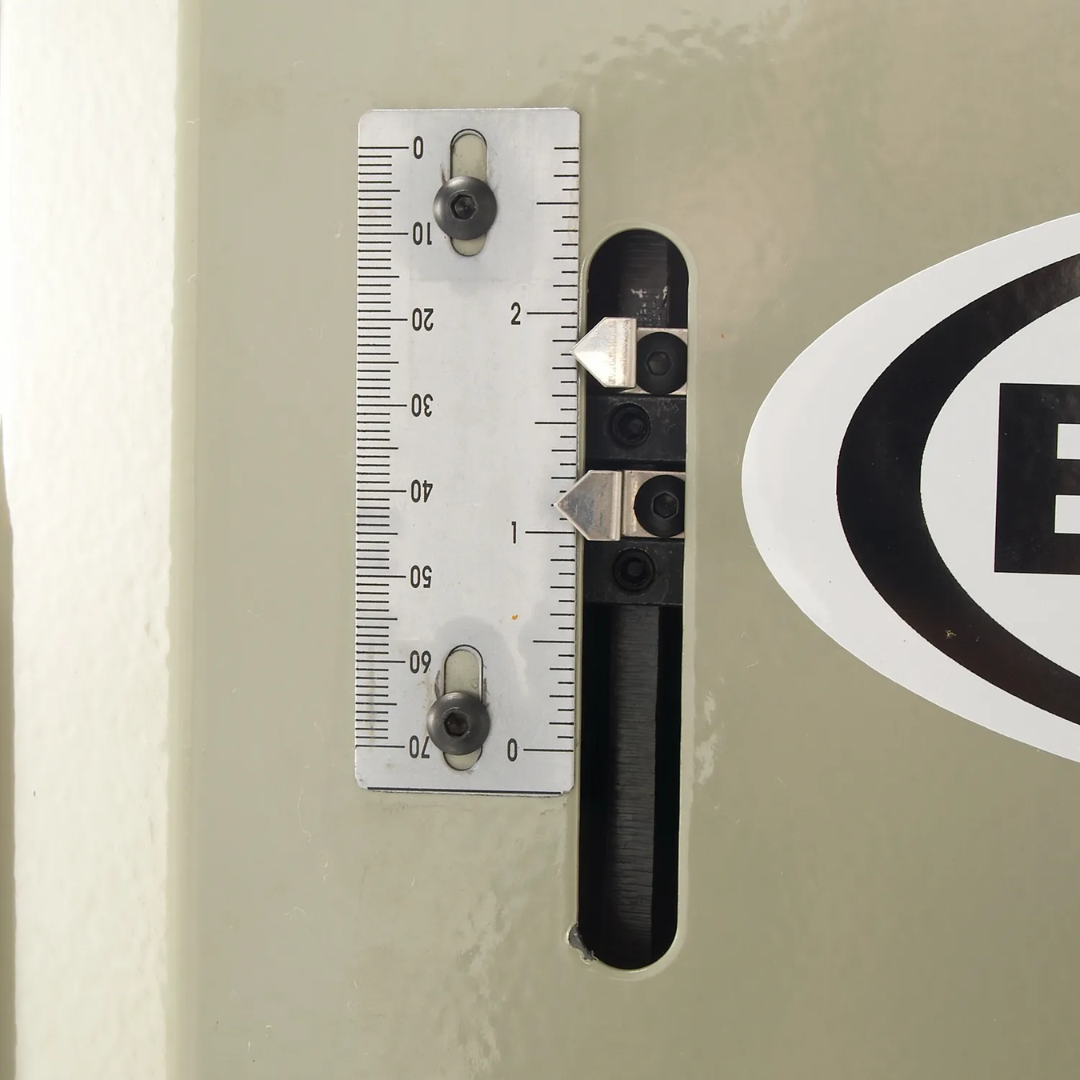

- Adjustable 1.125-inch stroke length improves cycle efficiency while allowing operators to optimize machine travel for different applications.

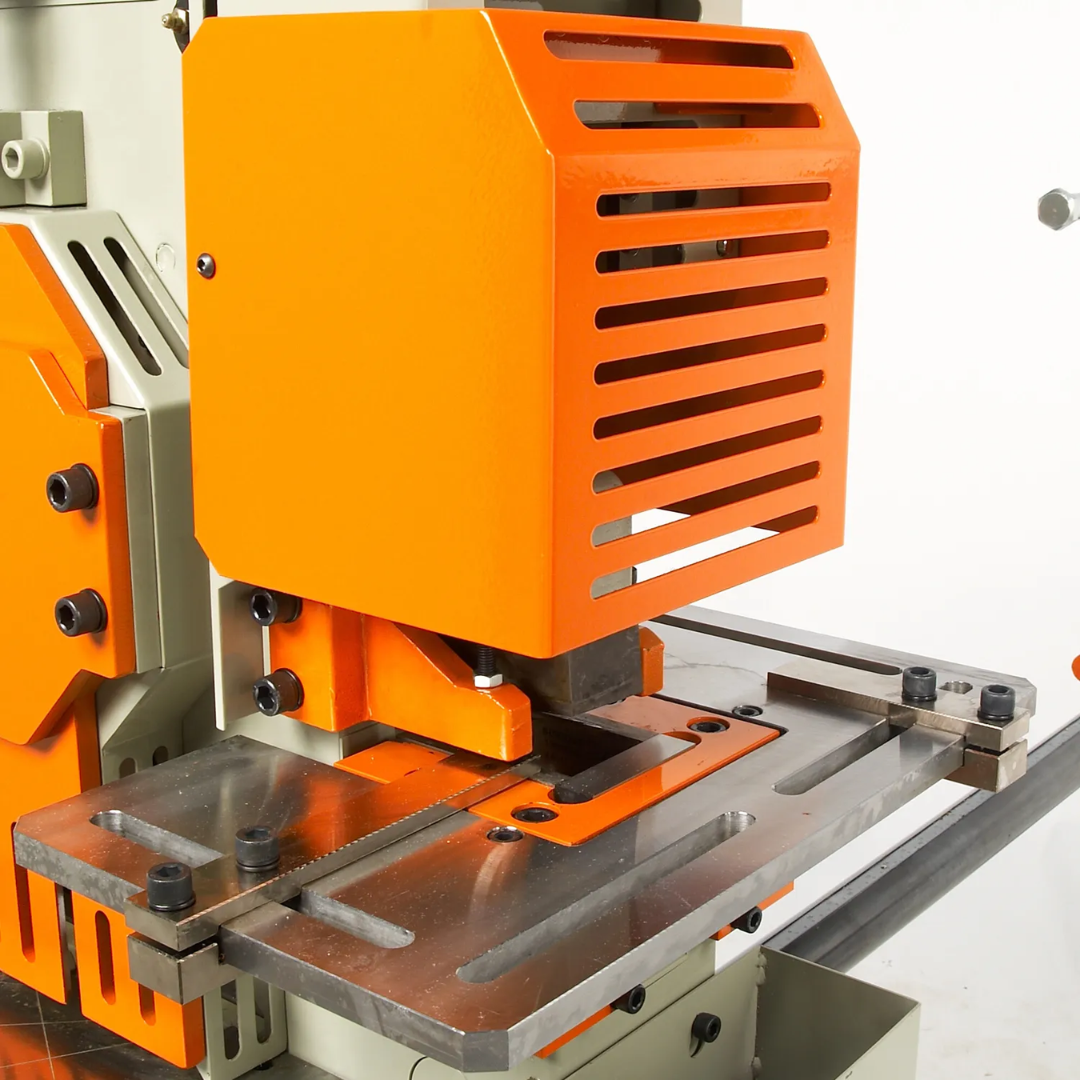

- Dedicated flat bar and angle shearing stations provide clean, accurate cuts while reducing secondary finishing work.

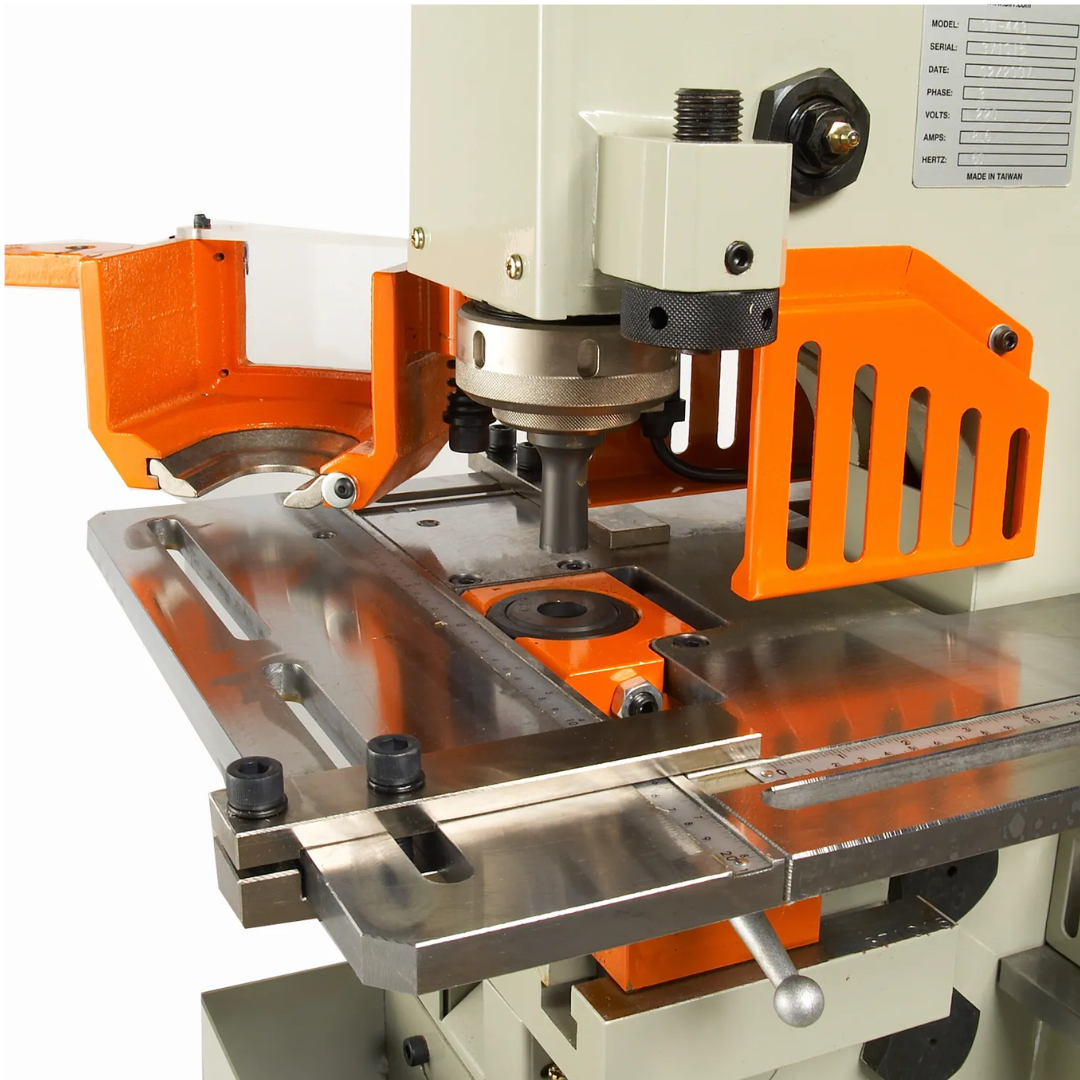

- Adjustable backgauges simplify setup and deliver highly repeatable dimensions for production fabrication runs.
- Foot pedal operation leaves both hands free for improved material control, safer handling, and increased productivity.
- Heavy welded steel frame minimizes deflection under load to maintain long-term accuracy and durability in demanding industrial environments.
- Seven included punch and die sets provide excellent versatility for a wide variety of punching applications immediately after installation.
- Professional support is backed by Baileigh's 1-year parts warranty and lifetime technical support.
Why Choose the Baileigh 50-Ton 5-Station Ironworker, 3 HP, 220V 3Ph (SW-503) 1007792
- Combines five essential fabrication stations into one compact hydraulic machine.
- Industrial 50-ton hydraulic capacity handles demanding fabrication and structural steel work.
- Powerful 3 HP motor with reliable 220V three-phase electrical operation.
- Includes seven punch and die sets for immediate production capability.
- Adjustable backgauges improve repeatability and reduce production setup time.
- Foot pedal control increases operator safety while improving material handling.
- Heavy-duty welded construction provides long-term durability and consistent accuracy.
- Supported by Baileigh's 1-year warranty and lifetime technical support.
The Baileigh 50-Ton 5-Station Ironworker, 3 HP, 220V 3Ph (SW-503) 1007792 is a complete hydraulic fabrication solution that combines punching, shearing, cutting, and notching into one rugged industrial machine, delivering exceptional versatility, precision, and productivity for professional fabrication shops and manufacturing facilities.
