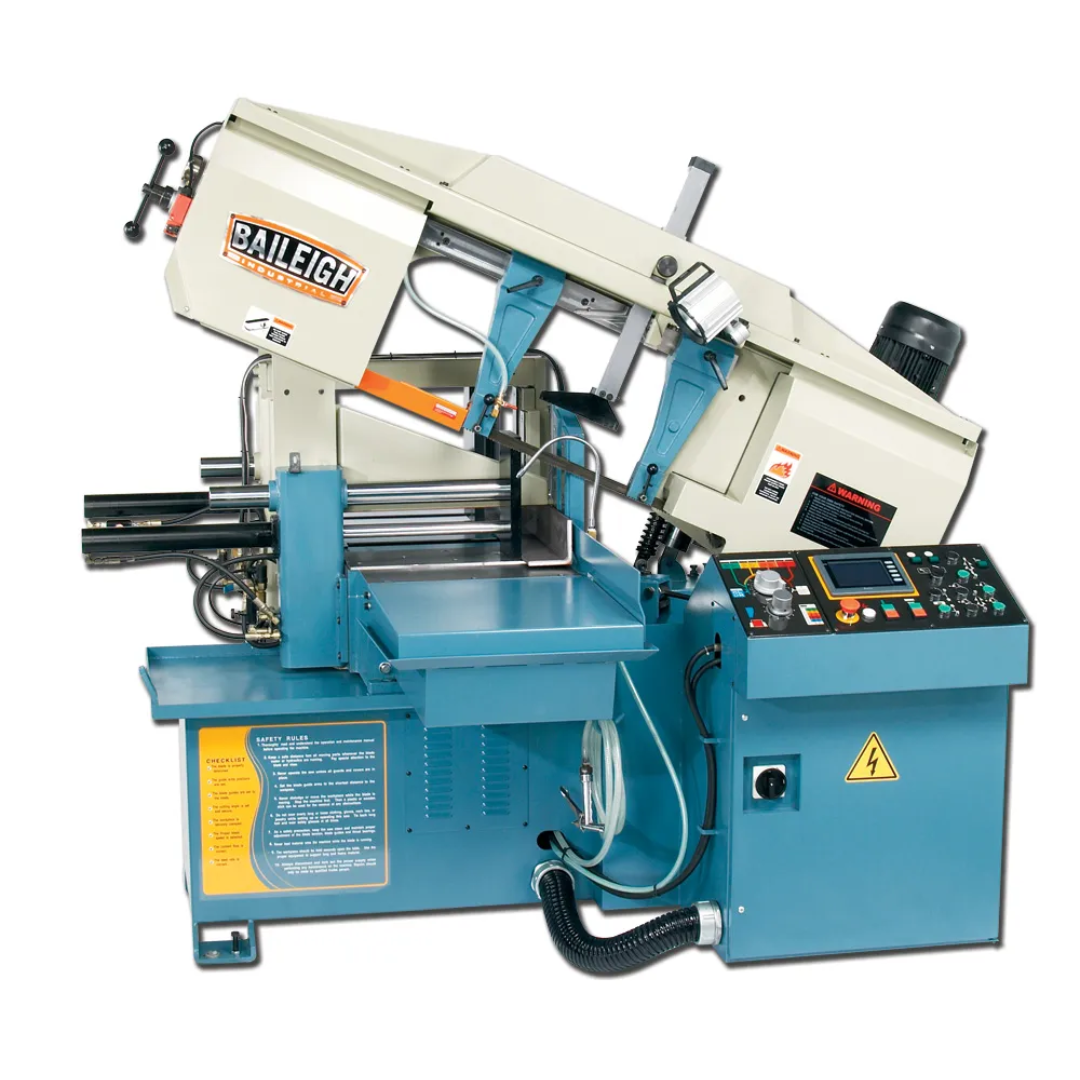

Baileigh 13-Inch Automatic Horizontal Bandsaw BS-20A 1001260 Applications
- Structural steel fabrication and production cutting.
- Industrial manufacturing and machine shops.
- Metal service centers processing bar stock and tubing.
- Maintenance and repair facilities.
- Fabrication of round, square, rectangular, and solid steel stock.
- Continuous production environments requiring automated cutting cycles.
- Precision miter cutting for frames, structural components, and fabricated assemblies.
Built for shops that demand dependable automated production, repeatable accuracy, and reduced labor while cutting a wide variety of metal profiles.
Baileigh 13-Inch Automatic Horizontal Bandsaw BS-20A 1001260 Specifications
| Model | BS-20A |
|---|---|
| Product Number | 1001260 |
| Machine Type | Automatic Horizontal Bandsaw |
| Motor Power | 5 HP |
| Input Power | 220V Three Phase |
| Round Cutting Capacity (90°) | 13 in. |
| Rectangular Capacity (90°) | 13 in. × 18 in. |
| Blade Width | 1 in. |
| Blade Speed | 89–256 SFPM (Variable Speed) |
| Blade Guide | Carbide Roller Guides |
| Miter Range | 0°–45° Swivel Head |
| Material Feed | Hydraulic Automatic Feed |
| Material Clamping | Hydraulic |
| Blade Descent | Pressure Assist Hydraulic |
| Return | Hydraulic |
| Chip Removal | Hydraulic Auger |
| Net Weight | 3,500 lbs. |
| Gross Weight | 3,500 lbs. |
| Warranty | 1 Year |
| UPC | 731325396416 |
Baileigh 13-Inch Automatic Horizontal Bandsaw BS-20A 1001260 Performance & Construction
- Powerful 5 HP industrial motor delivers dependable cutting performance for demanding production environments while operating on 220V three-phase power.
- Fully automatic operation automates clamping, feeding, cutting, and return cycles to maximize productivity and minimize operator involvement.
- 13-inch round cutting capacity easily handles large diameter pipe, tubing, and solid stock for industrial fabrication applications.
- 13 in. × 18 in. rectangular capacity accommodates structural tubing, channels, and heavy rectangular material.
- Variable blade speed from 89 to 256 SFPM allows operators to optimize cutting performance for mild steel, stainless steel, alloy steel, aluminum, and other materials.
- Precision carbide roller blade guides provide excellent blade stability for straighter cuts, longer blade life, and improved cutting accuracy.
- Hydraulic pressure-assisted blade descent maintains controlled feed rates for smoother cuts and reduced blade wear.
- Hydraulic clamping and gantry feed system securely positions material while automatically advancing stock during production runs.
- Swivel head miter adjustment enables accurate angled cuts from 0° to 45° without repositioning the workpiece.
- Integrated flood coolant system keeps the blade cool, improves cut quality, and extends blade service life during continuous operation.
- Hydraulic chip auger efficiently removes chips from the cutting area to maintain cleaner operation and reduce maintenance downtime.
- Heavy-duty welded steel construction minimizes vibration while providing long-term durability and exceptional cutting stability.
- Backed by Baileigh with a 1-year parts warranty and lifetime technical support for dependable long-term ownership.
Why Choose the Baileigh 13-Inch Automatic Horizontal Bandsaw BS-20A 1001260
- Fully automatic hydraulic cutting cycles maximize production efficiency.
- Large 13-inch round and 13 × 18-inch rectangular cutting capacities handle demanding applications.
- Variable blade speeds optimize cutting performance across multiple materials.
- Hydraulic clamping, feed, descent, and return improve consistency while reducing operator fatigue.
- Precision carbide roller blade guides increase cut quality and blade longevity.
- Integrated coolant and hydraulic chip auger support continuous industrial operation.
- Heavy-duty construction built for fabrication shops, manufacturers, and production facilities.
The Baileigh 13-Inch Automatic Horizontal Bandsaw BS-20A 1001260 is engineered for high-output metal fabrication environments where accuracy, automation, and durability are essential. Combining a powerful 5 HP drive system with advanced hydraulic automation, variable blade speeds, and precision cutting controls, this industrial bandsaw delivers reliable performance and repeatable production results shift after shift.
