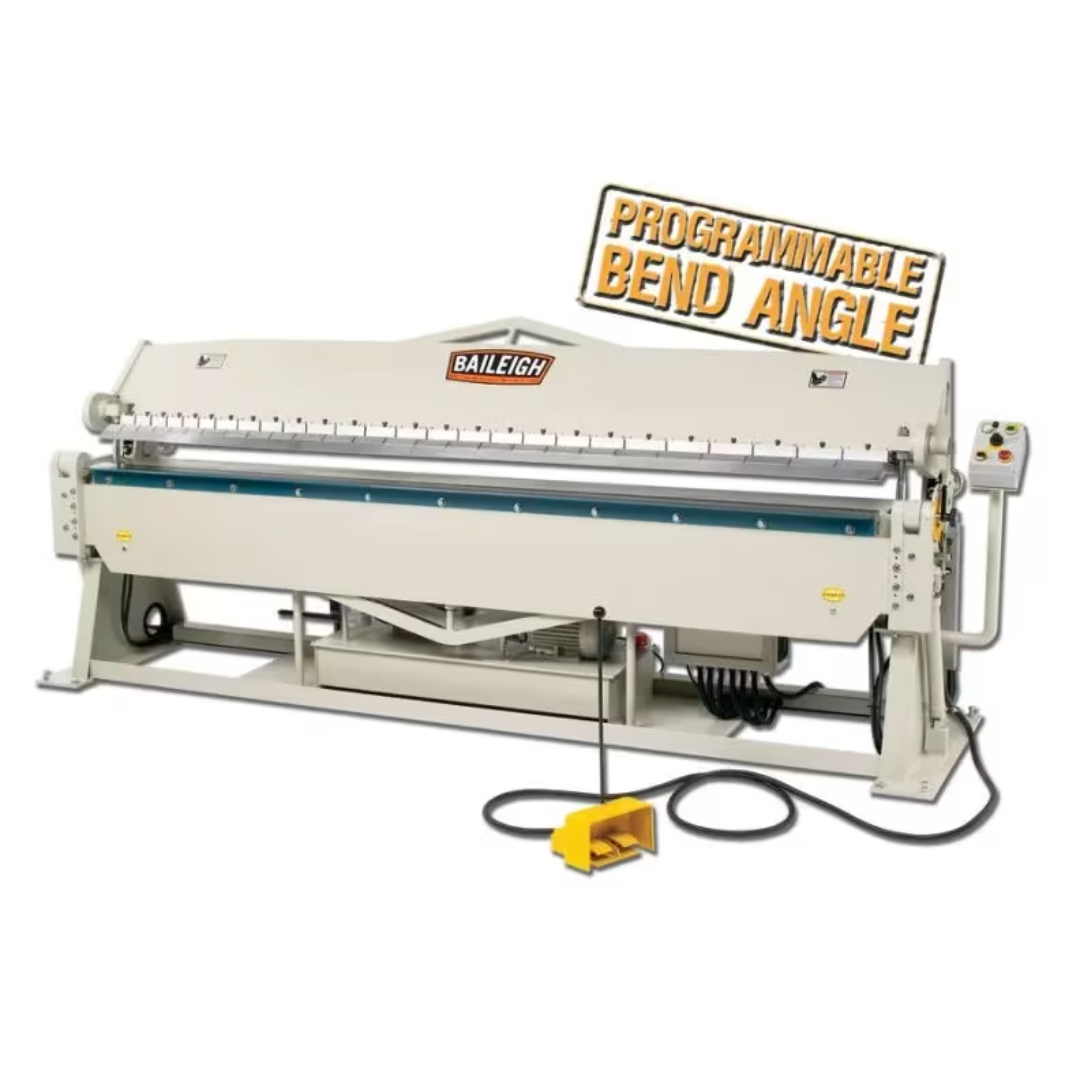

Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12014H) Applications
- Industrial sheet metal fabrication.
- HVAC ductwork and ventilation system manufacturing.
- Architectural sheet metal fabrication.
- Electrical enclosures and equipment cabinets.
- Commercial roofing and flashing production.
- Boxes, pans, trays, channels, and custom formed components.
- Production environments requiring accurate, repeatable hydraulic bending.
Designed for manufacturers requiring long-bed hydraulic bending, programmable angle control, and reliable production performance when forming large sheet metal components.
Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12014H) Specifications
| Model | BB-12014H |
|---|---|
| Product Number | 1021000 |
| Operation | Hydraulic |
| Working Width | 120 in. (10 ft.) |
| Material Capacity | 14 Gauge Mild Steel / 18 Gauge Stainless Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Motor | 3 HP Hydraulic Motor |
| Power Requirement | 220V Three Phase |
| Finger Configuration | 26 Hardened Fingers (6 × 3", 4 × 4", 10 × 5", 6 × 6") |
| Control Method | Control Panel or Foot Pedal with Programmable Auto-Stop |
| Frame Construction | Fully Welded Heavy Steel Frame with Support Rod Reinforcement |
| Net Weight | 5,830 lb |
| Gross Weight | 5,830 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 19907771616 |
Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12014H) Performance & Construction
- Industrial 3 HP hydraulic power unit delivers smooth, consistent hydraulic clamping and bending performance for demanding production environments.
- 120-inch (10-foot) working width accommodates full-size sheet metal panels, making the machine ideal for large fabrication projects and long production runs.
- 14-gauge mild steel and 18-gauge stainless steel capacity provides excellent versatility for commercial fabrication, HVAC manufacturing, and architectural sheet metal applications.
- Fully welded heavy steel frame with reinforced support rods minimizes deflection under load, maintaining exceptional bending accuracy across the full working length.
- 26 removable hardened fingers allow flexible tooling configurations for producing boxes, pans, channels, trays, and custom sheet metal components up to 6 inches deep.
- Programmable bend auto-stop enables accurate, repeatable bend angles up to 135°, improving consistency while reducing setup time during production.
- Hydraulic clamping and bending system provides smooth material control, reduces operator effort, and maintains consistent forming pressure throughout each bending cycle.
- Control panel and foot pedal operation provide flexible machine control while allowing operators to position material safely and efficiently.
- Heavy-duty 5,830-pound construction delivers outstanding rigidity, stability, and dependable long-term performance in demanding fabrication environments.
Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12014H) Features & Benefits
- 120-inch (10-foot) hydraulic forming capacity for oversized sheet metal projects.
- Handles up to 14-gauge mild steel and 18-gauge stainless steel.
- Powered by a 3 HP hydraulic system operating on 220V three-phase electrical service.
- Includes 26 removable hardened fingers for versatile box and pan fabrication.
- Maximum 6-inch box depth supports deep formed components.
- Programmable bend auto-stop improves repeatability and production efficiency.
- Fully welded heavy steel frame resists deflection during heavy forming operations.
- Control panel and foot pedal operation provide flexible machine control.
- Hydraulic operation reduces operator fatigue while improving consistency.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12014H)
- Large 10-foot working width accommodates oversized fabrication projects.
- Hydraulic operation provides smooth, accurate, and repeatable bending.
- Programmable bend angle control improves production consistency.
- 26 hardened fingers provide exceptional flexibility for box and pan fabrication.
- Heavy-duty welded construction delivers industrial reliability.
- Ideal for fabrication shops, HVAC manufacturers, and architectural metalworking professionals.
The Baileigh 120-Inch Hydraulic Box & Pan Brake (BB-12014H) combines industrial hydraulic power, programmable bend control, rugged welded construction, and versatile segmented finger tooling into a dependable large-format sheet metal forming solution. Designed for professional fabrication environments, it delivers exceptional precision, repeatability, and long-term durability for producing boxes, pans, channels, ductwork, and custom formed components.
