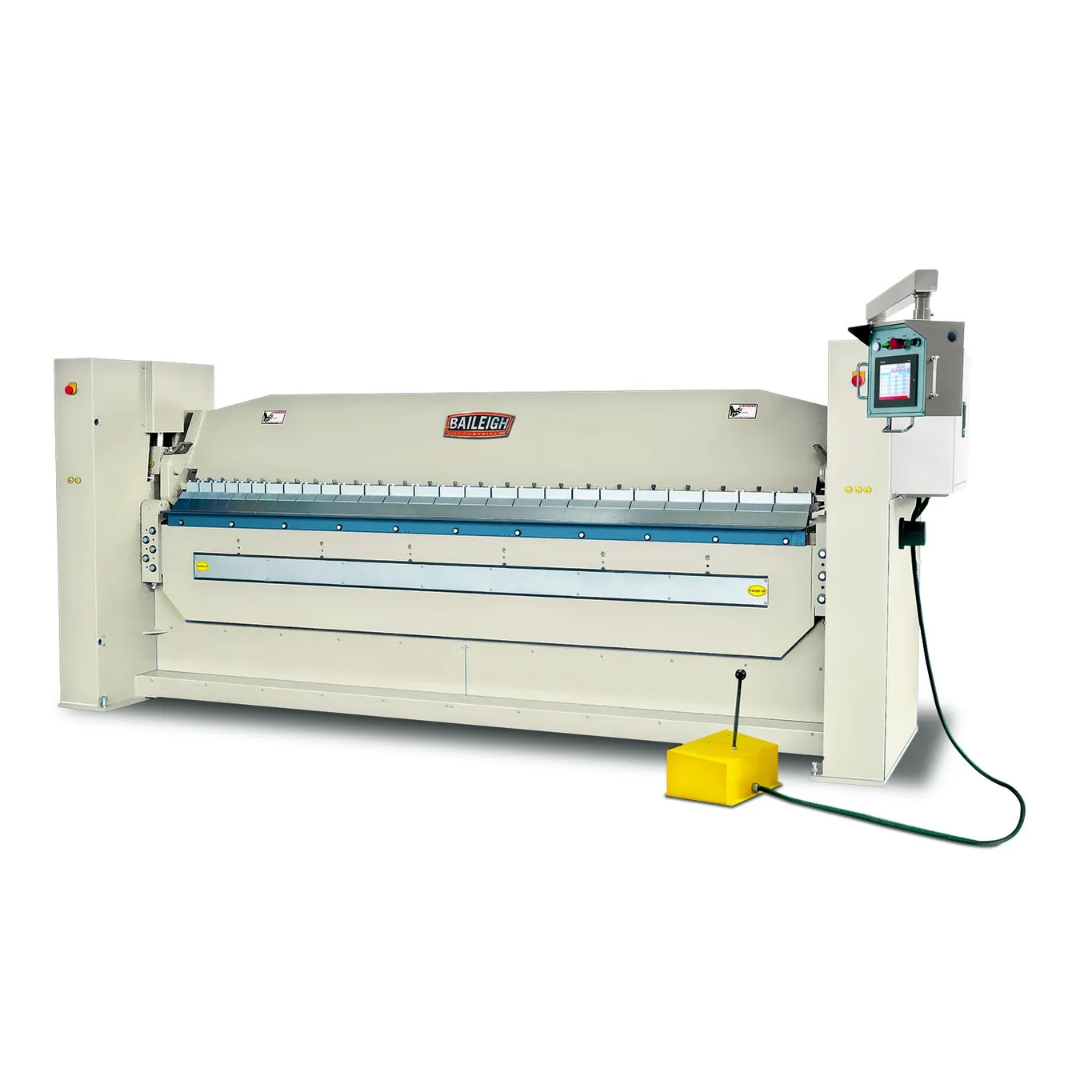

Baileigh 120-Inch Hydraulic Box & Pan Brake, 220V 3Ph (BB-12010H-NC) Applications
- Industrial sheet metal fabrication.
- HVAC ductwork and air handling equipment manufacturing.
- Electrical enclosure and control cabinet production.
- Architectural and commercial sheet metal fabrication.
- Large box, pan, tray, and channel fabrication.
- Production manufacturing requiring repeatable bend programs.
- Custom fabrication shops producing oversized formed components.
Designed for manufacturers requiring programmable hydraulic precision, long working lengths, and consistent repeatability when forming heavy-gauge sheet metal.
Baileigh 120-Inch Hydraulic Box & Pan Brake, 220V 3Ph (BB-12010H-NC) Specifications
| Model | BB-12010H-NC |
|---|---|
| Product Number | 1020999 |
| Operation | Numerically Controlled (NC) Hydraulic |
| Working Width | 120 in. (10 ft.) |
| Material Capacity | 10 Gauge Mild Steel / 12 Gauge Stainless Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Motor | 5 HP Hydraulic Motor |
| Power Requirement | 220V Three Phase |
| Finger Configuration | 26 Hardened Fingers (6 × 3", 4 × 4", 10 × 5", 6 × 6") |

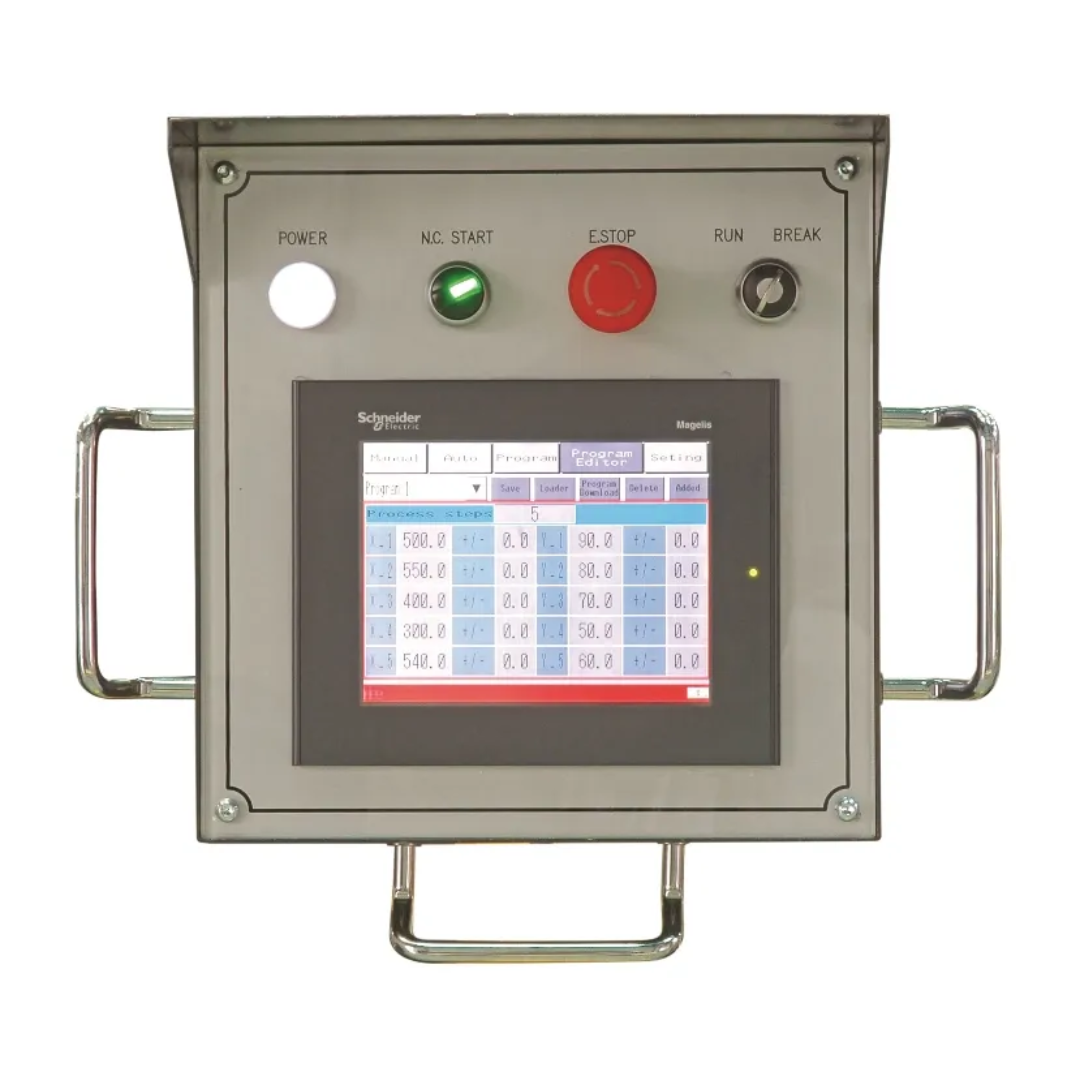

| Control System | NC Programmable Control with Bend Sequence Storage |
| Control Modes | Foot Pedal or Console Toggle Operation |
| Construction | Electro-Welded Heavy Steel Frame with Truss Rod Reinforcement |
| Net Weight | 10,550 lb |
| Gross Weight | 10,550 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 19907771609 |
Baileigh 120-Inch Hydraulic Box & Pan Brake, 220V 3Ph (BB-12010H-NC) Performance & Construction
- Industrial 5 HP hydraulic system delivers smooth, powerful clamping and bending performance for heavy-gauge sheet metal and demanding production environments.
- 120-inch (10-foot) working width accommodates oversized sheet metal panels, allowing fabrication of long duct sections, cabinets, architectural components, and industrial enclosures.
- 10-gauge mild steel and 12-gauge stainless steel capacity provides the strength and versatility needed for commercial and industrial fabrication applications.
- NC programmable control system stores bend angles and production sequences, improving repeatability while reducing operator setup time during production runs.
- Electro-welded heavy steel frame with truss rod reinforcement minimizes frame deflection and maintains accurate bends across the entire 10-foot working length.
- 26 removable hardened fingers allow flexible tooling arrangements for forming boxes, pans, trays, channels, and custom sheet metal components.
- Maximum 6-inch box depth supports fabrication of deep enclosures, ductwork, and complex formed parts.
- 135-degree bending capability provides the flexibility required for standard bends, acute angles, hems, and specialty forming applications.
- Hydraulic clamping and bending system delivers consistent pressure throughout the bending cycle for exceptional accuracy and professional-quality finished parts.
- Foot pedal and console toggle controls allow operators to select the most efficient operating method while programmable auto-stop functions improve production consistency.
- Heavy-duty 10,550-pound construction provides exceptional rigidity, vibration resistance, and long-term reliability in continuous industrial production environments.
Baileigh 120-Inch Hydraulic Box & Pan Brake, 220V 3Ph (BB-12010H-NC) Features & Benefits
- 120-inch (10-foot) hydraulic forming capacity for large sheet metal projects.
- Bends up to 10-gauge mild steel and 12-gauge stainless steel.
- Powerful 5 HP hydraulic motor operating on 220V three-phase power.
- NC programmable controller stores bend angles and production sequences.
- Includes 26 hardened segmented fingers for versatile box and pan forming.
- 6-inch maximum box depth accommodates deep fabricated components.
- Heavy electro-welded steel frame with truss rod reinforcement resists deformation.
- Foot pedal and console toggle controls provide flexible machine operation.
- Programmable auto-stop and repeat functions improve production efficiency.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 120-Inch Hydraulic Box & Pan Brake, 220V 3Ph (BB-12010H-NC)
- Large 10-foot capacity handles oversized fabrication projects with ease.
- NC programmable controls improve consistency and production efficiency.
- Heavy-duty hydraulic system delivers reliable industrial performance.
- 26 removable hardened fingers provide exceptional forming flexibility.
- Rigid welded construction maintains accuracy under full-capacity loads.
- Ideal for HVAC manufacturers, fabrication shops, and high-volume industrial production.
The Baileigh 120-Inch Hydraulic Box & Pan Brake, 220V 3Ph (BB-12010H-NC) combines industrial hydraulic power, programmable NC control, heavy-duty construction, and a full 10-foot working width into a professional sheet metal forming system. Designed for demanding production environments, it delivers exceptional precision, repeatability, and long-term durability for manufacturing large boxes, pans, channels, ductwork, and custom fabricated components.
