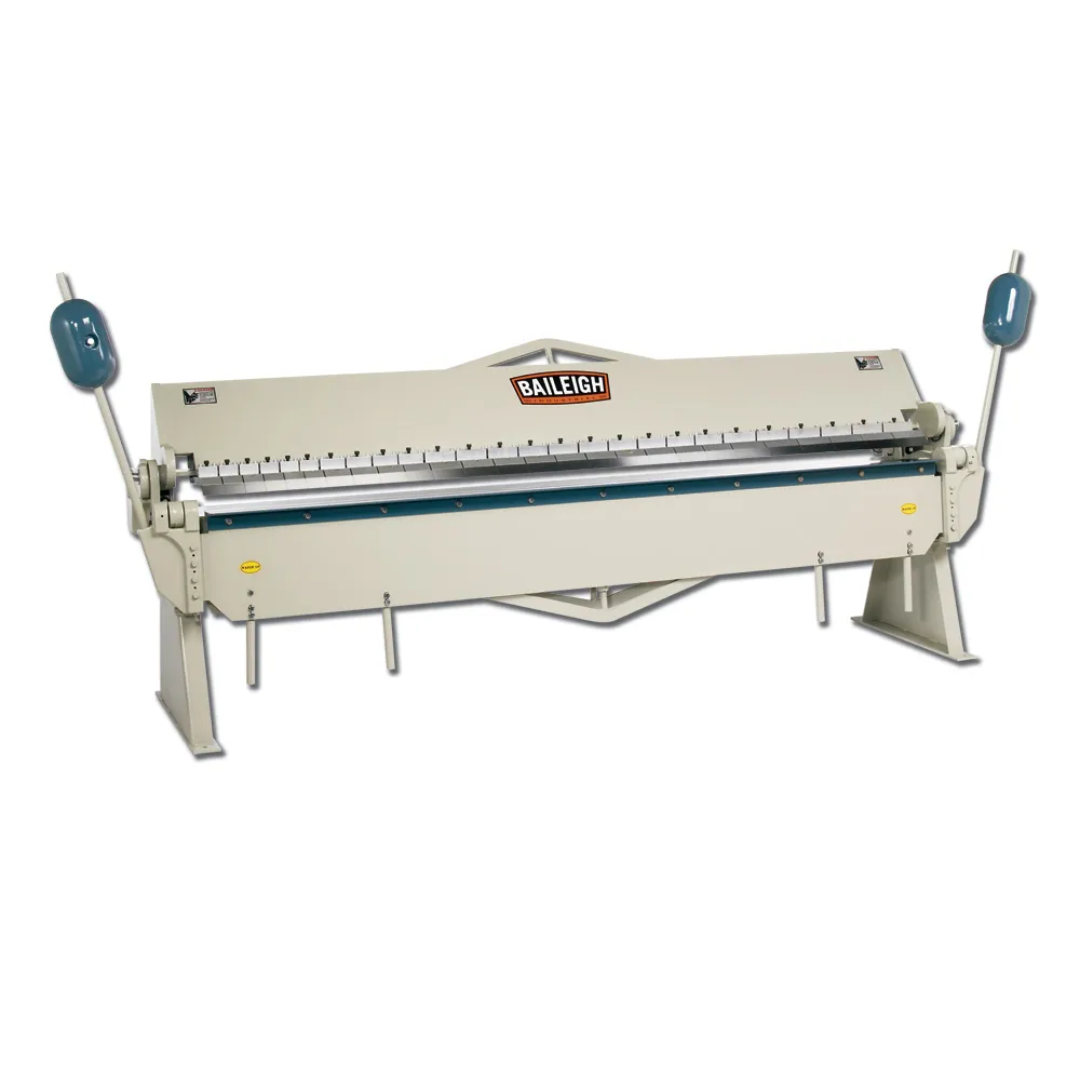

Baileigh 120-Inch Box & Pan Brake (BB-12014) Applications
- Industrial sheet metal fabrication.
- HVAC ductwork and ventilation manufacturing.
- Architectural sheet metal and flashing production.
- Electrical enclosures and equipment cabinets.
- Commercial roofing trim and fascia fabrication.
- Boxes, pans, channels, trays, and custom formed sheet metal components.
- Maintenance departments and production fabrication facilities.
Built for professionals who require long-bed manual bending performance, heavy-duty construction, and versatile box and pan forming capabilities without the need for hydraulic or electrical power.
Baileigh 120-Inch Box & Pan Brake (BB-12014) Specifications
| Model | BB-12014 |
|---|---|
| Product Number | 1000361 |
| Operation | Manual Box & Pan Brake |
| Working Width | 120 in. (10 ft.) |
| Material Capacity | 14 Gauge Mild Steel / 18 Gauge Stainless Steel |
| Maximum Bend Angle | 135° |
| Maximum Box Depth | 6 in. |
| Finger Configuration | 26 Hardened Removable Fingers (6 × 3", 4 × 4", 10 × 5", 6 × 6") |
| Frame Construction | Electro-Welded All-Steel Frame |
| Bearings | Precision-Lube Apron Shaft Bearings |
| Operation Type | Manual Hand Operation |
| Net Weight | 3,950 lb |
| Gross Weight | 3,950 lb |
| Warranty | 1 Year Parts Warranty |
| UPC | 731325391947 |
Baileigh 120-Inch Box & Pan Brake (BB-12014) Performance & Construction
- 120-inch (10-foot) working width easily accommodates full-size sheet metal, making the machine ideal for HVAC ductwork, architectural fabrication, and large production components.
- 14-gauge mild steel and 18-gauge stainless steel capacity provides the strength needed for demanding fabrication jobs while maintaining precise bend quality.
- Electro-welded all-steel frame construction delivers outstanding rigidity and minimizes deflection, ensuring consistent bending accuracy across the entire working width.
- 26 removable hardened fingers allow flexible tooling configurations for creating boxes, pans, trays, channels, and custom sheet metal shapes up to 6 inches deep.
- Precision-lube bearings on the apron shafts reduce operating effort while producing smoother bends and extending machine life.
- Counterweighted bending apron minimizes operator fatigue during repetitive forming operations while maintaining excellent control throughout the bending cycle.
- 135-degree maximum bend angle supports a wide variety of fabrication projects, from simple bends to complex formed components.
- Manual operation eliminates electrical power requirements while providing dependable, accurate performance in virtually any fabrication environment.
- Heavy-duty 3,950-pound construction provides exceptional stability and long-term durability for demanding industrial applications.
Baileigh 120-Inch Box & Pan Brake (BB-12014) Features & Benefits
- 120-inch (10-foot) working width for full-length sheet metal forming.
- Bends up to 14-gauge mild steel and 18-gauge stainless steel.
- Includes 26 hardened removable fingers for versatile box and pan fabrication.
- Maximum 6-inch box depth accommodates deep formed components.
- Precision-lube bearings reduce effort and improve bending smoothness.
- Counterweighted apron helps reduce operator fatigue.
- Heavy-duty electro-welded steel frame ensures long-lasting rigidity and accuracy.
- 135° maximum bending capability supports a wide range of fabrication applications.
- Manual operation requires no electrical or hydraulic power.
- Backed by Baileigh's 1-Year Parts Warranty and Lifetime Technical Support.
Why Choose the Baileigh 120-Inch Box & Pan Brake (BB-12014)
- Large 10-foot working width handles full-size sheet metal with ease.
- Heavy-duty manual construction delivers dependable long-term performance.
- 26 removable hardened fingers maximize forming flexibility.
- Precision bearings and counterweights improve operator comfort and bending accuracy.
- Ideal for fabrication shops, HVAC contractors, architectural metalworkers, and industrial manufacturers.
- No electrical power required for reliable operation anywhere in the shop.
The Baileigh 120-Inch Box & Pan Brake (BB-12014) combines heavy-duty manual operation, rugged all-steel construction, precision bending performance, and versatile removable finger tooling into a dependable long-bed sheet metal brake. Designed for professional fabrication environments, it delivers the flexibility, durability, and accuracy required to produce boxes, pans, channels, ductwork, and custom formed components with confidence.
