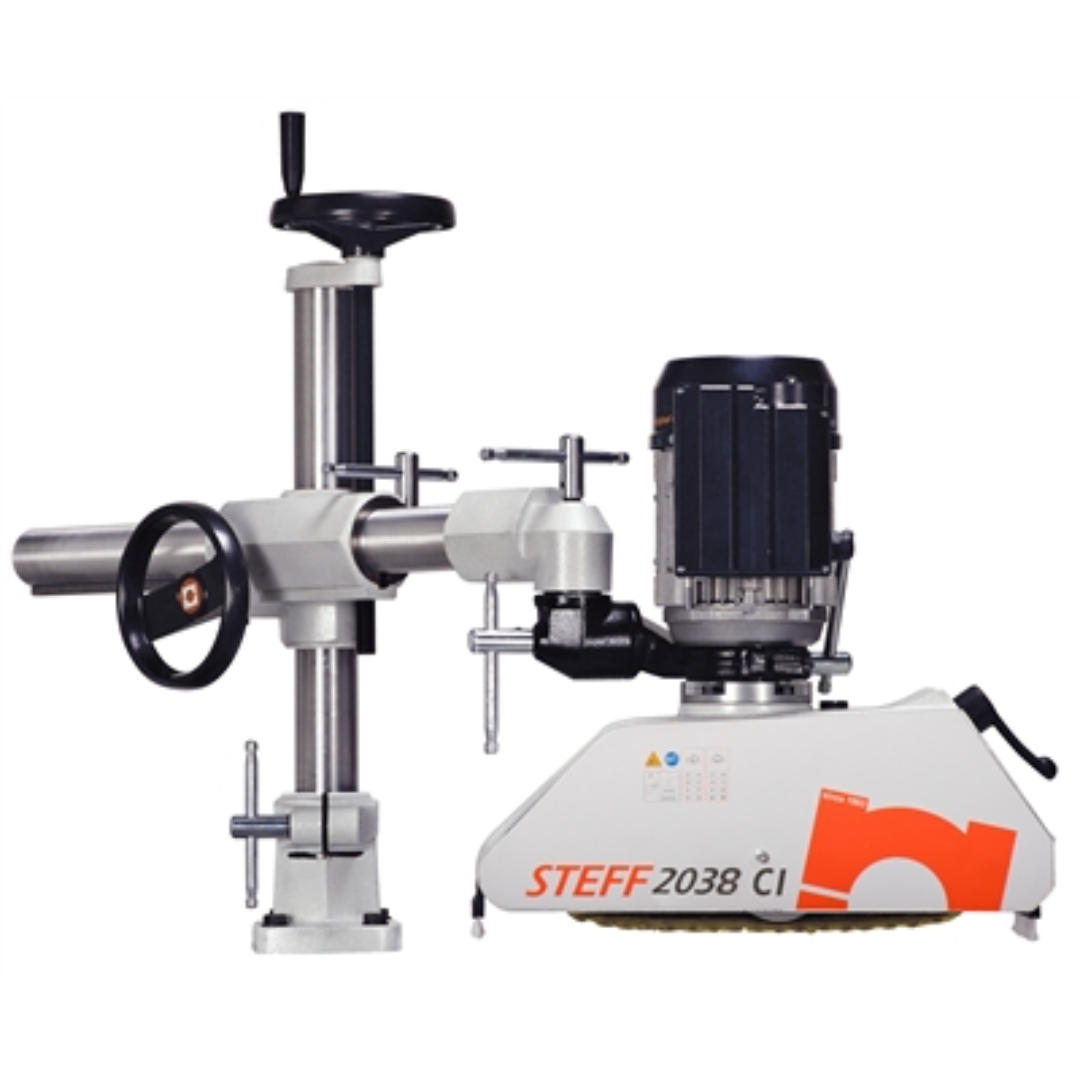

Steff 2038CI 3-Belt 8-Speed Power Feeder Applications
- Shapers, moulders, and precision routing operations
- High-finish woodworking applications requiring minimal surface marking
- Feeding delicate, veneered, or pre-finished materials
- Production environments requiring consistent and uniform feed pressure
Ideal for applications where belt-driven feeding provides improved surface protection and enhanced contact over traditional rollers.
Steff 2038CI 3-Belt 8-Speed Power Feeder Specifications
| Model | 2038CI |
|---|---|
| Motor Power | 1 HP |
| Three-Phase Motor Power | 0.75 kW |
| Single-Phase Motor Power | 0.52 kW |
| Speed Settings | 8 |
| Feed Speeds | 6 / 13 / 16 / 21 / 36 / 42 / 54 / 102 FPM |
| Metric Feed Speeds | 2 / 4 / 5.5 / 6.5 / 11 / 13 / 16.5 / 33 m/min |
| Feeding System | 3 Belt Drive |
| Belt Dimensions | 17 × 21 × 830 mm |
| Belt Hardness | 50–60 Shore (Natural Rubber) |
| Vertical Travel | 1" |
| Spring Travel | 20 mm |
| Machine Weight | 153 lbs |
| Net Weight | 31 kg |
| Gross Weight | 33 kg |
| Packaging Dimensions | 670 × 570 × 330 mm |
Steff 2038CI 3-Belt 8-Speed Power Feeder Performance & Construction
- Three-belt feeding system provides maximum surface contact and even pressure distribution.
- Eight-speed gearbox delivers precise control for a wide range of materials and cutting operations.
- Powerful 1 HP motor ensures consistent torque and reliable feeding performance.
- Sintered case hardened gears offer long-lasting durability in demanding shop environments.
- Bronze alloy main drive gear enhances smooth operation and reduces wear.
- Natural rubber belts (60 shore) provide excellent traction while protecting material surfaces.
- Optional polyurethane or steel feeding components available for specialized applications.
- Calibrated spring support system maintains consistent belt pressure and feeding accuracy.
- 1" vertical travel allows flexibility for varying material thicknesses.
- Electrostatic paint finish improves resistance to corrosion and shop wear.
- Universal support column included for easy installation and versatile positioning.
- Optional 230V single-phase configuration available (additional cost applies).
Why Choose the Steff 2038CI 3-Belt 8-Speed Power Feeder
- Belt-driven system reduces marking and improves finish quality.
- 8-speed flexibility for a wide range of woodworking applications.
- Durable construction designed for professional and production use.
- Consistent feed pressure enhances safety and machining accuracy.
The Steff 2038CI 3-Belt 8-Speed Power Feeder is the ideal solution for woodworkers who require superior surface protection, precision control, and consistent feeding performance in high-end and demanding applications.
