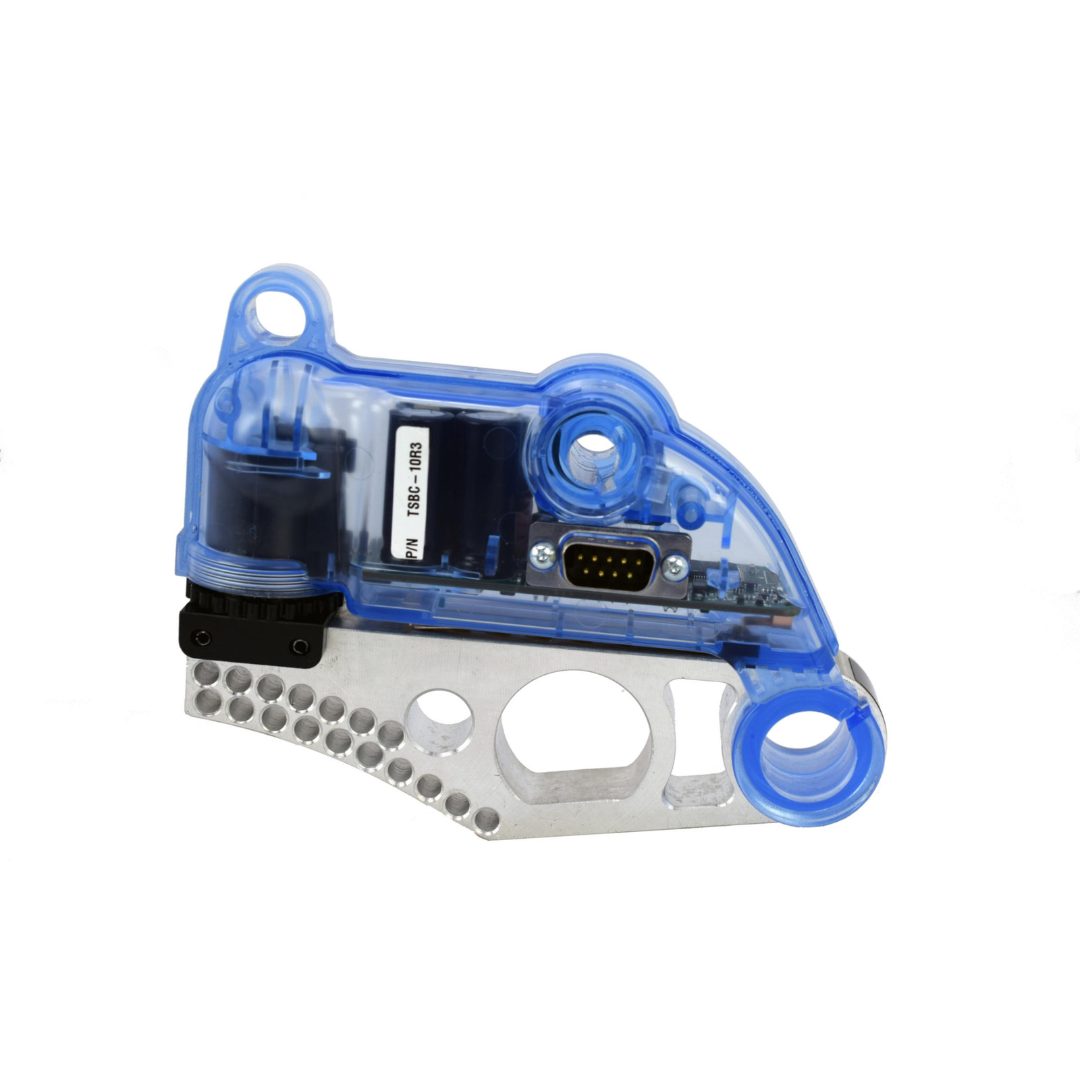

SawStop Table Saw Brake Cartridge For 10″ Blades TSBC-10R3 Applications
- Professional woodworking shops and production facilities.
- Cabinet and furniture manufacturing operations.
- Educational woodworking and vocational training programs.
- Construction and jobsite woodworking environments.
- General ripping, crosscutting, and precision cutting operations.
- Replacement brake cartridge for compatible SawStop table saws using standard 10" blades.
- Workshops prioritizing advanced operator safety and injury prevention.
Designed specifically for standard 10-inch blade applications while maintaining the full protection capabilities of the SawStop safety system.
SawStop Table Saw Brake Cartridge For 10″ Blades TSBC-10R3 Specifications
| Model | TSBC-10R3 |
|---|---|
| Product Type | Standard Brake Cartridge |
| Blade Compatibility | Standard 10" Saw Blades |
| Activation Time | Approximately 5 Milliseconds |
| Connection Type | Integrated RS232 Interface Port |
| Spring Pressure | 150 Pounds |
| Dimensions | 7" × 3" × 8" |
| Weight | 1 lb |
SawStop Table Saw Brake Cartridge For 10″ Blades TSBC-10R3 Performance & Construction
- Revolutionary Safety Protection helps reduce the risk of catastrophic injury by stopping the spinning blade upon contact with skin.
- Lightning-Fast Microprocessor Technology continuously monitors blade voltage and instantly detects changes caused by skin contact.
- 5 Millisecond Activation Time allows the safety system to respond almost immediately when contact is detected.
- Integrated RS232 Communication Port connects the brake cartridge to the saw and serves as the communication interface between the cartridge and safety control system.
- Heavy-Duty Spring Mechanism is held under approximately 150 pounds of pressure, providing the force required to drive the aluminum brake into the blade.
- Fuse Wire Trigger System releases the spring instantly when the microprocessor initiates activation.
- Aluminum Brake Block is engineered to stop blade rotation rapidly when deployed.
- Mylar Debris Shield insulates the brake assembly from conductive metal particles and helps prevent unwanted activations when cutting materials containing nails, screws, or staples.
- Quick-Change Locking Key allows users to quickly switch between the Standard Brake Cartridge and Dado Brake Cartridge when changing cutting applications.
- Precision Engineered Construction designed specifically for reliable integration with compatible SawStop table saw systems.
Why Choose the SawStop Table Saw Brake Cartridge For 10″ Blades TSBC-10R3
- Compatible with all standard 10-inch blades used on SawStop table saws.
- Provides industry-leading blade stopping technology.
- Activates in approximately 5 milliseconds upon skin contact detection.
- Advanced microprocessor monitoring delivers continuous safety protection.
- Heavy-duty spring system ensures rapid brake deployment.
- Debris shield helps minimize false activations caused by metal contaminants.
- Quick-change locking key simplifies switching between standard and dado configurations.
- Trusted by professional woodworkers, schools, and industrial facilities.
The SawStop Table Saw Brake Cartridge For 10″ Blades TSBC-10R3 is a critical safety component that combines advanced sensing technology, rapid activation speed, and proven engineering to deliver the protection that has made SawStop the benchmark for table saw safety.
