OMGA TR 2A VIS 12" Double Mitre Chop Saw Applications
- Aluminum window and door fabrication operations
- Architectural aluminum extrusion processing
- Curtain wall and storefront manufacturing facilities
- PVC and vinyl profile cutting applications
- Industrial frame and profile fabrication
- Precision mitre cutting for commercial production shops
- Production environments requiring repeatable angle accuracy
- Industrial profile processing and extrusion manufacturing

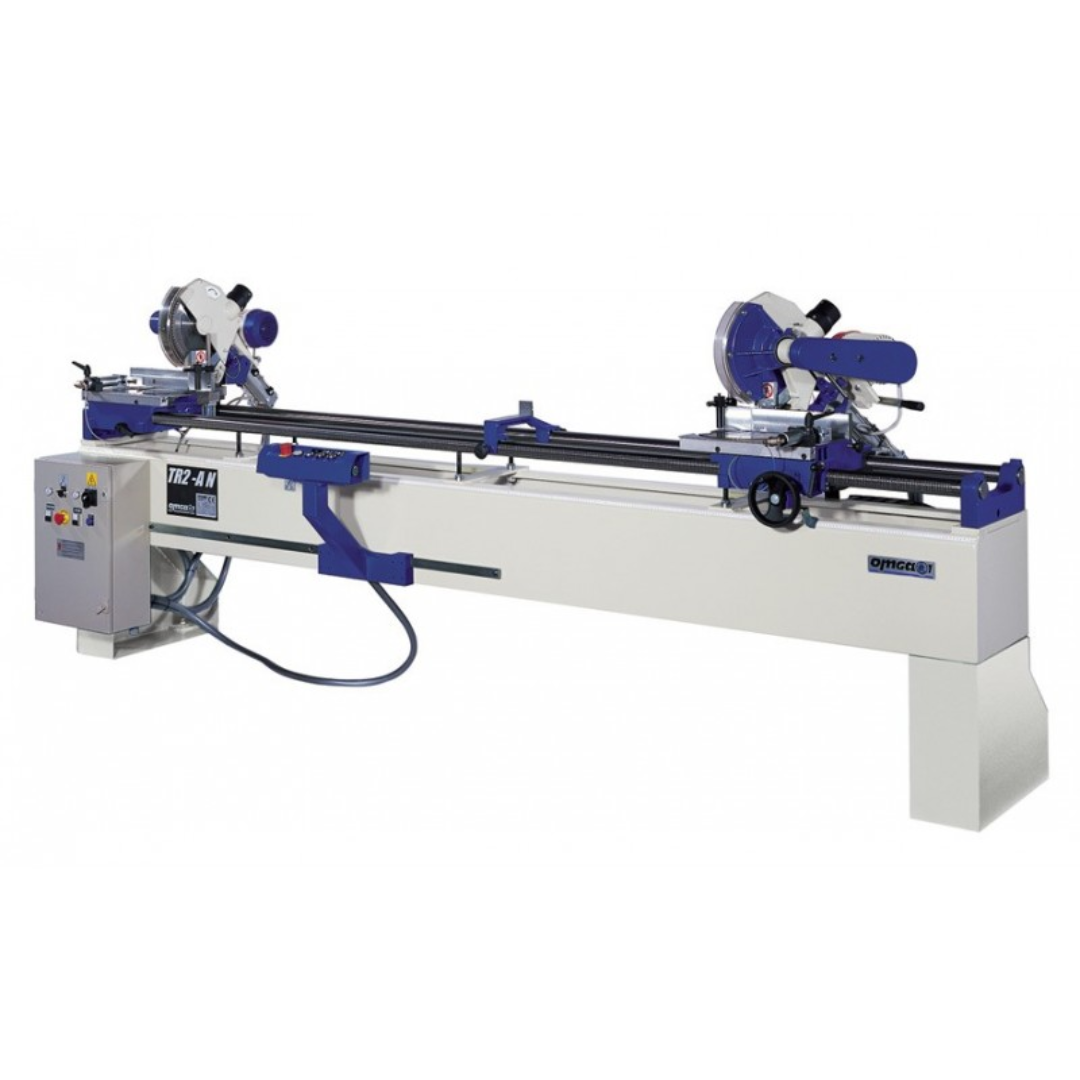

The OMGA TR 2A VIS 12" Double Mitre Chop Saw is ideal for fabrication facilities requiring accurate 45° and 90° mitre cutting with reliable digital positioning and industrial-grade cutting performance.
OMGA TR 2A VIS 12" Double Mitre Chop Saw Specifications
| Model | TR 2A VIS 12" Double Mitre Chop Saw |
|---|---|
| Saw Blade Diameter | 12" |
| Saw Bore | 1" |
| Motor Power | 2 × 2.2 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 9'2" |
| Minimum Distance Between Saws | 23 5/8" |
| Minimum Distance Between Saws at 45° | 23 5/8" |
| Cross Cut Capacity at 90° | 6 3/4" |
| Cross Cut Capacity at 45° | 4 1/2" |
| Maximum Width Cutting Capacity | 6" |
| Maximum Thickness Capacity | 3 1/2" |
| Maximum Depth of Cut | 4 1/4" |
| Maximum Beveled Cross Cut | 6 3/4" |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 1,753 lbs. |
| Crated Dimensions | 152" × 45" × 65" |
| Positioning System | Digital Read-Out |
OMGA TR 2A VIS 12" Double Mitre Chop Saw Features & Performance
- Dual 2.2 HP industrial motors provide reliable cutting power and consistent production performance for aluminum and profile fabrication.

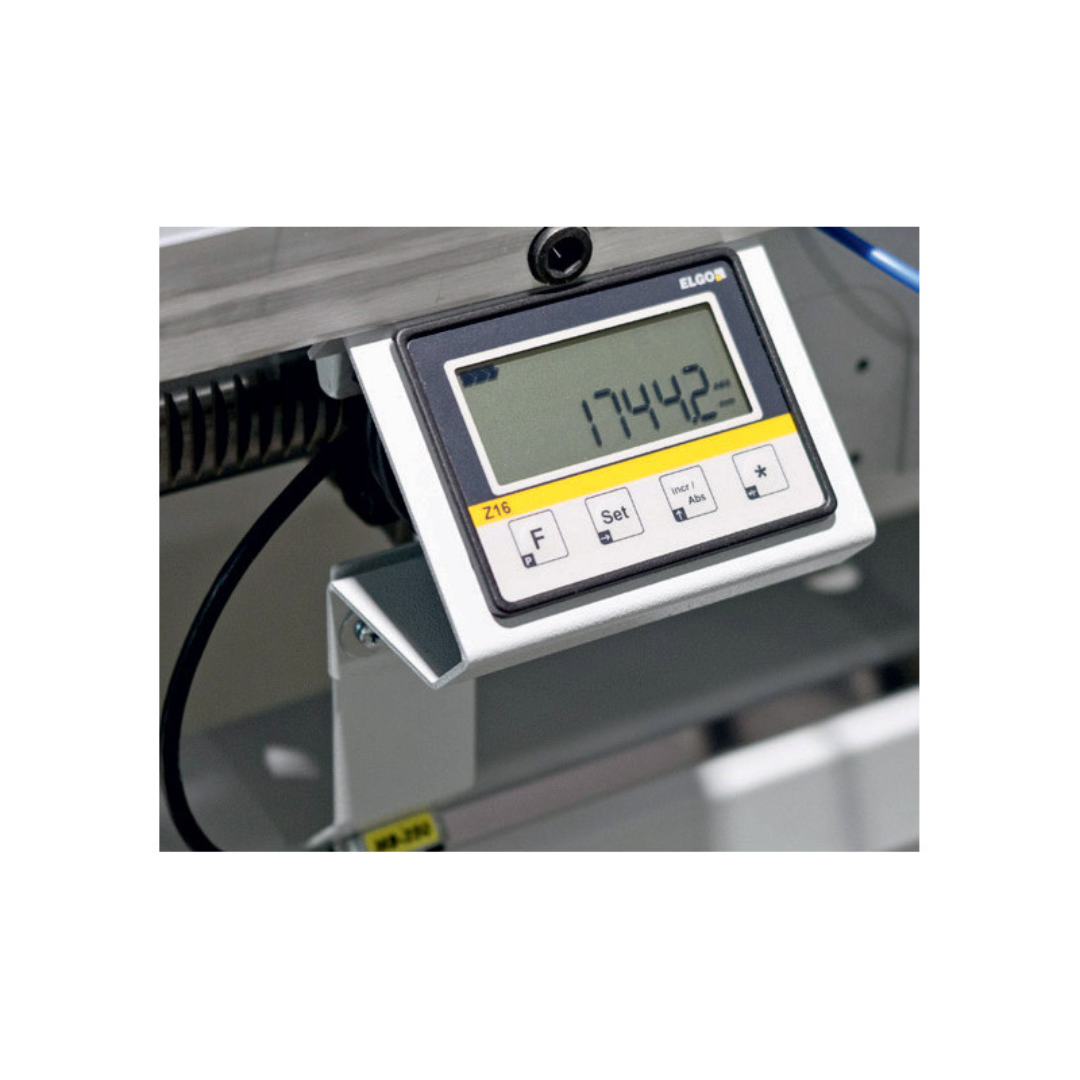

- Digital read-out positioning system improves measuring accuracy and allows repeatable positioning for precision production cutting.
- One fixed and one movable cutting head provide flexible processing capabilities for both short and long material applications.
- Positive mitering stops at +45°, -45°, and 90° ensure fast and accurate angle positioning.
- Electro-pneumatic operating system delivers smooth automation and dependable machine control.
- Three automatic operating cycles support simultaneous blade cycling, alternate blade cycling, and single-head operation.
- Alternate cycle functionality enables safe and accurate cutting of very short components at 45-degree angles.
- Standard pneumatic vertical clamps securely stabilize workpieces for improved cut quality and operator safety.
- Integrated overload protection on both motors helps protect machine components and extend service life.
- 3200 RPM arbor speed produces smooth and accurate cuts across aluminum and profile materials.
- Large 9'2" cutting length capacity supports long extrusion and industrial profile processing applications.
- Heavy-duty industrial frame construction designed for continuous production environments and long-term durability.
- Dual dust chute system improves dust extraction and helps maintain cleaner operating conditions.
OMGA TR 2A VIS 12" Double Mitre Chop Saw Optional Equipment
- Additional vertical pneumatic clamps for enhanced material support
- Horizontal pneumatic clamping systems
- Extended cutting length configurations
- Short-piece support brackets for small component cutting
- Air-over-oil descent systems for smoother cutting operation
- Spray mist lubrication systems for improved blade cooling and finish quality
- Additional production accessories for specialized fabrication applications
Optional accessories allow the OMGA TR 2A VIS 12" Double Mitre Chop Saw to be customized for specialized fabrication requirements and improved production efficiency.
Why Choose the OMGA TR 2A VIS 12" Double Mitre Chop Saw
- Precision digital positioning for repeatable fabrication accuracy.
- Dual 2.2 HP motors provide dependable industrial cutting performance.
- Flexible automatic operating cycles support multiple production applications.
- Heavy-duty construction built for continuous fabrication environments.
- Large cutting capacity accommodates long extrusion materials.
- Reliable electro-pneumatic controls ensure smooth operation.
- Ideal for aluminum, PVC, and profile fabrication applications.
The OMGA TR 2A VIS 12" Double Mitre Chop Saw combines precision digital positioning, industrial durability, and dependable cutting performance to deliver an efficient solution for modern aluminum and profile fabrication facilities.
