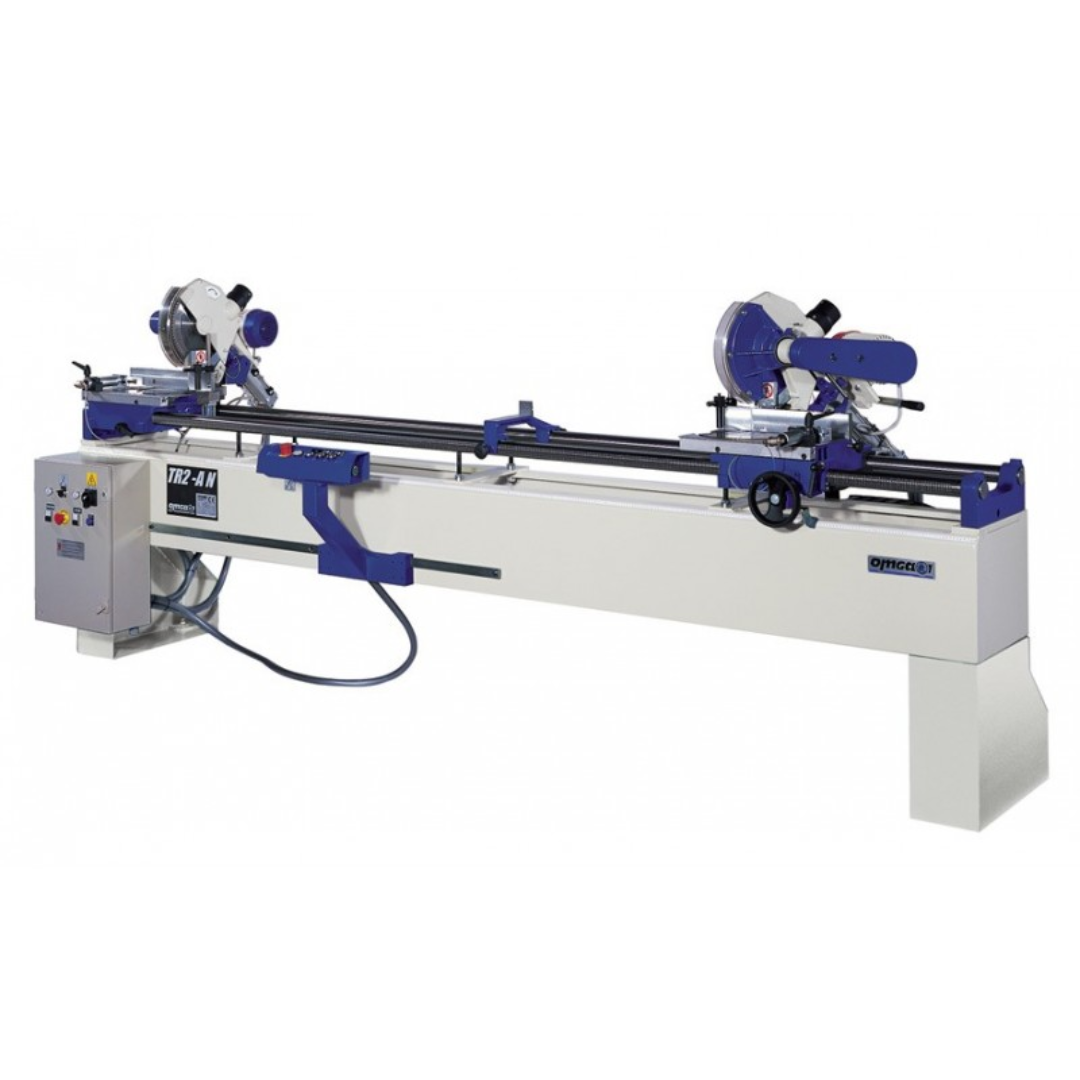

OMGA TR 2A 12" Double Mitre Chop Saw Applications
- Aluminum window and door fabrication operations
- Architectural extrusion and profile processing
- Curtain wall and storefront manufacturing facilities
- PVC and vinyl profile cutting applications
- Industrial frame and profile fabrication
- Commercial production shops requiring precision mitre cutting
- Industrial extrusion processing and assembly operations
- Production environments requiring repeatable angular cutting accuracy
The OMGA TR 2A 12" Double Mitre Chop Saw is ideal for fabrication operations requiring accurate 45° and 90° mitre cutting with dependable industrial production performance.
OMGA TR 2A 12" Double Mitre Chop Saw Specifications
| Model | TR 2A 12" Double Mitre Chop Saw |
|---|---|
| Saw Blade Diameter | 12" |
| Saw Bore | 1" |
| Motor Power | 2 × 2.2 HP |
| Arbor Speed | 3200 RPM |
| Maximum Distance Between Saws | 9'2" |
| Minimum Distance Between Saws | 8 3/4" |
| Minimum Distance Between Saws at 45° | 15 1/8" or 6 11/16" (+ optional alternate setup) |
| Cross Cut Capacity at 90° | 5 1/2" |
| Cross Cut Capacity at 45° | 4" |
| Maximum Width Cutting Capacity | 6" |
| Maximum Thickness Capacity | 3 1/2" |
| Maximum Depth of Cut | 3 1/2" |
| Maximum Beveled Cross Cut | N/A |
| Dust Chute Size | 2 × 3 1/8" |
| Approximate Shipping Weight | 1,438 lbs. |
| Crated Dimensions | 150" × 39" × 44" |
OMGA TR 2A 12" Double Mitre Chop Saw Features & Performance
- Dual 2.2 HP industrial motors provide dependable cutting performance for aluminum, PVC, and industrial profile fabrication applications.
- One fixed and one movable cutting head allow flexible positioning and efficient processing of short and long extrusion materials.
- Positive mitering stops at +45°, -45°, and 90° ensure fast, repeatable, and accurate angular positioning.
- Electro-pneumatic operating system delivers smooth machine control and dependable automated cutting performance.
- Three automatic operating cycles support simultaneous blade cycling, alternate blade cycling, and single-head operation.
- Alternate cycle functionality enables safe and precise cutting of very short components at 45-degree angles.
- Standard pneumatic vertical clamps securely stabilize workpieces for improved cutting accuracy and operator safety.
- Integrated overload protection on both motors helps protect machine components and extend operational life.
- 3200 RPM arbor speed delivers smooth and accurate cutting performance across aluminum and profile materials.
- Large 9'2" cutting length capacity supports industrial extrusion and long-profile processing applications.
- Heavy-duty industrial frame construction built for continuous fabrication environments and long-term durability.
- Dual dust chute system improves dust extraction and supports cleaner operating conditions.
OMGA TR 2A 12" Double Mitre Chop Saw Optional Equipment
- Additional vertical pneumatic clamps for increased material support
- Horizontal pneumatic clamping systems
- Extended cutting length configurations
- Short-piece support brackets for small component processing
- Air-over-oil descent systems for smoother cutting operation
- Spray mist lubrication systems for improved blade cooling and finish quality
- Additional fabrication accessories for specialized production requirements
Optional equipment allows the OMGA TR 2A 12" Double Mitre Chop Saw to be customized for advanced fabrication applications, increased production efficiency, and specialized material processing.
Why Choose the OMGA TR 2A 12" Double Mitre Chop Saw
- Precision double mitre cutting for aluminum and profile fabrication.
- Dual 2.2 HP motors provide reliable industrial cutting performance.
- Flexible automatic operating cycles support multiple production applications.
- Heavy-duty construction designed for continuous fabrication environments.
- Large cutting capacity accommodates long extrusion materials.
- Reliable electro-pneumatic controls ensure dependable machine operation.
- Ideal for fabrication facilities requiring repeatable angular accuracy.
The OMGA TR 2A 12" Double Mitre Chop Saw combines industrial durability, precise angular cutting capability, and dependable production performance to deliver an efficient solution for modern aluminum and profile fabrication facilities.
