OMGA Stop 10 - RH Programmable Stop/Positioner System Applications
- Automated woodworking production systems

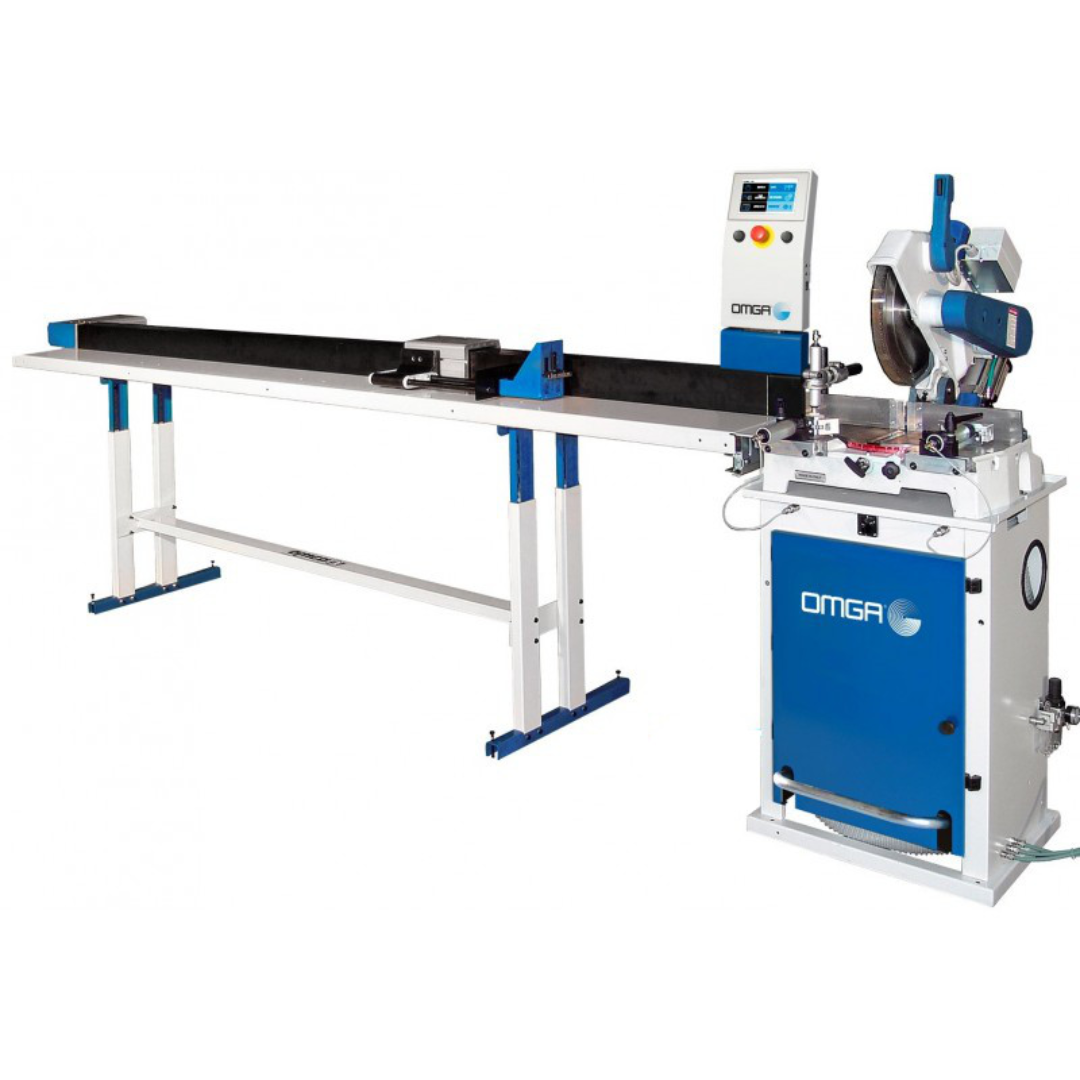

- Mitre saw and double mitre saw positioning applications

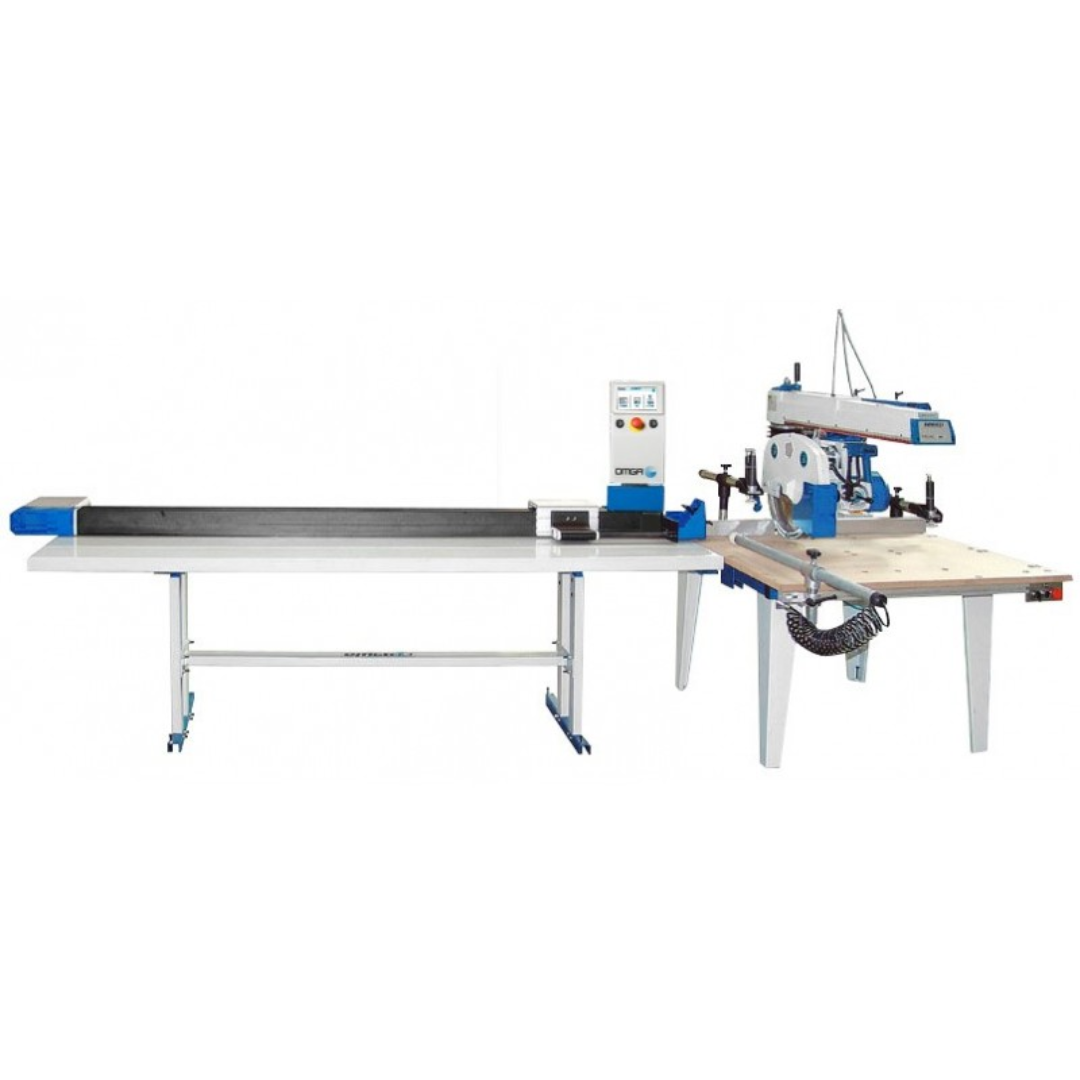

- Up-cut saw and radial arm saw automation
- Table saw and drilling station positioning systems
- Picture frame manufacturing operations
- Plastic fabrication and metalworking production
- Repetitive cutting and positioning applications
- Industrial manufacturing cells requiring programmable stop systems
The OMGA Stop 10 - RH Programmable Stop/Positioner System is ideal for manufacturers seeking precision programmable positioning, improved production efficiency, and repeatable material processing accuracy.
OMGA Stop 10 - RH Programmable Stop/Positioner System Specifications
| Model | OMGA Stop 10 - RH |
|---|---|
| Machine Type | Programmable Stop/Positioner System |
| Usable Traverse | 10' |
| Motor Type | Brushless Motor |
| Brushless Motor Power | 0.66 kW (0.9 HP) |
| Maximum Traversing Speed | 200 FPM |
| Positioning Accuracy | ±0.004" |
| Software Versions Included | Pusher Basic, Advanced Pusher, and Picture Frame |
| Maximum Number of Programs | 500 |
| Connection Ports | 2 x USB, 2 x RS 232, and 1 x RJ45 |
| Removable Media Support | USB Port and Ethernet Port |
| Measurement Units | Millimeters and Inches |
| Input Formats | Fractional and Decimal |
| Controller Interface | Touch-Screen Controller |
| System Orientation | Right Hand Configuration |
OMGA Stop 10 - RH Programmable Stop/Positioner System Features & Performance
- Numerically controlled programmable positioning system improves production precision and eliminates repetitive manual measurements.
- 10' usable traverse capacity supports efficient positioning and processing of long materials during production operations.
- Precision positioning accuracy of ±0.004" ensures highly repeatable and consistent production results.
- High-speed traversing performance of up to 200 FPM improves workflow speed and operational efficiency.
- Industrial brushless motor drive system provides smooth positioning movement, long service life, and reduced maintenance requirements.
- Touch-screen operator controller simplifies setup, programming, and machine operation for production personnel.
- Complete software package included featuring Pusher Basic, Advanced Pusher, and Picture Frame applications at no additional cost.
- Programmable memory storage allows operators to save up to 500 production programs for quick recall and repeat manufacturing operations.
- Compatible with a wide range of industrial machines including saws, drills, and cutting systems for woodworking, plastics, and metalworking applications.
- Supports both metric and imperial measurements for flexible international manufacturing compatibility.
- Fractional and decimal input capability allows operators to enter dimensions using their preferred measurement format.
- Multilingual touchscreen interface available in multiple languages for global manufacturing operations.
- Advanced onboard diagnostics simplify troubleshooting and help reduce production downtime.
- Extensive communication connectivity including USB, RS 232, and RJ45 Ethernet ports for integration with computers, barcode readers, printers, USB memory devices, and production networks.
- Optional Interlink Kits available for expanded automation integration and advanced machine connectivity.
- Transforms manual machinery into intelligent production cells capable of handling demanding repetitive processing tasks.
Why Choose the OMGA Stop 10 - RH Programmable Stop/Positioner System
- Improves production accuracy and repeatability in industrial environments.
- Eliminates repetitive tape measuring and manual positioning errors.
- Converts manual equipment into efficient programmable production systems.
- Compatible with woodworking, plastics, and metalworking applications.
- High-speed traversing improves production throughput and workflow efficiency.
- Advanced touchscreen controls simplify machine operation and setup.
- Large memory capacity supports efficient repeat production scheduling.
- Industrial-grade construction designed for demanding manufacturing operations.
The OMGA Stop 10 - RH Programmable Stop/Positioner System combines intelligent programmable positioning, precision automation technology, and industrial-grade performance into a highly effective production solution for repetitive cutting and material processing applications.
