OMGA RN 450 12" Radial Arm Saw Applications
- Furniture manufacturing and woodworking production facilities
- Cabinet shops and custom millwork operations
- Frame manufacturing and trim production applications
- Sawmills processing smaller dimensional lumber and hardwood stock
- Professional carpentry and woodworking shops
- Precision cross cutting and ripping operations
- Bevel cutting, miter cutting, and specialty woodworking applications
- Compact production environments requiring versatile cutting capability

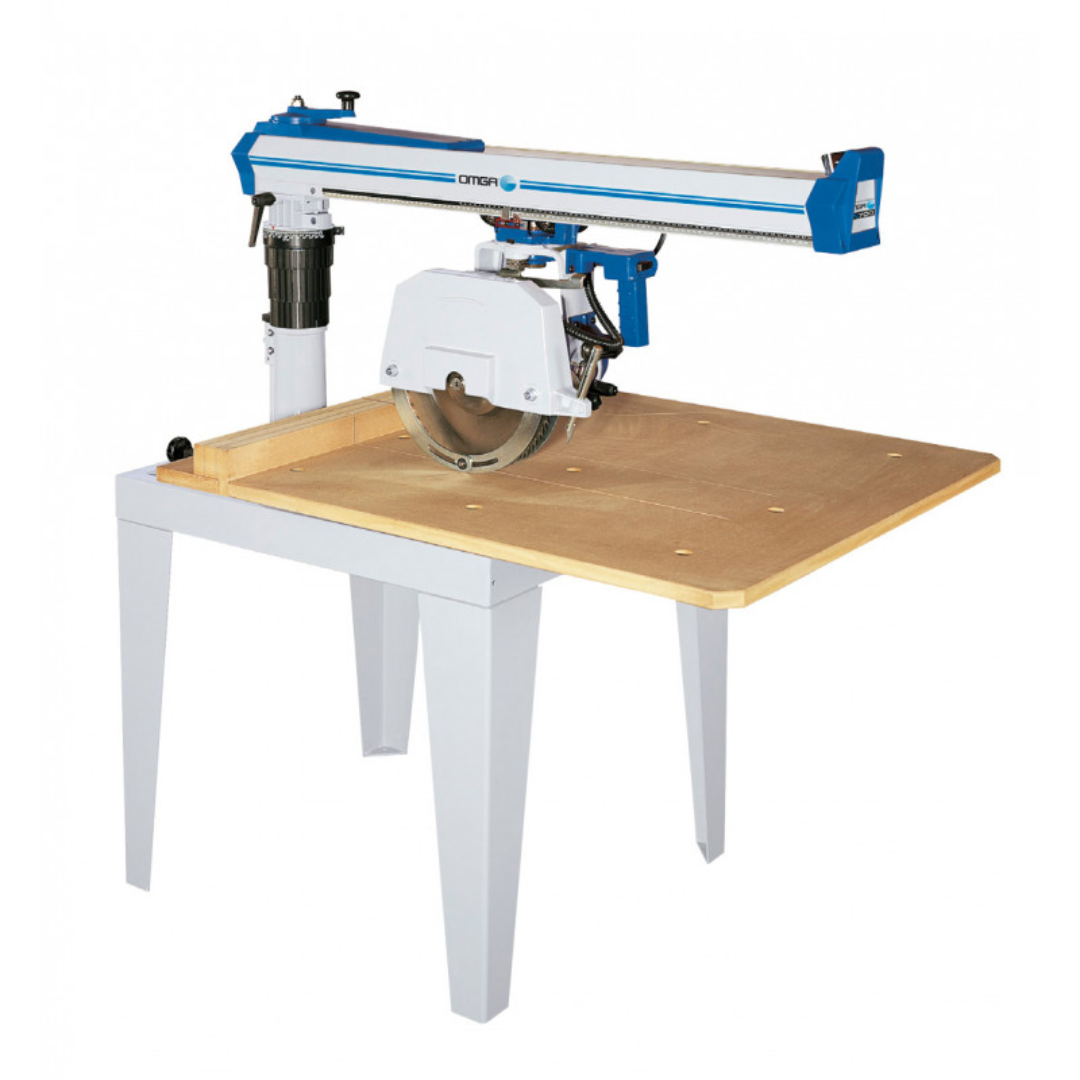

The OMGA RN 450 12" Radial Arm Saw is designed for woodworking professionals who require precision cutting performance, versatile radial arm functionality, and dependable industrial construction in a compact machine platform.
OMGA RN 450 12" Radial Arm Saw Specifications
| Model | RN 450 |
|---|---|
| Saw Type | 12" Industrial Radial Arm Saw |
| Motor Power | 4 HP |
| Saw Diameter | 12" |
| Saw Bore | 1" |
| Arbor Speed | 3200 RPM |
| Cross Cut Capacity | 17 3/4" |
| Ripping Capacity | 26 3/4" |
| Maximum Depth of Cut at 90° | 3 1/2" |
| Maximum Depth of Cut at 45° | 2 1/2" |
| Maximum Dado Capacity | 1 1/2" |
| Miter Positive Stops | 45° – 0° – 45° |
| Bevel Positive Stops | 0° – 45° |
| Table Size | 27" × 21" |
| Overall Dimensions | 27" × 40" |
| Crated Dimensions | 35" × 35" × 43" |
| Shipping Weight | 246 lbs. |
OMGA RN 450 12" Radial Arm Saw Performance & Construction

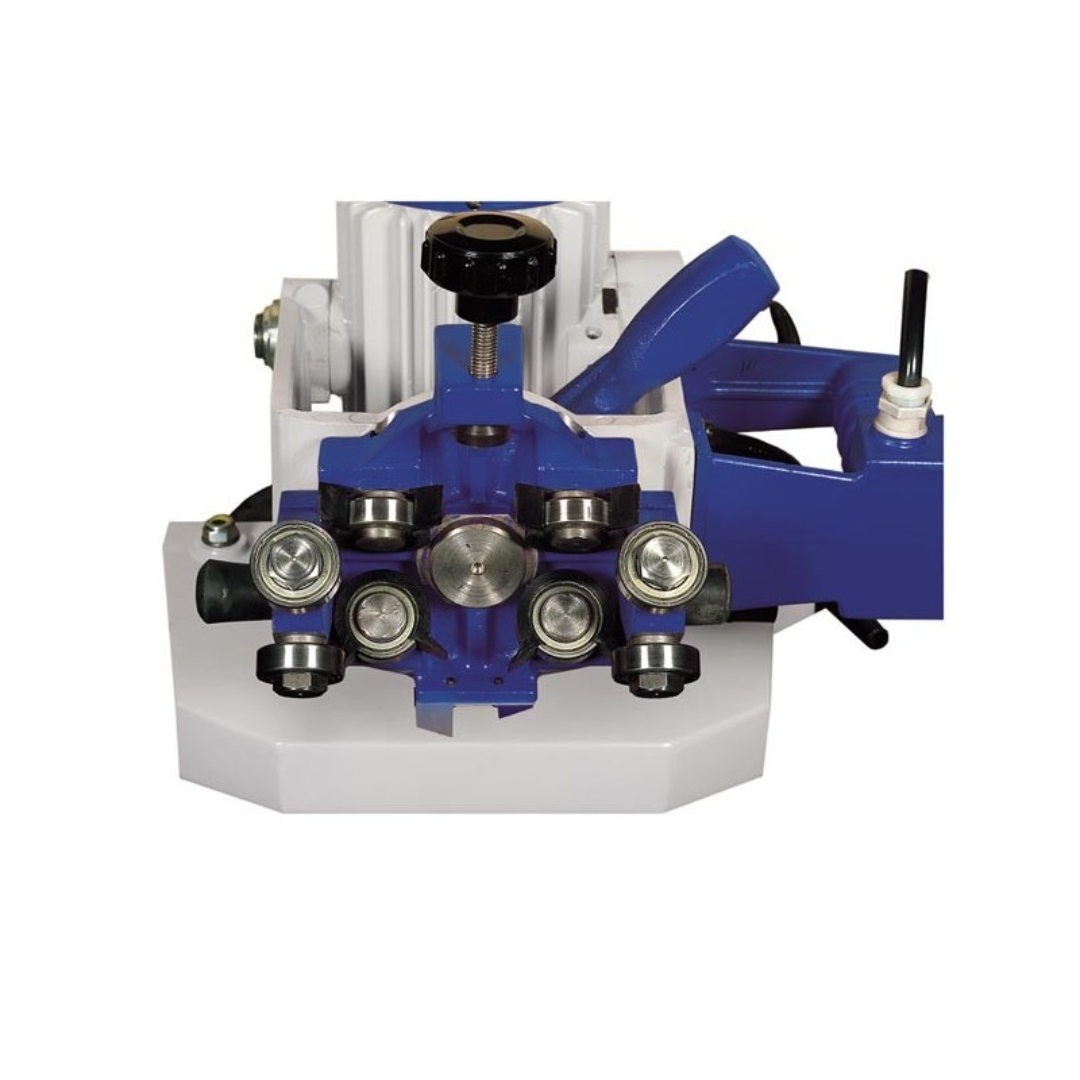

- Precision 8-bearing carriage system provides smooth saw travel and highly accurate cutting performance for professional woodworking applications.
- Integrated dust scraper system keeps the interchangeable steel tracks and bearings clean for improved operational consistency and reduced maintenance.
- Reliable 4 HP industrial motor delivers consistent cutting performance through hardwoods, softwoods, and engineered wood materials.
- Self-centering locking system automatically aligns and locks the arm, motor, and carriage at primary angle settings for improved repeatability and setup efficiency.
- Manual intermediate angle locking allows operators to perform custom angle cuts and specialized woodworking applications with precision.

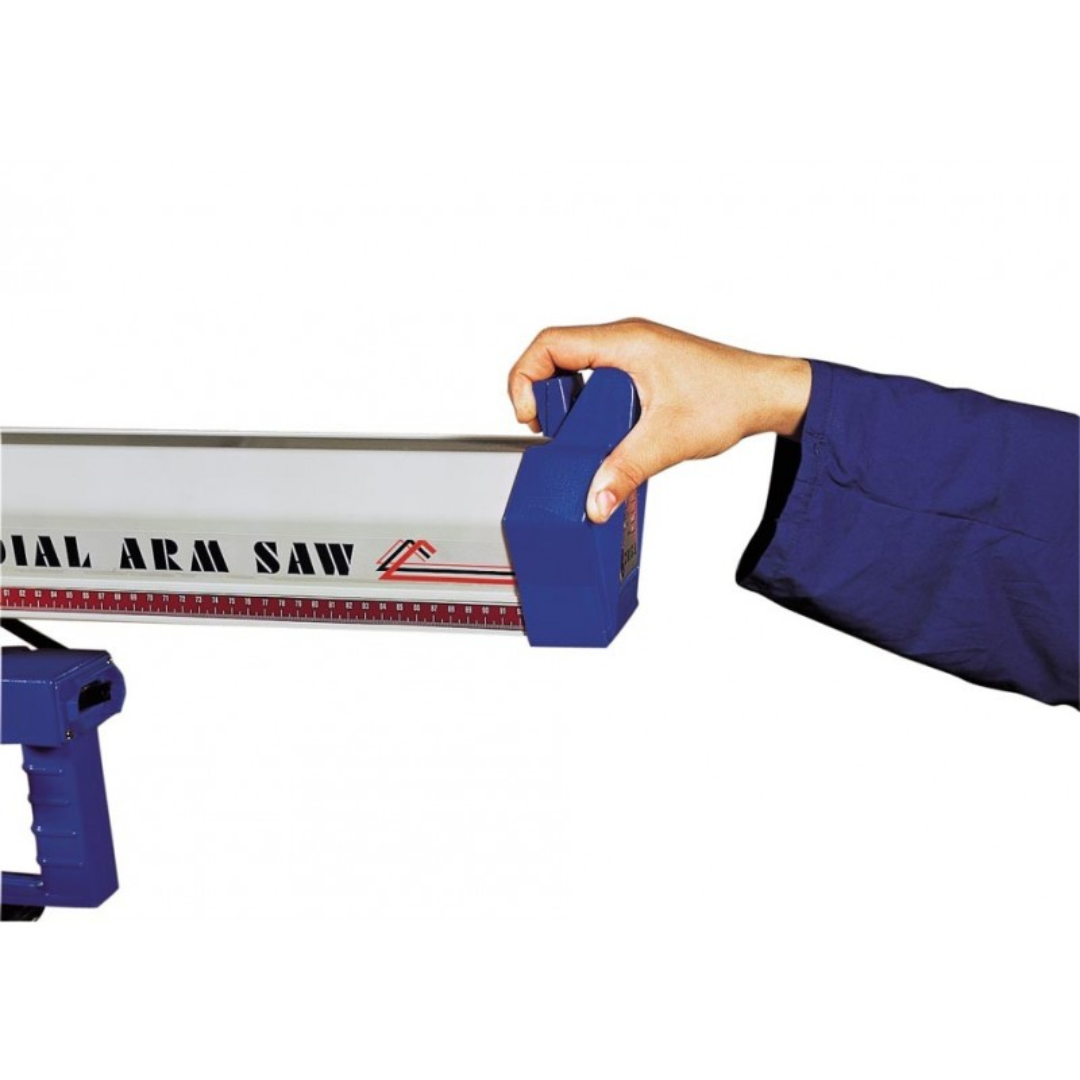

- Front-mounted arm unlocking control provides practical and efficient positioning adjustments during operation.
- Swiveling and tilting radial arm capability on both vertical and horizontal axes supports versatile cutting operations and increased production flexibility.
- Automatic head reversal system improves operational efficiency and workflow during repetitive cutting applications.
- Integrated motor brake enhances operator safety by providing faster blade stopping performance.
- Standard overload protection with no-volt coil helps protect the motor and electrical system during demanding industrial use.
- 3200 RPM arbor speed delivers smooth cutting action, clean finishes, and efficient material processing.
- Compact industrial footprint allows the machine to fit efficiently into smaller workshops and production spaces while maintaining industrial-grade performance.
Why Choose the OMGA RN 450 12" Radial Arm Saw
- Precision 8-bearing carriage system ensures smooth and accurate cutting performance.
- Reliable 4 HP motor designed for professional woodworking applications.
- Compact industrial footprint ideal for smaller workshops and production facilities.
- Self-centering locking system improves setup speed and cutting consistency.
- Swiveling and tilting radial arm functionality supports versatile cutting operations.
- Integrated dust scraper system improves track cleanliness and long-term reliability.
- Automatic head reversal and motor brake enhance safety and production efficiency.
The OMGA RN 450 12" Radial Arm Saw combines precision engineering, compact industrial construction, and versatile radial arm functionality to deliver dependable cutting performance for professional woodworking environments.
