System Highlights
- Extreme Asymmetrical Precision: Condition a micro-sized nursery or office up to 200 sq. ft. with the whisper-quiet 6K handler, while concurrently managing a massive open-plan living area or great room up to 1,500 sq. ft. with the high-tonnage 36K unit.
- Expandable 48K Condenser Chassis: Deploys out of the box as a robust dual-zone system, leaving immense reserve capacity to hook up four additional air handlers as your property footprint scales.

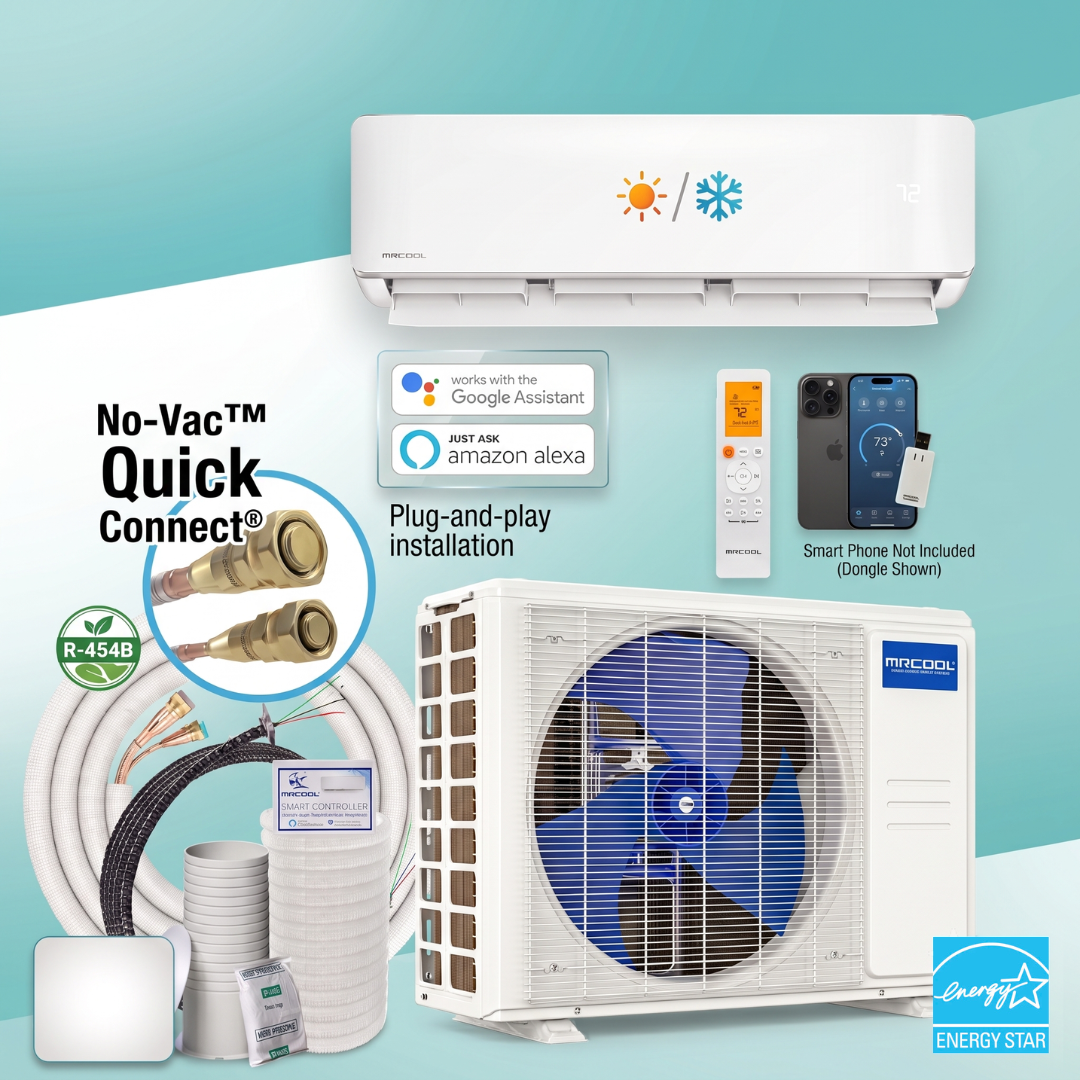

- True DIY Installation Workflow: Patented pre-charged Quick Connect® line sets completely eliminate conventional line evacuation and nitrogen testing. Includes robust DIYPRO® cabling.
- Smart Ecosystem Control: Full out-of-the-box integration via Amazon Alexa, Google Assistant, and the SmartHVAC mobile app for detailed remote zone tuning.
- Gold Fin® Corrosion Protection: Advanced clear-coat protective barrier shields the exterior condenser coil against extreme humidity and harsh coastal climates.
Engineered for homeowners who require extreme tonnage diversity, offering maximum long-term expansion flexibility from a single centralized 48K condenser framework.
Technical Specifications
| Total Connected Capacity | 42,000 BTU (6K + 36K Wall-Mounted Handlers) |
|---|---|
| Condenser Model | DIY-MULTI6-48HP230D-O (6-Zone Capable) |
| Electrical Interface Requirements | 208–230V, 1 Phase, 60 Hz |
| Refrigerant Type | R-454B (Pre-Charged) |
| Industry Compliance Certifications | UL Listed, ETL Listed, ENERGY STAR, AHRI Certified |
Zone Configuration & Performance Metrics
| Specification / Feature | Zone 1: 6K Wall-Mount | Zone 2: 36K Wall-Mount |
|---|---|---|
| Cooling / Heating Output | 6,000 BTU | 36,000 BTU |
| Lineset Interconnect Size | 1/4" Liquid • 3/8" Suction | 3/8" Liquid • 5/8" Suction |
| Lineset Length Options | 16 ft, 25 ft, 35 ft, or 50 ft | 16 ft, 25 ft, 35 ft, or 50 ft |
Advanced Engineering & Warranty
- DC Inverter Drive Architecture: The continuous variable-speed rotary inverter compressor scales its operating frequency down precisely to match ambient thermal loads, completely avoiding costly current draw spikes.
- Follow Me® Climate Sensing: Syncs with the handheld remote to track the ambient temperature exactly where you are sitting, signaling the wall unit to refine its louver movement for maximum comfort.
- 7-Year Compressor Warranty: Commercial-grade structural factory backing ensuring the heart of your outdoor condenser system remains protected against manufacturing defects.
- 5-Year Parts Protection Framework: Comprehensive hardware replacement coverage across internal circuit boards and critical operational components.
