MRCOOL 5th Gen DIY 6K BTU Outtasight® Ceiling Cassette Applications
- Targeted heating and cooling for small bedrooms, nurseries, or home offices (Up to 200 sq. ft.).
- Retrofit projects requiring discreet, low-profile HVAC solutions without opening walls.
- New construction builds utilizing standard 16" on-center ceiling joists.
- System expansions integrating into existing MRCOOL multi-zone or single-zone configurations.
- Modern homes requiring seamless smart-home integration and ultra-quiet operation.

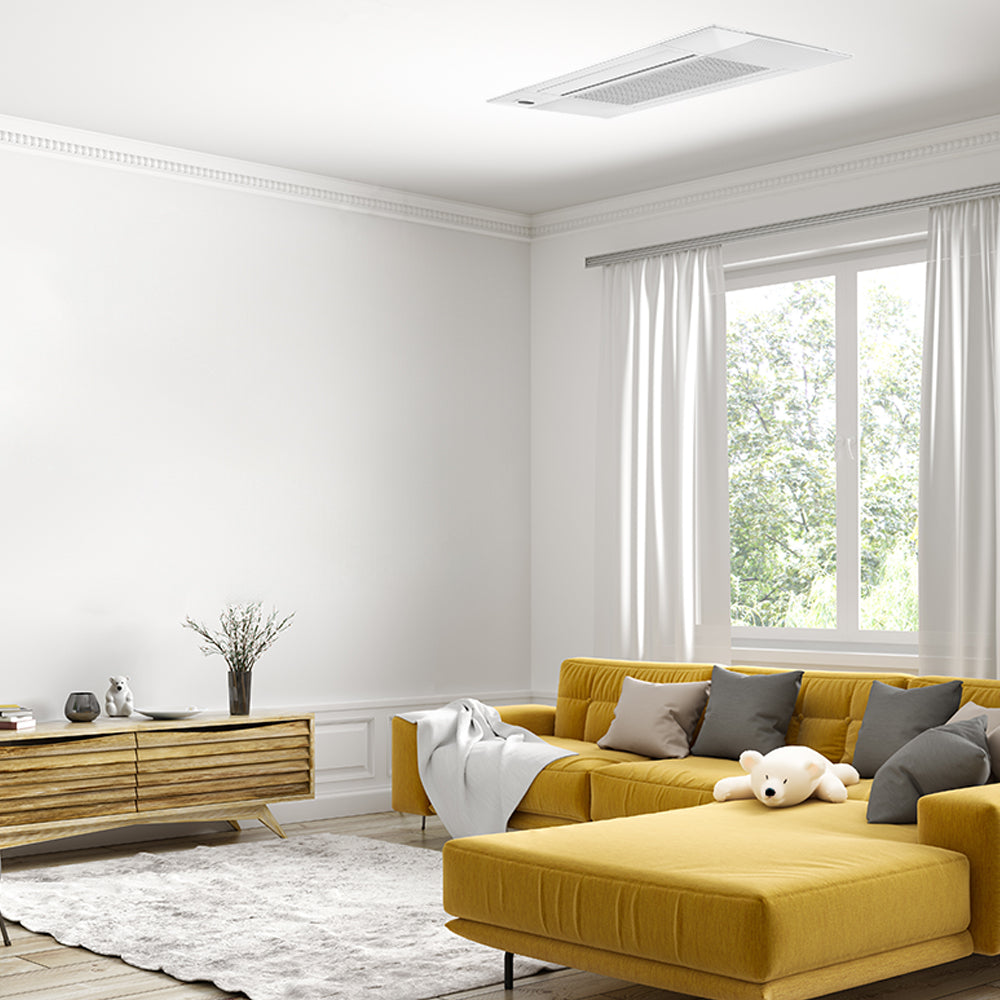

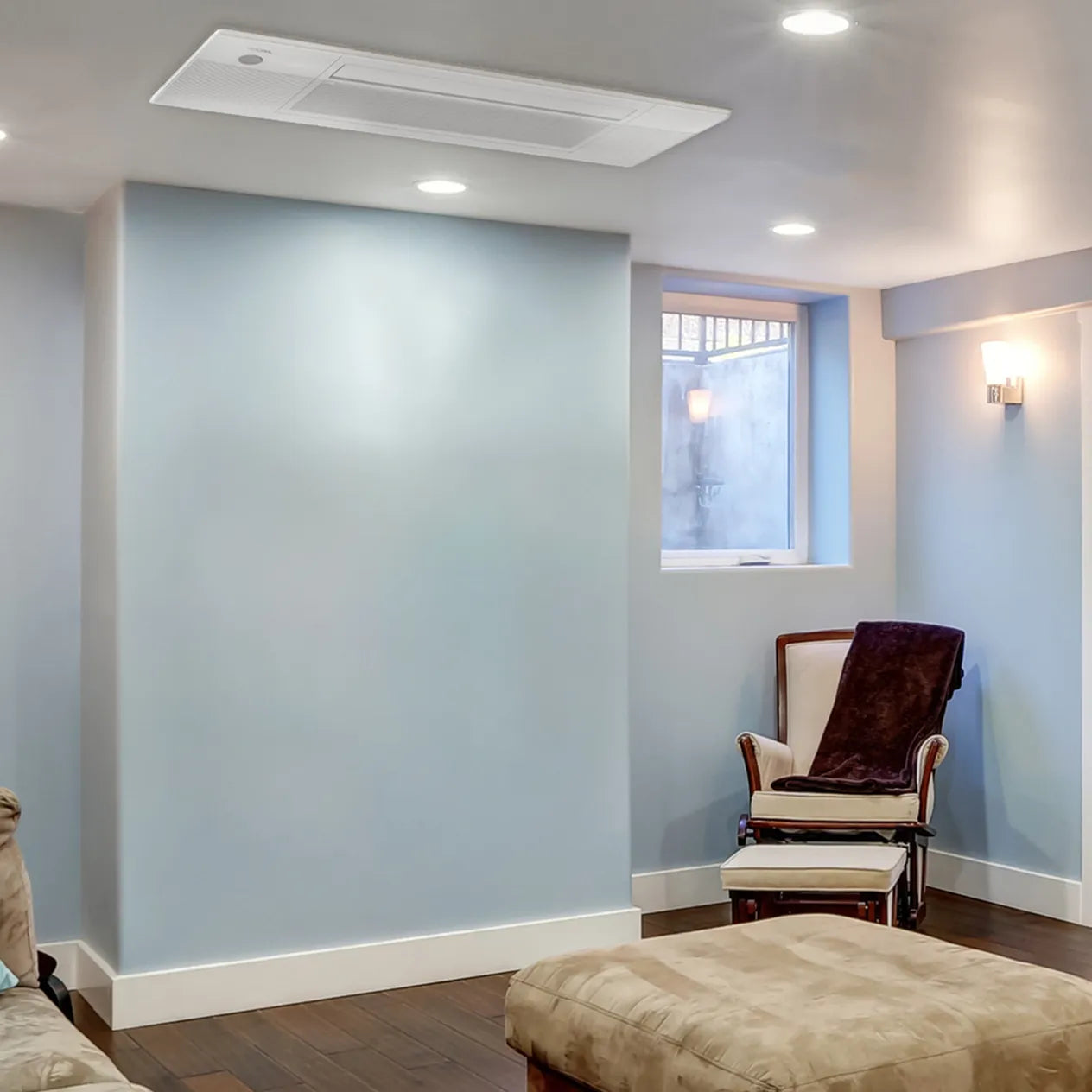

Ideal for homeowners who want the high performance of a ductless mini-split but demand the clean, unobstructed look of a flush-mounted ceiling unit for smaller rooms.
MRCOOL 5th Gen DIY 6K BTU Outtasight® Ceiling Cassette Specifications
| SKU | DIYCASSETTE06HP-230D25-O |
|---|---|
| Power Supply | 208-230V / 60 Hz / 1-Phase |
| Capacity | 6,000 BTU |
| Max Coverage Area | Up to 200 sq. ft. |
| Airflow Direction | 1-Way |
| Mounting Type | Ceiling (Fits between 16" joists) |
| Refrigerant Type | R-454B Pre-Charged Compatible |
| Noise Level (Low / High) | 23.5 dBA / 46.5 dBA |
| Lineset Sizing | 1/4" Liquid / 3/8" Suction |
| Filter Type | Reusable (Advanced Filtration) |
| Net Dimensions (W×H×D) | 50.31" × 8.98" × 13.19" |
| Net Weight | 45 lbs |
| Warranty | 5-Year Base Parts / 7-Year Compressor (Limited Lifetime Registered) |
MRCOOL 5th Gen DIY 6K BTU Outtasight® Ceiling Cassette Features & Technology

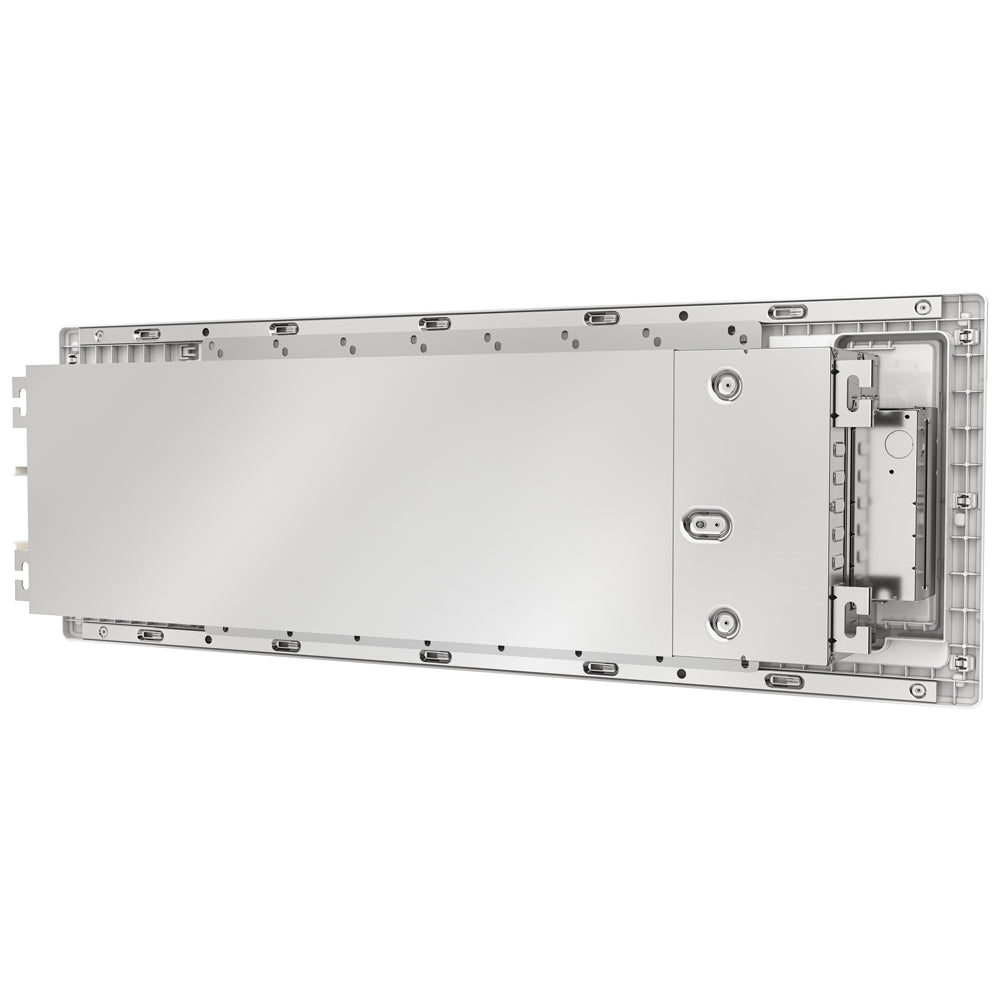

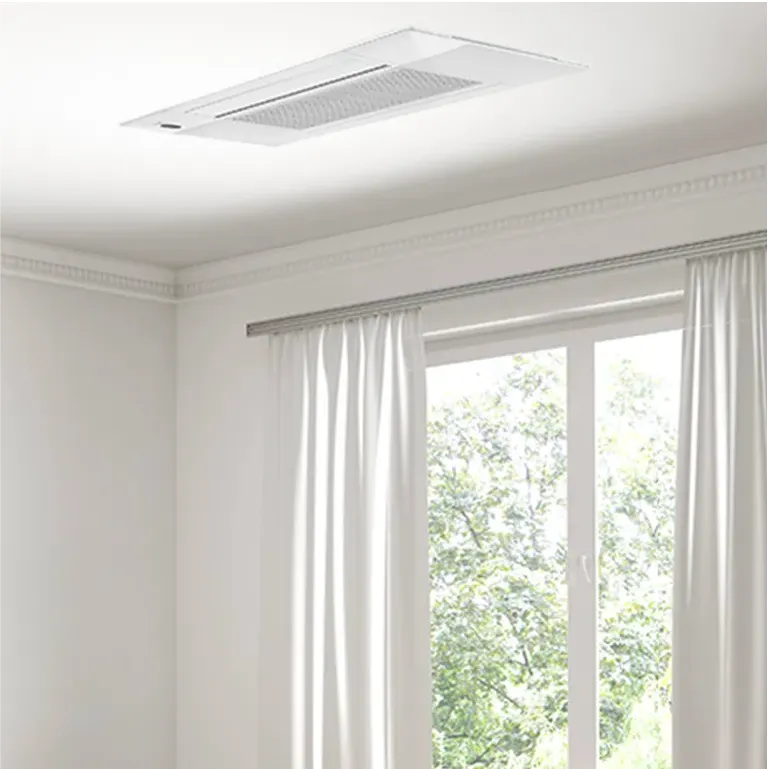

- Low Profile Installation: Expertly designed to slide perfectly between standard 16" ceiling joists for a true flush-mount, architectural finish.

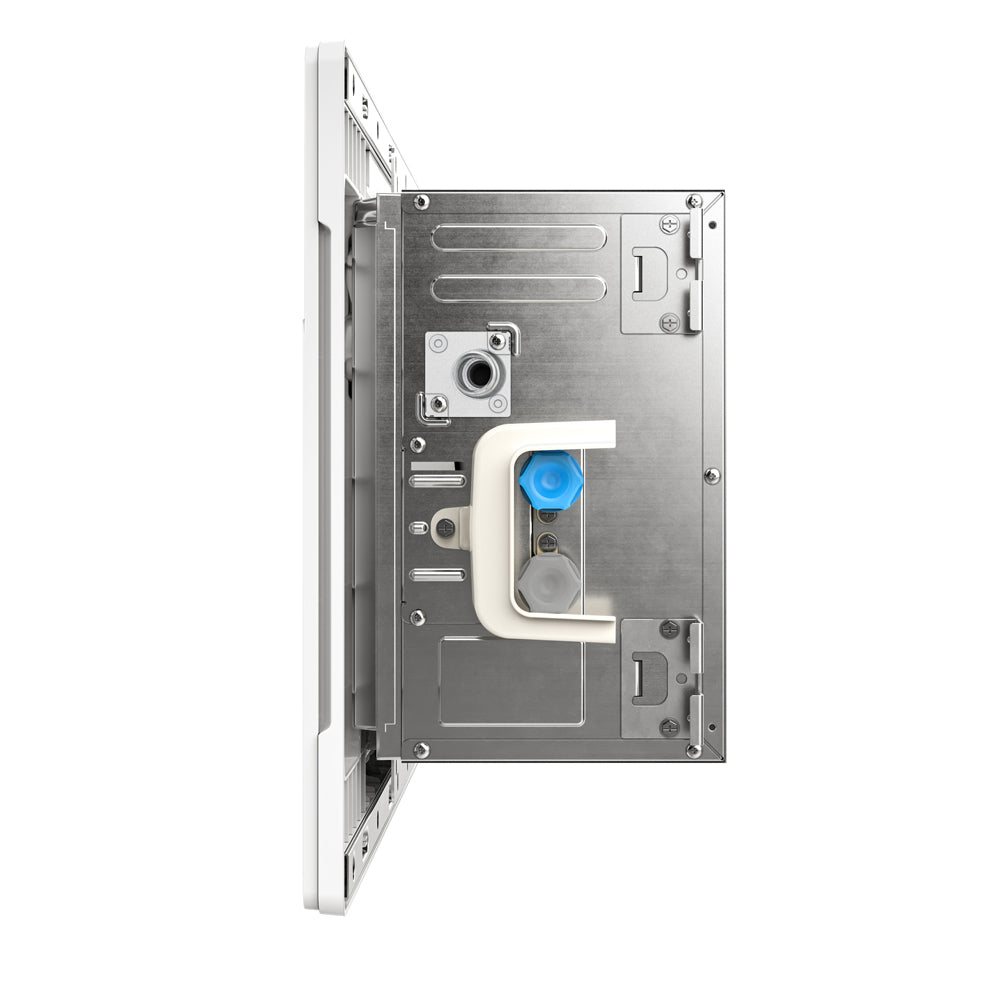

- True DIY Setup: Compatible with MRCOOL® DIY® Quick Connect® line sets, completely eliminating the need for professional vacuuming or refrigerant charging.
- Elevation Filter Function: Features an innovative motorized panel that lowers the air filter at the push of a button for incredibly easy maintenance.
- Smart Home Integration: Built-in Wi-Fi fully supports the SmartHVAC app (iOS/Android), Amazon Alexa, and Google Assistant for hands-free control.
- Two-Stage DC Motor: Delivers highly efficient, whisper-quiet operation (as low as 23.5 dBA) with multiple blower speeds.

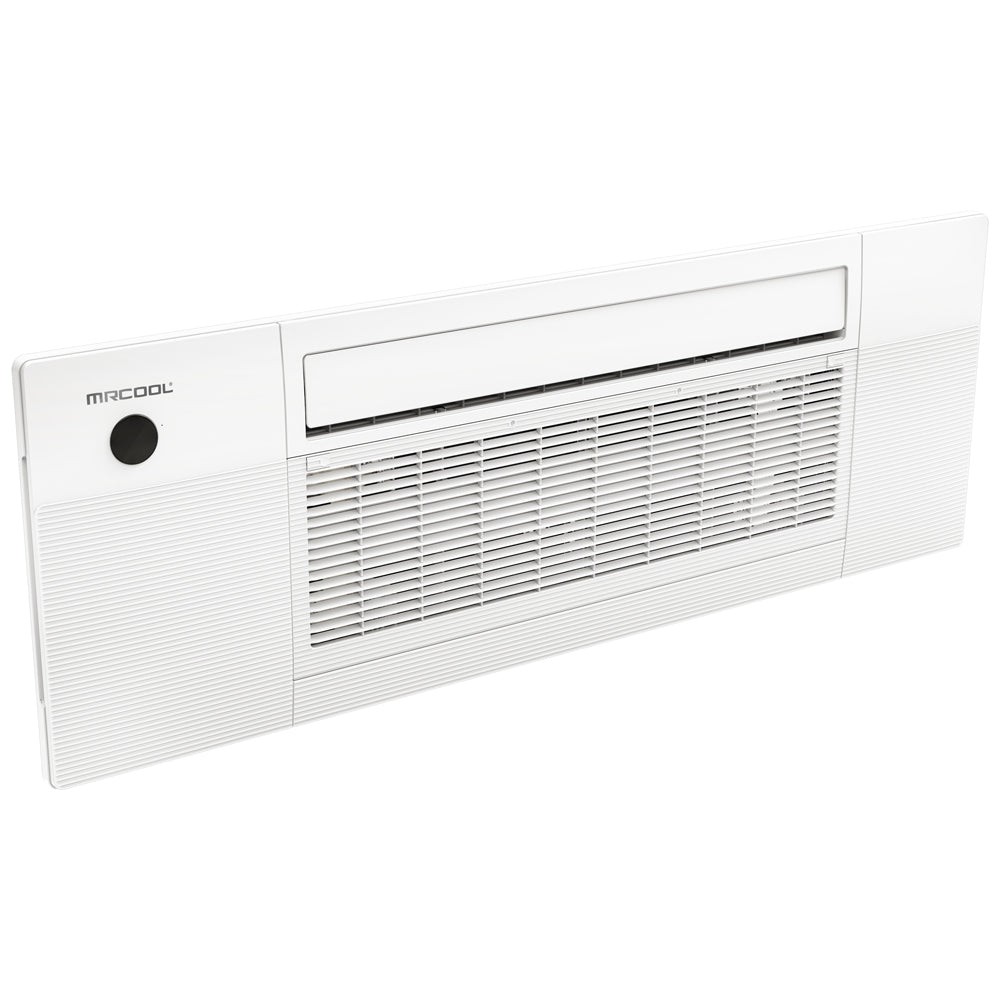

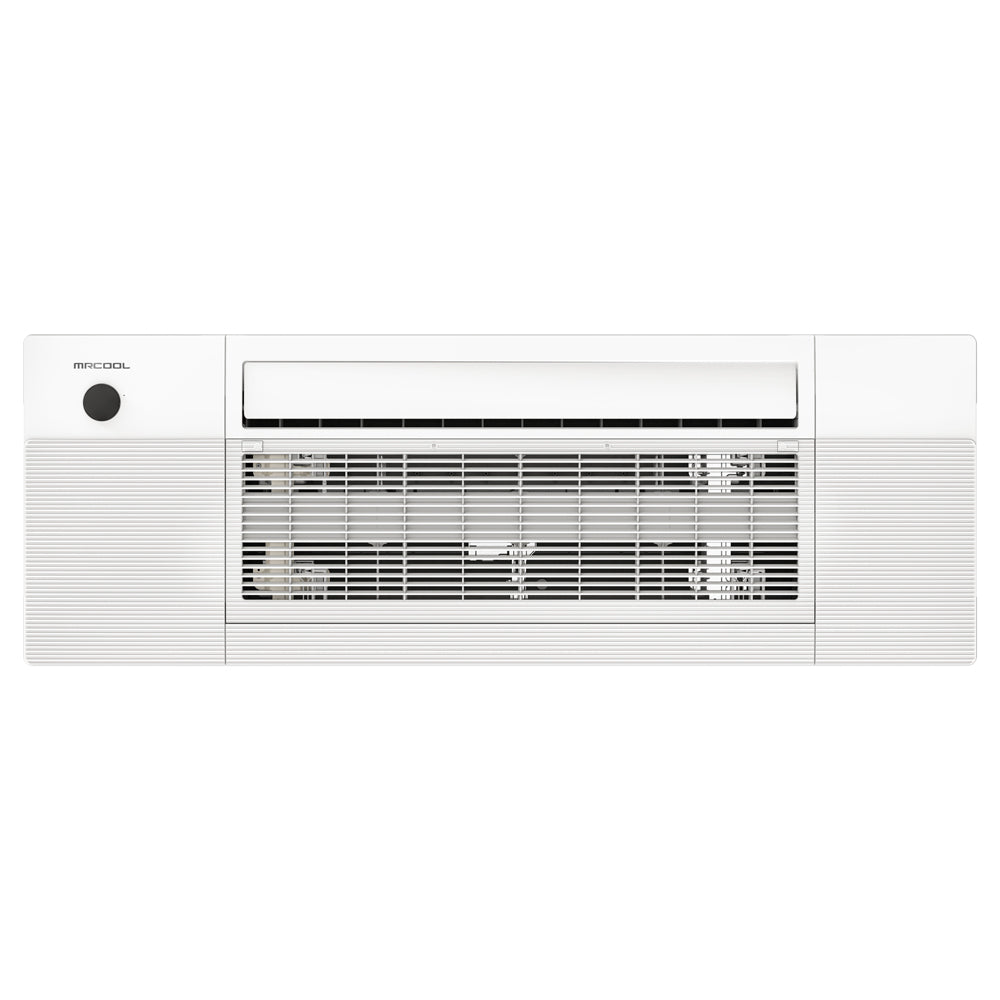

- Swing Technology: Automated directional louvers ensure even, comprehensive air distribution throughout the entire 200 sq. ft. room.
Downloads & Documentation
Why Choose the MRCOOL 5th Gen DIY 6K Outtasight® Ceiling Cassette
- Achieve a premium, architecturally clean look perfectly sized for smaller spaces without sacrificing performance.
- Future-proof your climate control with the environmentally friendly, low-GWP R-454B refrigerant.
- Effortless filter maintenance thanks to the advanced motorized elevation panel.
- Versatile enough to be used in both single-zone and multi-zone system configurations.
The MRCOOL® DIY® Outtasight® 6K Ceiling Cassette combines cutting-edge airflow technology, discreet aesthetics, and ultimate DIY simplicity, giving you complete control over your comfort without compromising your home's design.
