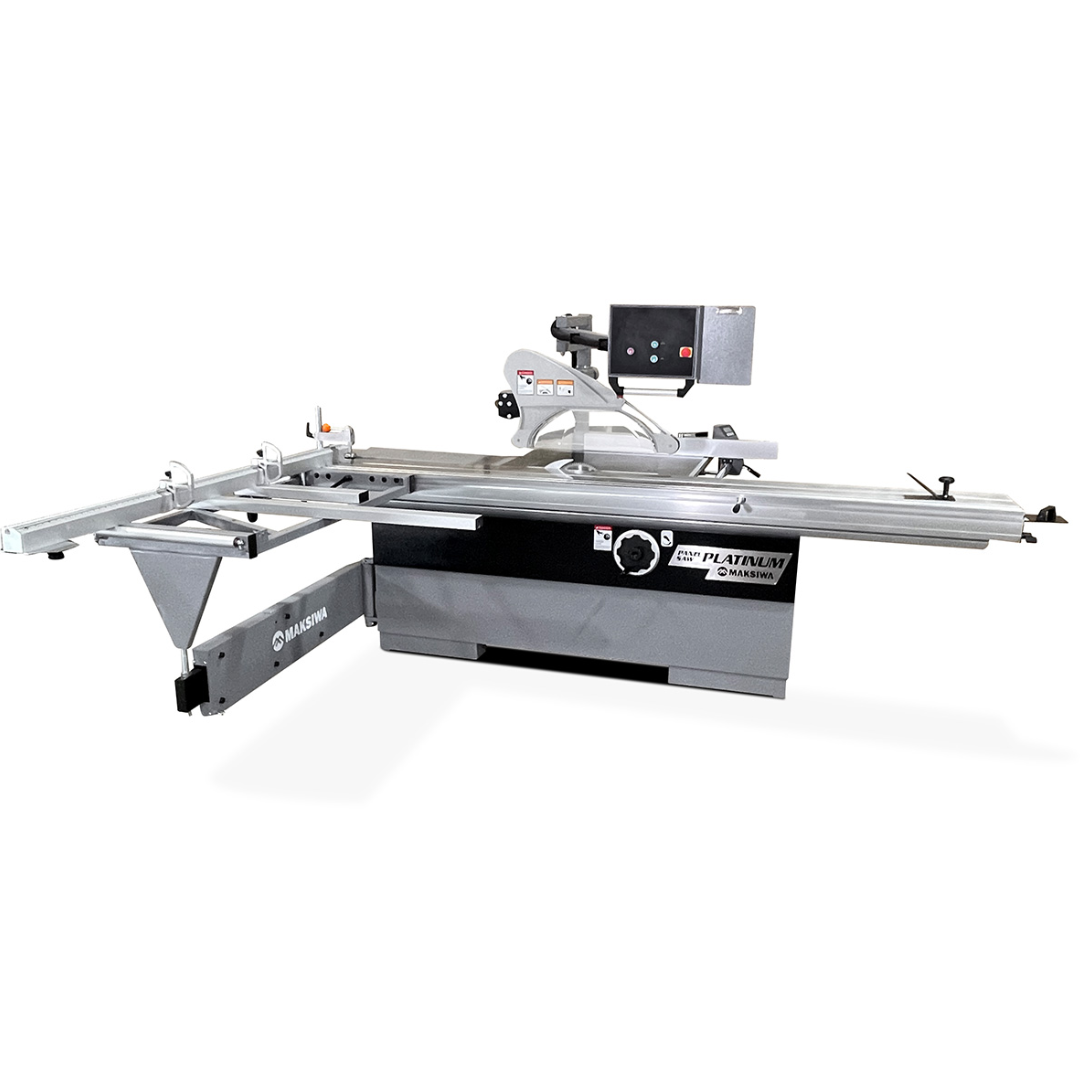

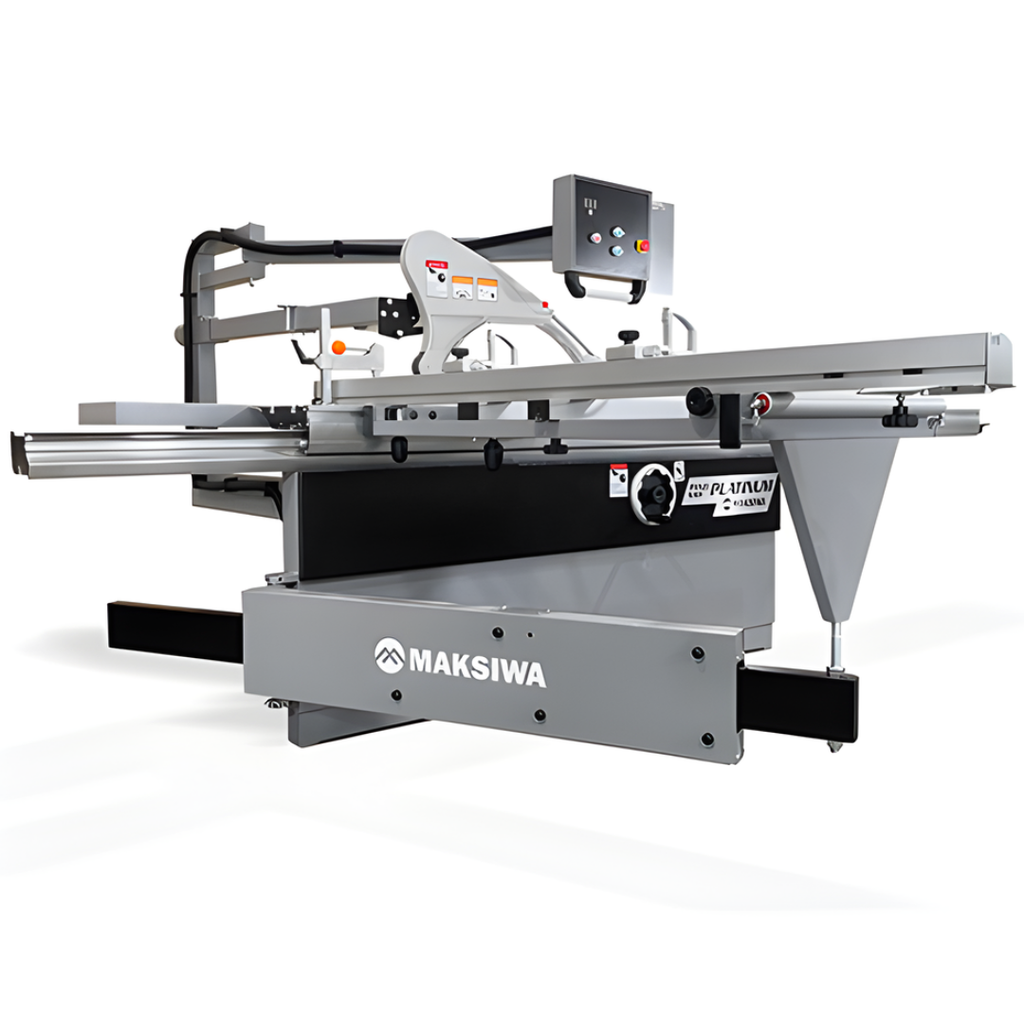

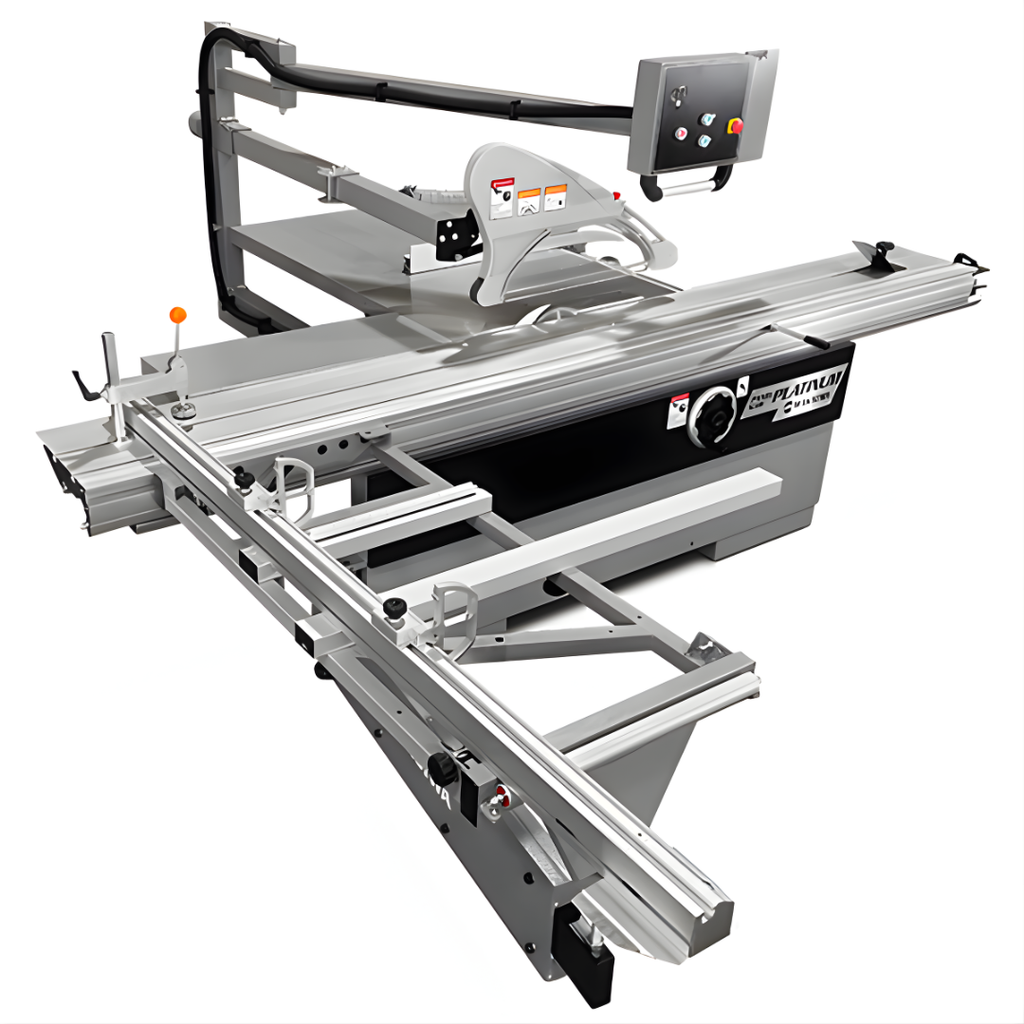

Maksiwa BMP.3200.IR Sliding Panel Saw — Platinum Edition
The Maksiwa BMP.3200.IR Sliding Panel Saw is made for one thing: fast, clean, accurate cuts on big panels, all day long.
If you cut plywood, MDF, melamine, or hardwood in a real shop, you know this pain: the table sticks, the fence moves, the cut chips, and you waste time. This saw is built to fix that.
What the Maksiwa BMP.3200.IR Sliding Panel Saw does for your shop
-
You cut faster.
Big power helps you keep a steady feed. Less slow-down on tough material. -
You get cleaner edges.
The scoring blade helps stop chips on melamine and veneer. Parts look better right away. -
You waste less material.
The rip fence locks in. You can micro-adjust in small steps. More “right the first time.” -

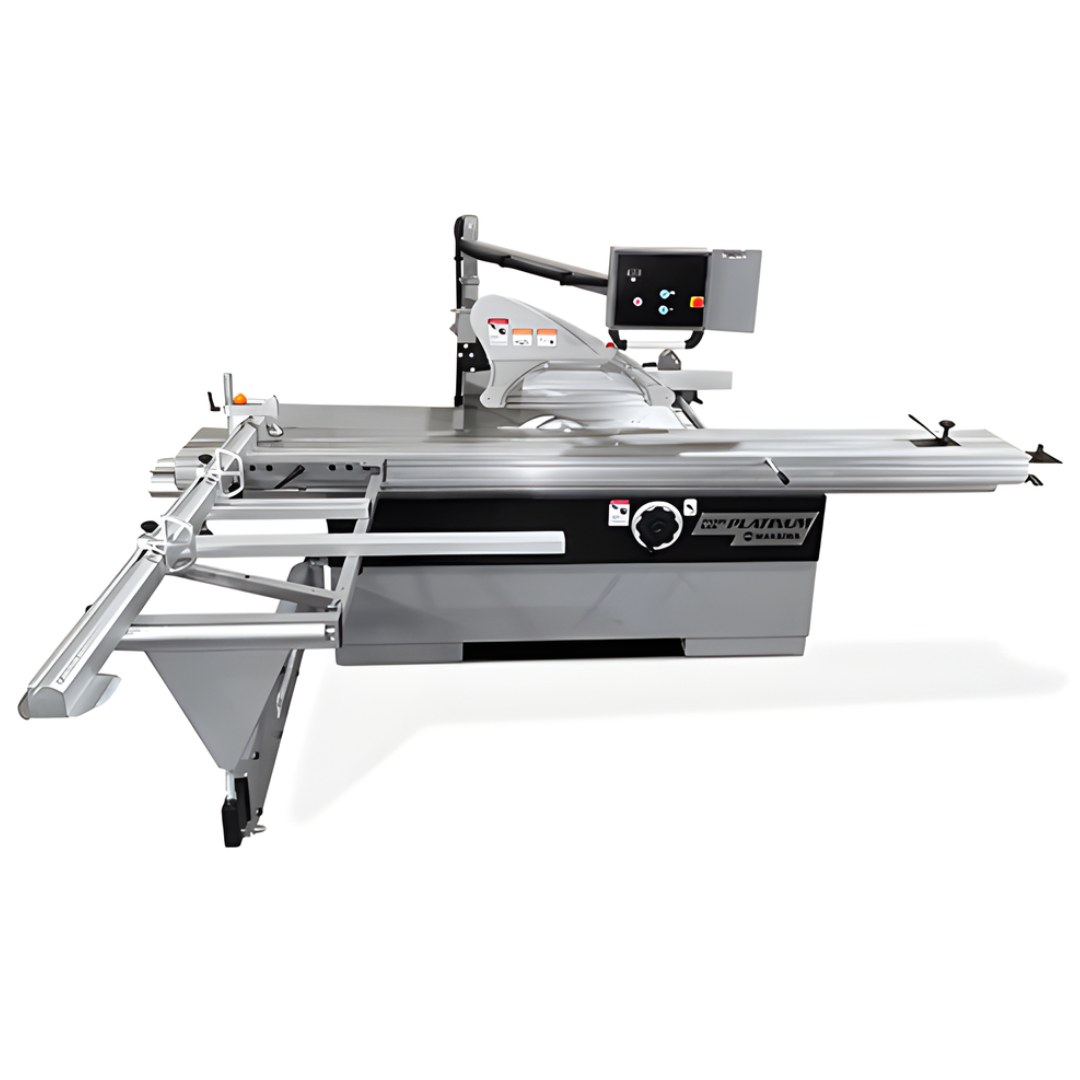

You control big panels.
The 126" sliding table glides on linear guide rails. It feels smooth, not heavy.

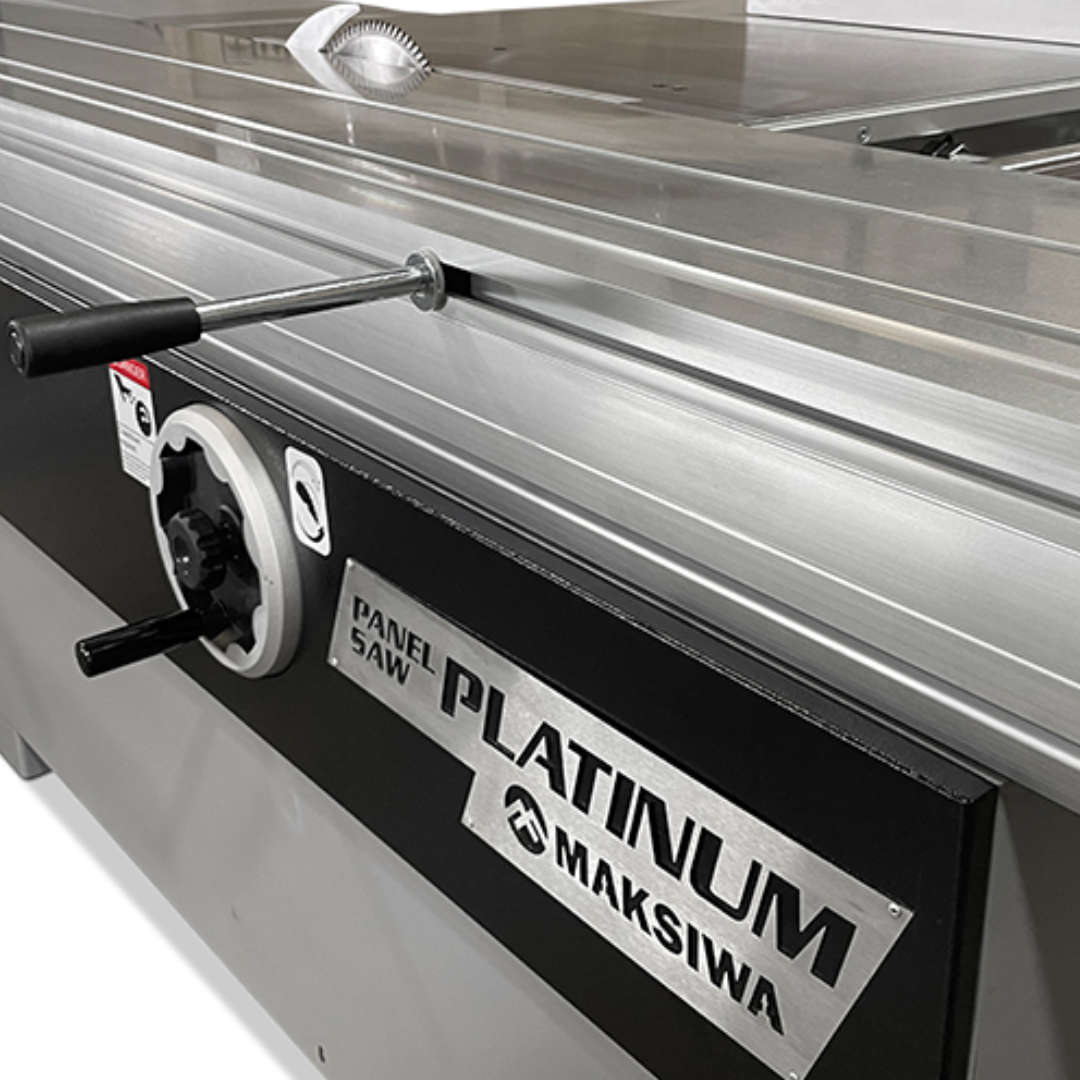

Maksiwa BMP.3200.IR Sliding Panel Saw — why the table feels so smooth

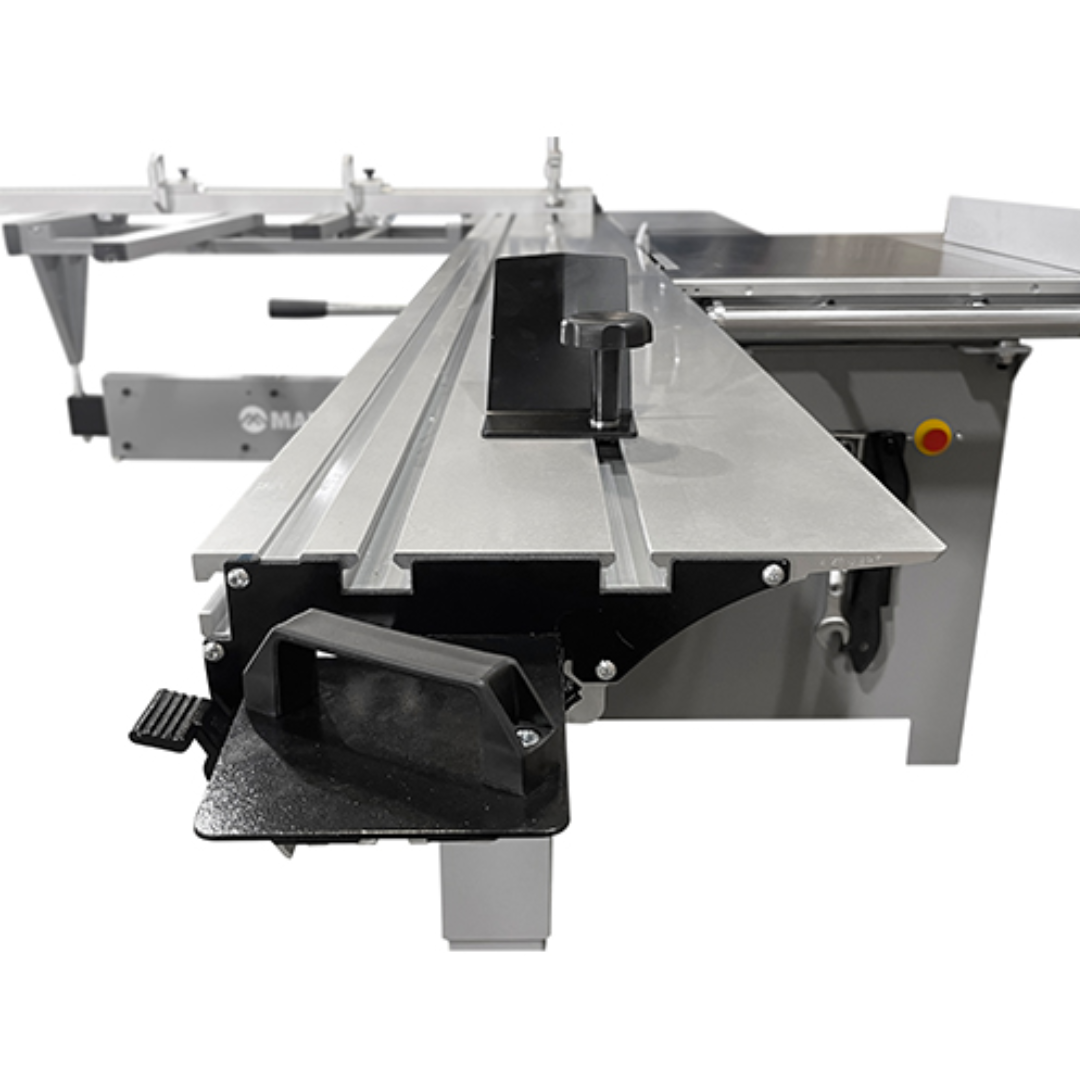

The table is anodized aluminum. It is made to last and slide well. It runs on precision linear guide rails.
- Smooth movement: you push and it goes. No jerks.
- Better control: the panel stays steady.
- Less fatigue: you do not fight the machine all day.

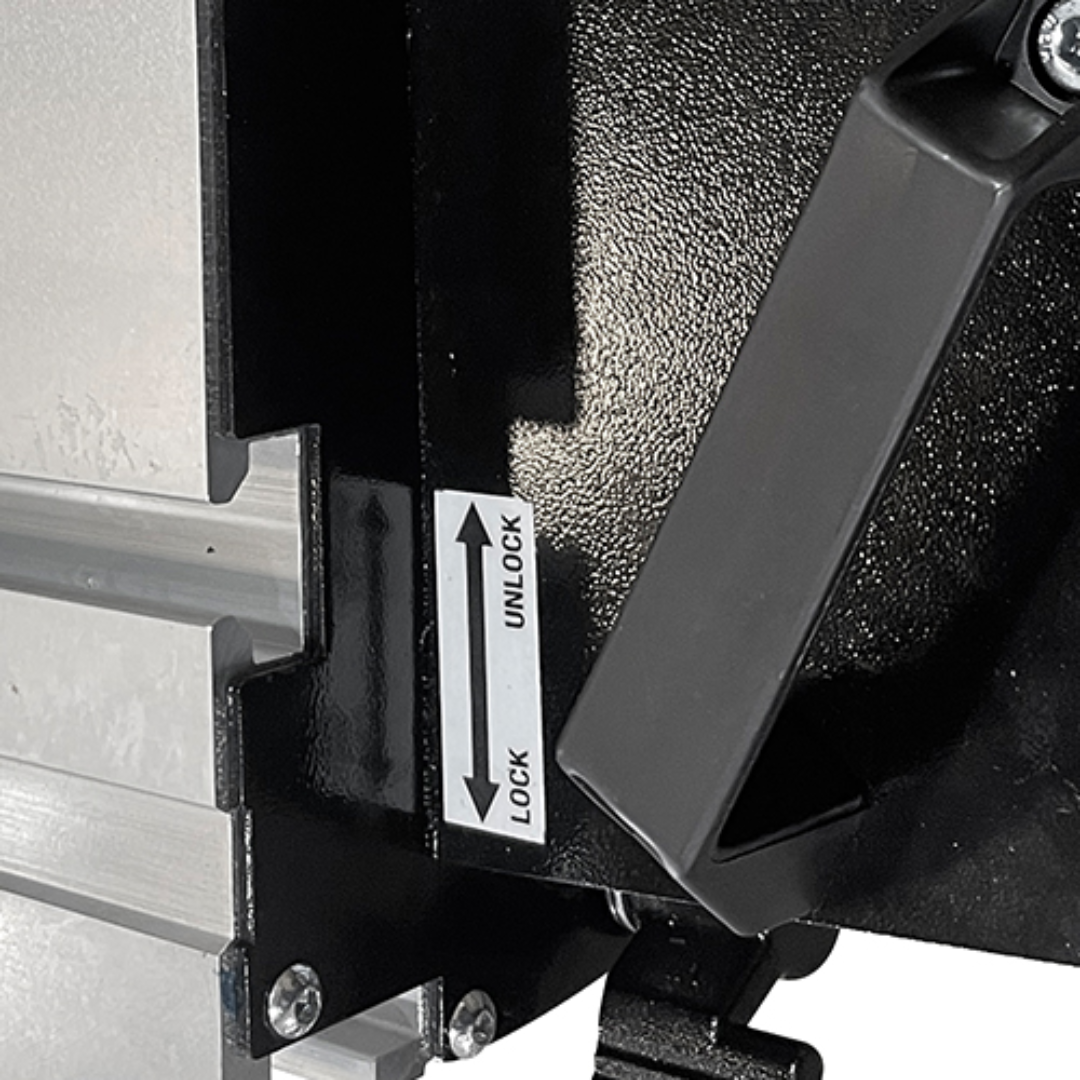

There is also a sliding table lock to help keep the work in place when you need it.
Maksiwa BMP.3200.IR Sliding Panel Saw — rip fence made for repeat cuts

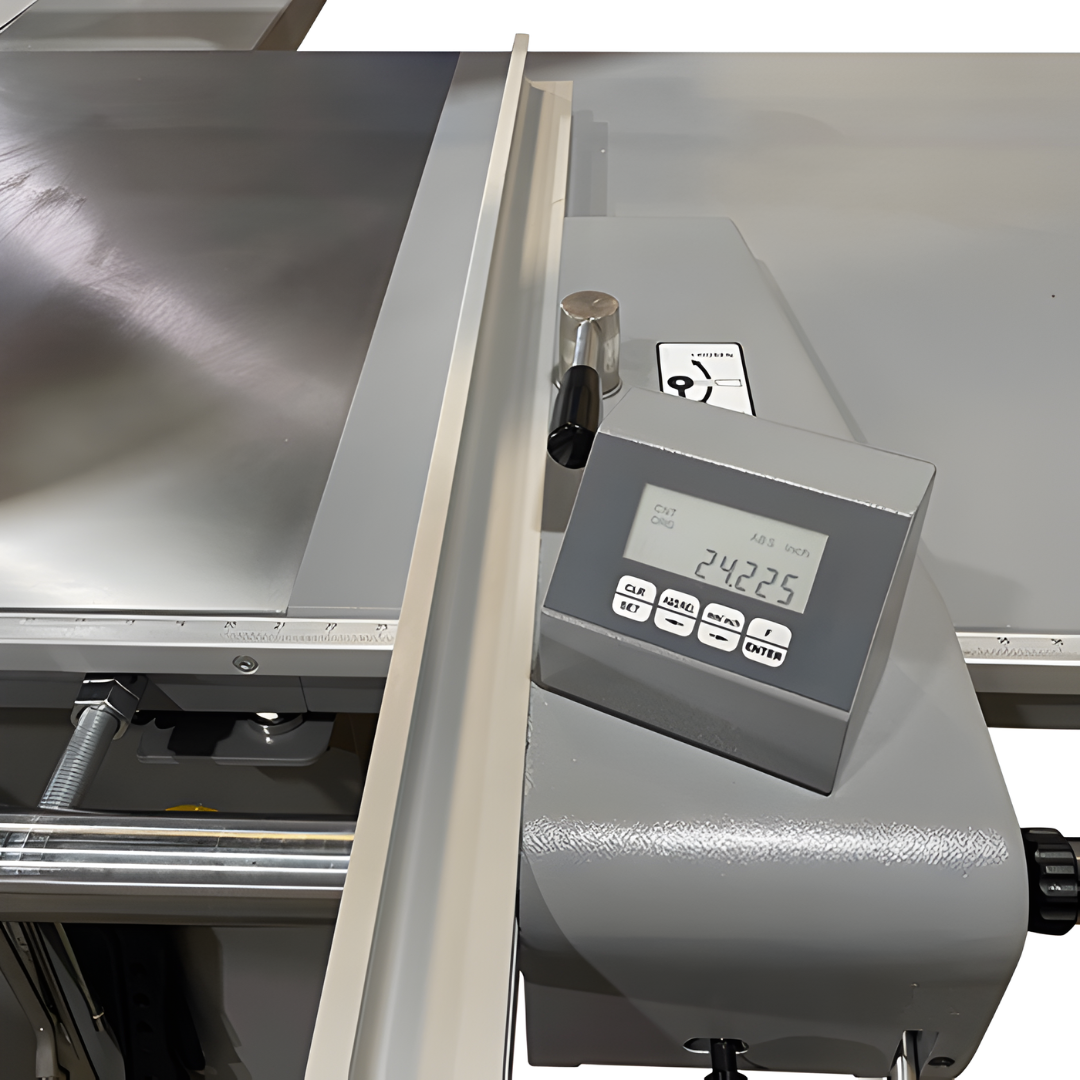

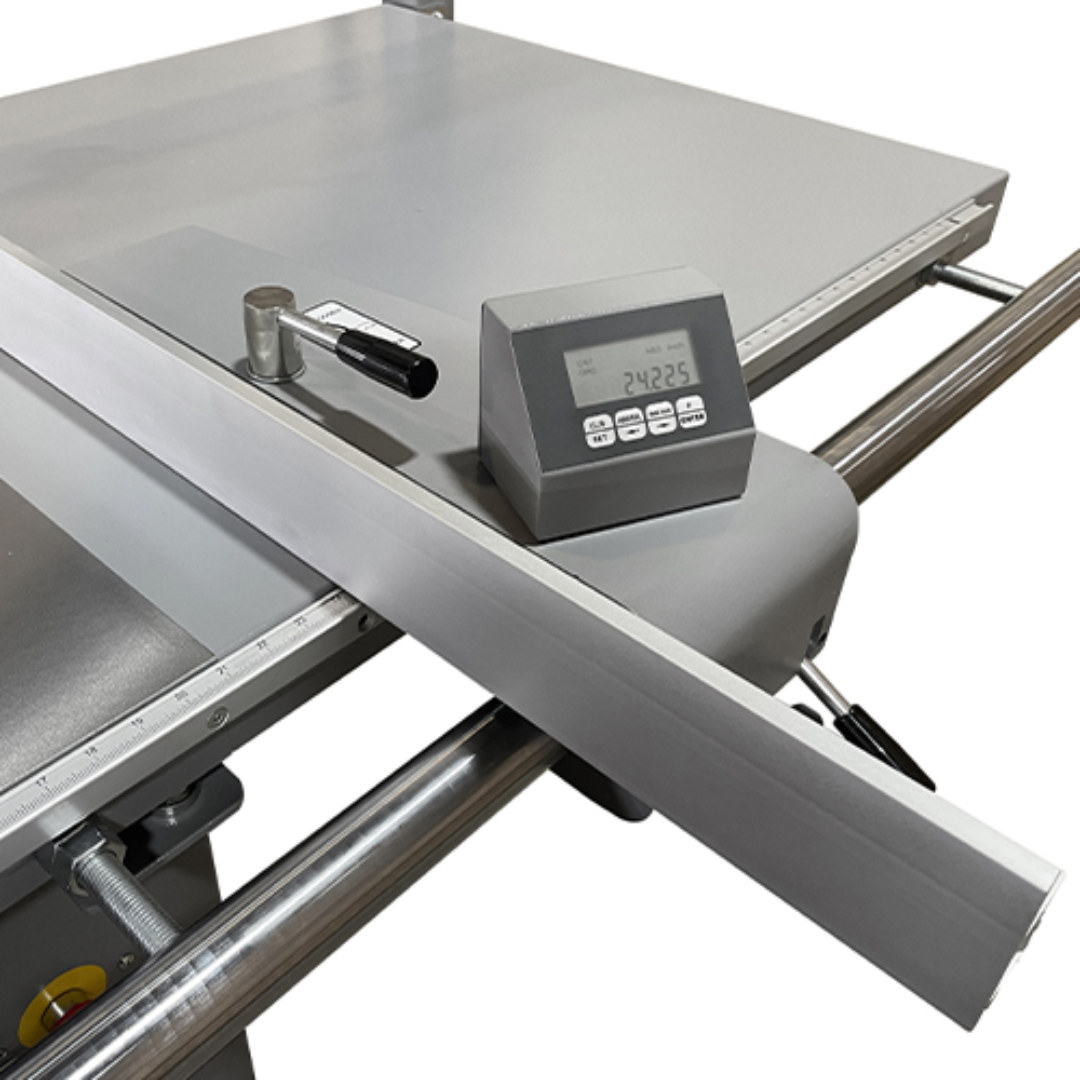

The rip fence is European style (51"). It has a digital readout so you can see your setting. It also has a micro adjustment for tiny changes.
- Lock it. The fence stays put.
- Fine-tune it. Move in small steps.
- Repeat it. Make the same cut again and again.
The fence uses a heavy-duty casting riding on a micro-polished solid steel bar. That is why it feels solid.

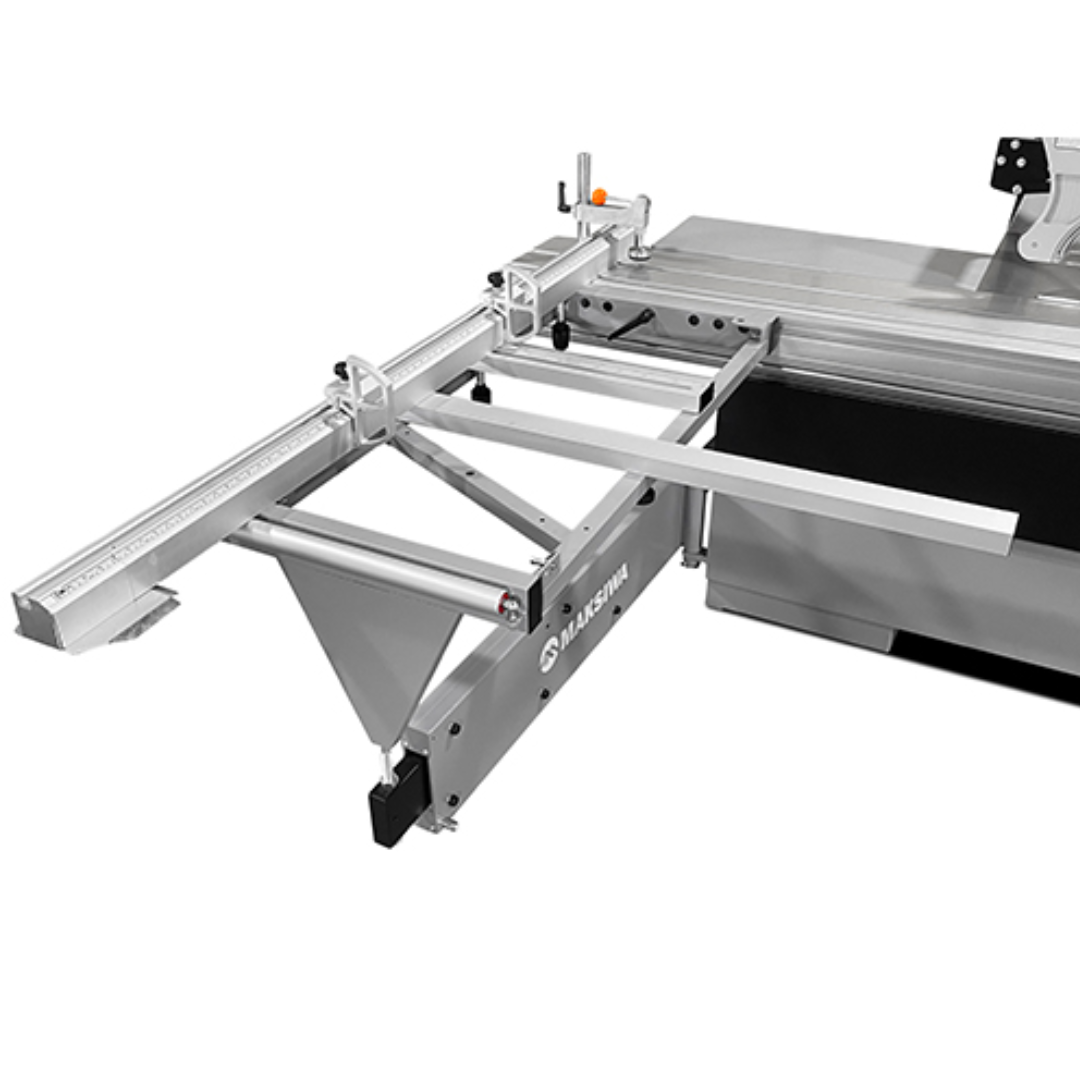

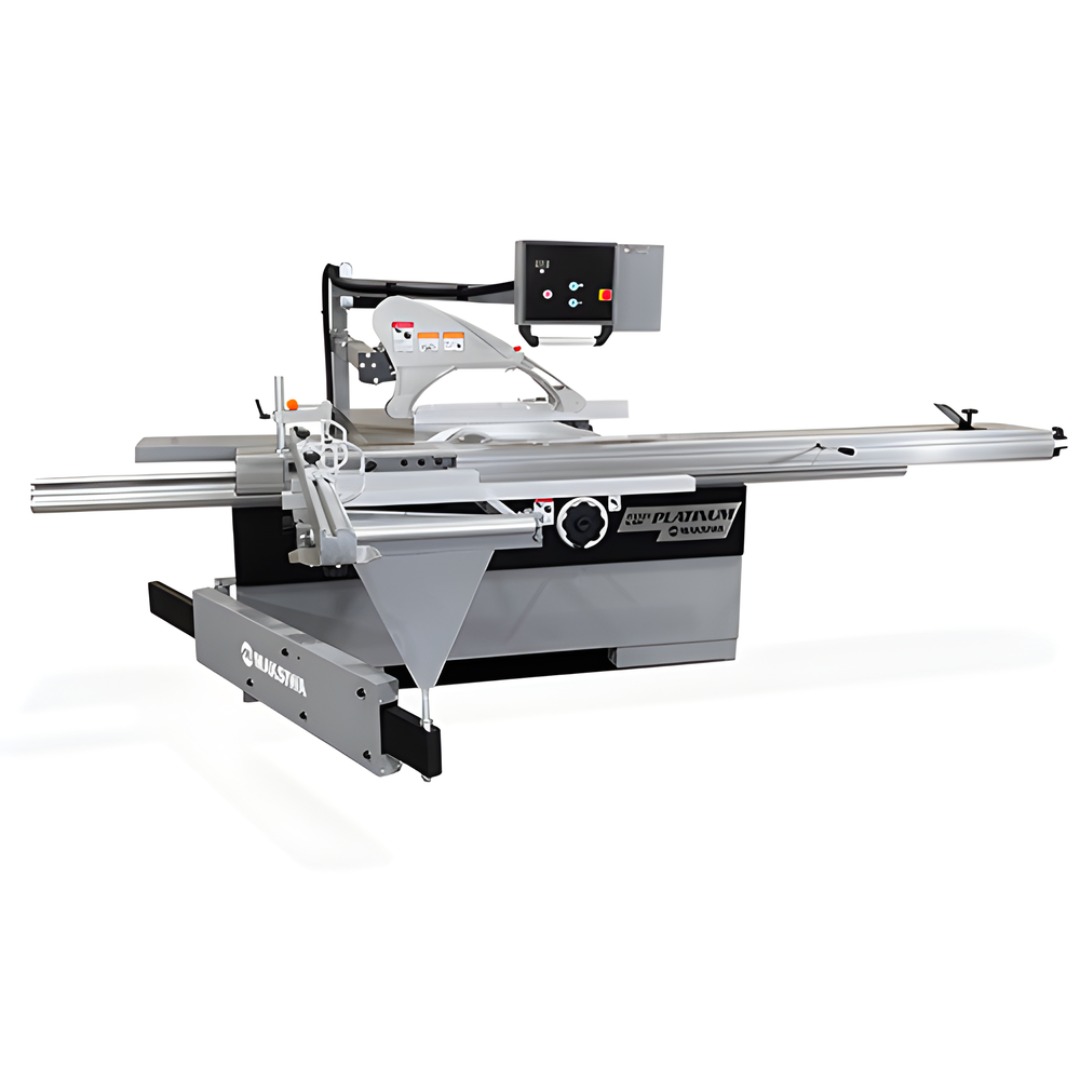

Maksiwa BMP.3200.IR Sliding Panel Saw — crosscut fence for long parts
The crosscut fence is anodized aluminum and made for production work. It has:
- Two solid flip stops (quick repeat cuts)
- Telescoping reach up to 120"
- 45° miter for angled work
- Easy-to-read tape (ergonomic design)
Maksiwa BMP.3200.IR Sliding Panel Saw — safety + dust (simple and smart)

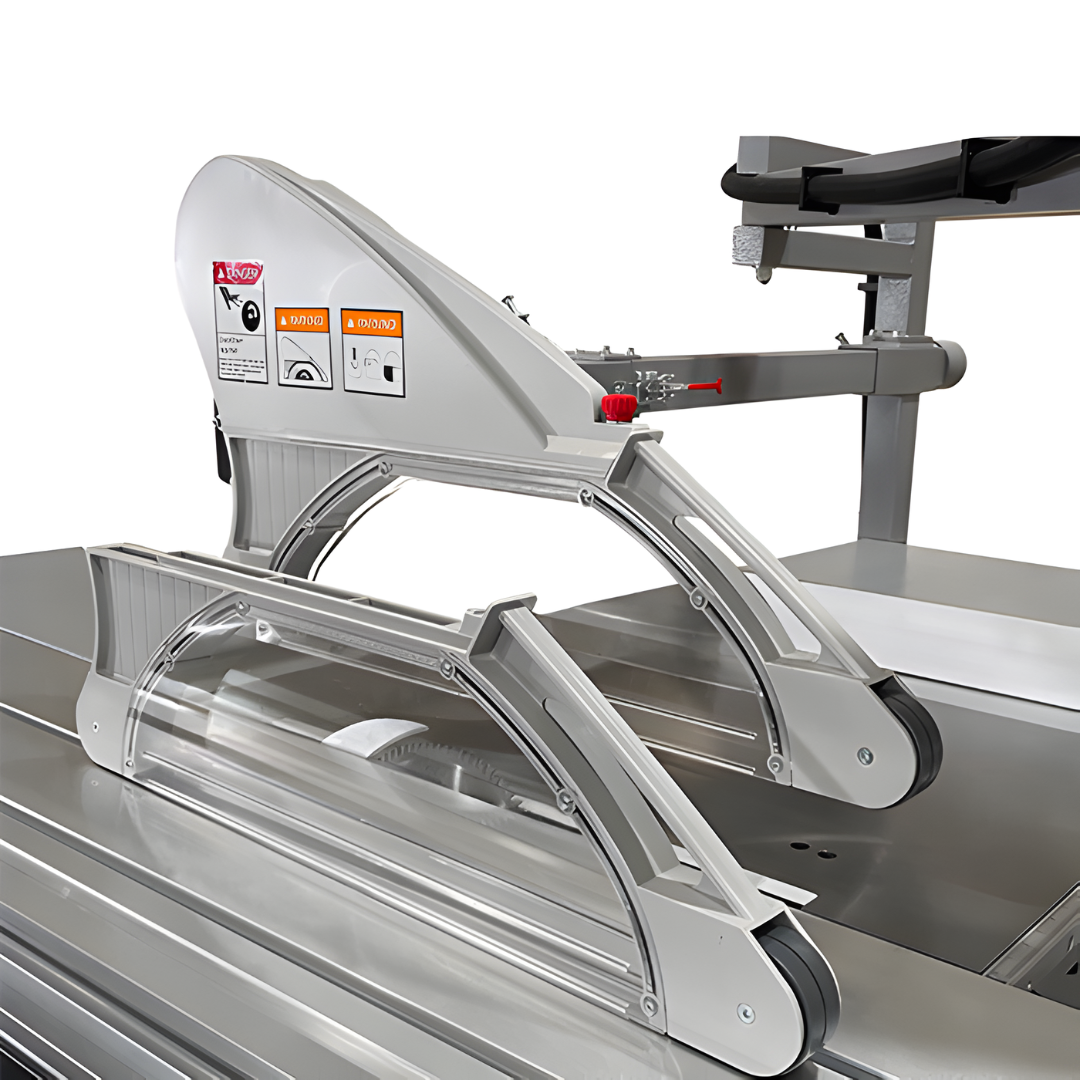

This saw comes with two overhead guards: one for 90° and one for 45°. They have a quick-change and swing-away design.
- Switch fast: change guards in seconds.
- Move it away: swing it out when needed.
- Dust ready: dual 4" dust ports help keep the shop cleaner.
Minimum dust need: 1000 CFM.
Maksiwa BMP.3200.IR Sliding Panel Saw — what’s included
- Push handle

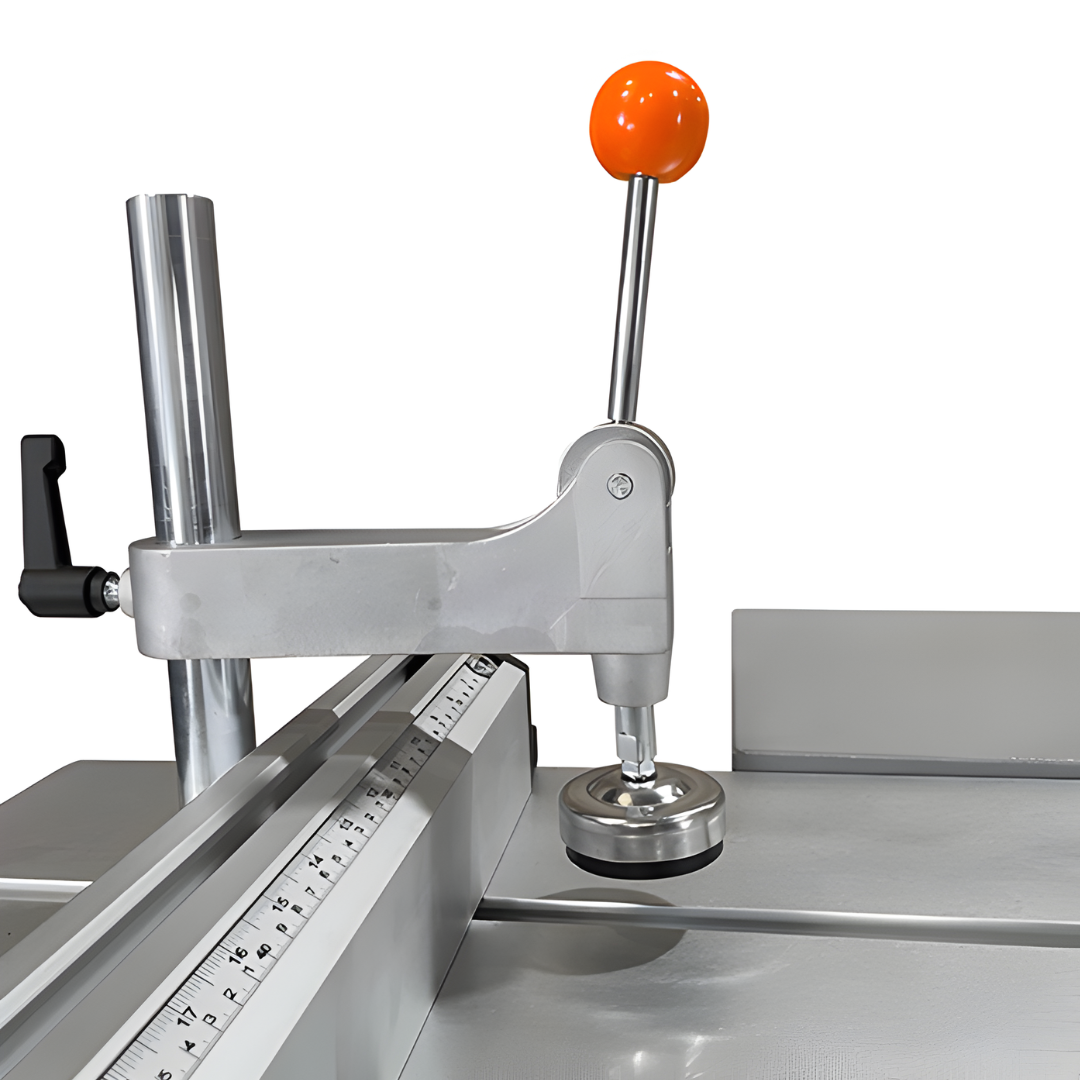

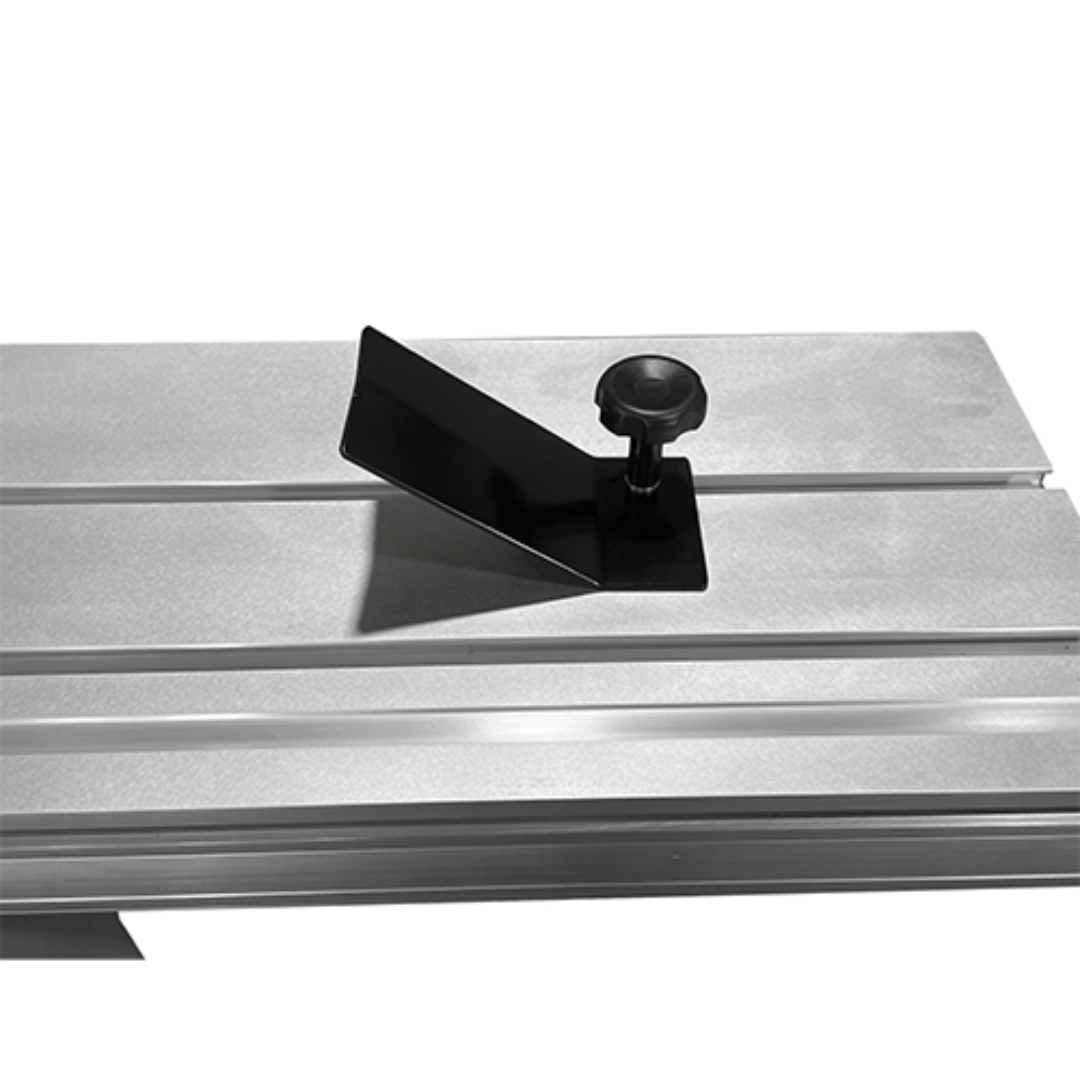

- Hold-down clamp
- Wedge clamp
- Dual overhead guards (90° and 45°) with quick-change + swing-away

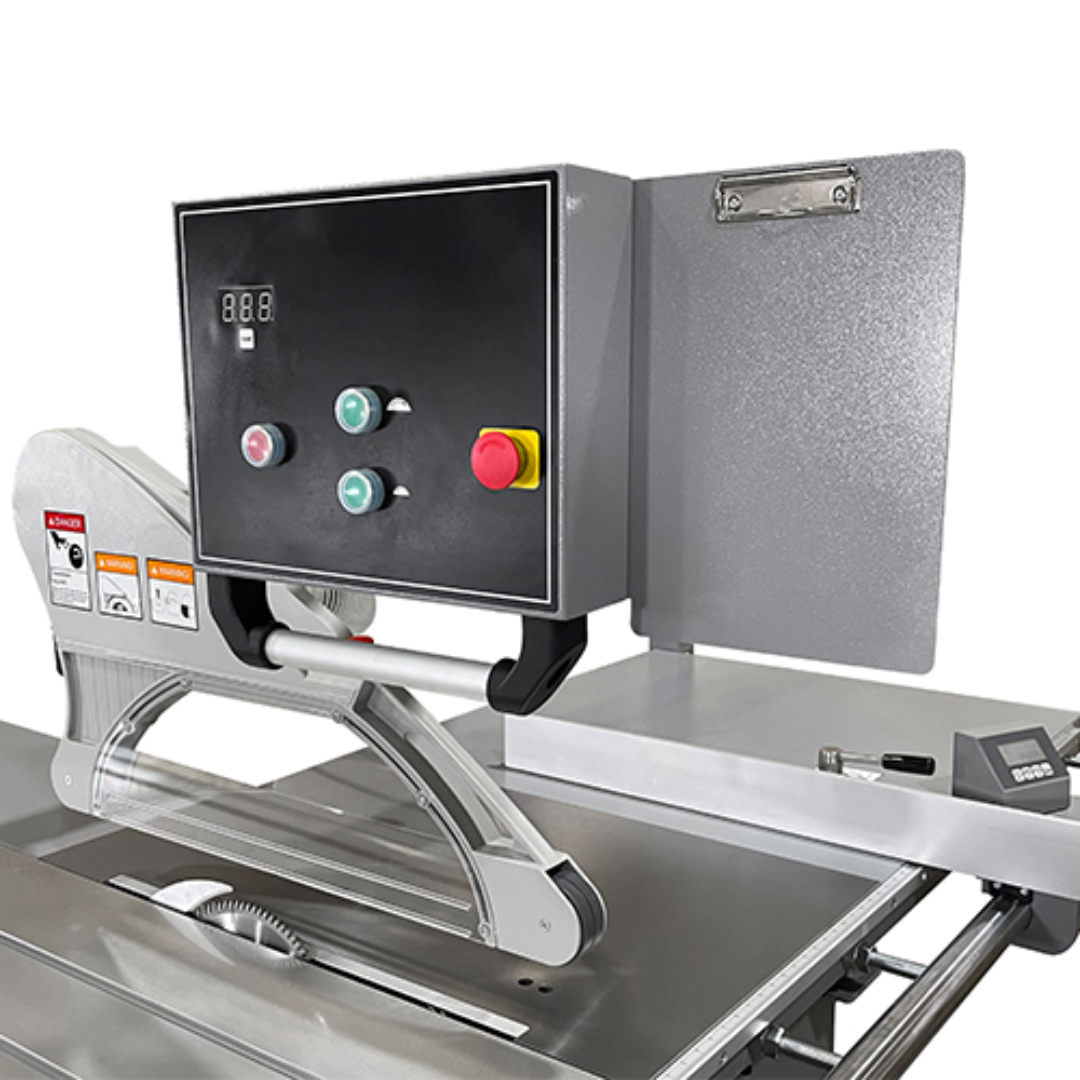

- Control panel at eye level (easy access)
- (As stated) free 12" 96-tooth blade
Is the Maksiwa BMP.3200.IR Sliding Panel Saw right for you?
| You are a good fit if… | You may want a different saw if… |
|---|---|
| You cut full sheets and big panels often. | You only cut small boards once in a while. |
| You want smooth table movement and better control. | You do not have space for a 126" slider setup. |
| You need clean edges on melamine/veneer. | You never cut laminated sheet goods. |
| You have 3-phase 220V power available. | You only have single-phase power. |
Maksiwa BMP.3200.IR Sliding Panel Saw full specifications
| Specification | Value |
|---|---|
| Model | BMP.3200.IR |
| Main Motor | 7.5 HP/ 4000 RPM 5.5 Kw |
| Max Blade Diameter | 14" | 355mm |
| Main Blade Arbor | 1 3/16" | 30mm |
| Main Blade Max cutting Height at 90° | 3 1/2" | 90 mm |
| Main Blade Cutting Height at 45° | 2 7/16" | 63mm |
| Scoring Motor | 3/4 HP / 8000 RPM .74Kw |
| Scoring Blade | 4 3/4" | 120mm |
| Scoring Blade Arbor | 25/32" | 20mm |
| Scoring Blade Type | Conical |
| Max Ripping Capacity | 51" | 1300mm |
| Crosscut Capacity | 126" | 3200 mm |
| Crosscut Fence Capacity Closed/Open | 78" / 120" | 1981mm / 3048 mm |
| Machine Working Dimensions (LxWxH) | 132" x 137" x 75" | 3352 x 3479 x 1905 mm |
| Cast Iron Table Dimension (LxWxH) | 35" x 21" x 34" | 896 X 548 X 864 mm |
| Sliding Table Dimension (LxW) | 126" x 14 " | 3200 x 358 mm |
| Dust Collection Port (2) | 4" | 100mm |
| Minimum Dust Collection Requirements | 1000 CFM | 28m/min |
| Electrical Specs | 3 Phase 220V 30 Amps 60 Hz |
| Main Body Crate Dimensions (LxWxH) | 83" x 45" x 45" | 2108x 1143 x 1143 mm |
| Main Body Crate Weight Net/Gross | 1470 LBS | 667 KGS |
| Sliding Table Crate Dimensions (LxWxH) | 133" x 18" x 15" | 3378 x 457 x 381 mm |
| Sliding Table Crate Weight Net/Gross | 274 LBS | 124 KGS |
Note: Specs are shown exactly as provided (inches + mm).
