Maggi Junior 640CE Radial Arm Saw MAG-JUNIOR640 Applications
- Precision crosscutting of panels, boards, and solid wood
- Rip cutting and dimensional processing
- Angle cuts for framing, cabinetry, and furniture production
- General woodworking and fabrication shops
- Production environments requiring repeatable accuracy
Ideal for shops that need a versatile cutting solution capable of handling crosscuts, rips, and angled cuts with consistent precision.
Maggi Junior 640CE Radial Arm Saw MAG-JUNIOR640 Specifications
| Motor | 4 HP (2800 RPM) |
|---|---|
| Blade Diameter | 16" (Not Included) |
| Arbor Diameter | 1" |
| Table Size | 66.5" x 38.39" |
| Max Crosscut Capacity | 21.5" (on 3/4" material at 90°) |
| Rip Capacity | 0" – 33.8" |
| Max Depth of Cut | 4.9" |
| Max Cut Length (45° Right) | 15" |
| Max Cut Length (45° Left) | 7.5" |
| Dust Collection | Blade Guard & Rear Table Dust Chutes |
| Machine Dimensions | 62" x 55" x 61" Tall |
| Machine Weight | 447 lbs |
| Crated Dimensions | 56" x 34" x 24" Tall |
| Crated Weight | 512 lbs |
Maggi Junior 640CE Radial Arm Saw MAG-JUNIOR640 Performance & Features

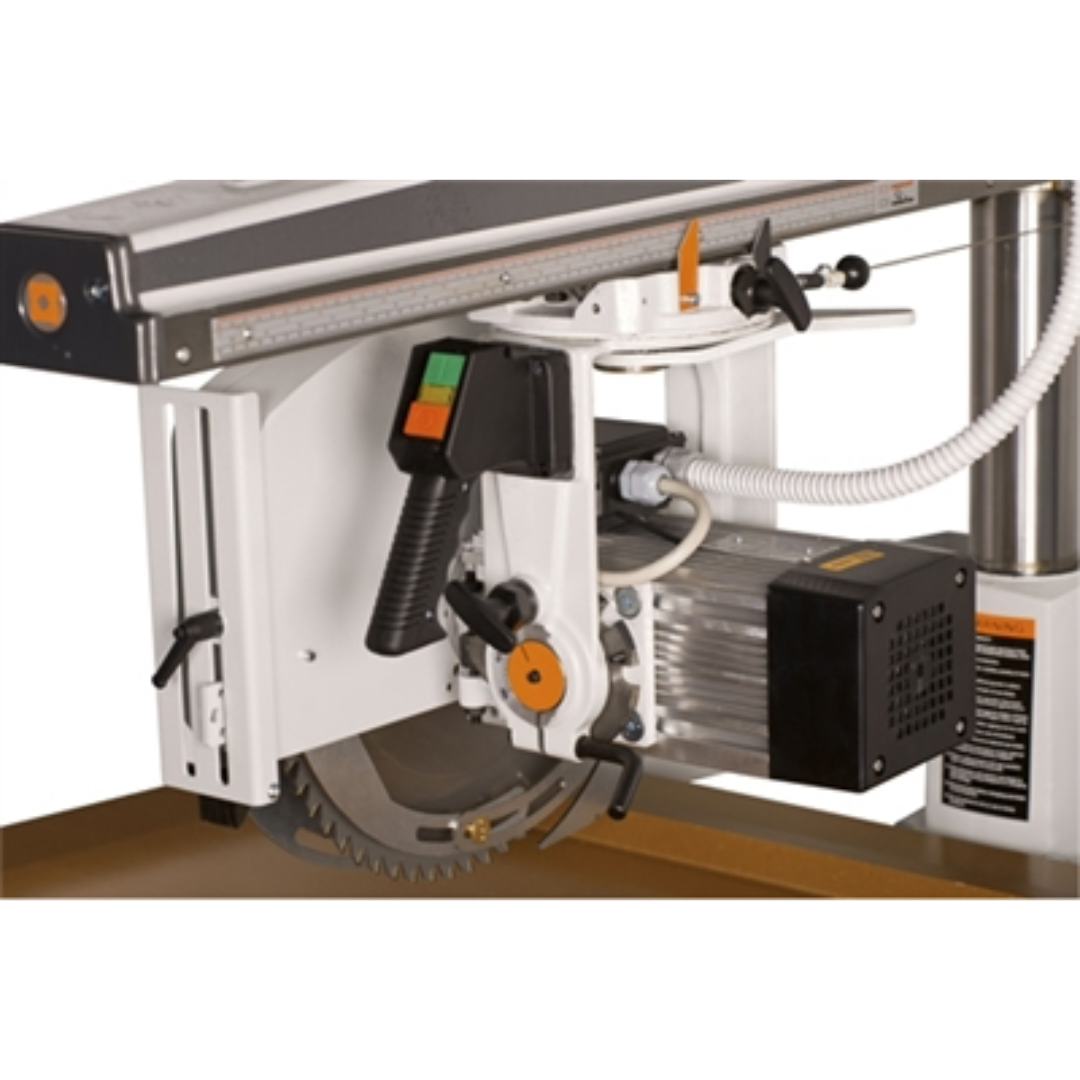

- 4 HP industrial motor (2800 RPM) delivers consistent cutting power for demanding applications.
- Heavy-duty cast construction ensures long-term durability and vibration reduction.
- Eight-bearing saw carriage system provides smooth travel and exceptional cutting accuracy.

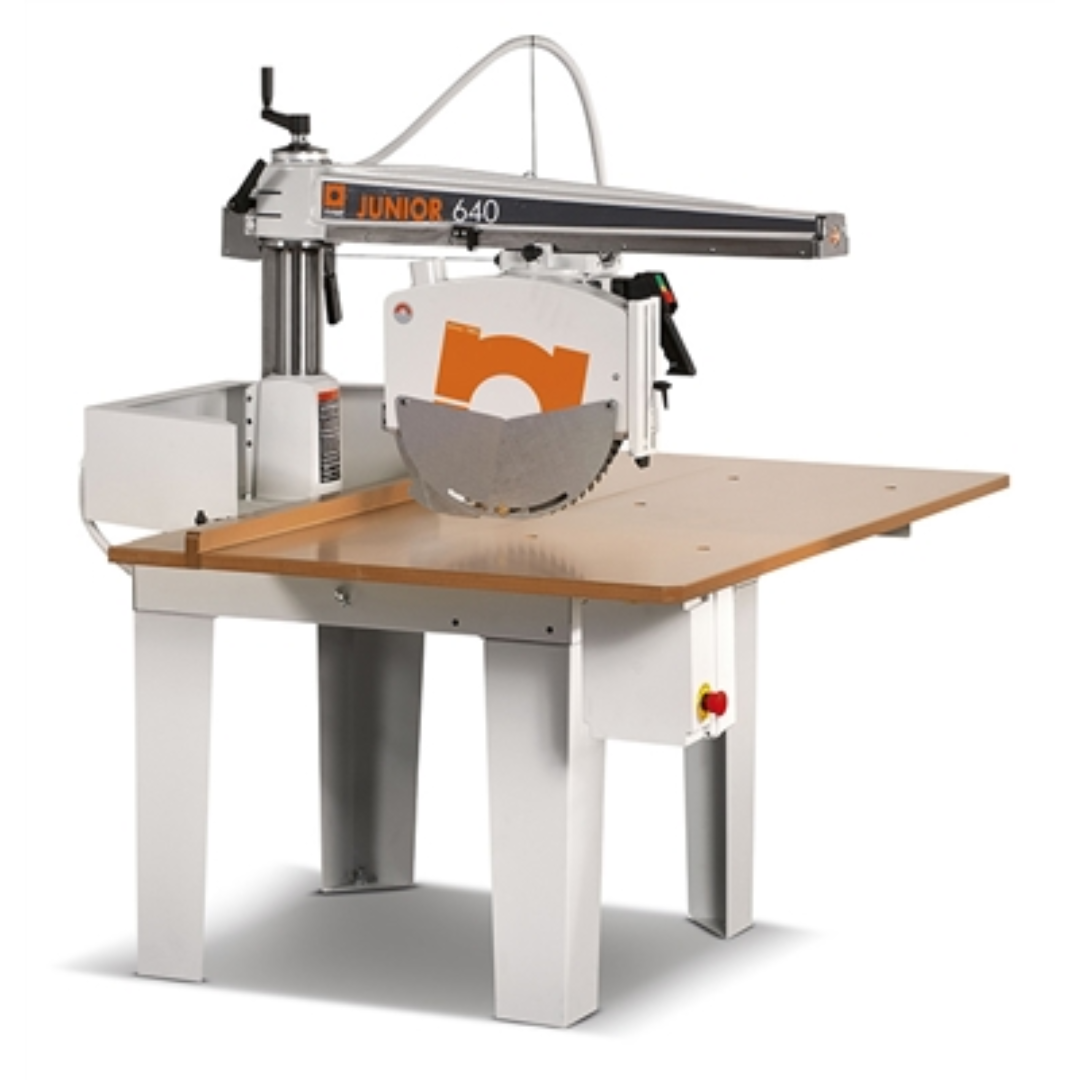

- Large precision worktable supports wide panels and long materials.

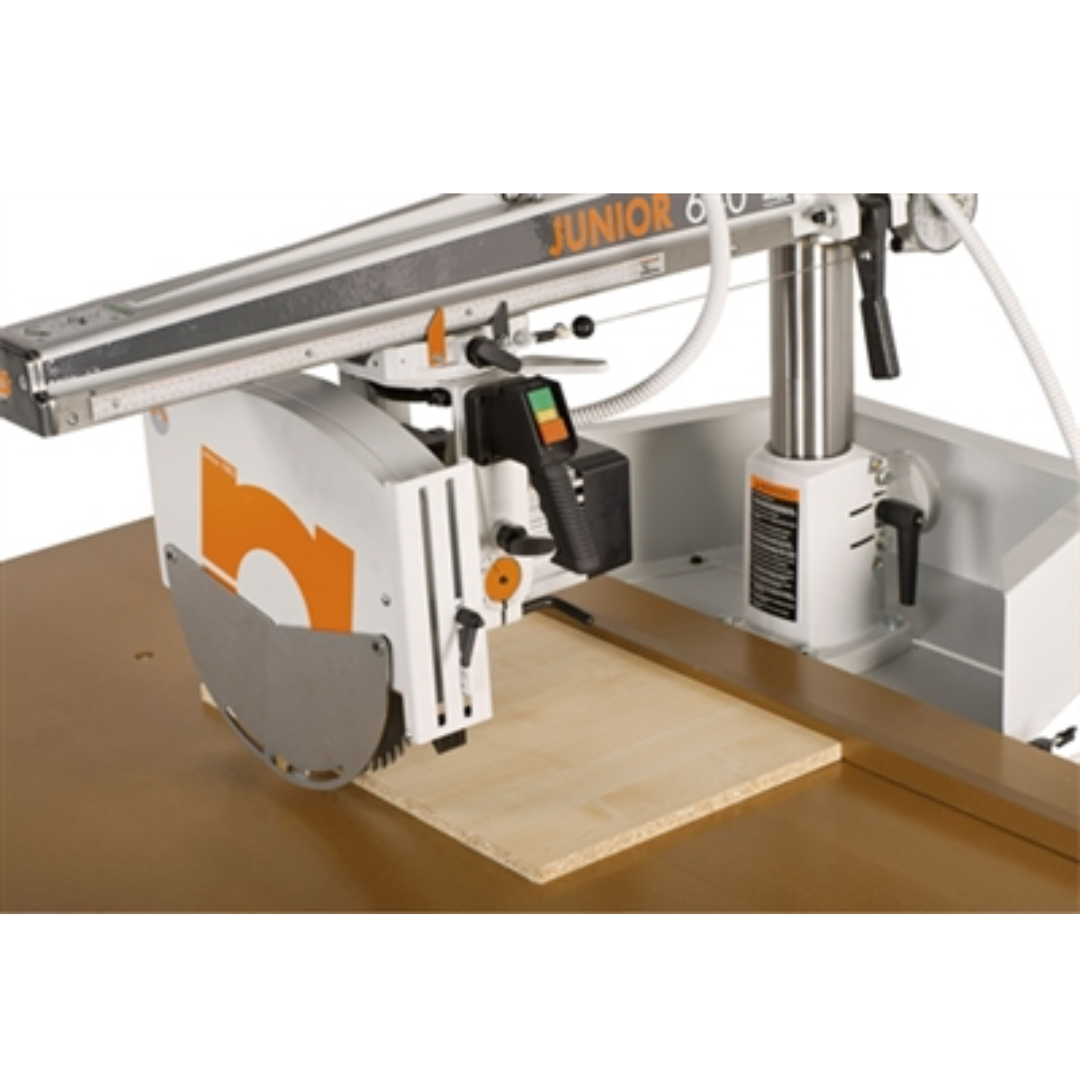

- Extended crosscut and rip capacity allows versatile cutting operations in one machine.

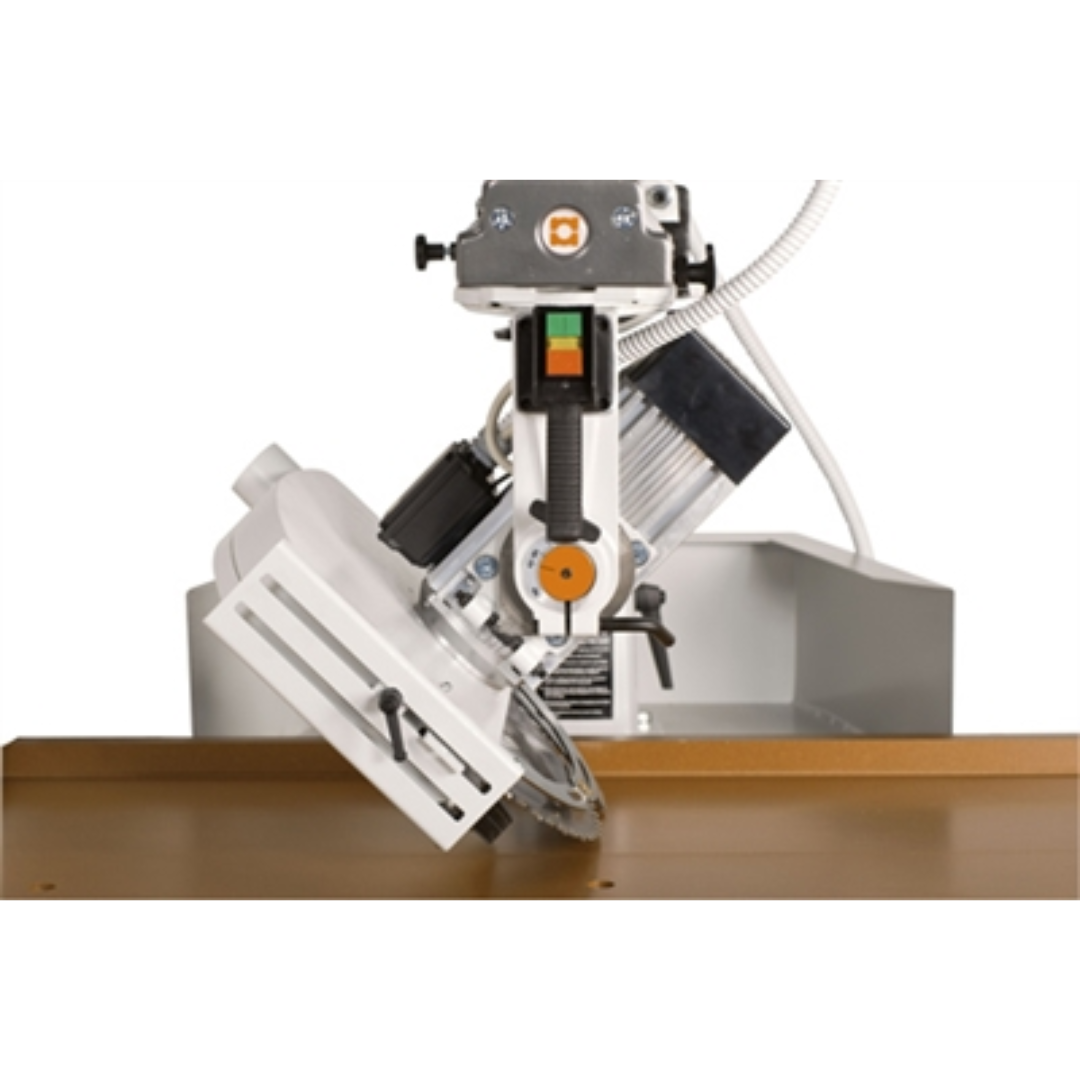

- Adjustable arm for angled cuts supports precision cutting at multiple angles.
- Dual dust extraction points improve cleanliness and visibility during operation.
- European-engineered design reflects decades of manufacturing expertise and quality control.
Maggi Junior 640CE Radial Arm Saw MAG-JUNIOR640 Optional Accessories
- Professional 16" radial arm saw blade (ATB configuration)
- Laser alignment system with mounting bracket for precision cutting
- Optional assembly service (excluding legs and table top)
Maggi Junior 640CE Radial Arm Saw MAG-JUNIOR640 Shipping & Delivery
- $349 flat rate shipping within the Continental United States (unassembled)
- $449 flat rate shipping within the Continental United States (assembled)
- Additional charges may apply for residential and lift gate deliveries
- Machine requires assembly upon delivery
The Maggi Junior 640CE Radial Arm Saw MAG-JUNIOR640 delivers precision cutting, rugged durability, and versatile functionality—making it a reliable solution for professional woodworking operations.
