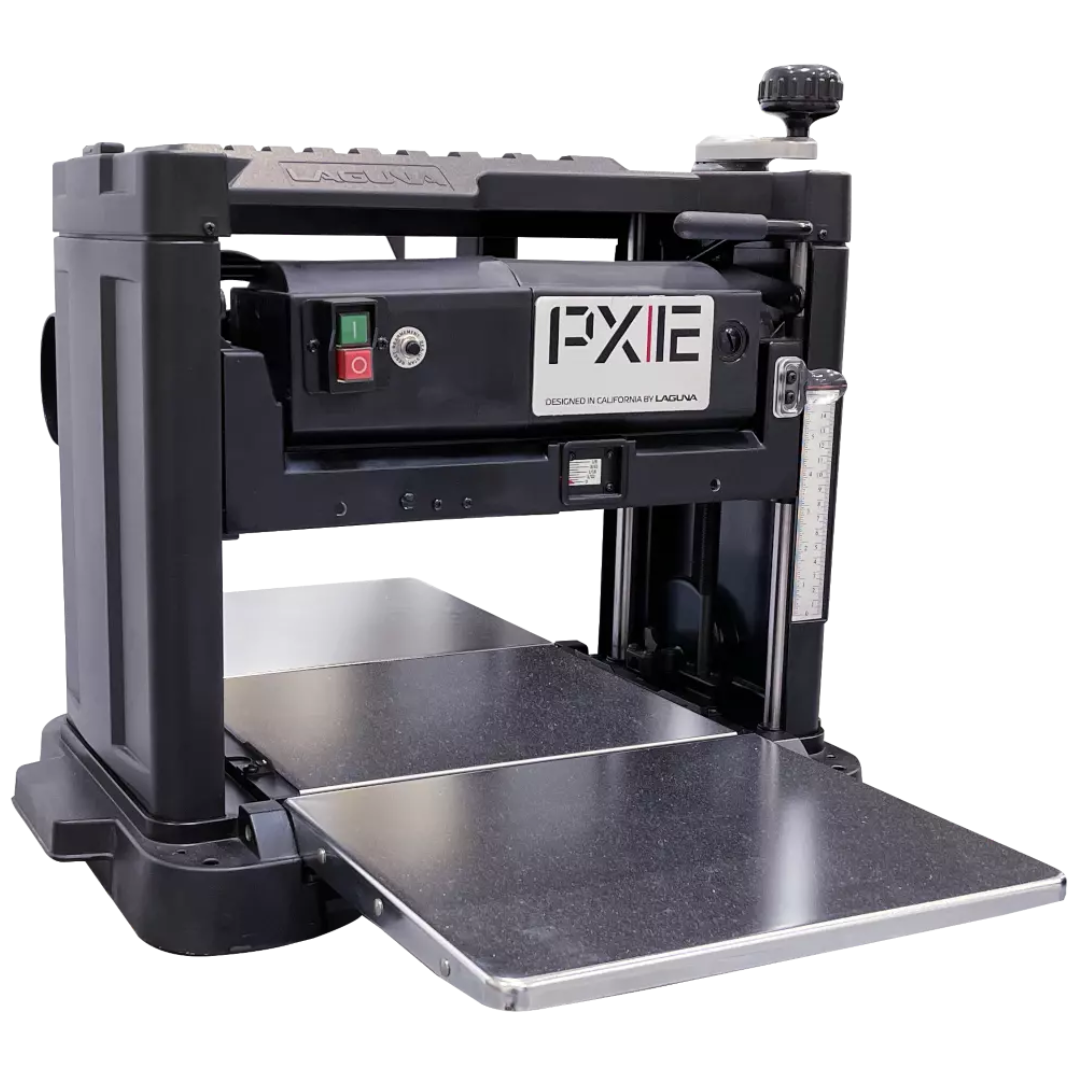

Laguna PX|12 MPLANPX12-0130-R Applications
- Professional woodworking shops and cabinet manufacturing
- Furniture building and custom millwork production

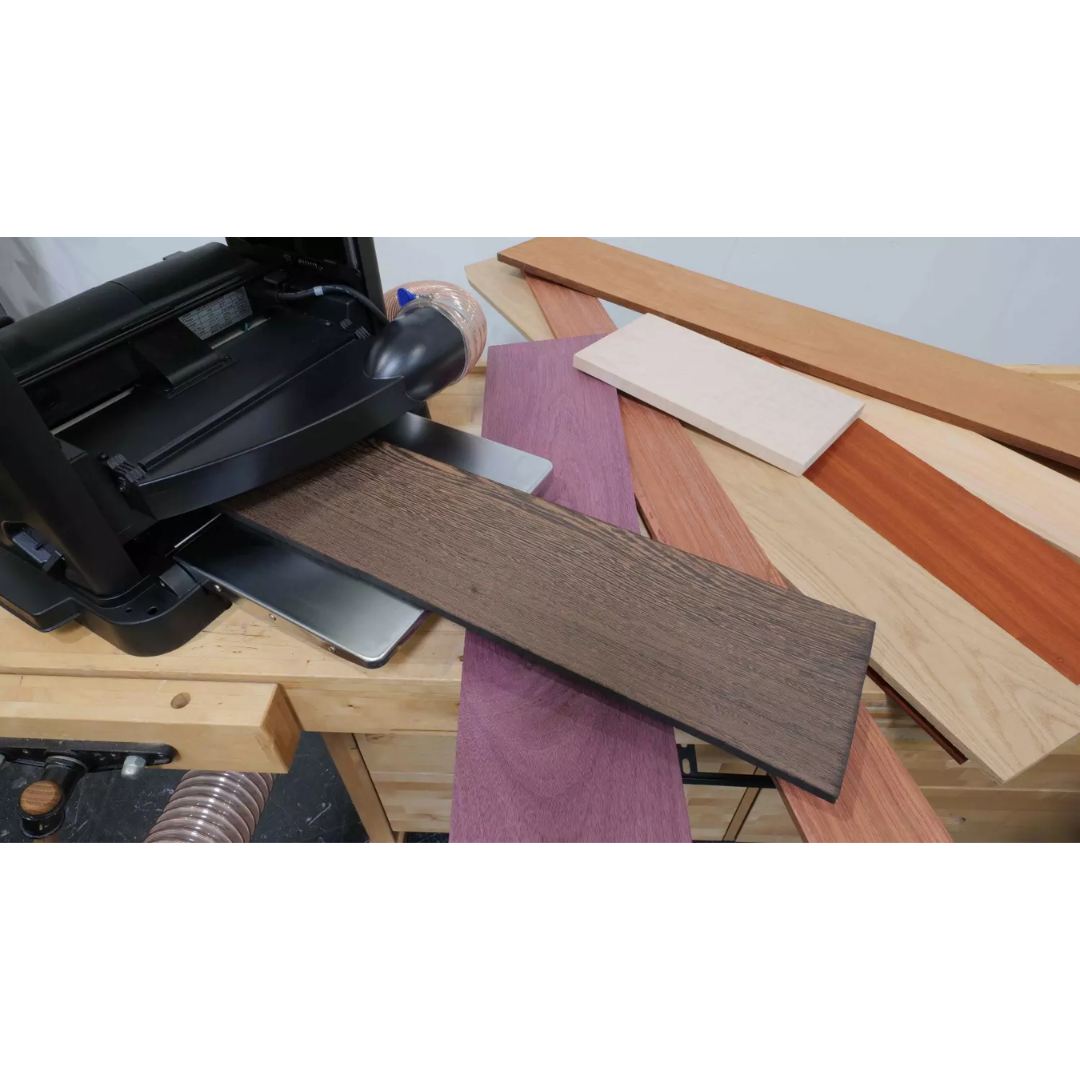

- Planing hardwoods with difficult or figured grain
- DIY workshops requiring precision thickness control
- Jobsite and benchtop applications with limited space
Ideal for woodworkers who need a compact planer capable of delivering high-end finishes on challenging materials.
Laguna PX|12 MPLANPX12-0130-R Specifications
| Model | PX|12 MPLANPX12-0130-R |
|---|---|
| Motor | 110V, 2 HP Universal, 50/60Hz, 15 Amp |
| Circuit Requirement | 20 Amp |
| Certification | CSA Certified |
| Bed Size | 12-1/2" × 10-1/4" |
| Max. Stock Width | 12-1/2" |
| Max. Stock Thickness | 6" |
| Min. Stock Thickness | 5/32" |
| Min. Stock Length | 10" |
| Max. Depth of Cut | 3/32" |
| Feed Speed | 26 FPM |
| Cutterhead RPM | 10,000 RPM |
| Cutterhead Diameter | 1-7/8" |
| Cutterhead Inserts | 26 × 4-Sided Carbide, 4-Row |
| Dust Port | 4" (Step Down to 2-1/2") |
| Noise Level | 92 dB (at 1m) |

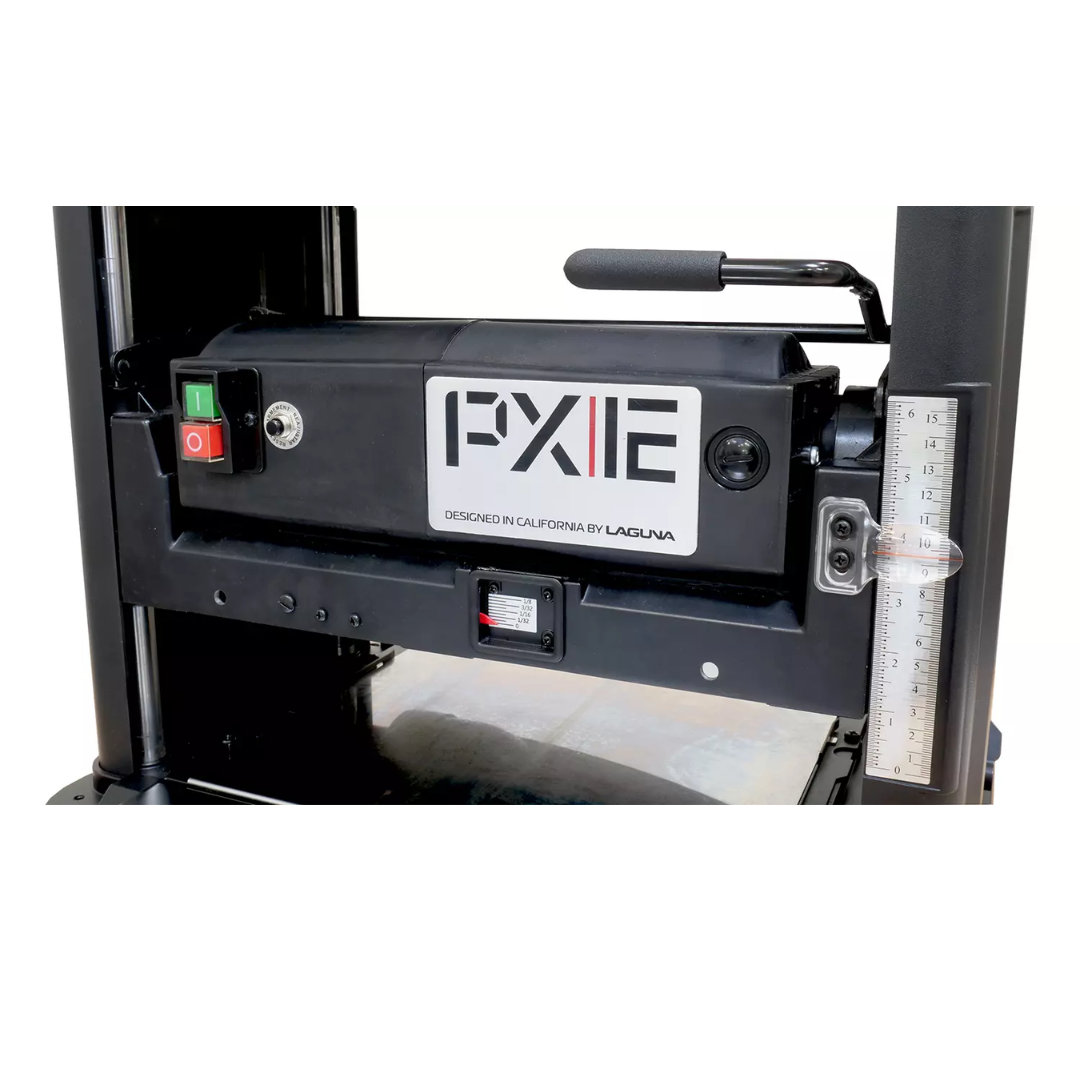

| Thickness Readout | Hairline Indicator |
| Extensions | 11-1/4" Flip-Down Extensions (x2) |
| Plug Type | NEMA 5-15P |
| Dimensions (Setup) | Approx. 24" × 34" |
| Dimensions (Shipping) | 25" × 17" × 21-1/2" |
| Weight (Net / Shipping) | 65 / 72 lbs |
Laguna PX|12 MPLANPX12-0130-R Performance & Construction

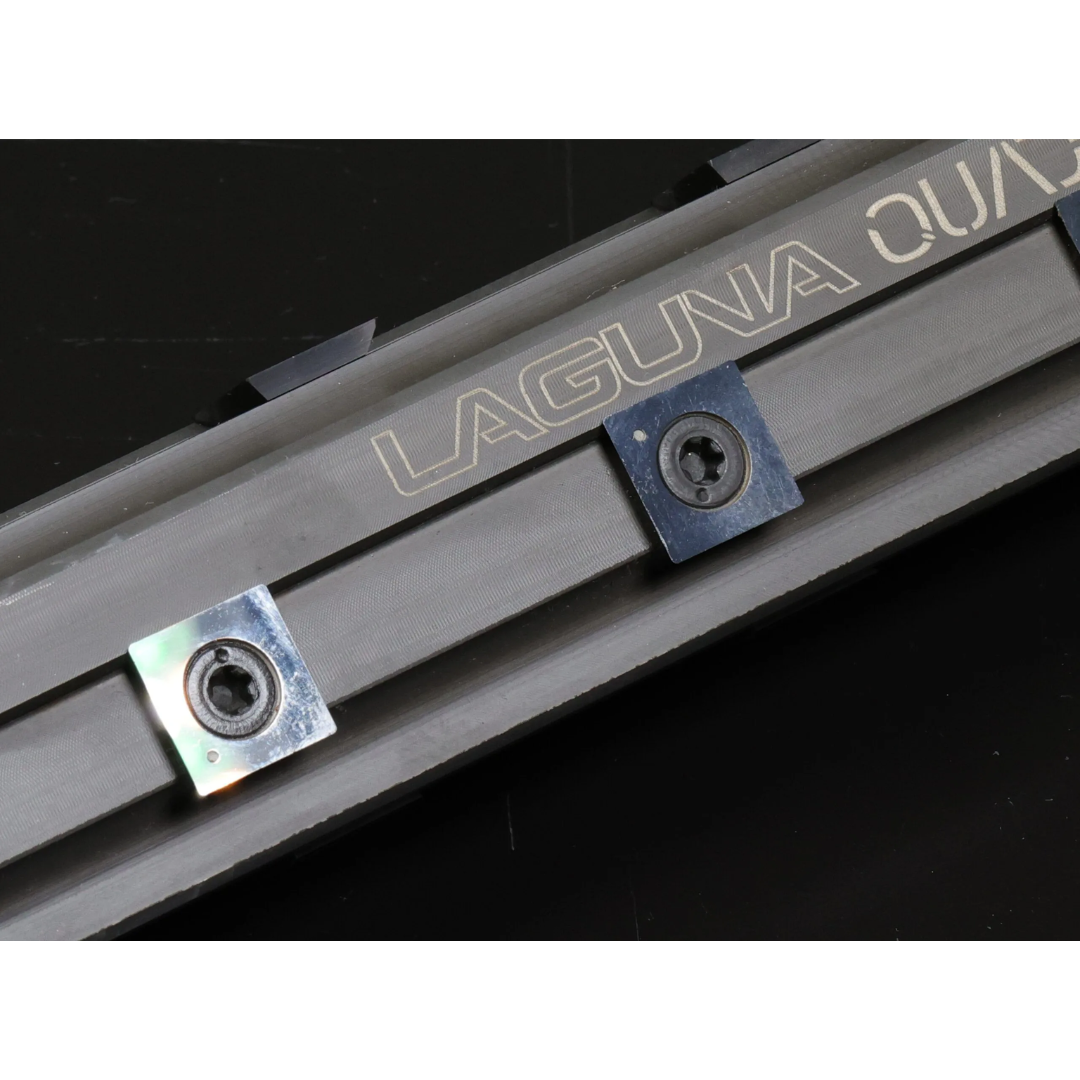

- QuadTec Cutterhead Technology delivers exceptionally smooth finishes with 26 four-sided carbide inserts designed for long life and consistent cutting performance.
- Indexable Carbide Inserts (15 × 15 × 2.5mm) can be rotated up to four times, reducing downtime and eliminating the need for knife setting jigs.
- Quiet Cutting Operation compared to traditional straight knife systems, improving shop comfort and usability.
- 2 HP High-Speed Motor powers the cutterhead at 10,000 RPM for clean, precise cuts even on dense hardwoods.
- Optimized for Difficult Grain making it ideal for figured woods, tear-out reduction, and high-end finish work.
- Flip-Down Infeed & Outfeed Tables provide enhanced material support for longer boards and improved feeding stability.
- Compact Benchtop Design allows for easy integration into small shops without sacrificing performance.
- Efficient Dust Collection with dual-size port compatibility for flexible shop setups.
Why Choose the Laguna PX|12 MPLANPX12-0130-R
- Advanced QuadTec cutterhead for superior finish and reduced tear-out.
- Long-lasting carbide inserts minimize maintenance and operating costs.
- Powerful 2 HP motor ensures consistent performance across all wood types.
- Compact yet professional-grade solution for serious woodworkers.
- User-friendly design with enhanced safety and ease of operation.
The Laguna PX|12 MPLANPX12-0130-R redefines benchtop planing by combining cutting-edge cutterhead technology, powerful performance, and precision engineering in a compact, workshop-ready machine.
