Laguna F3 Fusion Tablesaw 52″ MTSF3362203-0130-52 Applications
- Industrial woodworking and high-volume production shops
- Cabinet and furniture manufacturing with large panel processing
- Architectural millwork and commercial woodworking
- Precision ripping, crosscutting, and dado operations
- Handling oversized sheet goods and wide materials
Best suited for professional environments requiring extended rip capacity, industrial durability, and precision performance.
Laguna F3 Fusion Tablesaw 52″ MTSF3362203-0130-52 Specifications
| Model | F3 Fusion 52" |
|---|---|
| Part Number | MTSF3362203-0130-52 |
| Motor | 3 HP, 220V, 1 Phase, 60Hz |
| Amp Draw | 14.8 FLA |
| Recommended Breaker | 30 Amp |
| Arbor Speed | 4500 RPM |
| Maximum Blade Diameter | 10" |
| Arbor Size | 5/8" |
| Blade Tilt | 0°–45° Left |
| Maximum Depth of Cut @ 90° | 3-1/8" |
| Maximum Depth of Cut @ 45° | 2-1/8" |
| Max Dado Width | 3/4" |
| Maximum Rip Capacity | 52" |
| Fence Type | Camlock T-Shape with European Hi-Lo Fence |
| Table Surface | Precision Ground Cast Iron with Cast Iron Wings |
| Dust Collection | 4" Cabinet Port + 1-1/2" Overhead |
| Cabinet Type | 14 Gauge Steel Industrial Cabinet |
| Table Height | 35" |
| Table Size (with Wings) | 77" × 27" |
| Overall Dimensions | Approx. 85" W × 56" D × 43" H |
| Weight (Net / Shipping) | 405 / 422–523 lbs |
| Plug Type | NEMA 6-15P |
Laguna F3 Fusion Tablesaw 52″ MTSF3362203-0130-52 Performance & Construction
- Powerful 3 HP TEFC Motor provides industrial-grade cutting power for large materials and continuous operation.
- Extended 52″ Rip Capacity allows efficient processing of full sheet goods and oversized panels.
- Heavy-Duty 14 Gauge Steel Cabinet ensures maximum rigidity, reduced vibration, and long-term durability.

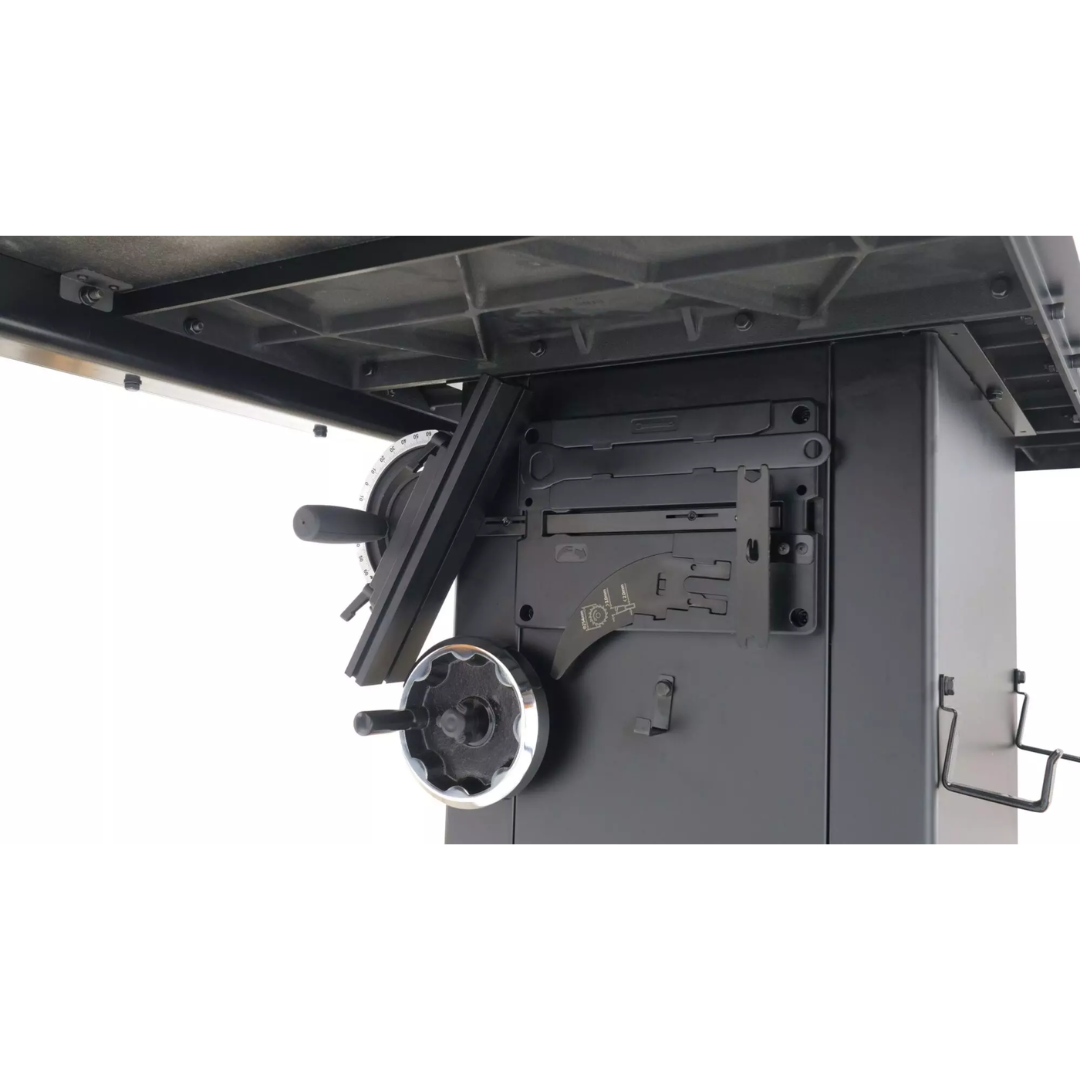

- Cast Iron Trunnions & Cabinet-Mounted Arbor deliver superior alignment and precision cutting performance.
- Fusion Hi-Lo Dust Collection System captures debris above and below the blade for a cleaner workspace.

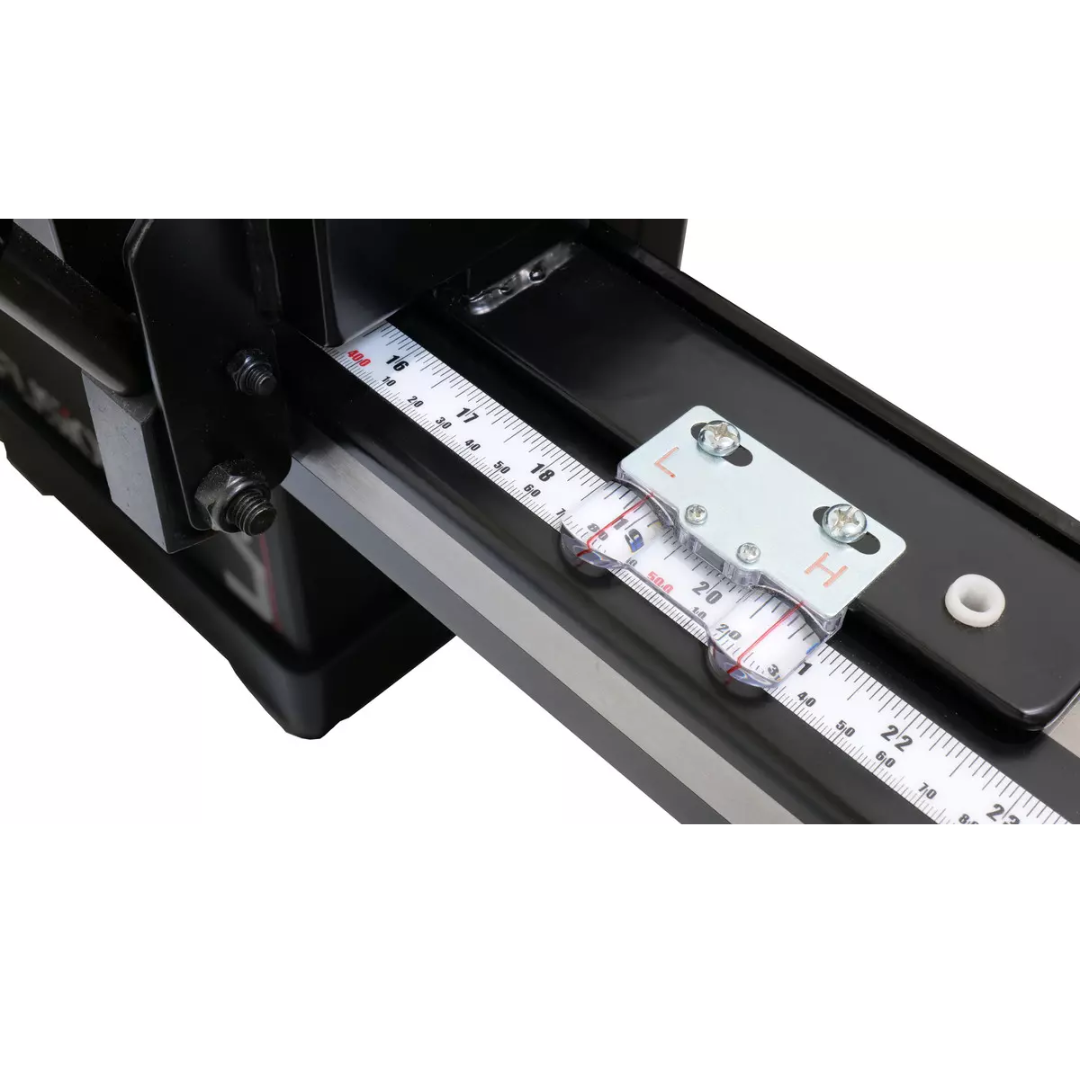

- European Hi-Lo Fence System offers exceptional control, versatility, and smooth adjustments.
- Precision Ground Cast Iron Table & Wings provide stability and accuracy for repeatable results.

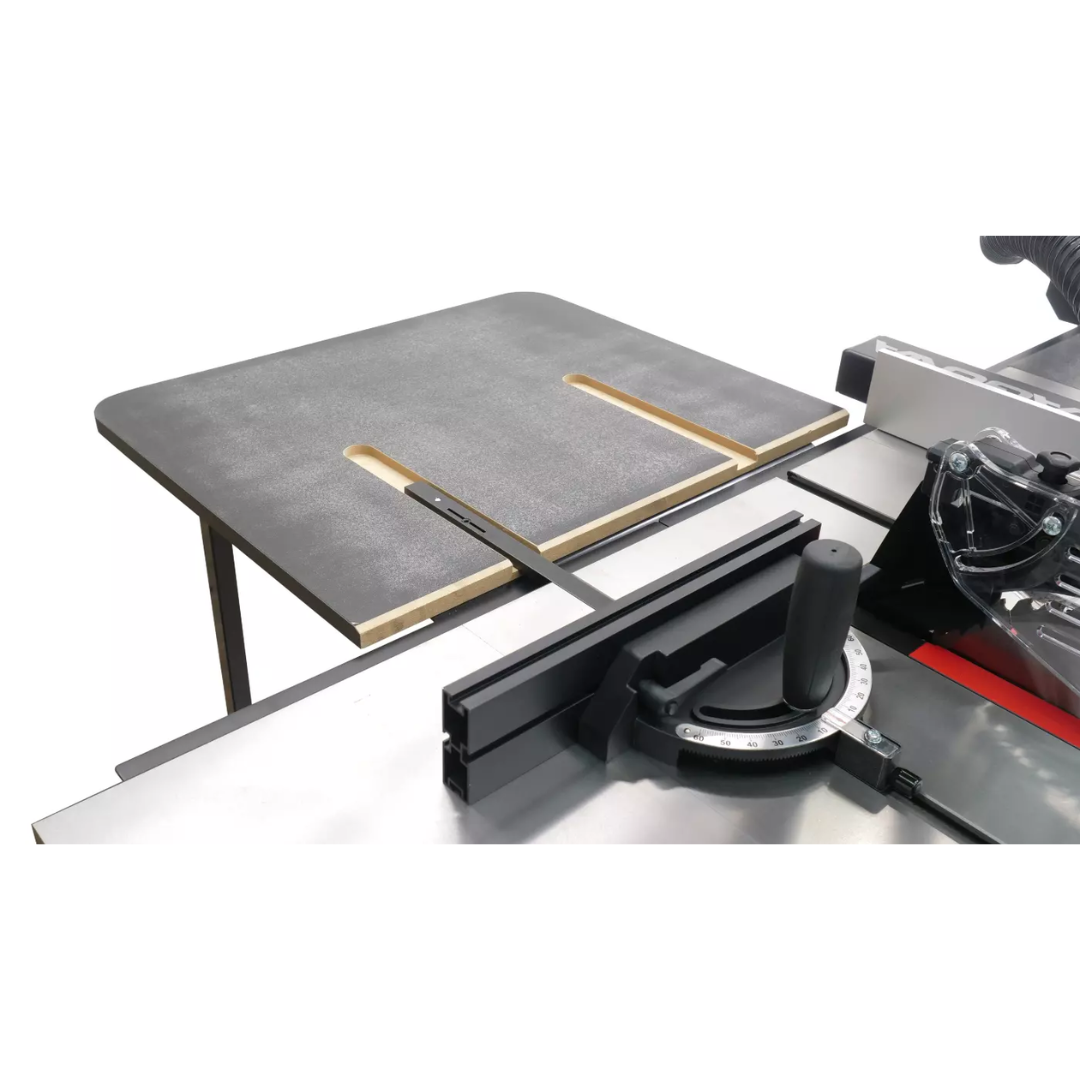

- Industrial Fence Rails & Accessory Tables support large workpieces and extended cutting operations.
- Premium Components including sealed bearings, Acme screws, and high-quality electrical hardware.
- Quick-Release Safety Systems with blade guard, riving knife, and spreader for enhanced operator safety.
- Integrated Mobility System built into the cabinet for easy repositioning in large shop environments.
Why Choose the Laguna F3 Fusion Tablesaw 52″ MTSF3362203-0130-52
- Maximum 52″ rip capacity for handling large panels and sheet goods.
- Industrial cabinet construction ensures durability and precision.
- Advanced dust collection system improves cleanliness and safety.
- High-performance motor delivers consistent cutting power.
- Premium fence and table system for accurate, repeatable results.
The Laguna F3 Fusion Tablesaw 52″ MTSF3362203-0130-52 is a top-tier industrial cabinet saw built for professionals who need maximum capacity, precision, and reliability in demanding woodworking environments.
