Laguna DP:20 1.5 HP 110-120V Drill Press MDP20-1 Applications
- Precision drilling in wood, metal, plastics, and composite materials
- Production shops requiring repeatable drilling accuracy
- Tapping applications using auto-reverse functionality
- Fabrication, cabinetmaking, and general workshop use
- Advanced drilling operations requiring programmable settings
Ideal for professionals and serious woodworkers seeking industrial performance with modern digital control.
Laguna DP:20 1.5 HP 110-120V Drill Press MDP20-1 Specifications
| Model | MDP20-1 |
|---|---|
| Motor Type | DC Brushed with PWM (Pulse Width Modulation) |
| Power | 1.5 HP / 15 AMP |
| Voltage | 110–120V / 60 Hz |
| Speed Range | 60 – 3600 RPM (Variable, Forward/Reverse) |
| Drive System | Poly-Groove Drive Belt |
| Control System | LCD Touch Screen Smart Panel |
| Memory Settings | 5 Programmable Settings |
| Swing | 20" |
| Spindle Taper | MT2 |
| Quill Travel | 6" (2.6" Diameter) |
| Chuck Capacity | 5/64" – 5/8" (2 – 16 mm) |
| Table Size | 15" x 22" Cast Iron |
| Table Movement | ±90° Tilt, 360° Rotation |
| Spindle to Table | 30" Max |
| Spindle to Base | 49.5" Max |
| Base Size | 22.83" x 16.92" |
| Column Diameter | 3.15" |
| Weight | Net: 304 lbs / Gross: 326 lbs |
| Packing Size | 72.5" x 28.5" x 20" |
Laguna DP:20 1.5 HP 110-120V Drill Press MDP20-1 Performance & Features
- 1.5 HP PWM Motor delivers constant torque across the full speed range for consistent drilling performance.

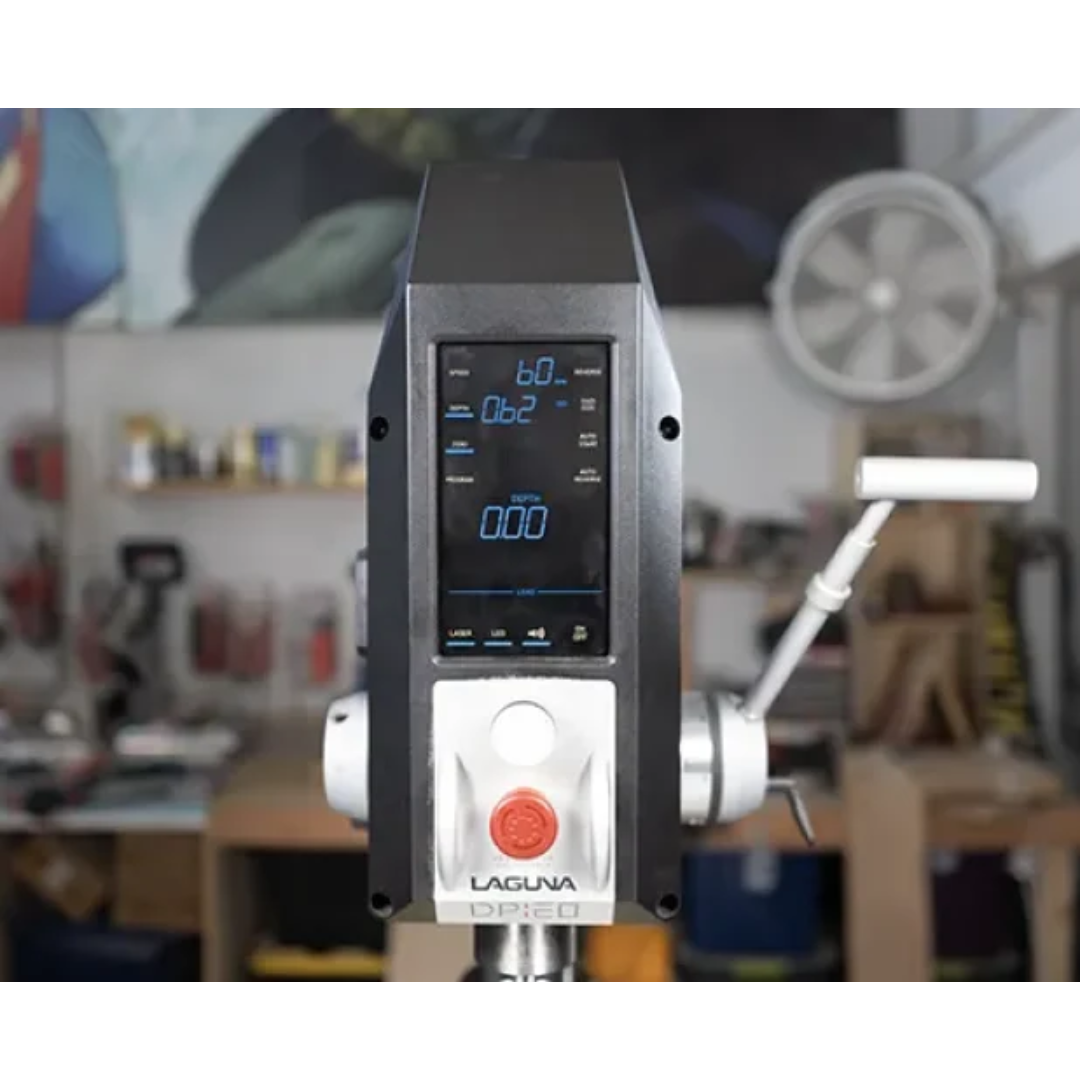

- Touch Screen Smart Panel features a large 3-3/4" x 6-7/8" LCD display showing RPM, load, and quill depth in real time.
- Auto-Start Function automatically starts and stops the machine with quill movement for improved workflow efficiency.
- Electronic Depth Control ensures precise, repeatable drilling depth with digital accuracy.
- Forward & Reverse Operation supports tapping applications with automatic reverse at preset depth.
- 5 Memory Settings allow users to store frequently used speed and depth configurations.
- Advanced Safety System includes chuck key sensor that disables auto-start during bit changes.

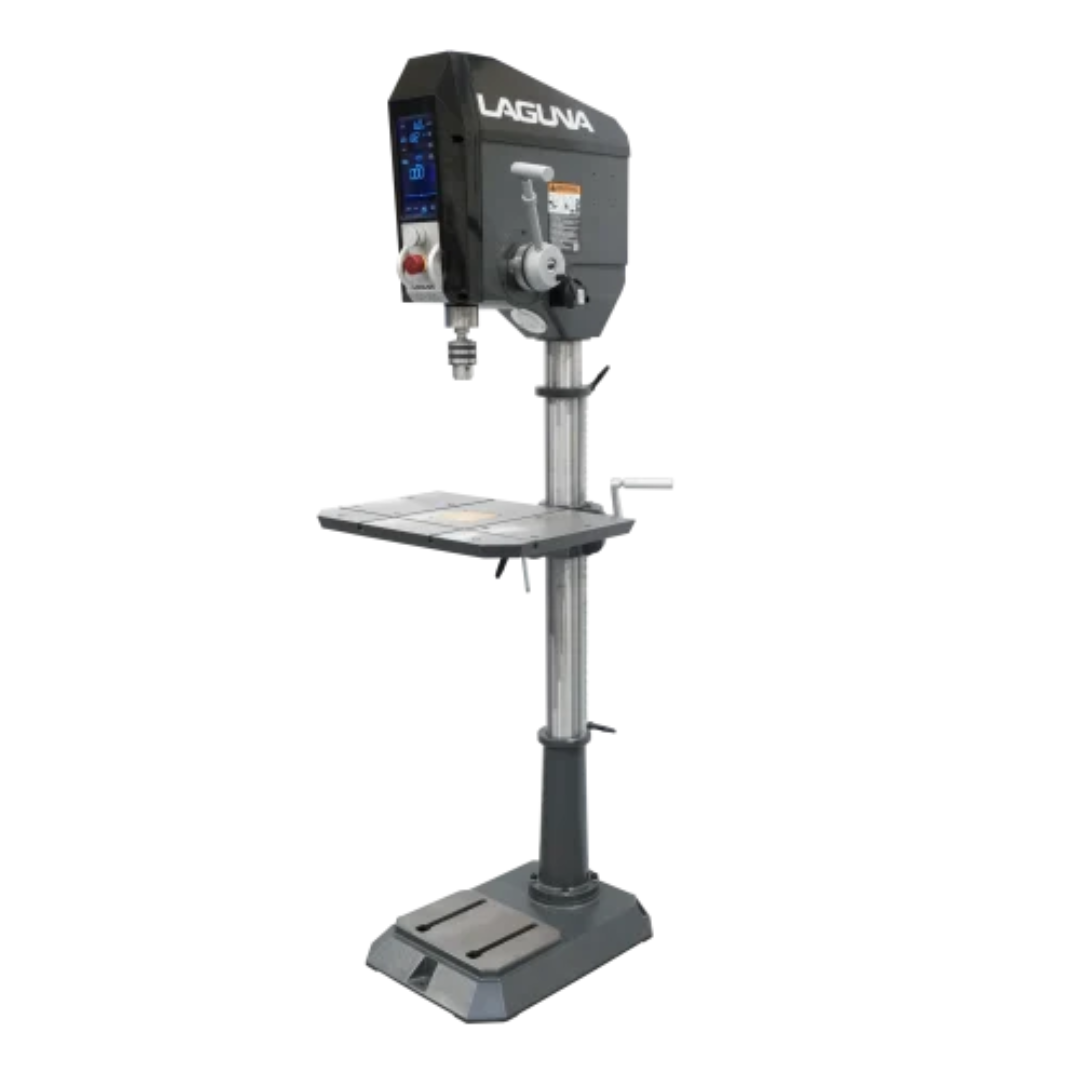

- Large Cast Iron Worktable provides maximum support with 3 T-slots, 10 clamp holes, ±90° tilt, and full rotation.
- Crosshair Laser System ensures precise material positioning before drilling.
- Integrated 5W LED Work Light delivers bright, focused illumination for improved visibility.
- User-Selectable Display Units supports fractional inch, decimal inch, and metric readouts.
- Audible Feedback Controls provide confirmation tones for user inputs.
- Modern Industrial Design combines durability with a sleek, ergonomic layout.
Why Choose the Laguna DP:20 1.5 HP 110-120V Drill Press MDP20-1
- Industrial-grade power with advanced digital control interface.
- Wide speed range with constant torque for versatile material applications.
- Precision depth control and programmable settings for repeatable accuracy.
- Enhanced safety features for professional shop environments.
- Large worktable and integrated lighting for maximum usability and efficiency.
The Laguna DP:20 1.5 HP 110-120V Drill Press MDP20-1 is a next-generation drilling solution that combines power, precision, and smart technology to elevate performance in any workshop.
