Laguna 19-38 Drum Sander SUPMX-71938-D Applications
- Furniture building and cabinet production
- Panel sanding and wide board flattening
- Fine woodworking and custom fabrication
- Dimensioning, thickness sanding, and finish sanding
- Processing hardwoods, softwoods, and composite materials
Ideal for shops that require wider sanding capacity, improved efficiency, and consistent, high-quality finishes.
Laguna 19-38 Drum Sander SUPMX-71938-D Specifications
| Drum Speed | 1740 RPM |
|---|---|
| Maximum Sanding Width | 38" (Two Passes) |
| Minimum Sanding Length | 2-1/4" |
| Maximum Sanding Thickness | 4" |
| Minimum Sanding Thickness | 1/32" |
| Drum Size | 5" x 19" Extended Aluminum |
| Conveyor Speed | 0–10 FPM (Variable) |
| Conveyor Motor | Direct Drive D.C., 43 lbs Torque |
| Drive Motor | 1-3/4 HP (TEFC) |
| Power Requirements | 110V, 15 Amp (20 Amp Recommended) |
| Dust Port | 1 × 4" (600 CFM Recommended) |

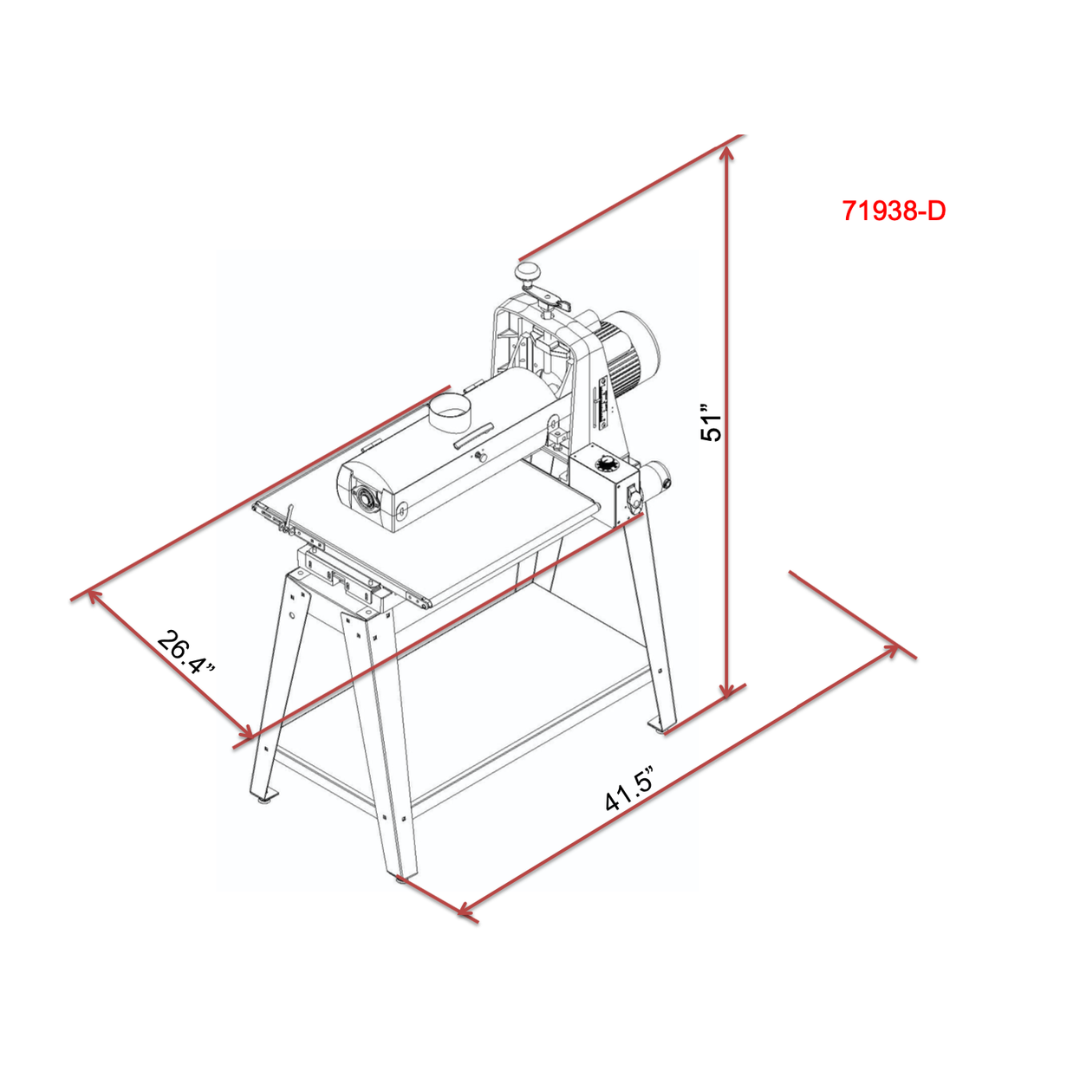

| Stand Footprint | 21" × 36" |
| Machine Dimensions | 40" W × 24" D × 24" H |
| Net Weight | 264 lbs |
| Shipping Weight | 371 lbs |
| Shipping Dimensions | 43" × 16" × 24" |
| Plug Type | NEMA 5-15P |
Laguna 19-38 Drum Sander SUPMX-71938-D Performance & Construction
- INTELLISAND™ Technology automatically adjusts feed rate to prevent burning, gouging, and machine overload.

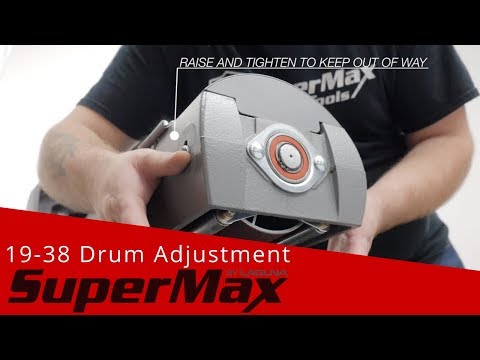

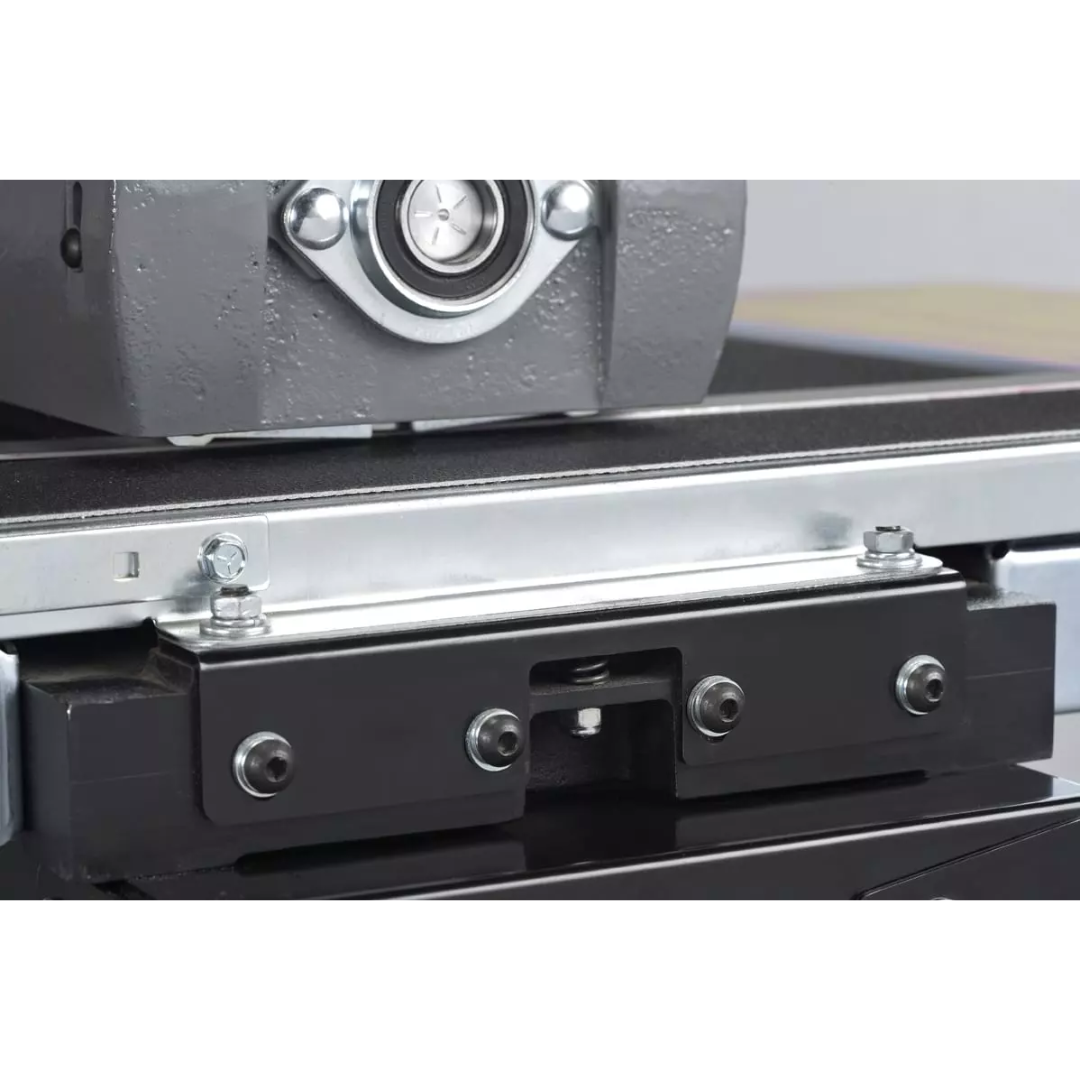

- Simple Alignment System allows fast conveyor-to-drum alignment with a single adjustment point.
- Indexed Alignment Feature ensures precise sanding when working with both narrow and wide stock.

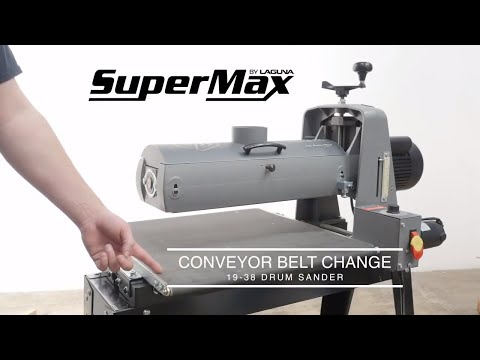

- Extra-Wide Conveyor (22") provides superior support for large panels and wide workpieces.
- Fixed Drum Alignment Design prevents the drum from going out of alignment over time.
- Flatness Guarantee reinforced steel conveyor bed ensures less than .010" deviation across width.
- Patented Abrasive Attachment System maintains consistent abrasive tension and simplifies changes.
- Self-Cooling Drum reduces heat buildup and extends abrasive life.
- Adjustable Tension Rollers minimize snipe and ensure smooth, even feeding.
- Heavy-Duty Cast Iron Construction reduces vibration and increases machine stability.
- Optimized Dust Collection Design maximizes airflow for cleaner operation and improved visibility.
Why Choose the Laguna 19-38 Drum Sander SUPMX-71938-D
- Large 38" sanding capacity ideal for panels and wide stock.
- Advanced automation reduces sanding errors and improves finish quality.
- Patented features enhance usability, precision, and efficiency.
- Heavy-duty construction ensures long-term durability in demanding shops.
- Consistent, repeatable results across a wide range of materials.
The Laguna 19-38 Drum Sander SUPMX-71938-D is a powerful, precision-engineered sanding solution that combines intelligent technology, wide capacity, and professional-grade performance for serious woodworking applications.
