Laguna 14|12 Bandsaw MBAND1412-175 Applications

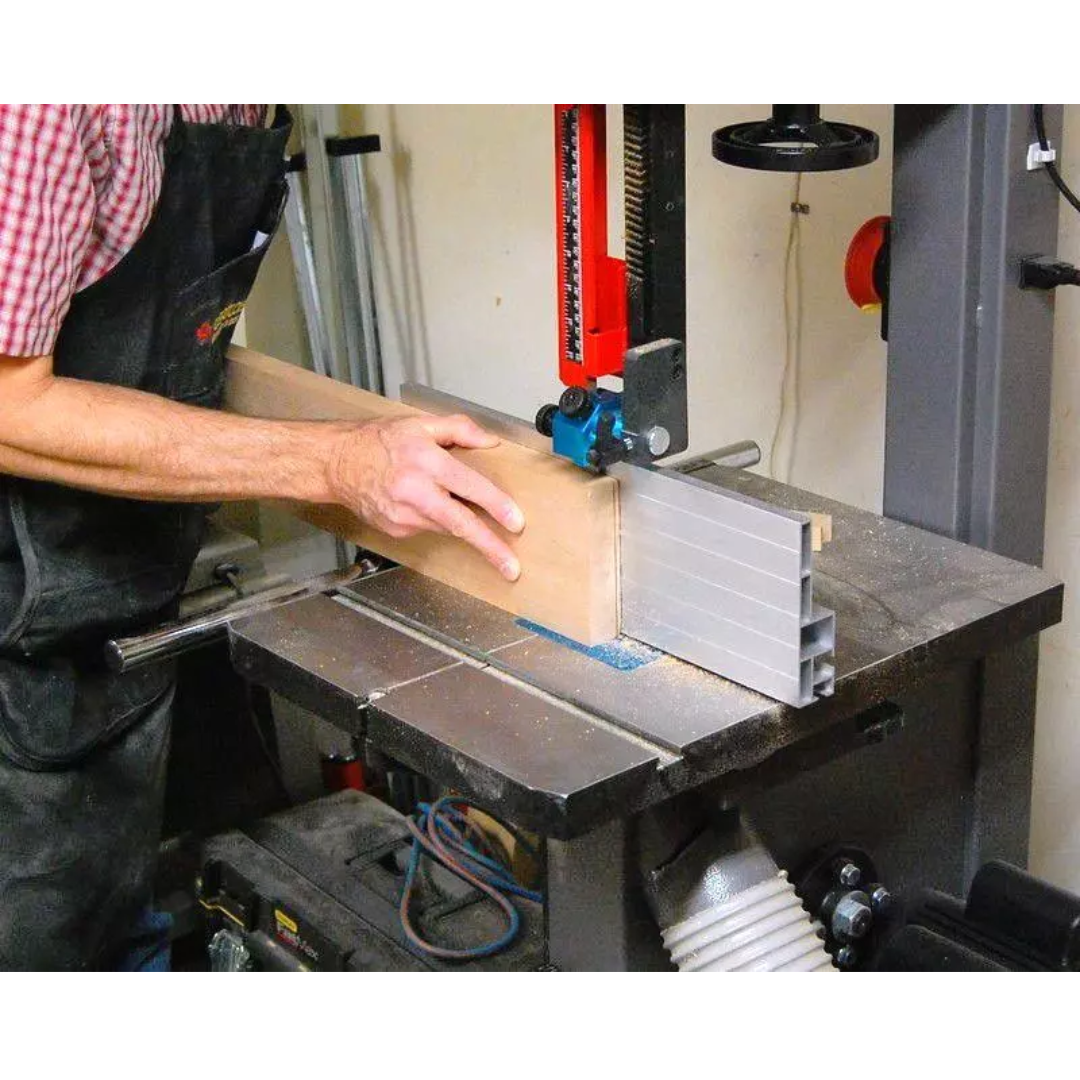

- Resawing lumber up to 13” thick for veneers and board splitting
- Cabinetry, furniture manufacturing, and custom woodworking
- Precision curved cutting and detailed shaping operations
- Professional woodworking shops and serious hobbyists
- Production environments requiring reliable and accurate cutting
Designed for woodworkers who need industrial-grade performance from a compact, single-phase machine.
Laguna 14|12 Bandsaw MBAND1412-175 Specifications
| Model | 14|12 Bandsaw MBAND1412-175 |
|---|---|
| Motor | 1.75 HP TEFC, Dual Voltage 115/230V (Prewired 115V) |
| Amperage | 14/7 Amps |
| Breaker Requirement | 15 Amp |
| Blade Length | 114 3/4” – 116” (Nominal 115”) |
| Blade Width Range | 1/8” – 3/4” |
| Resaw Capacity | 13” (305 mm) |
| Throat Capacity | 13 5/8” (346 mm) |
| Table Size | 16” x 21-1/2” Cast Iron |
| Table Tilt | -7° to 45° |
| Table Height | 38” |
| Dust Port | 4” |
| Guides | Laguna Ceramic Guide System |
| Flywheel | Cast Iron with Polyurethane Tires |
| Overall Height | 70-1/4” |

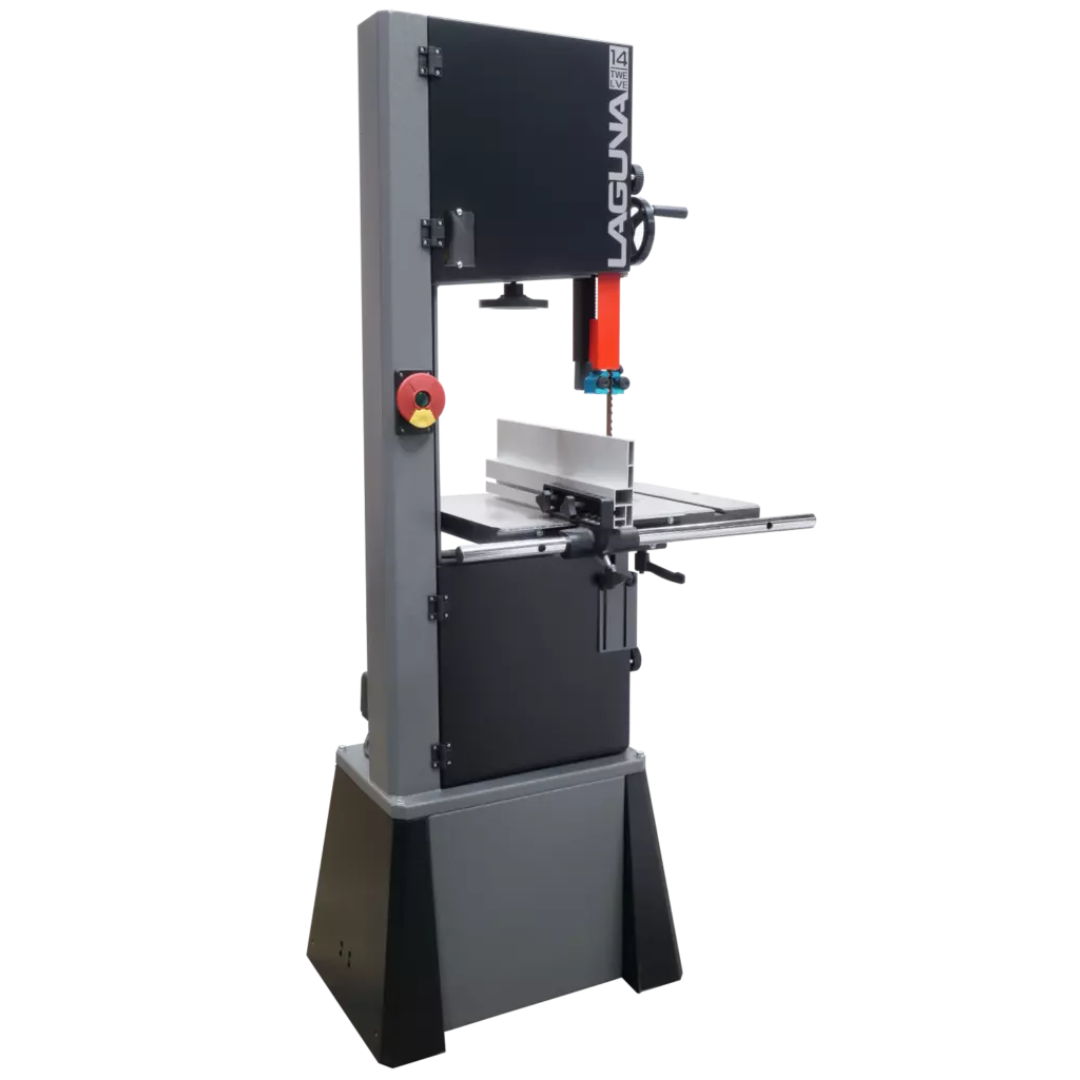

| Footprint | 25-1/4” x 18-1/8” |
| Machine Dimensions | 31-1/2” x 26-7/8” |
| Weight (Net / Gross) | 258 lbs / 275 lbs |
| Shipping Size | 55” x 22” x 25” |
Laguna 14|12 Bandsaw MBAND1412-175 Performance & Construction
- Pyramid-shaped spine increases structural rigidity and minimizes frame flex during heavy cuts.
- 1.75 HP TEFC motor delivers powerful, consistent performance on standard or dual voltage setups.
- Cast iron wheels with polyurethane tires are dynamically balanced for smoother operation and longer lifespan.
- Laguna ceramic blade guides provide superior blade control, reduced heat buildup, and increased accuracy.
- Micro-polished cast iron table ensures smooth material feed and precision cutting results.
- Quick-release blade tension system simplifies blade changes and prolongs blade life.
- Rack and pinion upper guide adjustment offers precise and smooth height control.
- Hi/Low aluminum fence with solid rail supports both resawing and intricate cutting operations.
- Dual viewing windows allow real-time monitoring of blade tracking and tension.
- Heavy-duty cast trunnion provides stability and accurate table adjustments.
- Magnetic blade guard and tension guide enhance safety and ease of use.
- 4” dust port improves dust extraction for a cleaner work environment.
Why Choose the Laguna 14|12 Bandsaw MBAND1412-175
- Industrial-grade performance powered by a standard 110V outlet.
- Large 13” resaw capacity for advanced woodworking tasks.
- Precision ceramic guides and balanced wheels for superior cut quality.
- Heavy-duty construction ensures long-term durability and reliability.
- Advanced features typically found in larger, more expensive machines.
The Laguna 14|12 Bandsaw MBAND1412-175 delivers professional performance, precision engineering, and unmatched value, making it a top choice for serious woodworkers and production shops alike.
