JLT #79F-6-PC 6′ Panel Clamp Applications
- Edge gluing solid wood panels and boards
- Face gluing large components using rocker plate accessories
- Production of panels, rails, posts, beams, and flooring blanks
- Custom woodworking shops and hobbyist workspaces
- Small to mid-size production environments requiring compact equipment
Perfect for small shops needing high-performance panel clamping in a compact footprint.
JLT #79F-6-PC 6′ Panel Clamp Specifications
| Model | #79F-6-PC |
|---|---|
| Gluing Levels | 5 Total Levels |
| Clamp Capacity | 40″ Standard (52″ Optional) |
| Minimum Clamp Opening | 9″ |
| Clamping Force | Up to 3000 lbs per Clamp |
| Clamp Quantity | Includes (10) 3 1/2″ High Jaw Clamps |
| Weight Capacity | 1500 lbs |
| Construction | 100% Tubular Steel (Robotically Welded) |

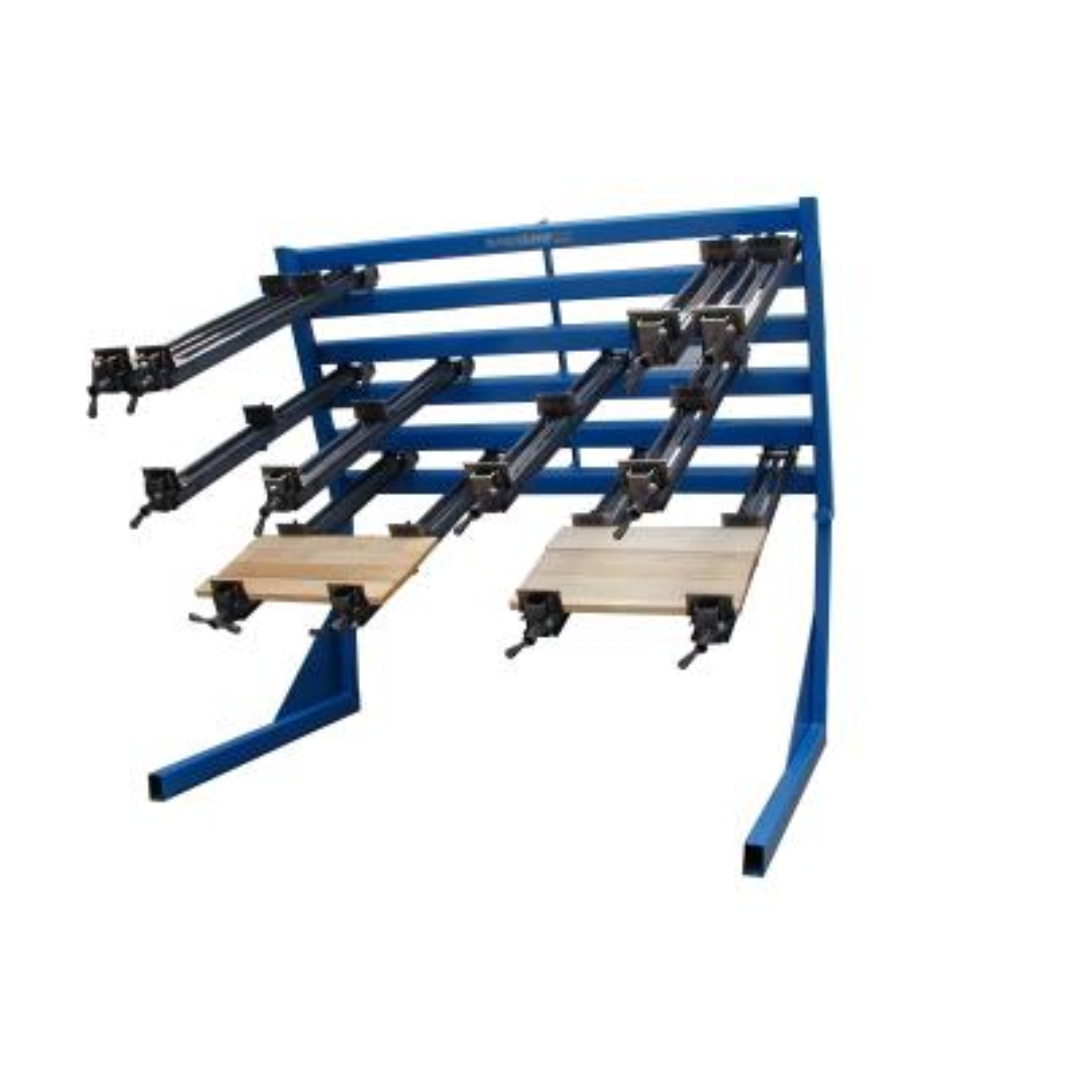

| Configuration | Free Standing Unit |
| Warranty | 3 Year Warranty + Lifetime on Welded Components |
JLT #79F-6-PC 6′ Panel Clamp Performance & Construction
- Compact, space-saving design allows clamps to be hung vertically when not in use.

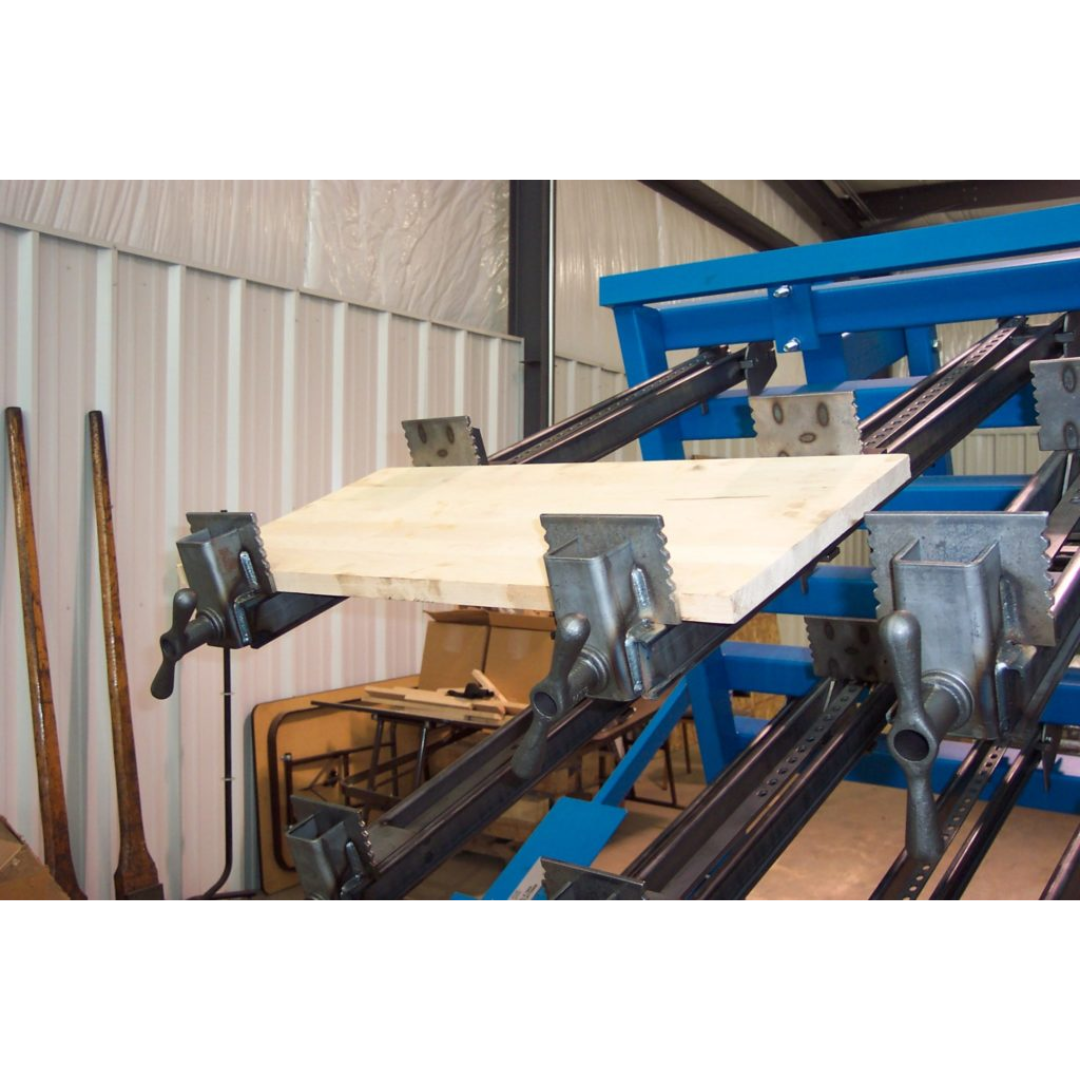

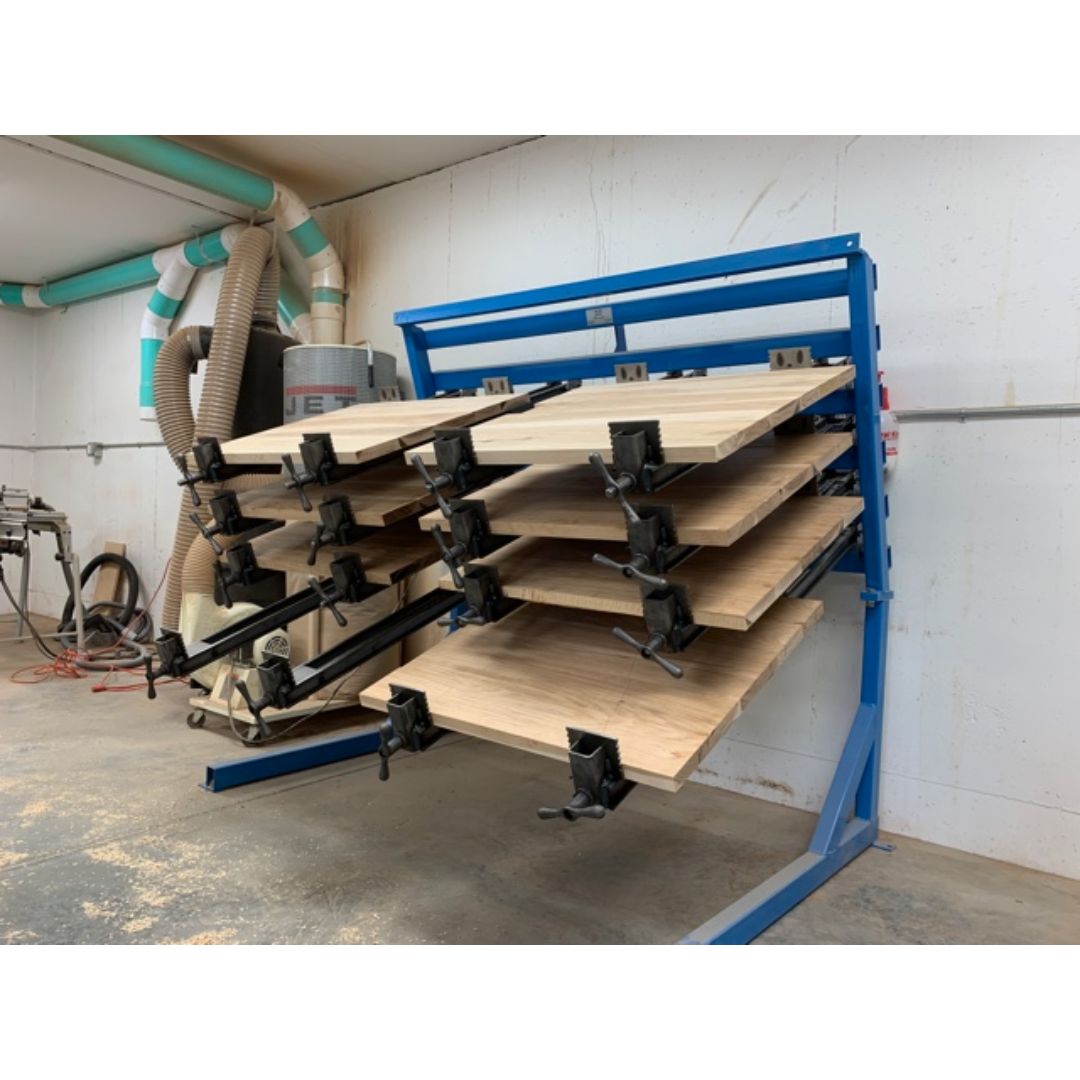

- (5) total gluing levels increase production capacity within a small footprint.

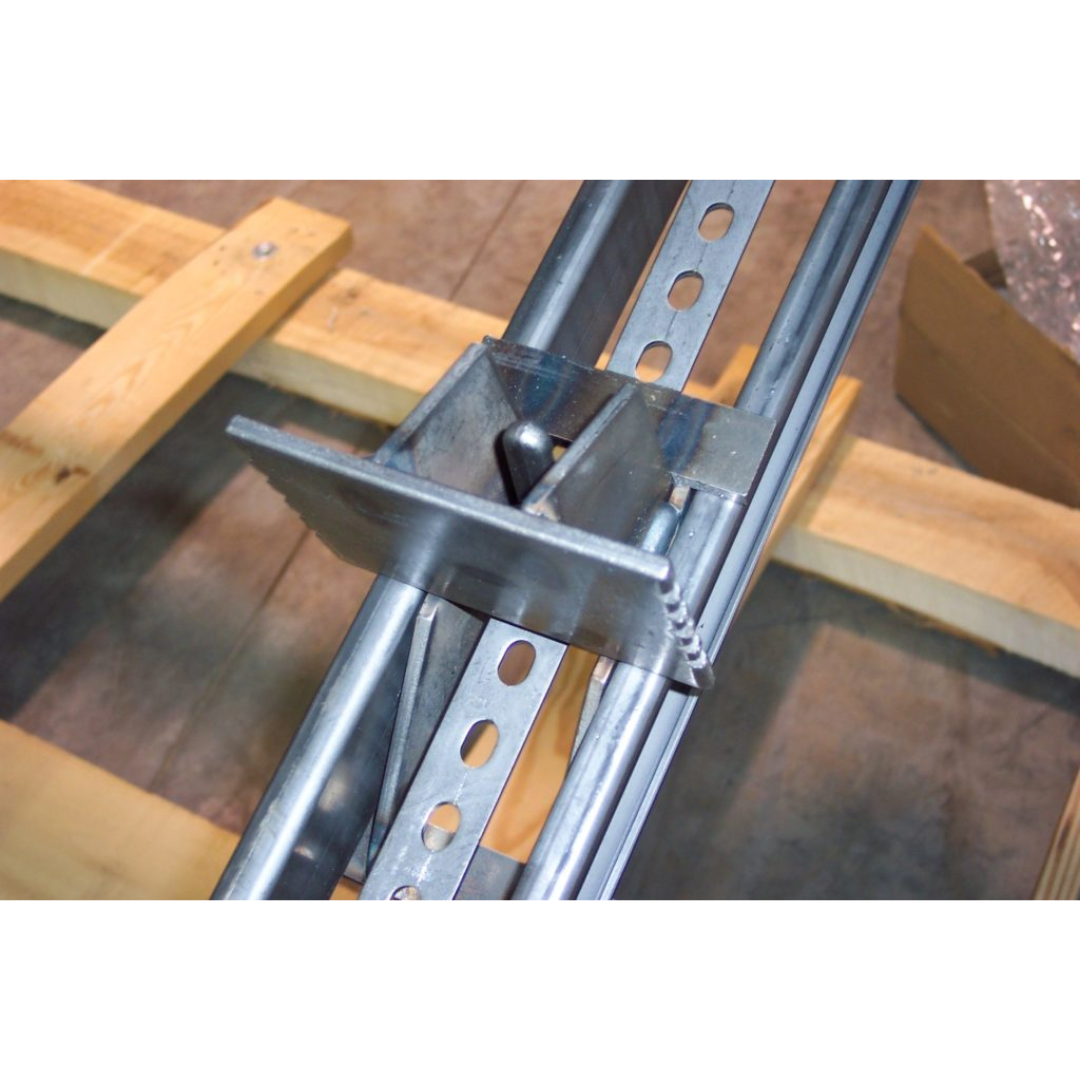

- Patented equalizer clamp arm design delivers even pressure from front and rear jaws for superior glue lines.
- Up to 3000 lbs of clamping force per clamp ensures tight, consistent panel bonds.
- Edge and face gluing capability supports a wide range of woodworking applications.
- Produces 20+ edge glued panels per day with a standard setup.
- Heavy-duty tubular steel construction creates a flat, stable work surface and prevents twisting or bending.

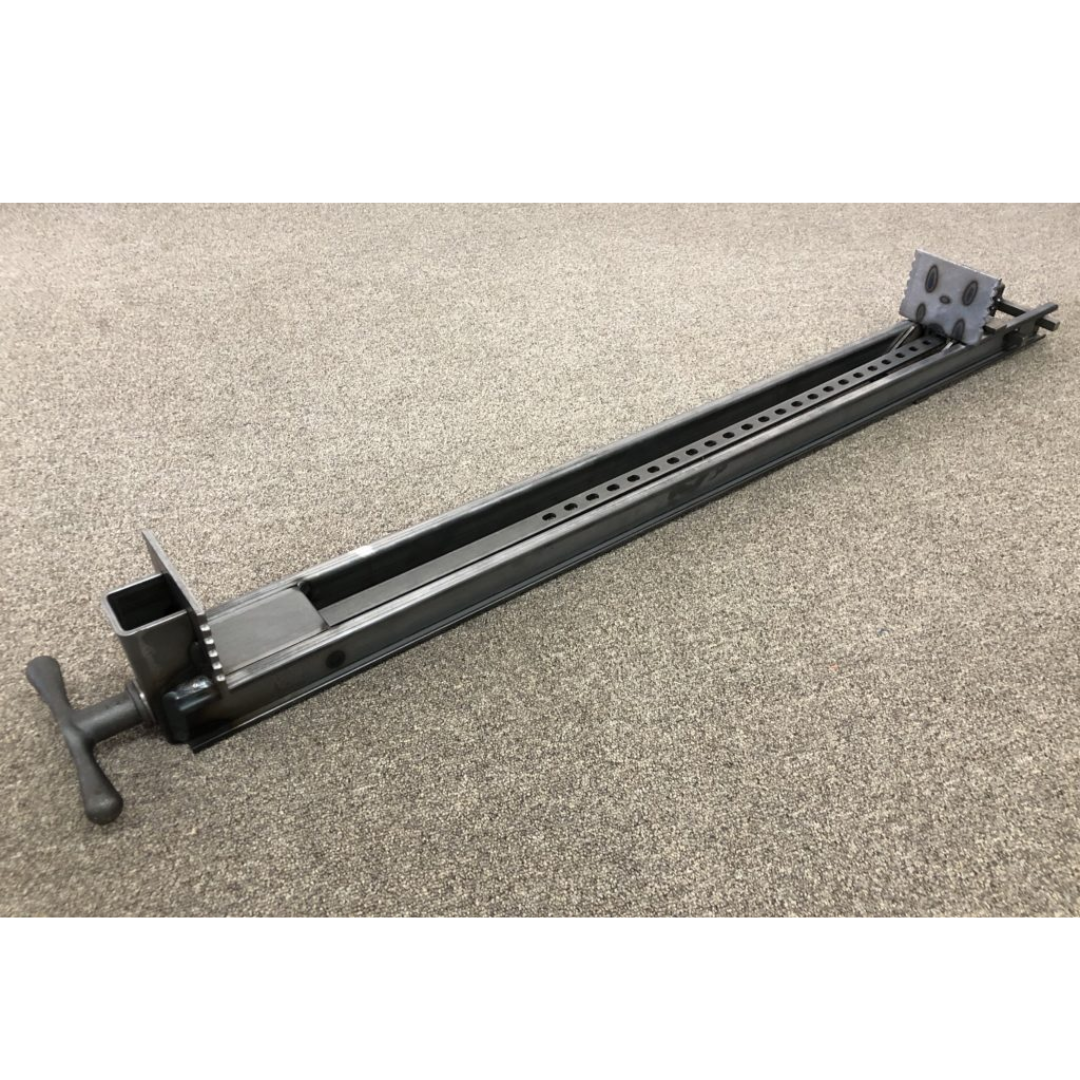

- Flexible clamp sizing with optional 52″ clamps and custom sizes from 32″ to 120″ openings.
- Expandable capacity by placing two units side by side for gluing panels up to 12′ long.

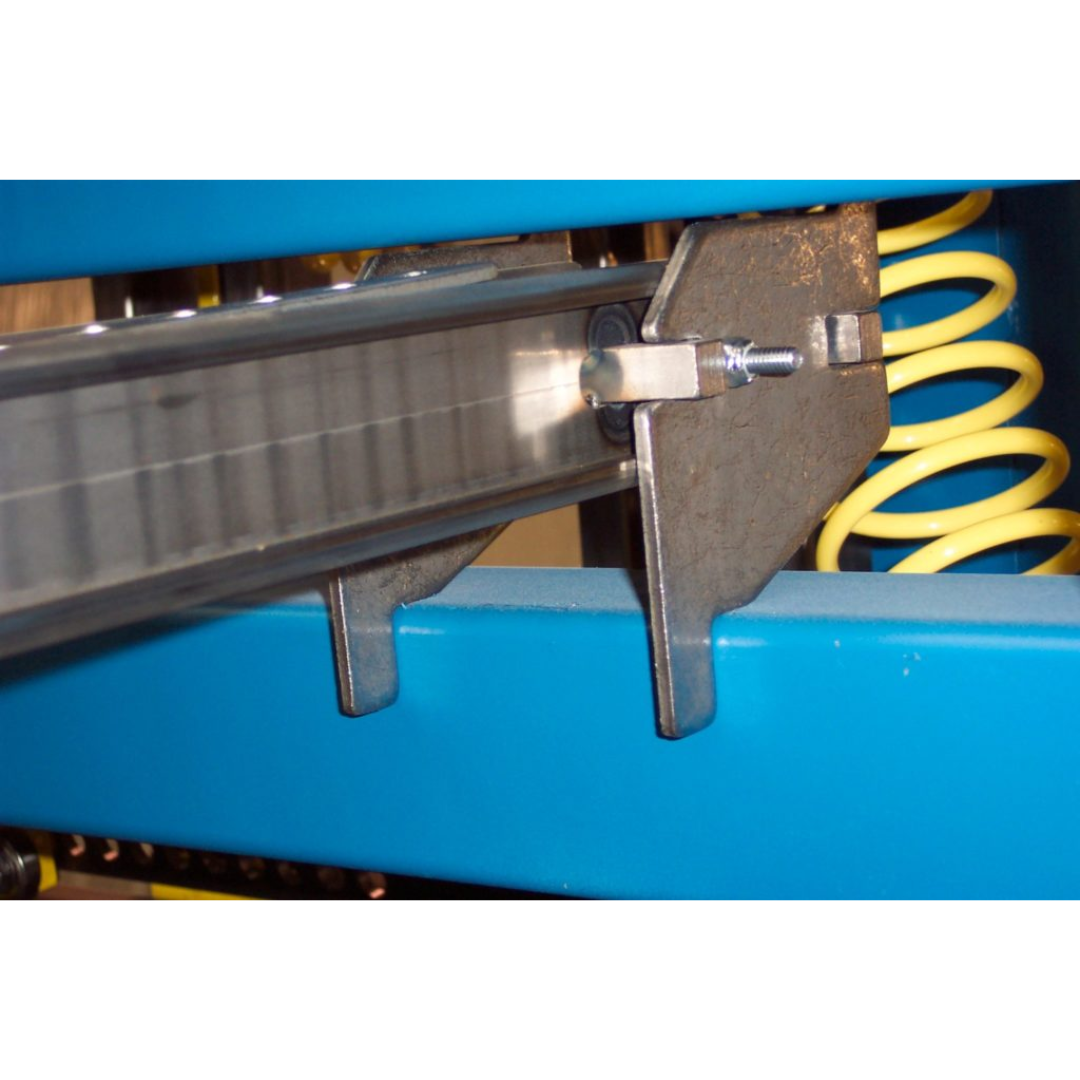

- Quick-adjust mounting system allows clamps to slide and position easily along the rack.
- Guaranteed structural integrity—will not twist, bow, or bend under normal working conditions.
Why Choose the JLT #79F-6-PC 6′ Panel Clamp
- Ideal compact solution for small shops and hobbyists.
- High clamping force with patented equalizer design for better panel quality.
- Versatile for both edge and face gluing applications.
- Expandable system for larger panel production needs.
- Durable, long-lasting steel construction backed by strong warranties.
The JLT #79F-6-PC 6′ Panel Clamp delivers professional-grade panel glue-up performance in a compact, efficient design—making it the perfect solution for shops of any size.
