JLT #718A-8 8′ Buddy System Applications
- Cabinet door and drawer front assembly
- Stile and rail door production with precision squaring
- Edge gluing and face gluing of solid wood panels
- Production of rails, beams, posts, and flooring blanks
- Custom woodworking shops and high-production facilities
Ideal for shops looking to combine door and panel production into one efficient, space-saving system.
JLT #718A-8 8′ Buddy System Specifications
| Model | #718A-8 |
|---|---|
| Door Clamp Capacity | 26″ × 62″ |
| Panel Clamp Width | 8′ |
| Gluing Levels | 5 Total Levels |
| Clamp Quantity | Includes (18) 3 1/2″ High Jaw Clamps |
| Clamp Capacity | 40″ Standard (52″ Optional) |
| Production Output | 100+ Doors/Day & 50+ Panels/Day |
| Machine Footprint | 97″ L × 70″ H × 64″ W |
JLT #718A-8 8′ Buddy System Performance & Construction
- Dual-function clamping system combines door clamping and panel clamping in one machine.
- High production output—produce 100+ cabinet doors and 50+ panels per day.

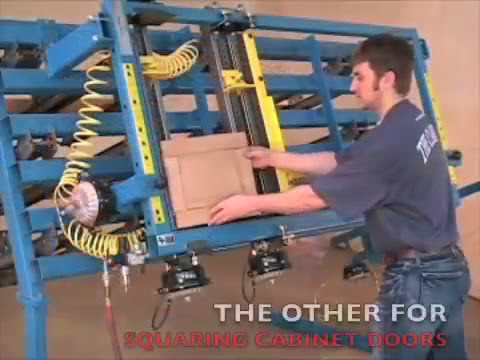

- Door clamp side with 2-second squaring cycle ensures fast, precise cabinet door assembly.
- 26″ × 62″ door capacity supports a wide range of cabinet door sizes.

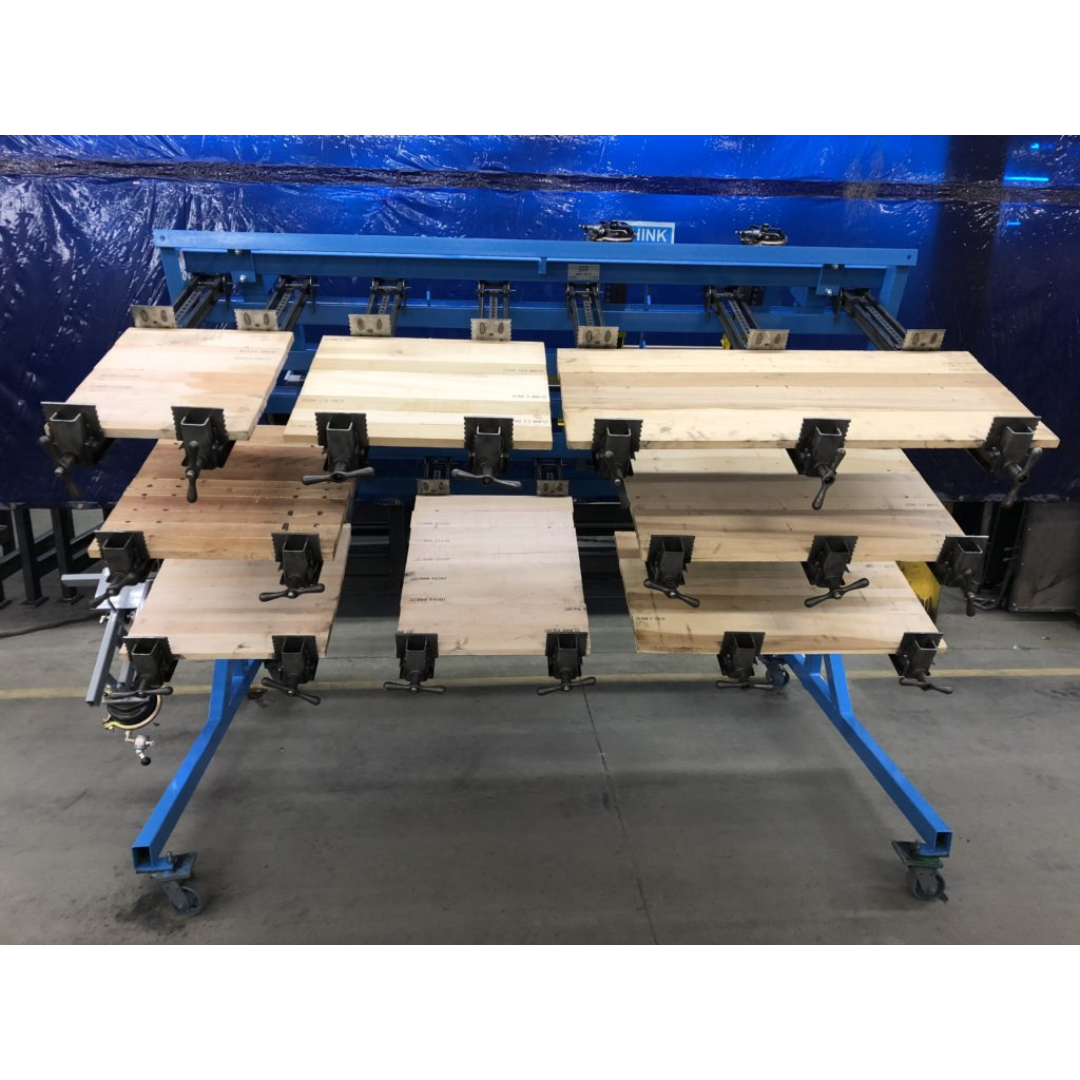

- Panel clamp side with (5) gluing levels increases throughput for panel production.

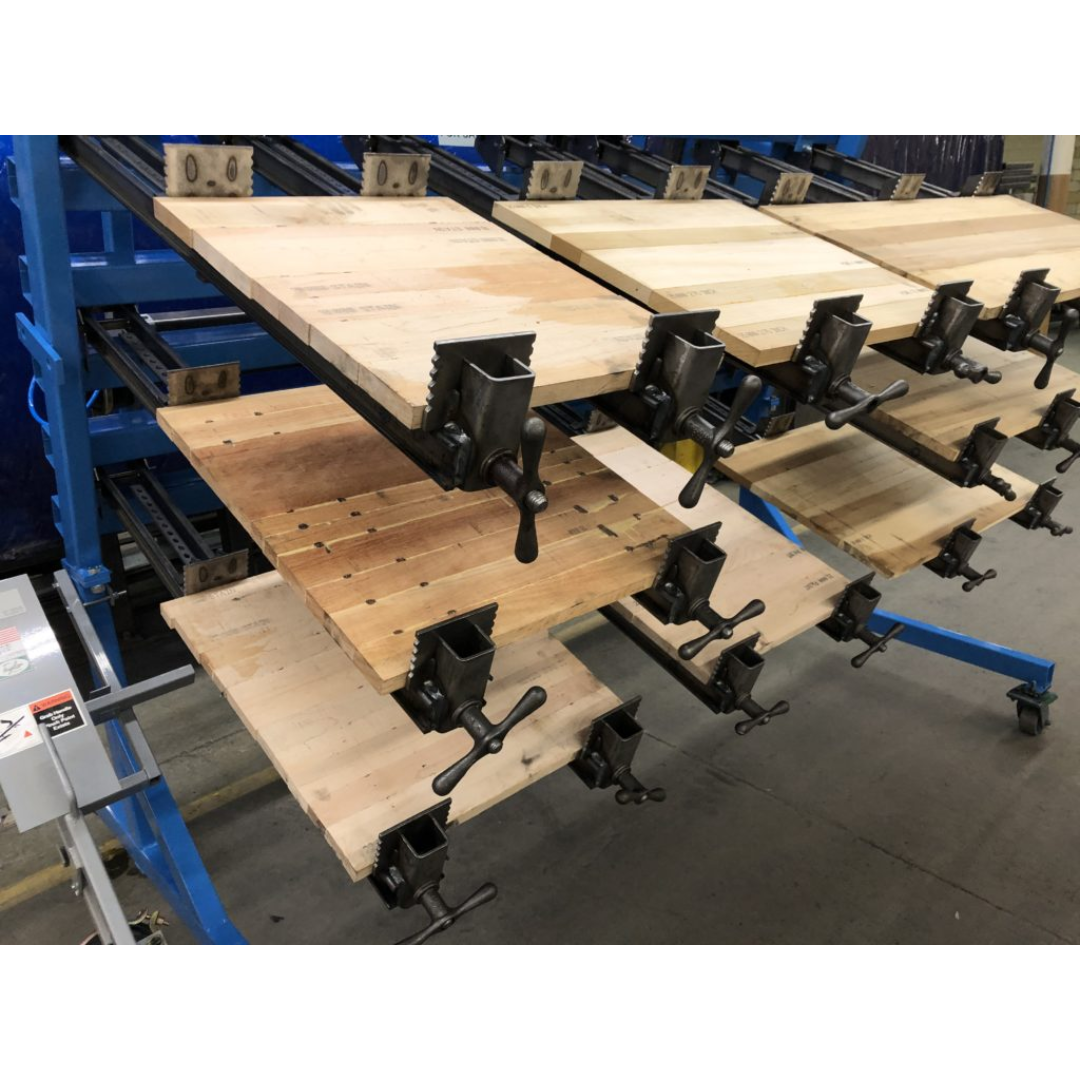

- Includes (18) high jaw clamps for even pressure and consistent glue lines.
- Edge and face gluing capability supports diverse woodworking applications.
- Space-saving vertical clamp storage allows clamps to hang when not in use.
- Single lever operation simplifies workflow and reduces operator fatigue.
- Fast changeovers improve efficiency between different door sizes and panel setups.
- Heavy-duty tubular steel construction ensures long-term durability and structural integrity.
- Expandable production capability by pairing panel clamp systems for longer glue-ups up to 16′.
Why Choose the JLT #718A-8 8′ Buddy System
- Combines two essential machines into one space-saving solution.
- High-output system for both cabinet doors and panels.
- Precision squaring ensures consistent, high-quality results.
- Flexible for a wide range of woodworking applications.
- Durable construction built for long-term production use.
The JLT #718A-8 8′ Buddy System is the ultimate all-in-one clamping solution for woodworking professionals looking to maximize productivity, save space, and maintain precision across both door and panel assembly operations.
