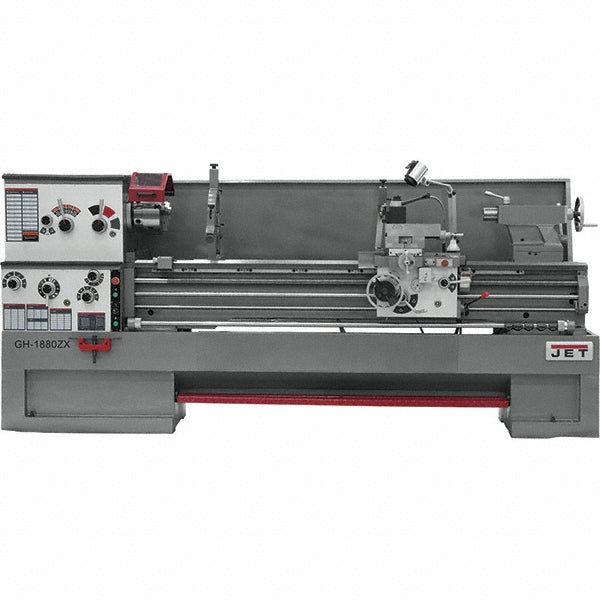

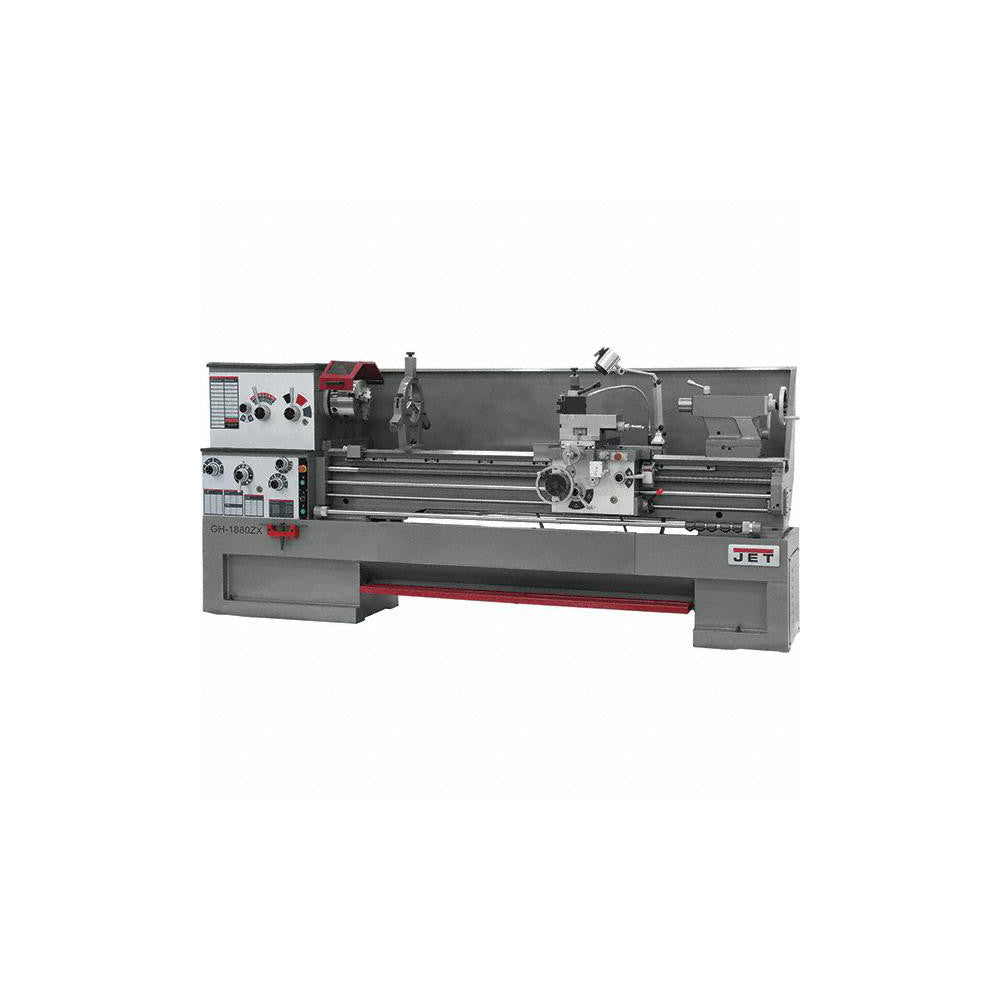

JET GH-1880ZX Lathe Applications
- Heavy industrial machining, large-diameter shaft turning, and precision bored finishing
- Advanced taper machining and complex multi-pass threading workflows
- Processing long-length industrial shafts and oversized bar stock
- Heavy fabrication, toolroom prototyping, and maintenance repair operations
Engineered for professional industrial environments where digital precision, taper flexibility, and high-torque geared head performance are critical for daily production.
JET GH-1880ZX Lathe Specifications
| Stock Number | JT9-321560 |
|---|---|
| Machine Type | Geared Head Toolroom Lathe |
| Electrical Configuration | 230V / 460V, Three-Phase (3Ph) |
| Swing Capacities | 18" Over Bed • 11" Over Cross Slide • 27-1/2" Over Gap |
| Distance Between Centers | 80" |
| Spindle Bore / Nose | 3-1/8" Bore / D1-8 Mount (7MT Spindle Taper) |
| Speed Range | 12 Speeds: 25 – 1,800 RPM (Geared Head) |
| Threading Capacity | 61 Inch Threads (1-5/8 to 72 TPI) / 24 Metric Threads |
| Travels | Cross Slide: 9" • Top Slide: 5-1/8" • Tailstock: 5" |
| Included Accessories | ACU-RITE 203 DRO, Taper Attachment, Work Light |
| Overall Dimensions (L x D x H) | 136-1/8" x 40" x 48-7/8" |
Performance & Engineering Controls
- ACU-RITE 203 DRO Integration allows for instantaneous, high-precision digital positioning, effectively eliminating manual backlash calculations and increasing multi-axis accuracy.

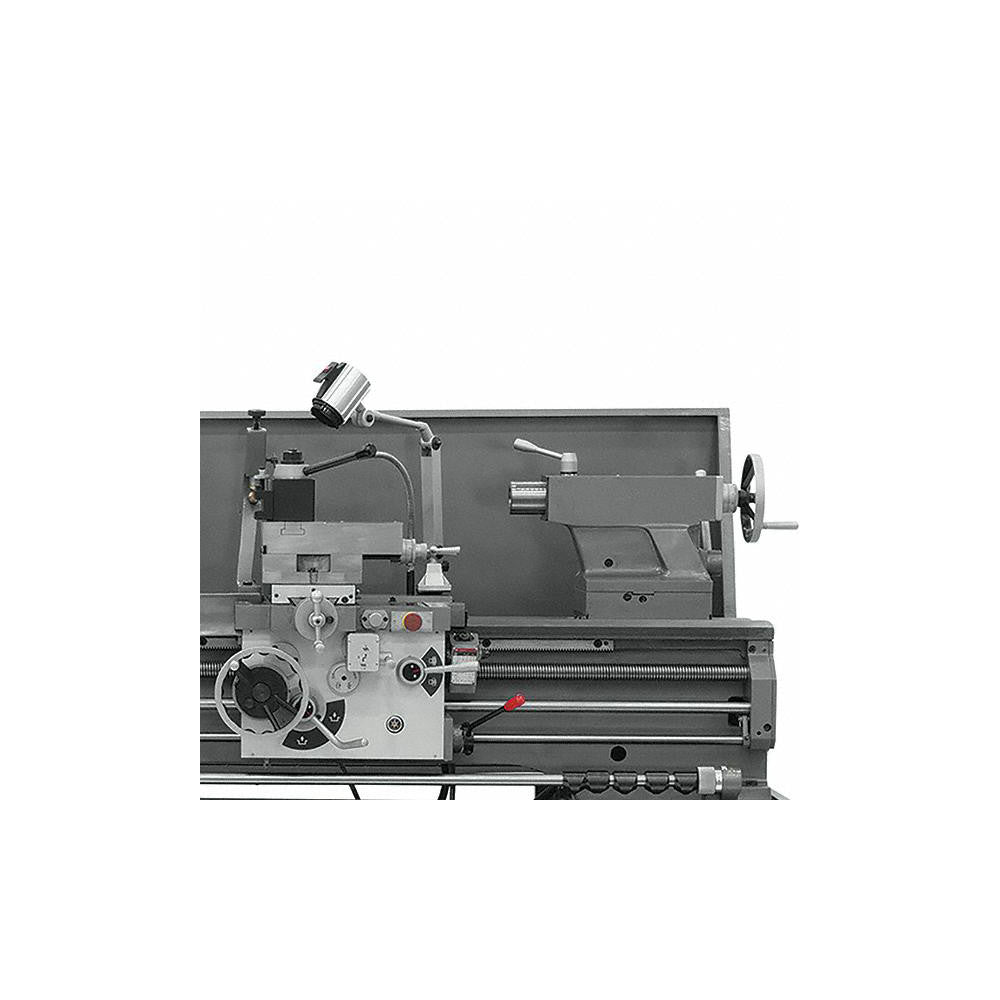

- Industrial Taper Attachment enables the production of consistent, high-fidelity tapers without the repetitive, time-consuming manual offset adjustments required by standard lathes.

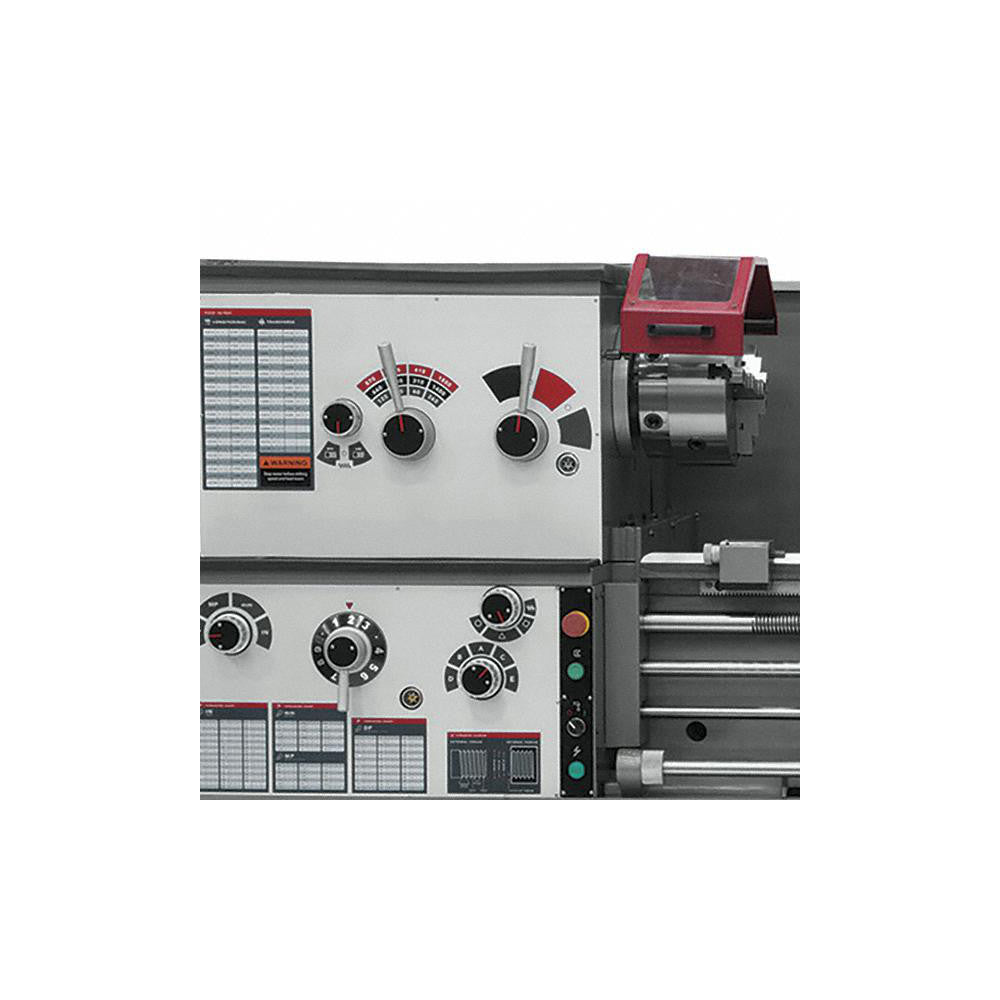

- Heavy-Duty Geared Headstock ensures positive, slip-free power transmission, allowing the machine to maintain constant RPM under heavy, low-speed roughing cuts.
- Massive 3-1/8" Spindle Bore maximizes the versatility of the machine, permitting oversized bar stock and thick shafts to pass safely through the headstock.
- 13-3/8" Wide Induction-Hardened Bed provides the necessary structural mass to dampen harmonic vibrations, ensuring flawless surface finishes even under aggressive load.
- Comprehensive Threading & Feed Gearbox is factory-configured to provide a vast selection of 61 Inch and 24 Metric threads for global compatibility.
Why Invest in This JET Lathe Package
- Turnkey performance bundle eliminates the need for expensive aftermarket DRO and taper modifications, maximizing operational efficiency immediately.
- Unrivaled structural rigidity and massive center capacity accommodate long drive shafts and industrial workpieces with ease.
- 3-Phase power architecture provides the industrial-grade torque required for relentless, continuous-duty manufacturing cycles.
- Supported by a comprehensive design that features an integrated work light and versatile D1-8 spindle nose for fast-change chuck and faceplate setups.
The JET GH-1880ZX provides the essential combination of massive physical capacity, digital precision feedback, and heavy-duty geared torque that defines the modern industrial toolroom.
