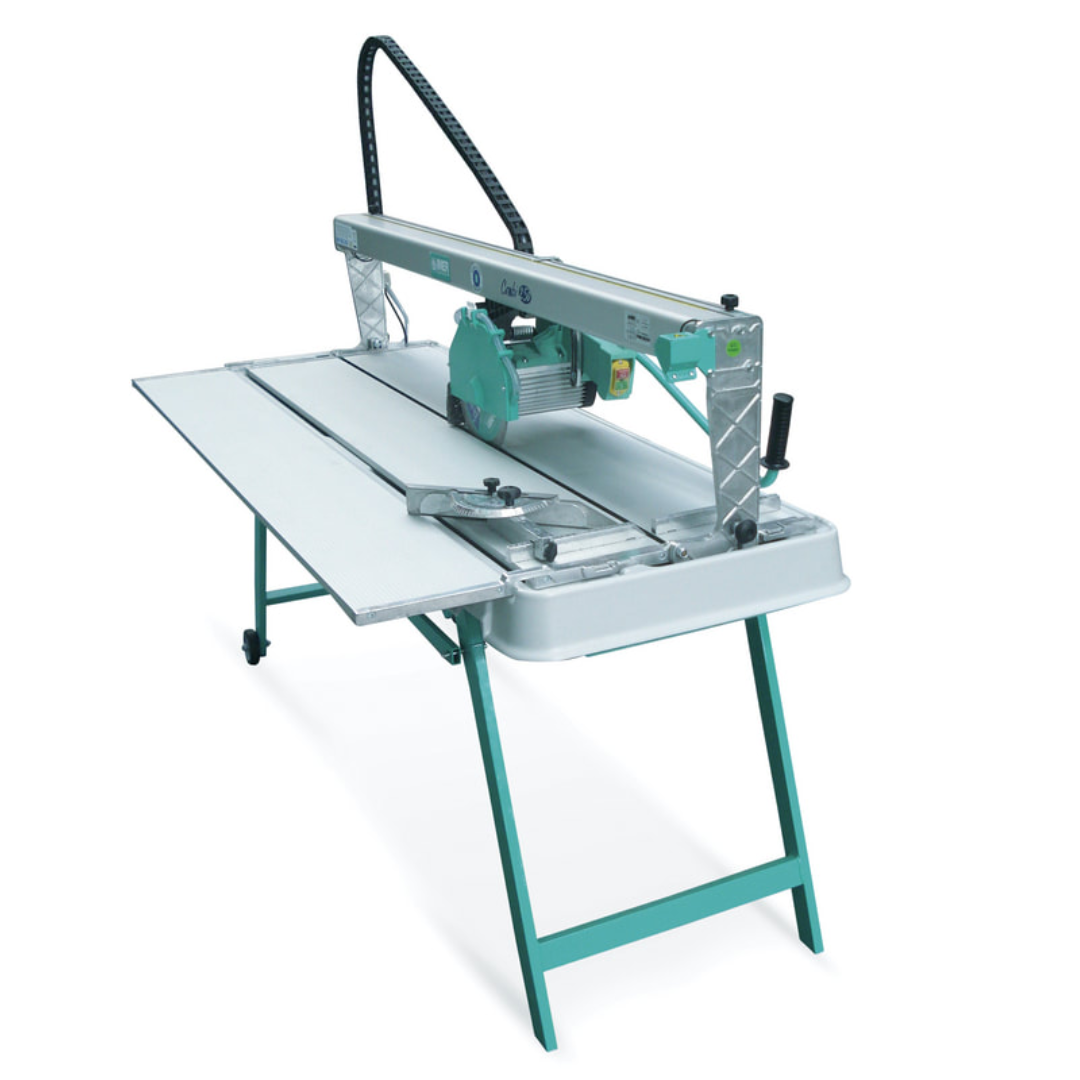

IMER COMBICUT 250/1500 Overhead Rail Saw Applications
- Large format porcelain and ceramic tile installations
- Professional flooring and wall tile cutting applications
- Commercial and residential remodeling projects
- Precision miter and angle cutting for finishing work
- Stone, masonry, and hard material wet cutting operations
- Kitchen, bathroom, and oversized tile installations
- Contractors requiring extended cutting capacity for large materials
- Jobsite cutting stations demanding portability and precision
The IMER COMBICUT 250/1500 Overhead Rail Saw is ideal for professionals who require oversized tile cutting capacity, precision rail-guided accuracy, and advanced wet cutting performance for demanding applications.
IMER COMBICUT 250/1500 Overhead Rail Saw Specifications
| Model Number | 1188180 |
|---|---|
| Product Type | Overhead Rail Wet Saw |
| Blade Diameter | 10 in |
| Blade Shaft Diameter | 5/8 in |
| Maximum Cut Length | 57 in |
| Maximum Cut Length with Plunge | 60 in |
| Maximum Cutting Depth | 3.75 in |
| Motor Rating | 1.75 HP / 120V |
| Electrical Requirements | 110V / 60Hz / Single-Phase |
| Blade Speed | 2,800 RPM |
| Water Pan Capacity | 13 Gallons |
| Water Pump Flow | 3 GPM |
| Machine Dimensions (L × H × W) | 76 in × 24 in × 25 in |
| Operating Weight | 125 lbs |
| Boxed Weight | 150 lbs |
| Included Blade | 10 in Continuous Rim Porcelain Blade |
IMER COMBICUT 250/1500 Overhead Rail Saw Features & Performance
- Extended 57-inch cutting capacity supports large format tile and oversized material applications commonly used in modern residential and commercial installations.
- 60-inch plunge cutting capability increases cutting flexibility for specialty cuts and oversized material handling.
- Precision overhead rail system delivers smooth blade travel and highly accurate straight, angle, and miter cuts for professional finishing results.
- Powerful 1.75 HP motor provides dependable cutting power for porcelain, ceramic, masonry, and hard material applications.
- Integrated laser guide system improves cutting accuracy and speeds up alignment for fast, repeatable cutting performance.
- 10-inch continuous rim porcelain blade included helps create clean finished cuts while minimizing chipping on delicate materials.
- 2,800 RPM blade speed ensures smooth cutting operation and consistent professional edge quality.
- Integrated stand with wheel kit allows easier transportation and quick positioning around the jobsite.
- Included side support table provides additional support for oversized tiles and large format materials.

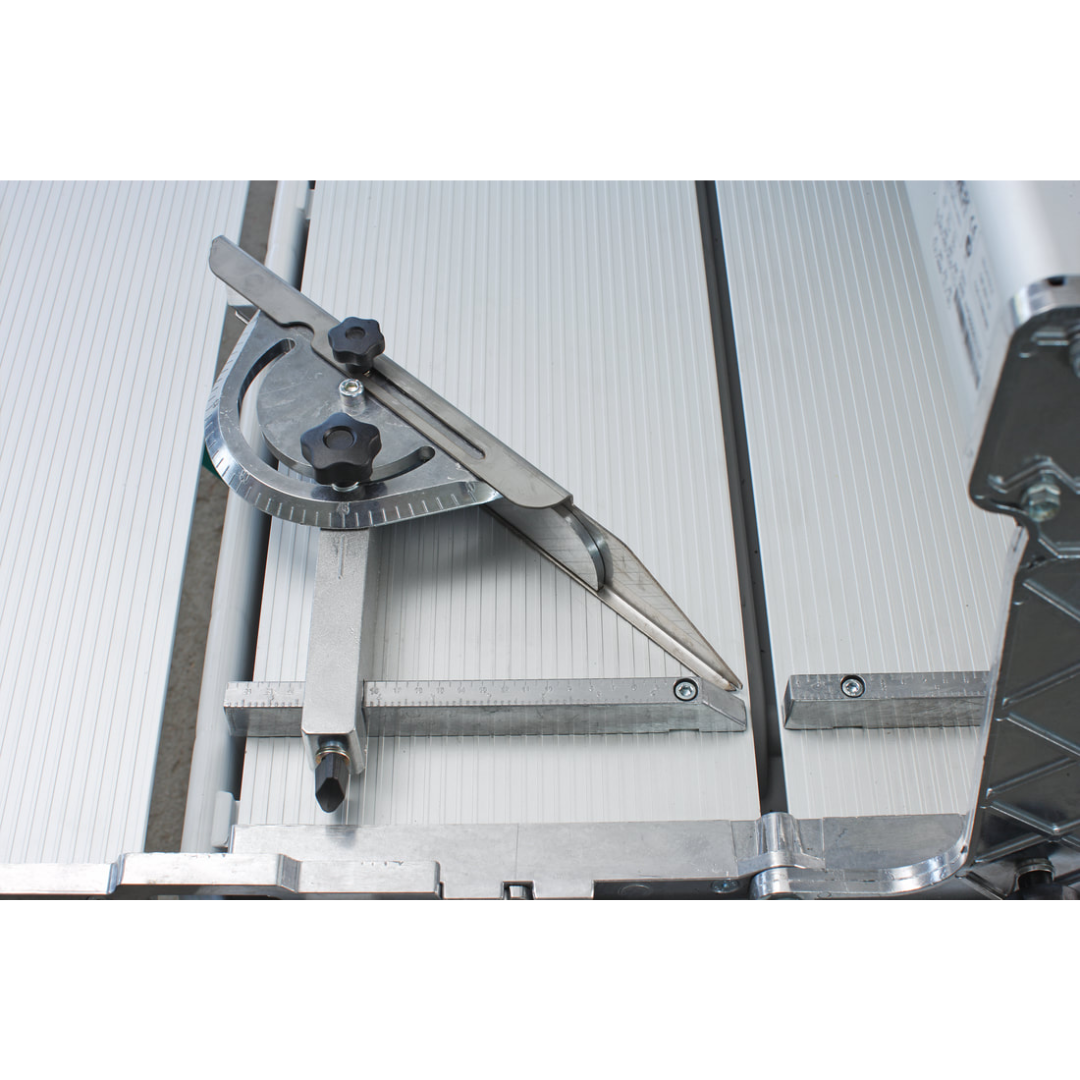

- 180-degree protractor guide enables accurate angle cutting and precision miter applications.
- High-flow water pump system continuously cools the blade while helping reduce airborne dust and improve blade life.
- Adjustable water control valve allows operators to manage water flow and minimize excess mist during cutting operations.
- High-impact removable poly water pan with integrated baffle improves water containment, simplifies cleaning, and enhances jobsite efficiency.
- Lightweight portable construction keeps the saw manageable for transportation despite its large cutting capacity and professional feature set.
- Minimal assembly required with nearly complete factory assembly and only two bolts needed for stand installation.
IMER COMBICUT 250/1500 Overhead Rail Saw Standard Equipment
- 10-inch continuous rim porcelain blade included
- Integrated stand with wheel kit
- Large side support table for oversized tile materials
- 180° protractor guide
- Laser cutting guide system
- High-flow water pump assembly
- Adjustable water control valve
- High-impact removable poly water pan with integrated baffle
- Professional wet cutting setup ready for operation
The IMER COMBICUT 250/1500 Overhead Rail Saw includes advanced cutting accessories and professional wet cutting components designed to maximize cutting precision, productivity, and mobility on demanding jobsites.
IMER COMBICUT 250/1500 Overhead Rail Saw Replacement Blade Information
| Part #1193922 | 10 in × .060 Continuous Rim Porcelain & Hard Materials Blade |
|---|---|
| Part #1193932 | 10 in × .110 Segmented Premium Masonry Blade |
| Part #1193942 | 10 in × .110 Concrete Turbo Blade with Teardrop Gullets |
| Applications | Porcelain, tile, ceramic, masonry, stone, and concrete cutting |
Why Choose the IMER COMBICUT 250/1500 Overhead Rail Saw
- Massive 57-inch cutting capacity for oversized tile applications
- 60-inch plunge cutting capability for specialty material handling
- Precision overhead rail system for highly accurate professional cuts
- Integrated laser guide improves alignment and cutting efficiency
- Portable wheel kit and stand simplify transportation and setup
- High-flow wet cutting system improves blade cooling and dust reduction
- Complete professional accessory package included
- Excellent solution for commercial and residential large format installations
The IMER COMBICUT 250/1500 Overhead Rail Saw delivers professional-grade cutting precision, oversized material capacity, and advanced wet cutting performance in a portable system designed for serious tile and masonry contractors.
